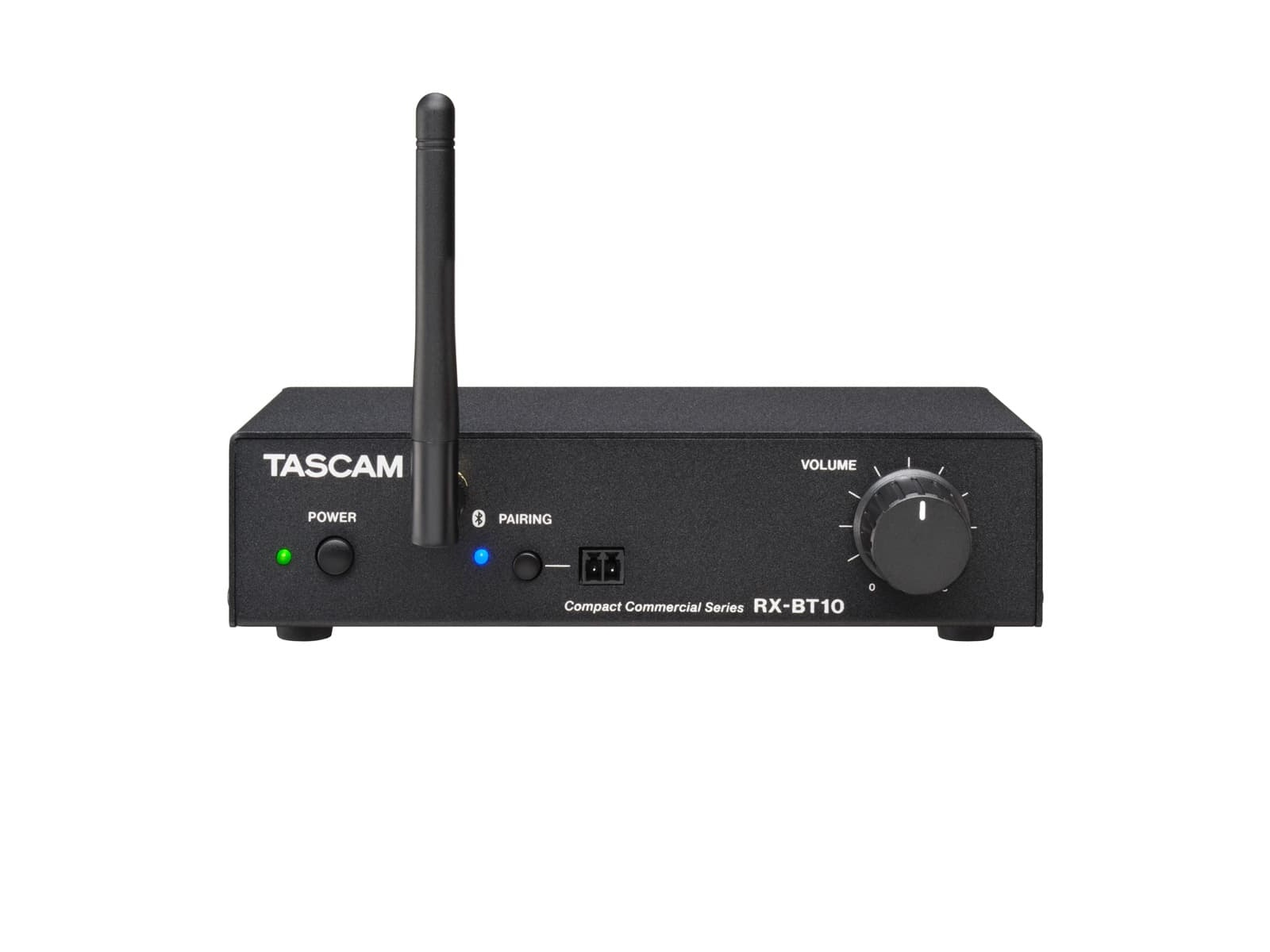

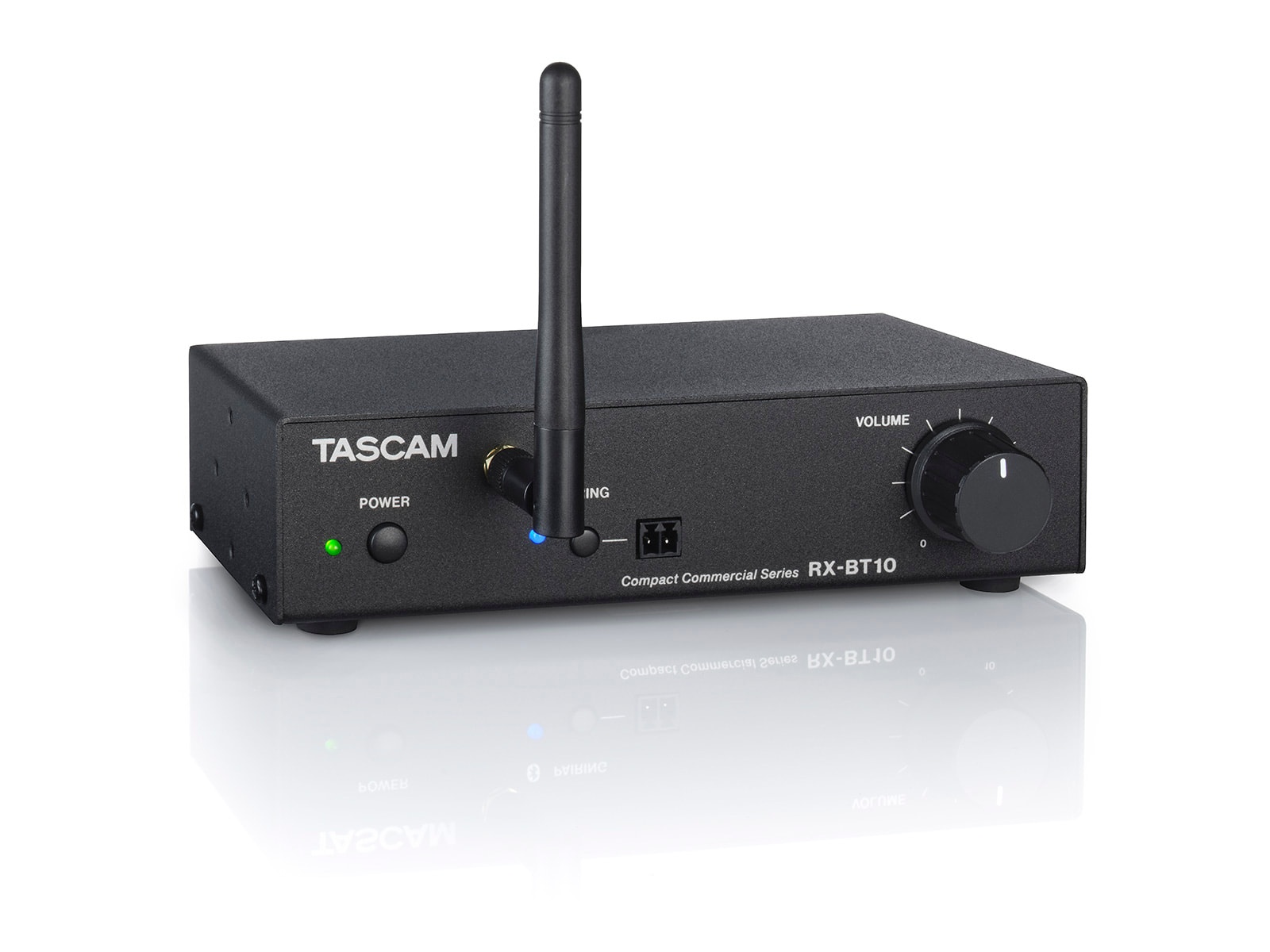

TASCAM RX-BT10 Compact Stereo Bluetooth 5.1 Class 1 Receiver / XLR Balanced / RCA Unbalanced / Antenna

Description

The RX-BT10 is a compact stereo Bluetooth receiver designed to add wireless audio to professional installations. It receives Bluetooth 5.1 Class 1 signals to provide extended-range connectivity and stable reception in a variety of venues. This unit converts Bluetooth audio to high-quality analog outputs suitable for mixing consoles, amplifiers, and powered speakers.

Key features include Bluetooth 5.1 Class 1 radio performance, balanced XLR outputs and unbalanced RCA outputs, an extendable external antenna, and support for a remote pairing button. The front-panel antenna and Class 1 output class contribute to improved reception and longer unobstructed transmission range under ideal conditions. Each connected receiver generates a unique identifier that can be renamed on the connected mobile device.

Audio performance is tuned for professional use with a frequency response of 20Hz ~ 20kHz within +0.5dB/-1dB and THD+N at 0.04% or less at 1kHz at maximum output. Signal-to-noise ratio is 90 dB or greater and channel separation exceeds 100 dB, providing clean stereo reproduction. Supported Bluetooth profiles include A2DP and AVRCP and supported codecs are SBC and AAC.

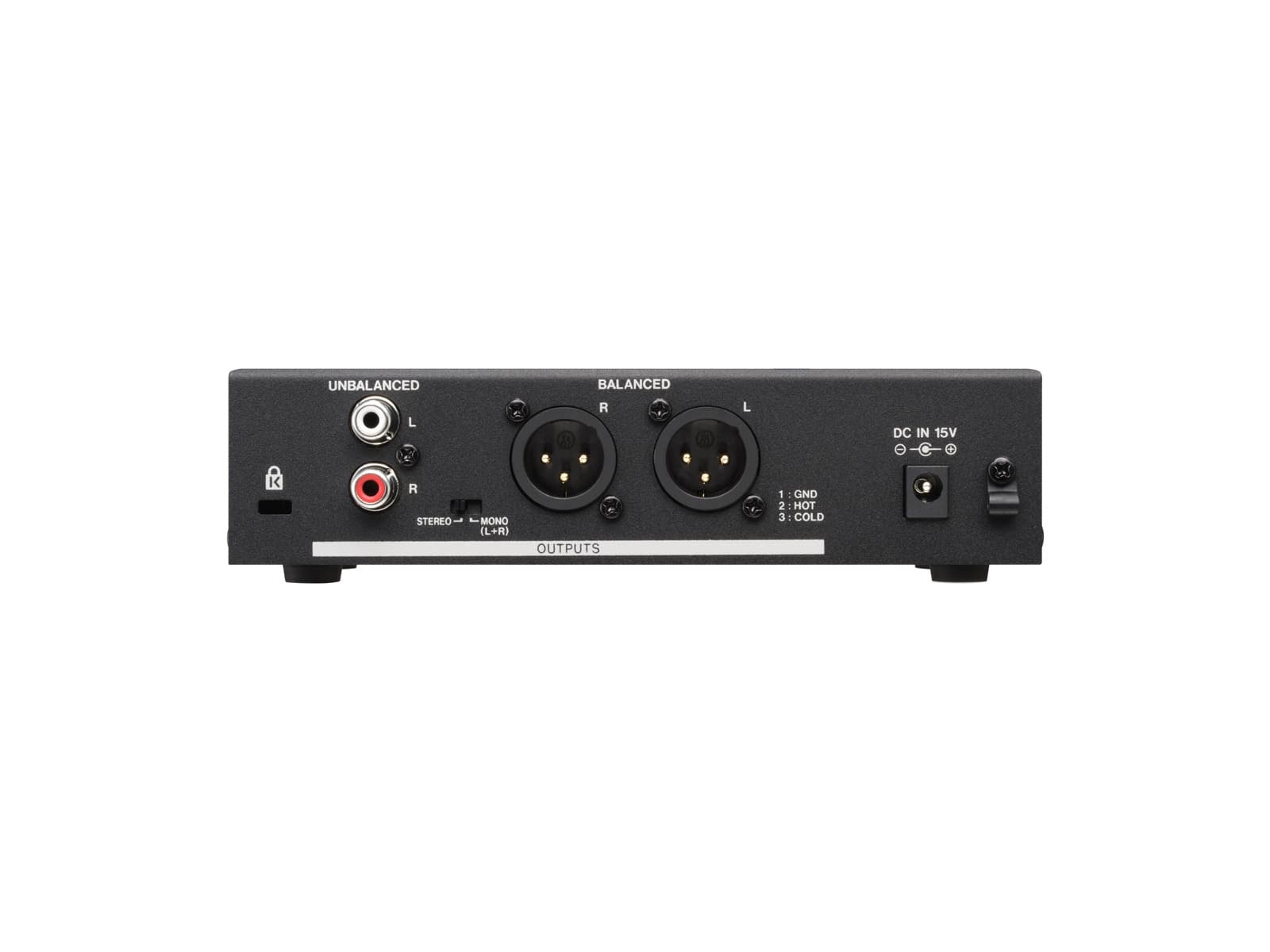

Connectivity covers both balanced and unbalanced analog outputs to integrate with professional and consumer gear. The balanced XLR outputs provide a nominal level of -2 dBu and a maximum output level of +14 dBu, while the RCA outputs provide nominal -10 dBV and maximum +6 dBV. The device is powered by a dedicated PS-M1524 AC adapter and accepts AC100 – 240V input for global installations.

The RX-BT10 is suited to a wide range of applications including mobile events, classrooms, hotel AV systems, retail spaces, conference rooms, and banquet halls. Its compact, lightweight design makes it easy to move between locations while the balanced outputs and sturdy enclosure make it appropriate for fixed installs. Each unit can be assigned a unique Bluetooth ID to simplify device management in multi-unit deployments.

Installation is straightforward using the included mounting brackets and hardware or by placing the unit on a shelf. The rugged metal enclosure and dedicated mounting points on top and bottom panels support secure installation and long-term reliability. Remote pairing button support and the extendable antenna add convenience and flexibility during setup and day-to-day operation.
