TASCAM DR-05XP 2-Channel 32-Bit Float Portable Recorder / USB-C Interface / 96kHz

Description

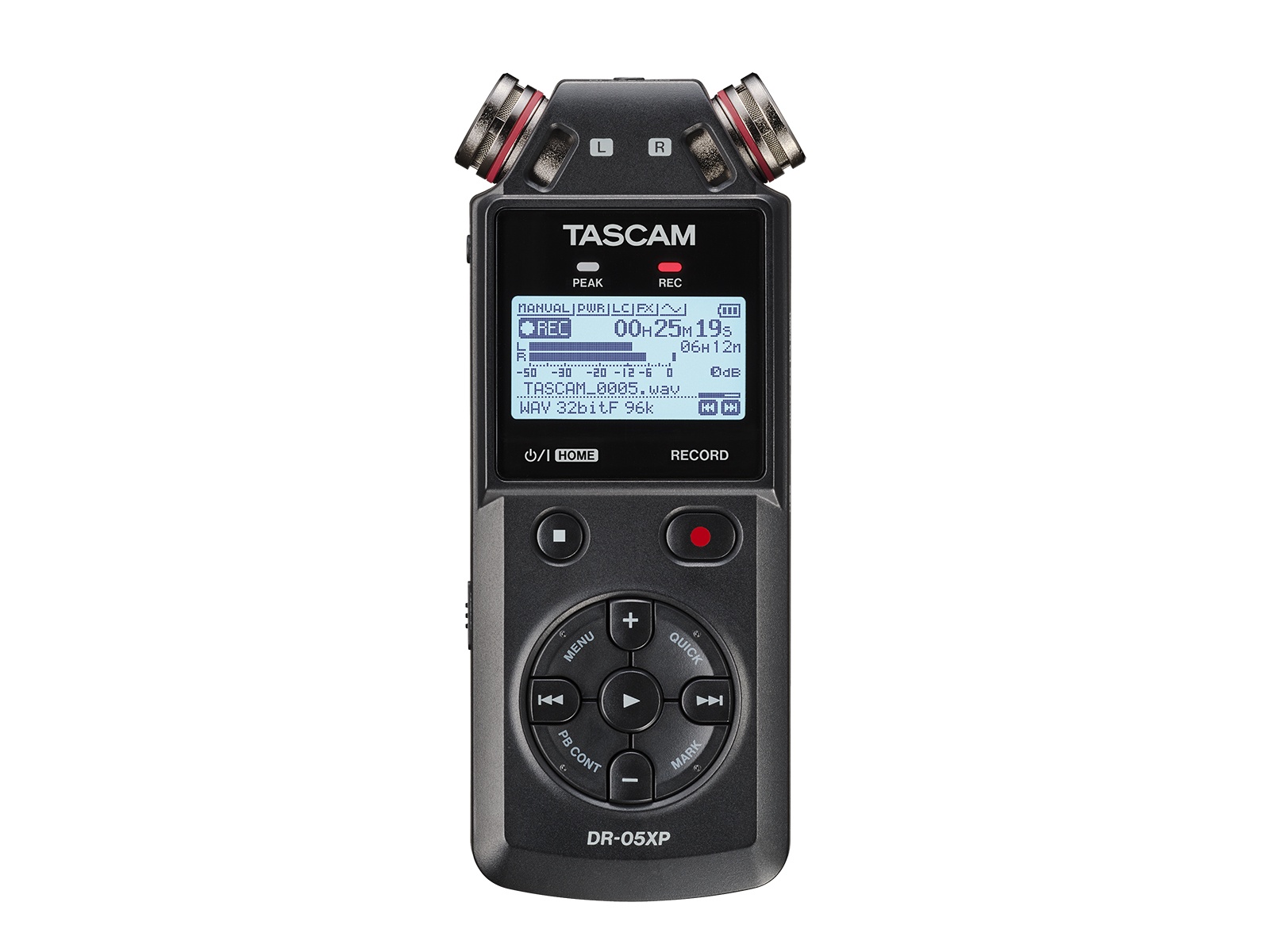

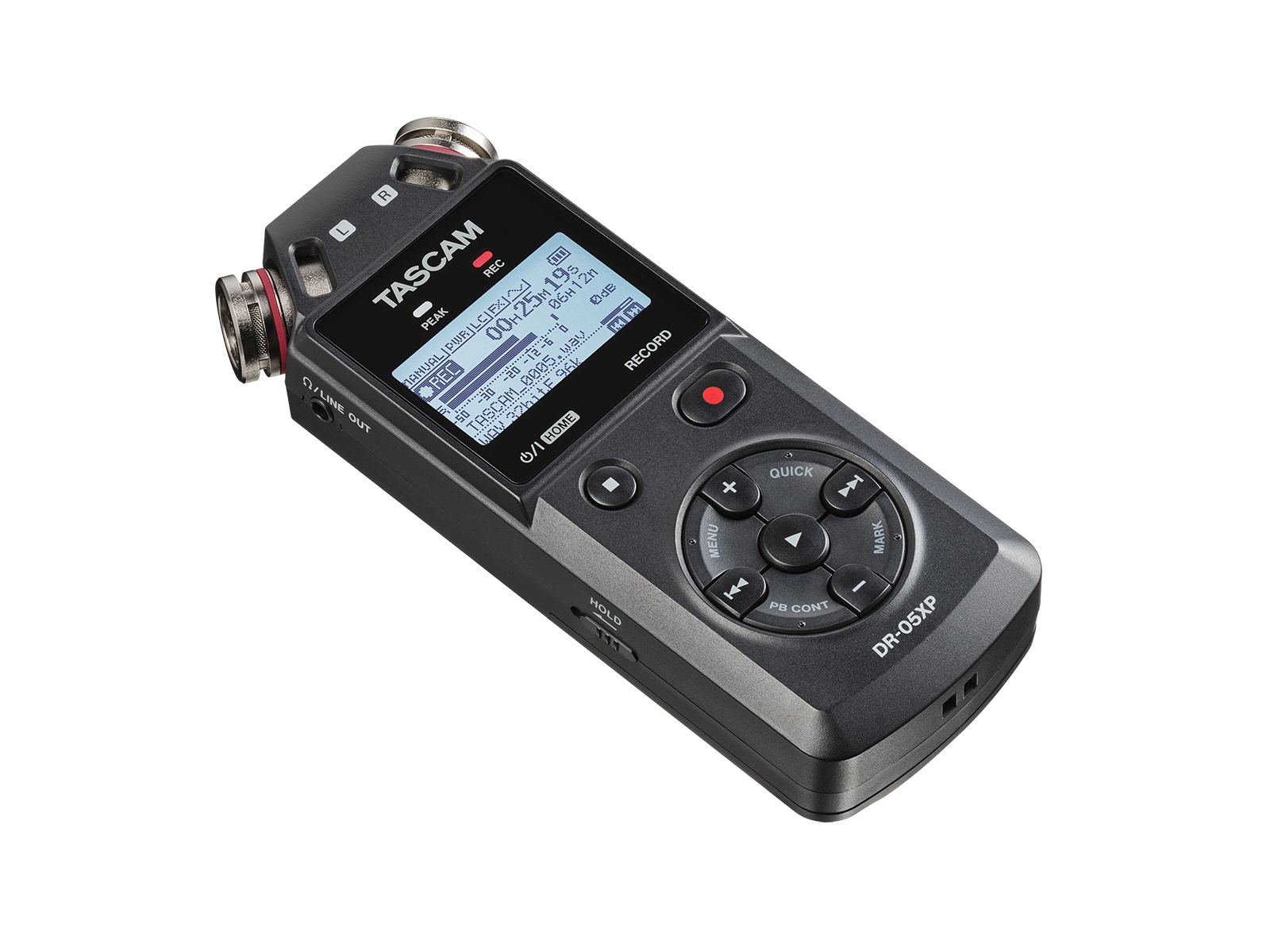

The DR-05XP is a compact 2-channel handheld audio recorder designed to capture professional-grade recordings with minimal setup. It features built-in omnidirectional condenser microphones and supports 32-bit float recording to eliminate clipping concerns. This unit records to microSDXC cards up to 512 GB and operates on two AA batteries for extended field use.

Key features include selectable recording formats: 32-bit float, 24-bit, 16-bit and MP3 at 96 kHz, 48 kHz, and 44.1 kHz. The built-in mics tolerate high sound pressure levels up to 125 dB SPL so loud sources remain clean. Additional tools like a tuner, reverb, and overdub functions expand creative options for musicians and content creators.

Technical performance delivers a wide frequency response and low distortion. The recorder offers WAV (BWF) and MP3 file formats, a 24-bit USB audio interface for 2-in/2-out streaming at 44.1 kHz or 48 kHz, and a THD+N of 0.01% or less. Battery operation provides up to about 17.5 hours depending on format and battery type.

Connectivity includes a 3.5 mm MIC/EXT IN jack with optional plug-in power, a 3.5 mm PHONES/LINE OUT jack, and a USB Type-C port for mass storage and USB audio. The unit supports external microphones with plug-in power and can output Auto Tone to cameras for simplified audio post-production. It also mounts to standard tripods for location recording.

Practical applications span music demos, field recording, interviews, video production, and meetings. The DR-05XP captures dialogue, instruments, and ambient sound reliably thanks to its mic design and 32-bit float capability. The compact footprint and long battery life make it suitable for extended sessions away from studio power.

The DR-05XP is easy to operate one-handed using a backlit LCD and simple controls, reducing setup time on location. Its sturdy build and straightforward USB-C connectivity streamline workflows between field recording and DAW editing. Overall, the unit delivers professional audio capture and flexible interfacing in a portable package.
