Kramer WM-8P 8 in Two-way Passive Wall-mounted Speaker / 8 ohm or 70V/100V / 60W

Description

The WM-8P is an 8 in two-way passive wall-mounted speaker designed to deliver clear voice reproduction and full-range background music in commercial indoor spaces. It combines a polypropylene 8 in low-frequency driver and a 1 in liquid-cooled soft-dome tweeter to provide balanced coverage. The speaker supports both low-impedance and high-impedance modes to fit a range of audio systems.

Key features include selectable 8 ohm low-impedance operation and multiple 70V/100V transformer taps for distributed systems. Rated at 60W continuous and 80W peak in 8 ohm, the WM-8P achieves a nominal sensitivity of 90dB and a maximum SPL of 108dB continuous. The dispersion characteristics provide broad coverage for conferencing and background music applications.

Technical specifications include a frequency response of 79Hz to 20kHz ±3dB and a frequency range of 60Hz to 20kHz at -10dB. The low-frequency driver is 200 mm with a polypropylene cone and rubber surround while the high-frequency driver is 25 mm with a liquid-cooled soft dome. Multiple high-impedance taps are provided: 60W/30W/15W @100V and 60W/30W/15W/7.5W @70V.

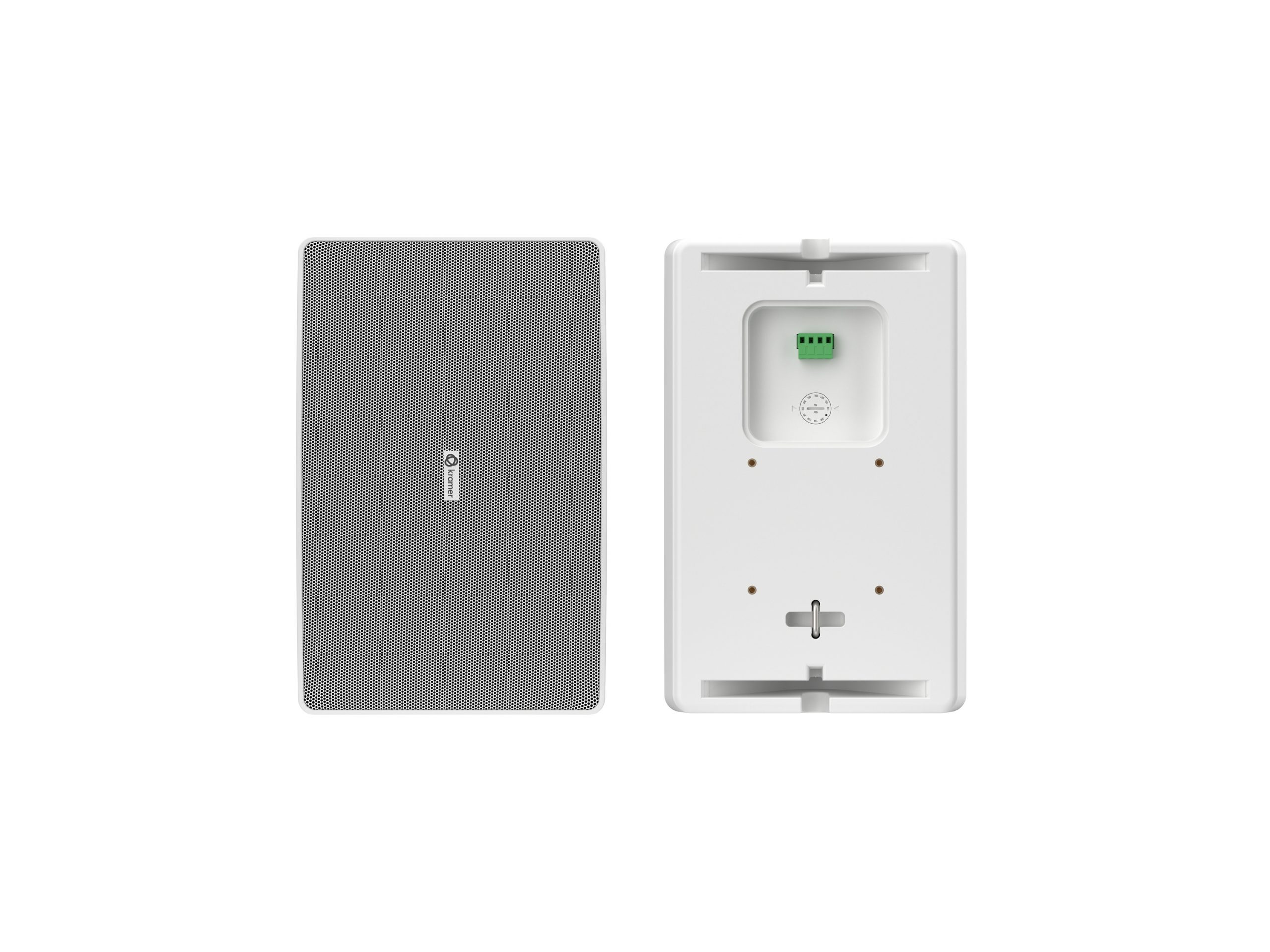

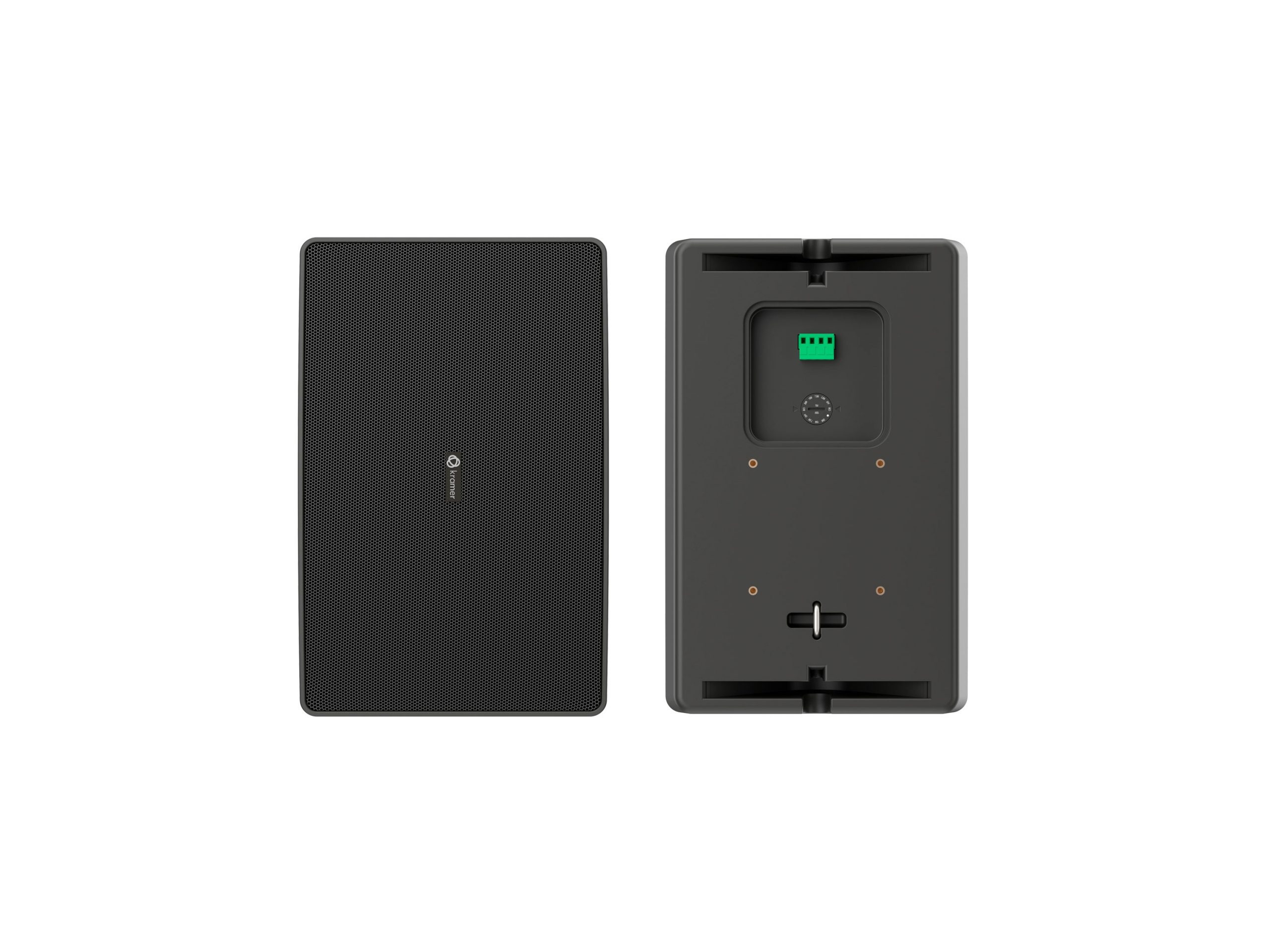

Connectivity is via a 4-pin pluggable Euroblock connector compatible with 28–12 AWG conductors. The enclosure integrates Kramer EasyMount hardware for horizontal, vertical or corner installations and includes standard 75 mm VESA mount threads for alternative mounting. The speaker is supplied in eco-friendly mono-material packaging and is available in black or white finishes.

Typical applications include conference rooms, auditoriums, retail spaces, restaurants and transportation hubs requiring combined music and paging. The WM-8P is tuned for intelligible speech and smooth music reproduction in mixed-use public environments. Its SPL capability and multiple transformer taps make it suitable for both small rooms and larger distributed systems.

Installation and operation emphasize straightforward mounting and system integration. The hidden EasyMount bracket supports rapid orientation changes and the removable front logo simplifies aesthetic customization. Built to commercial specifications, the WM-8P meets regulatory and environmental standards for reliable long-term use.
