Description

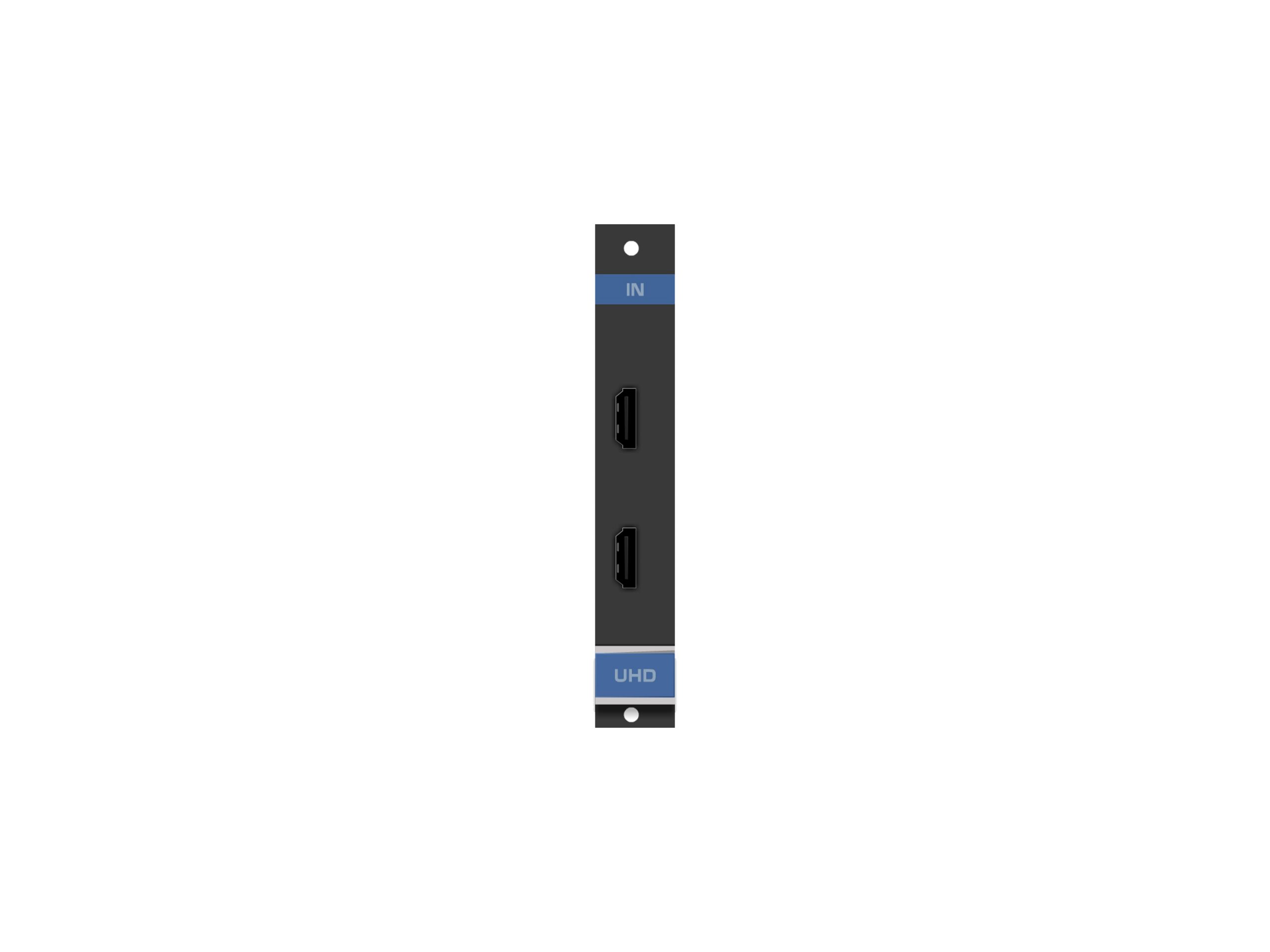

The UHD-IN2-F16 is a two-channel HDMI input card designed for modular multi-format digital matrix systems. It accepts two HDMI sources and delivers 4K@60Hz 4:2:0 signals into a compatible chassis. The card is engineered for integration into professional AV matrices where high-resolution HDMI inputs are required.
The card supports 4K60 4:2:0 video at a total data rate of 8.91Gbps and 2.97Gbps per graphics channel. Audio formats supported include Dolby TrueHD, Dolby Digital Plus, DTS-HD and 7.1 multi-channel audio. Additional features include ARC support, 3D pass-through, EDID capture, and Kramer equalization and re-clocking technology.
Performance specifications include a maximum resolution of 4K@60Hz 4:2:0 and HDMI bandwidth of 8.91Gbps. Maximum cable reach is 10m for 4K60 4:2:0 or 4K30 4:4:4 and 15m for 1080p 12-bit deep color. The card is HDCP 1.4 compliant and HDTV compatible to ensure interoperability with a broad range of displays.
Connectivity comprises two HDMI input ports and full support for HDMI features such as Deep Color and x.v.Color. The card can capture and store EDID from connected displays to simplify source configuration. Compatibility extends to professional matrix chassis that accept the module form factor.
Typical applications include broadcast monitoring, presentation systems, production facilities, and rental/staging installations where multiple HDMI sources are routed into a centralized matrix. The input card is suitable for systems requiring 4K signal ingestion and professional audio pass-through. It supports workflows that require reliable HDMI input handling and format compatibility.
Installation is plug-in within a compatible modular chassis and requires no user calibration for standard operation. The card operates between 0 to +40 C and meets CE safety compliance as well as RoHS and WEEE environmental requirements. The compact form factor and low power consumption simplify system integration and rack planning.
