Description
The HDCP-IN2-F16 is a two-channel HDMI over DVI input card designed for modular matrix chassis. It accepts two HDMI/HDCP sources and delivers protected digital video into a VS-1616 Series frame. The card provides HDMI support and HDCP compliance for secure content distribution.
This input card features a total data rate of 6.75Gbps with 2.25Gbps per channel, allowing full bandwidth for each graphic channel. It supports 3D pass-through to maintain frame-accurate 3D content where required. The card uses DVI-D Molex 24-pin connectors for reliable digital connections.
Performance-wise the module consumes 5W and operates in typical AV room temperatures from 0 deg to +40 deg C. Storage range extends from -40 deg to +70 deg C, and the unit tolerates 10% to 90% relative humidity non-condensing. The card meets HDCP and HDMI standards and is CE and FCC compliant.

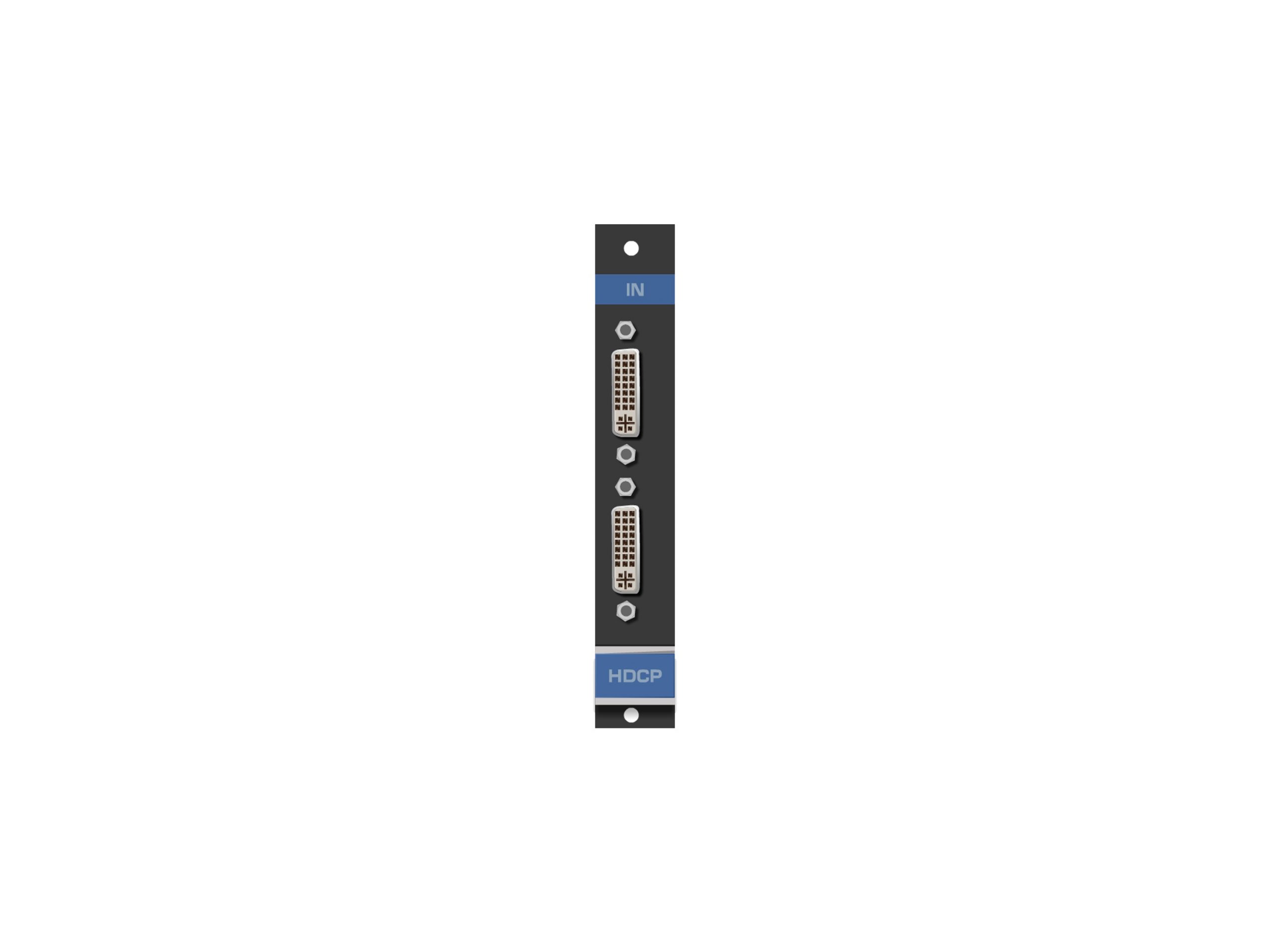

Connectivity is provided via two DVI-D on DVI Molex 24-pin female connectors that accept HDMI-over-DVI signals. The card is compatible with VS-1616 Series modular multi-format digital matrix switchers and accepts protected HDMI sources. No external power cabling is required beyond the host chassis card slot, simplifying system wiring.
Typical applications include conference rooms and rental and staging environments where multiple HDMI sources must be managed in a modular matrix. The HDCP-IN2-F16 maintains HDCP compliance for secured content playback and supports 3D media when integrated into a compatible system. It is suited to installations that require reliable HDMI input capture inside a centralized chassis.
Installation is straightforward – insert the card into the designated slot in a compatible chassis and secure it per chassis instructions. The card’s compact dimensions and low weight simplify handling and reduce rack space impact inside the frame. Kramer quality and regulatory compliance provide confidence in long-term operation and system integration.
