Kramer DTAXR-OUT4-F32/STANDALONE HDBaseT 4-Output 4K HDMI / Analog Audio Embed/De-embed / 100m

Description

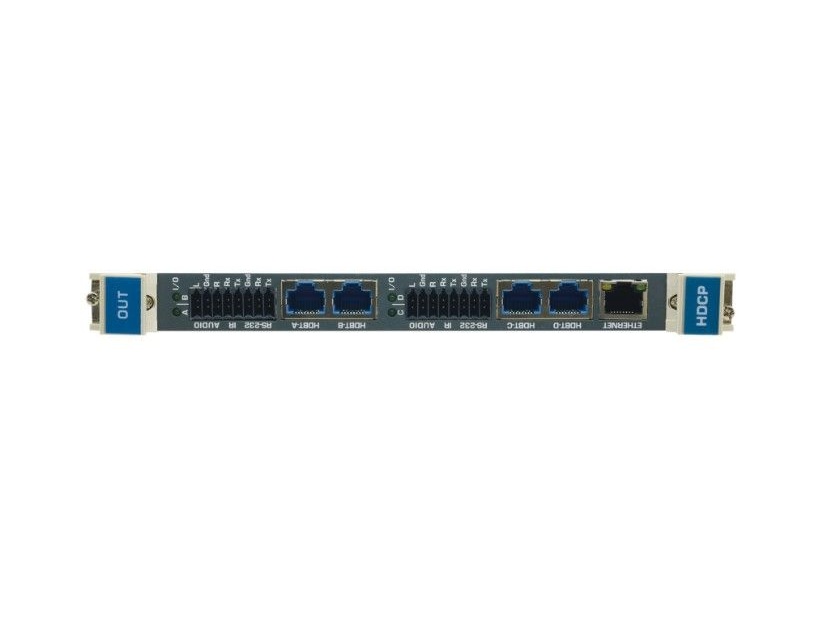

The DTAXR-OUT4-F32 is a 4-output HDBaseT transmission card designed for modular matrix installations. It delivers HDMI video and embedded analog audio over a single HDBaseT link to remote receivers. The card is intended to integrate into VS-3232 series matrix frames and extend AV signals across long distances with reliable signal integrity.

Key features include four HDMI channels, analog audio embedding and de-embedding on the same jack, and bidirectional control extension. The unit supports 4K video at 60Hz in 4:2:0 and includes Ethernet, RS-232, and IR pass-through for device management. 3D pass-through and HDCP compliance are supported to preserve compatibility with common sources and displays.

Performance is driven by a maximum aggregate data rate of 10.2Gbps and 3.4Gbps per graphics channel to ensure stable video transmission. The system range extends up to 100m for 4K signals, up to 130m for 2K, and up to 180m in ultra mode for 1080p@60Hz when used with Kramer HDBaseT cables. The design maintains color fidelity and timing across multi-screen installations.

Connectivity includes four HDMI outputs over HDBaseT, analog audio embedding/de-embedding on a shared connector, RJ45 Ethernet extension up to 100Mbps, bidirectional RS-232, and bidirectional infrared. The card interfaces natively with the VS-3232 Series modular matrix chassis and standard HDBaseT receivers. HDCP compliance and HDTV compatibility simplify integration with protected content sources.

This card is suited to broadcast, presentation, production, rental, and staging environments where multiple remote displays require high-resolution content and centralized control. It enables installers to reduce cable runs while preserving control channels and audio routing. The feature set supports common event and fixed-install workflows in auditoriums, conference centers, and live venues.

Installation is straightforward within the VS-3232 chassis with the card form factor optimized for field service and hot-swap maintenance. The shared audio jack reduces connector clutter and simplifies wiring. Built to Kramer quality standards, the unit provides a robust platform for long-term AV distribution and centralized signal management.
