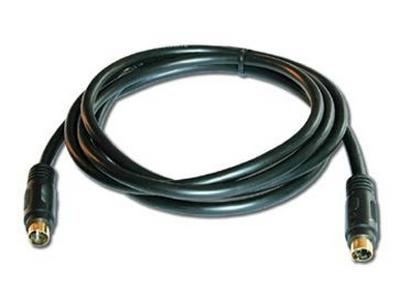

Kramer’s SM series cables are high performance s-Video (Y/C) cables with molded 4-pin mini DIN connectors at each end. Luminance and chrominance signals are carried on separate internal coaxes for superior quality over composite video.
- Quality Construction – Passes luminance (Y) and chrominance (C) signals over a high-quality 26 AWG dual coax cable terminated with 4-pin mini DIN connectors.
- High-Quality Connectors – Gold-plated connectors for corrosion resistance and best possible connection.
- Cable Specs – For detailed cable specs, see Kramer BC-2X.
- Varied Selection of Lengths – Available in versions of 0.9 to 30.5m (3, 6, 10, 15, 25, 35, 50, 75 and 100ft).
SPECIFICATIONS
| COAX | |
| Coax Center Conductor: | 26 AWG 7/34 tinned copper. |
| Dielectric: | Foam polyethylene. |
| Shield: | (A) 90% spiral 38 AWG tinned copper. (B) Aluminum Mylar foil 25% overlap rate. |
| CONSTRUCTION | |
| Drain Wire: | 24 AWG 7/32 tinned copper. |
| Coax Jacket Colors: | Yellow, white. |
| Outer Jacket: | PVC. |
| Outer Jacket Color: | Dark gray with white lettering. |
| DIAMETERS | |
| Center Conductor: | 0.474mm (0.018in). |
| Dielectric: | 1.95mm (0.17in). |
| Individual Coax: | 2.6mm (0.102in). |
| Outside Diameter: | 6.2mm (0.244in). |
| ELECTRICAL | |
| Impedance: | 75ohm. |
| DC Resistance: | 148ohm/km (45ohm/1000ft). |
| Capacitance: | 53.1pF/m (17.3pF/ft) . |
| Velocity of Propagation: | 76%. |
| Temperature: | -20° to 75°C (-4° to 167°F). |
| Attenuation (dB/100 ft.): | -0.5dB @1MHz -1.2dB @5MHz -1.8dB @10MHz -4.4dB @50MHz -6.7dB @100MHz. |
| REGULATORY | |
| UL: | CL2. |
| CSA: | C(UL) CL2. |
