Description

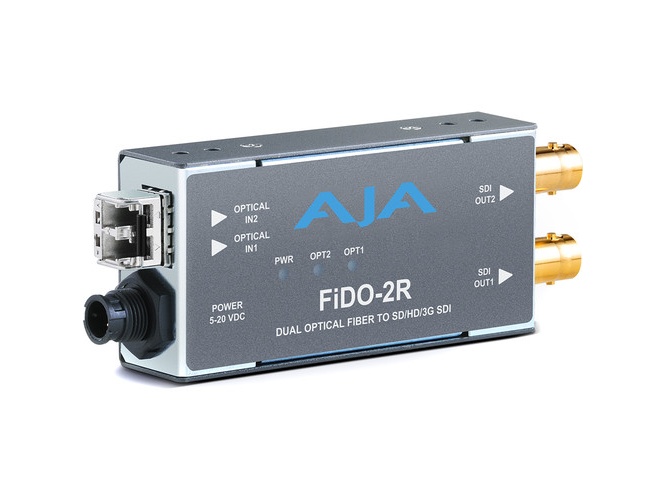

The FiDO-2R is a compact 2-channel single-mode fiber receiver that converts LC fiber signals to 3G-SDI. It enables long-distance video transport up to 10 km 32,808 ft while providing electrical isolation to address ground loop issues. The unit is housed in a low-profile enclosure suitable for tight racks and camera mounts.
Both channels provide independent 3G/HD/SD-SDI outputs and operate as isolated fiber-to-SDI paths for redundant or separate signal streams. The receiver supports duplex LC connections and automatic reclocking for standard SDI rates. It accepts a wide DC input range and includes a universal power supply for global operation.
Video handling is format agnostic across 150 Mbps – 3 Gbps and supports SMPTE-259/292/424 standards on output and SMPTE-297 on fiber input. The optical section operates across 1260 – 1620 nm with an optical sensitivity of -18 dBm and overload power of -3 dBm. Reclocking is automatic at common SDI rates while other rates are passed through.
Connectivity includes two single-mode LC fiber inputs and two independent 3G-SDI BNC outputs. Power accepts 5-20 VDC and the device ships with a universal power supply with international plugs. A locking power connector reduces accidental disconnects and an optional P-TAP power cable enables battery use in the field.
FiDO-2R is ideal for OB trucks, broadcast racks, camera backhaul, and long-run infrastructure where electrical isolation and distance are required. It supports point-to-point fiber links for live production, remote camera feeds, and redundant signal paths. The small footprint allows integration directly behind monitors or on camera rigs where space is limited.
Installation is straightforward with plug-and-play fiber and BNC connections and automatic format detection. The robust metal enclosure and industry-standard connectors support professional deployment and continuous operation. AJA provides a five year warranty for long-term support and reliability.
