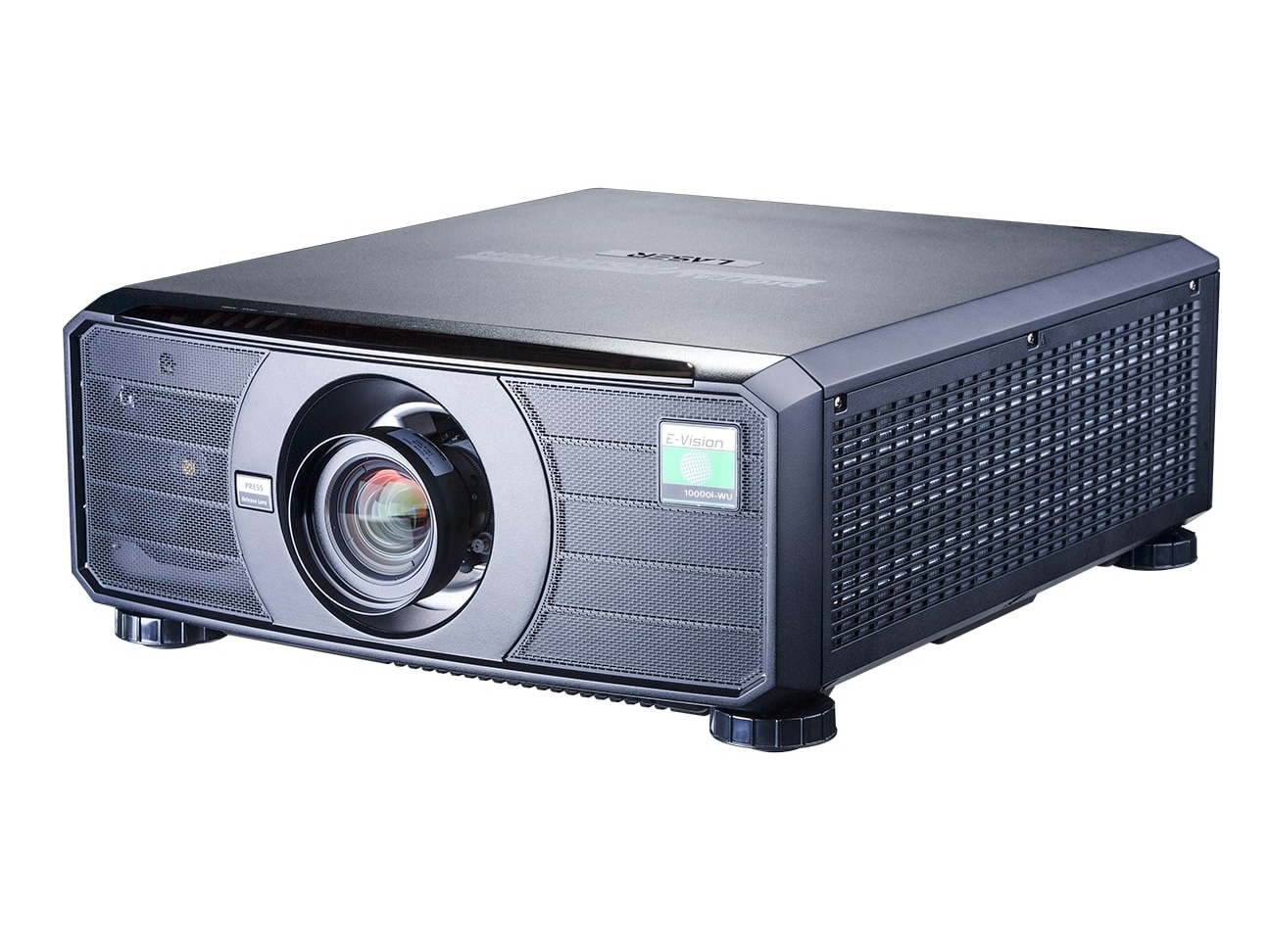

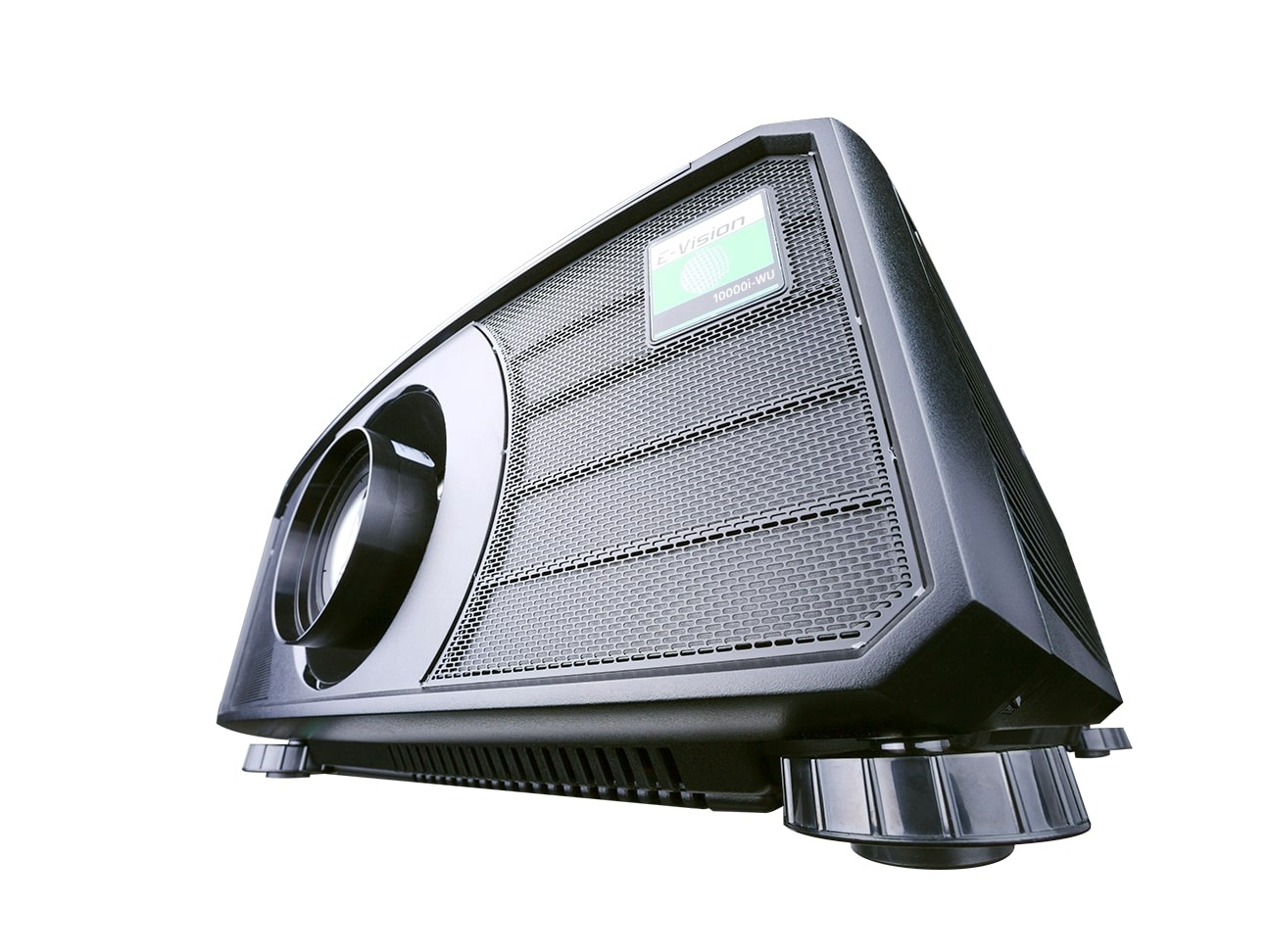

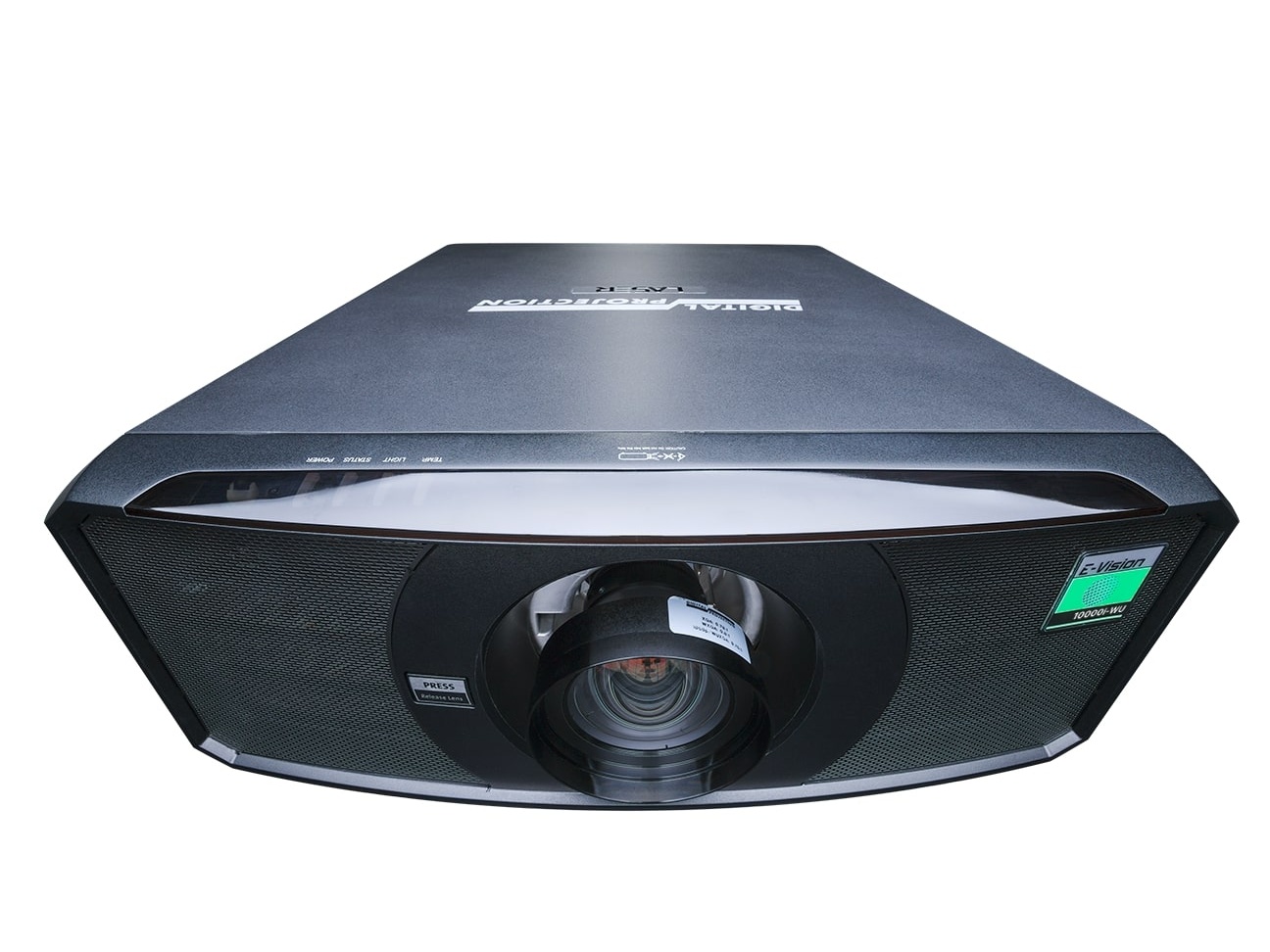

Digital Projection E-Vision 8000i WU HDBaseT Laser Phosphor Projector / 8000 ISO / WUXGA / 20000:1 Contrast

Description

The E-Vision 8000i WU is a professional laser phosphor projector designed to deliver high-brightness WUXGA imaging for installations requiring stable long-term operation. It uses a single 0.67 inch DarkChip DMD to produce crisp 1920 x 1200 output and is engineered for continuous 24/7 use. The sealed, filterless optical path and liquid cooling radiator ensure minimal maintenance across its lifespan.

Key capabilities include a stable 8,000 ISO lumen output (7,200 ANSI lumen equivalent), a 20,000:1 dynamic contrast range and 10-bit colour processing for smooth gradients. The projector implements a 4-segment RGBY colour wheel and dual 7200 rpm phosphor wheel arrangement to achieve improved single-chip colour performance. Advanced features such as Brightness Sync and Source Redundancy add operational reliability for live events and critical displays.

Technically the projector supports WUXGA native resolution at up to 120 Hz RB operation and 30-bit per pixel colour depth for accurate reproduction of complex imagery. HDR and DICOM simulation modes are supported along with 2D smear reduction. The optical system is IP6x sealed, providing dust-proof protection and preserving lumen and colour stability over the rated 20,000 hour light source life.

Connectivity options include HDMI 2.0, DisplayPort 1.2, HDBaseT with Ethernet/RS232/IR support, and 3G-SDI I/O for broadcast workflows. Control integrations include RJ45 LAN control with Crestron Connected, PJLink Class 1, AMX Device Discovery and Art-Net DMX support. The projector also offers multiple geometry correction tools such as keystone, four corner and selectable aspect ratios for flexible installation.

Typical applications include corporate auditoria, higher education lecture halls, simulation environments and live event staging where continuous runtime, high brightness and dependable image quality are required. The sealed optics and robust thermal design make it suited to venues where maintenance access is limited. The intelligent lens memory and motorised lens options speed multi-lens installations and projector repositioning.

Installation and operation are optimised for integrators through motorised zoom, focus and shift with ten user-definable lens presets and a chassis compatible with standard ceiling mounts. System monitoring and automated alerts are available via network control to reduce onsite maintenance. Overall, the E-Vision 8000i WU balances long-life laser illumination, advanced image processing and professional connectivity for demanding AV installations.
