Electro-Voice RE3-RX-5L Half-Rack UHF Diversity Receiver 488-524 MHz / XLR / 1/4 TRS / PLL

Description

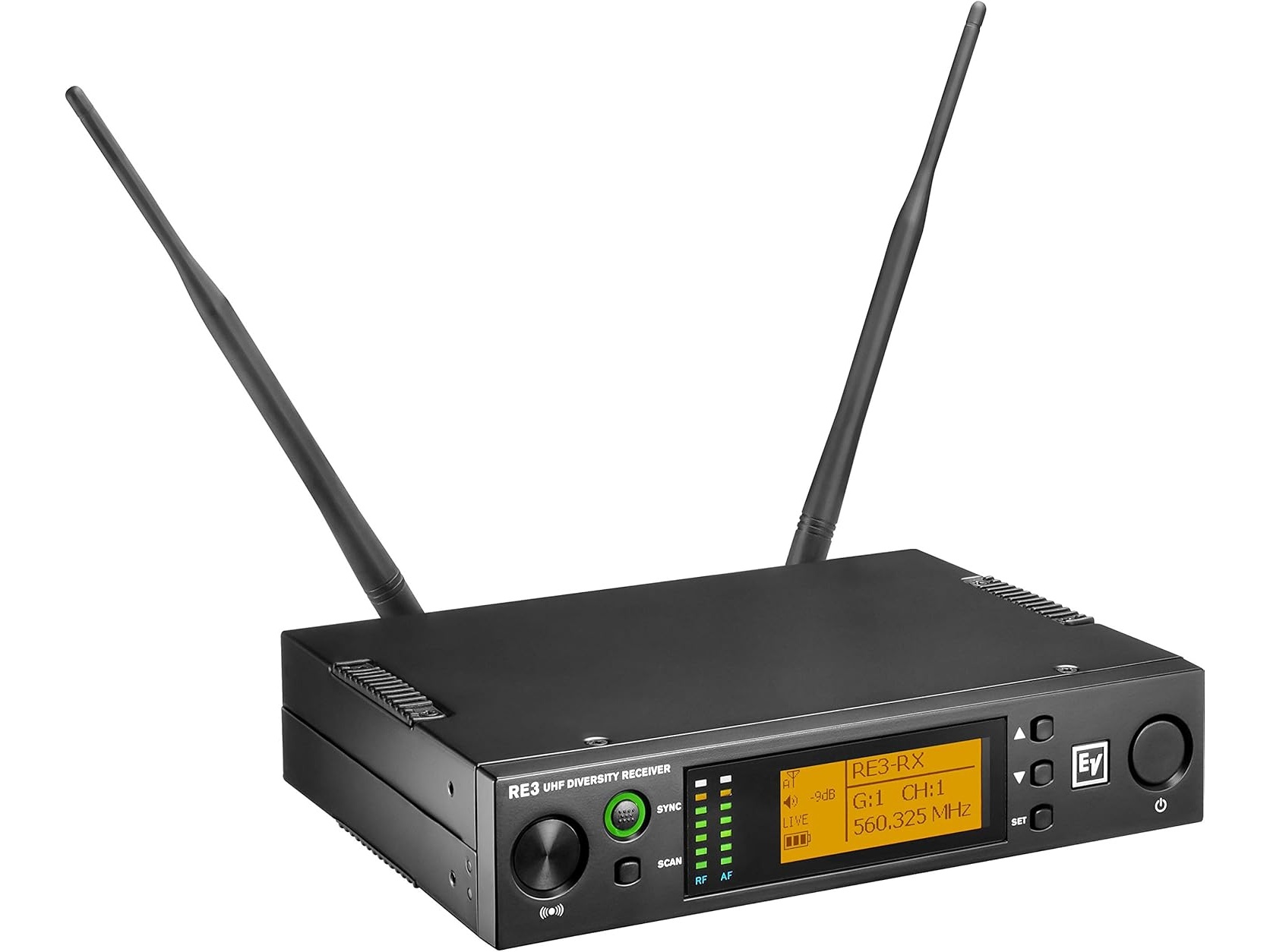

The RE3-RX-5L is a half-rack UHF diversity receiver designed to be the control center of a professional wireless audio set. It operates in the 488-524 MHz band and offers stable, interference-resistant reception for handheld and bodypack transmitters. The unit features a compact 1/2 rack enclosure and an easy-to-read LCD display for quick status checks.

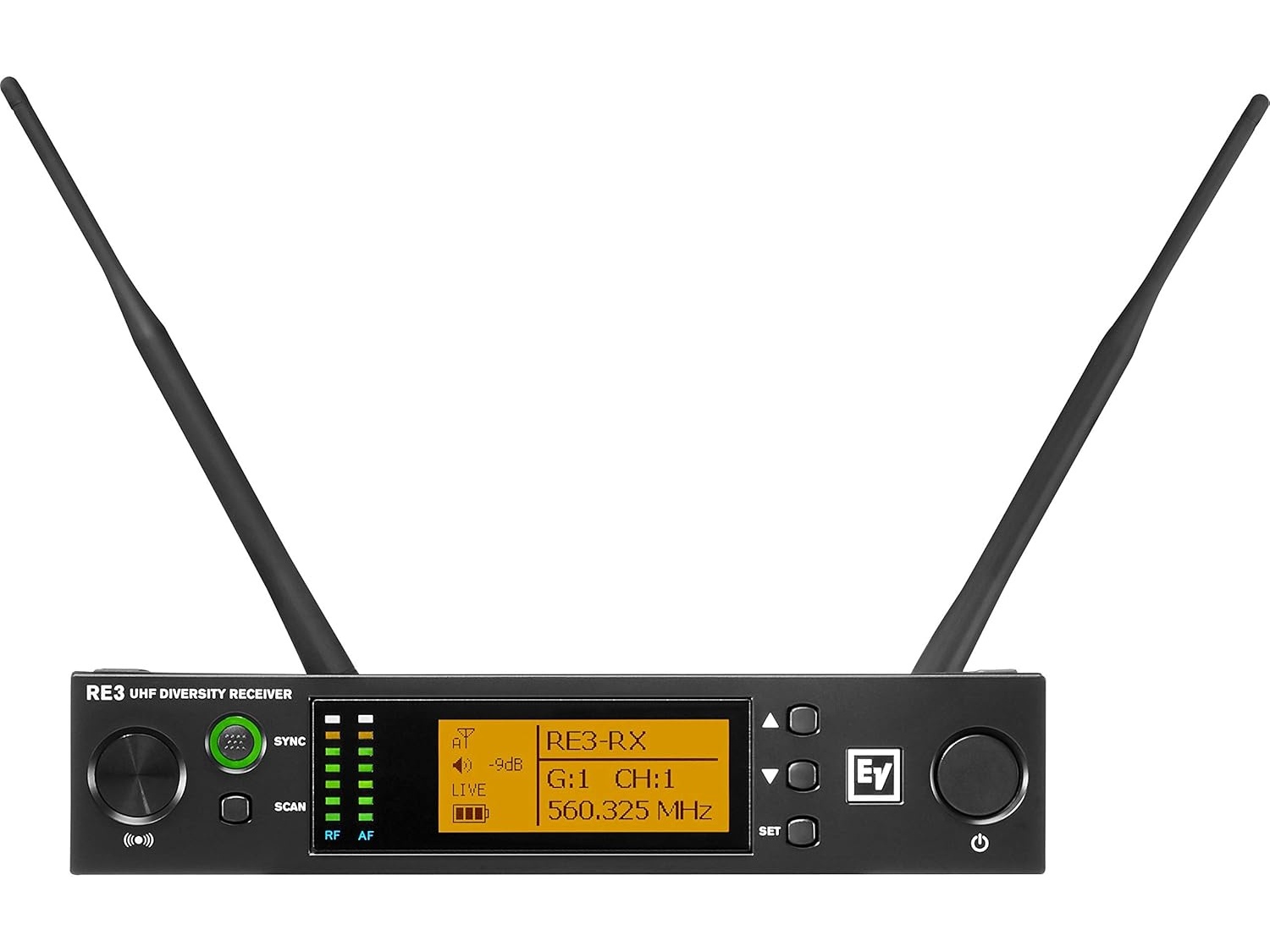

Key features include antenna diversity reception, clear frequency scanning, and wireless synchronization to a paired transmitter. The receiver provides both balanced XLR and unbalanced 1/4 inch TRS outputs to integrate with mixers and PA systems. The front panel LCD displays group, channel, frequency, antenna status, and transmitter battery level for streamlined operation.

Performance highlights include a phase-locked loop frequency oscillator, up to 36 MHz tuning bandwidth (band-dependent), and a signal-to-noise ratio greater than 100 dB(A). Measured total harmonic distortion is under 0.6% at 1 kHz and receiving sensitivity is rated at -81 dBm for -12 dB SINAD. The frequency response covers 63 Hz to 16 kHz +/-2 dB for bodypack operation and 51 Hz to 16 kHz +/-2 dB for handheld operation.

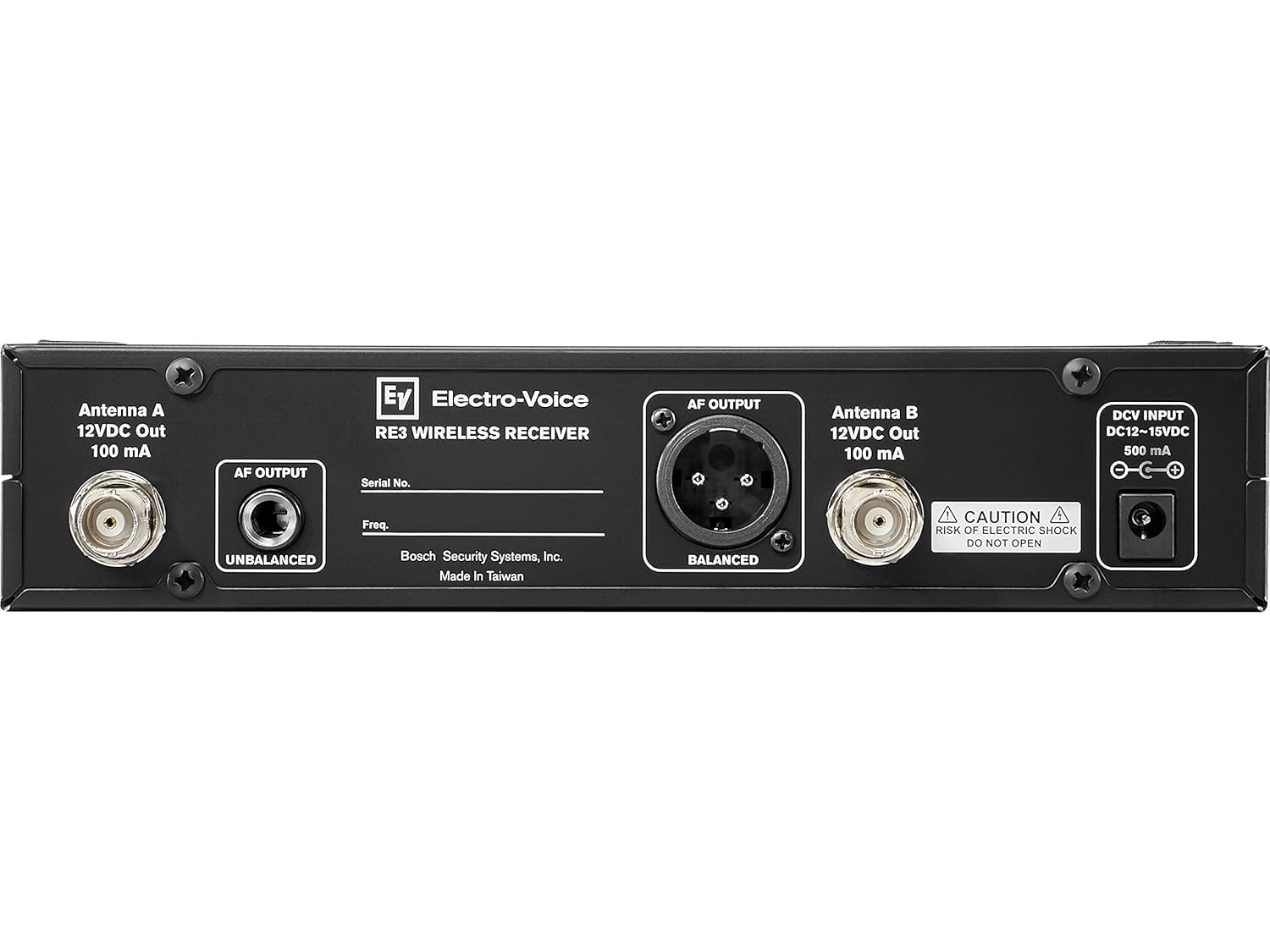

Connectivity includes a detachable half-wave antenna with BNC connectors and antenna booster power output capable of DC 12-15 V at 100 mA. Audio outputs comprise one balanced XLR and one unbalanced 1/4 inch TS jack, with output levels of -4 dBV (line) and -24 dBV (mic) on XLR and -10 dBV on the 1/4 inch jack. The receiver also supports ultrasonic 40 kHz sync to wirelessly transfer frequency and transmitter settings.

The RE3-RX-5L is well suited to applications such as live sound reinforcement, broadcast ENG, corporate AV, and mobile production rigs. Its half-rack format conserves rack space when multiple receivers are deployed and the diversity system reduces dropouts in challenging RF environments. Frequency scanning and sync functions simplify multi-channel setup and coordination during events.

Installation is straightforward with DC 12-15 V power input and standard rack-mount or shelf placement. The chassis is finished in black polyurethane paint and includes user controls for squelch, TX sensitivity, TX RF power, output level, and display brightness. Rugged construction, clear menus, and comprehensive control options make the RE3-RX-5L reliable and easy to integrate into professional audio rigs.
