Description

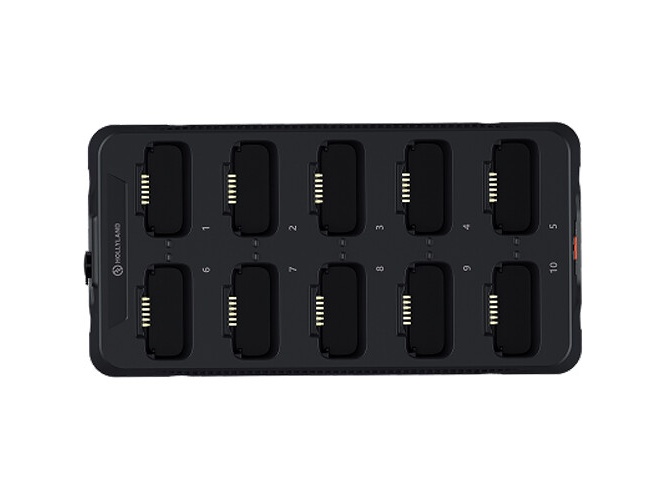

The HL-H1-CHR is a 10-slot lithium-ion battery charging base designed for use with BPK01 beltpack batteries and Solidcom H1 wireless intercom systems. It centralizes battery maintenance and provides clear LED feedback on charging status and operating mode. The charger is built to integrate into professional audio and broadcast workflows.
The charging base supports simultaneous charging of up to ten BPK01 beltpack batteries and provides LED indicators for charge level and mode. It can be cascaded with additional bases to expand capacity and includes an RJ45 port for firmware updates and system pairing. Power is supplied via a 4-pin XLR DC input for reliable field operation.
Performance specifications include a 5.2V output at 1.15A and a total output capacity rated at 62W for ten beltpacks. Typical charging time for ten batteries is approximately 3.5 hours under recommended conditions. The base also reports a data rate up to 95.8 Mbps for firmware and pairing communications.
Connectivity consists of a single XLR 4-pin female DC input and an RJ45 port for firmware updates and pairing to Solidcom H1 antennas or other charging bases. The unit is compatible specifically with Hollyland Solidcom BPK01 batteries and is designed to pair automatically when linked to powered antennas via RJ45. LED indicators provide visual confirmation of charging and cascade status.
This charging base is well suited to broadcast, live event, ENG, and theater applications where multiple beltpacks must be maintained and deployed rapidly. Facilities that manage fleets of intercom beltpacks can centralize charging and firmware maintenance to reduce downtime. The compact footprint and predictable charging times help streamline prep and turnover between productions.
Installation is straightforward using the included DC input cable and standard 4-pin XLR power sources. The unit operates reliably across a wide temperature range and offers a compact 14.9 x 7.6 x 2.6 inch footprint for desktop or rack shelf placement. Robust LED status reporting and RJ45 firmware support simplify daily operation and maintenance.
