Description

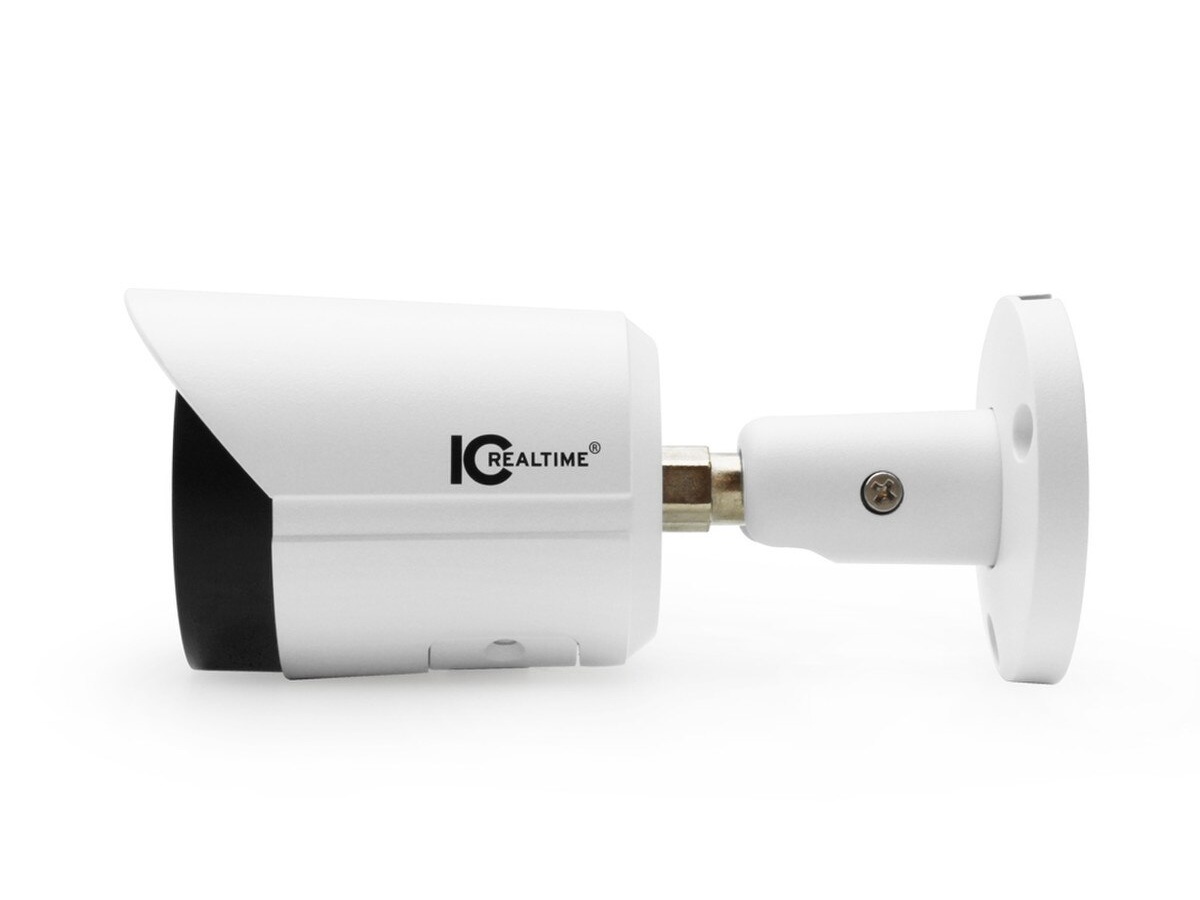

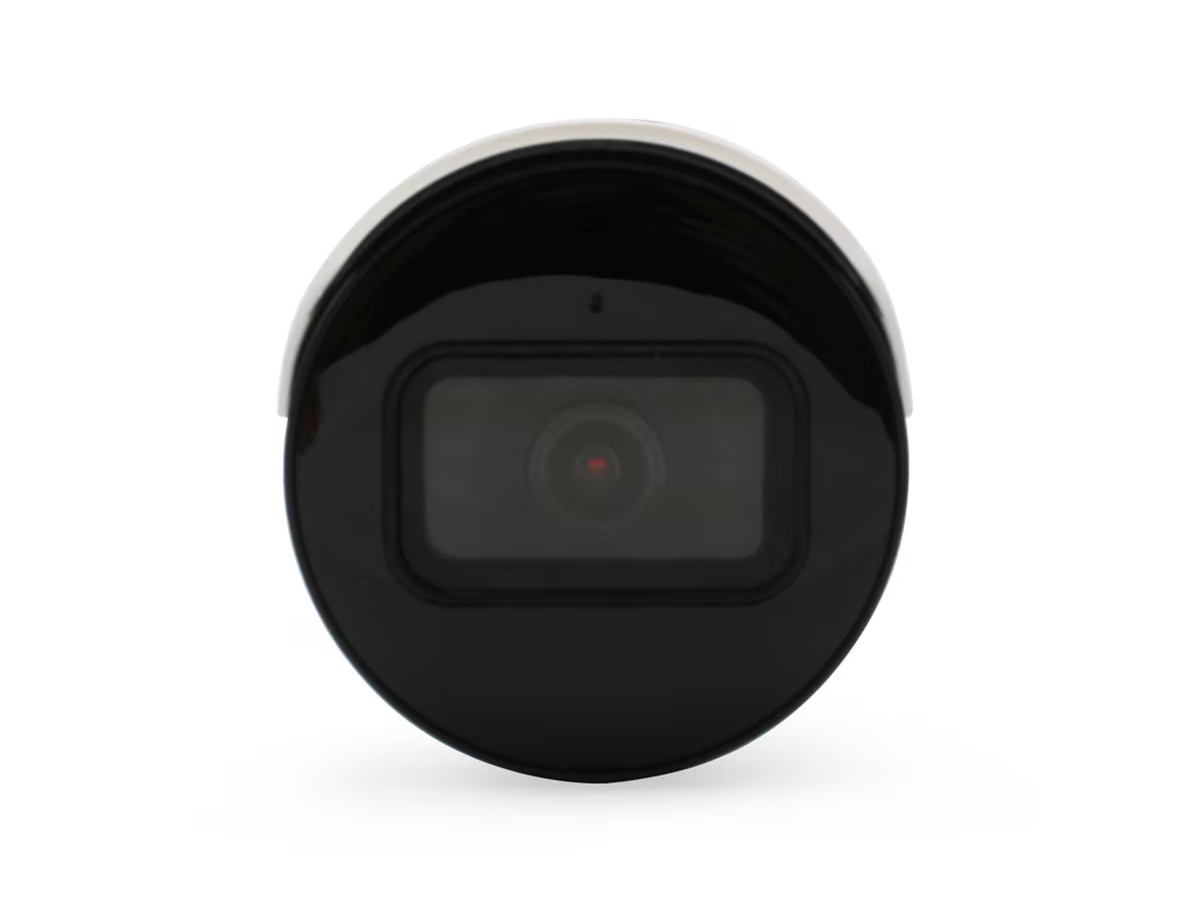

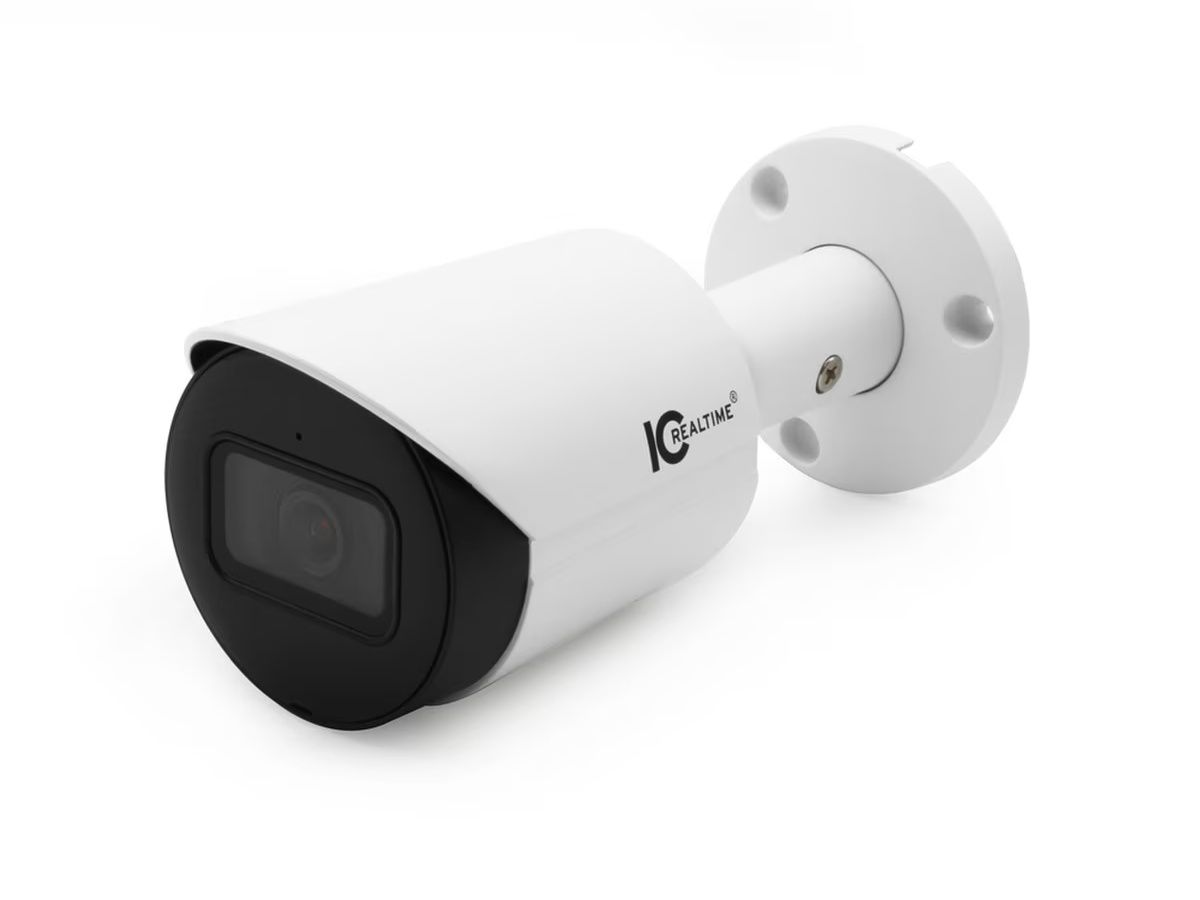

The IPEG-B20F-IRW5 is a compact 2MP bullet IP camera engineered to provide continuous video surveillance in indoor and outdoor environments. It captures 1080p video at up to 30 frames per second using a 1/2.8″ CMOS sensor and a fixed 2.8mm lens for a wide 107° field of view. The camera is designed for reliable operation in variable lighting and weather conditions.
Key imaging features include Smart IR illumination with reach up to 98ft, 120dB Wide Dynamic Range, and Backlight Compensation to maintain usable detail in scenes with strong contrast. The camera supports H.265 and H.264 codecs including an optimized Smart H.265+ mode to reduce bandwidth and storage usage. Onboard intelligence provides perimeter analytics such as tripwire and intrusion with human and vehicle classification.
Video and encoding options include main stream 1920×1080 at 1–25/30 fps plus multiple substream resolutions. Compression formats supported are H.265, H.264, H.264B and MJPEG (substream). Additional video controls include day/night ICR, 3D noise reduction, auto/manual white balance, and adjustable gain control to tune image quality.
Connectivity is provided via 10/100Base-T Ethernet with Power over Ethernet (802.3af) or 12VDC input. The camera supports ONVIF Profile S/T and common network protocols including IPv4/IPv6, RTSP, RTP, HTTP, FTP/SFTP and more. Edge storage options include microSD card support to 256GB plus FTP/SFTP archival and compatibility with IC Realtime IC Now and IC View+ mobile apps.

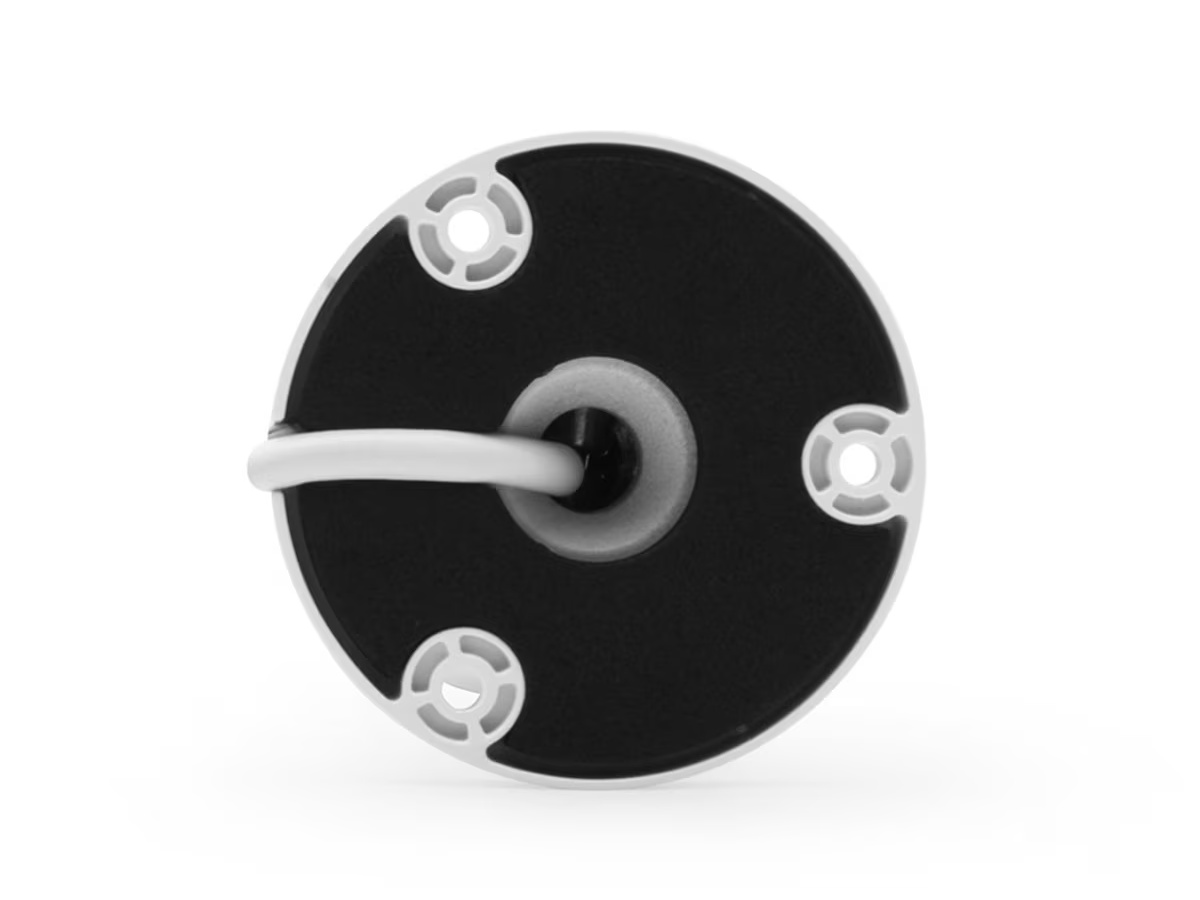

This compact metal and plastic housing is IP67 rated and rated for operation from -40°F to +140°F with up to 95% relative humidity tolerance. The camera includes a built-in microphone for audio capture and supports up to six simultaneous user connections subject to a 36 Mbps total bandwidth limit. Mounting offers 360° pan and rotation plus 0°–90° tilt for flexible deployment angles.
Typical use cases include perimeter monitoring, retail floor coverage, small parking areas, and building entry points where a wide field of view and low-light performance are required. The built-in perimeter protection analytics reduce false alarms and help prioritize human and vehicle events for rapid review. Integration with IC Realtime NVRs enables accelerated event search based on analytics.
Installation is straightforward using PoE or 12VDC power and standard RJ-45 network cabling. The compact 6.54″ body simplifies concealment and multi-camera layouts while the IP67 housing provides long-term outdoor durability. IC Realtime backs the camera with a 7-year warranty and U.S.-based technical support to assist with commissioning and troubleshooting.
