DESCRIPTION

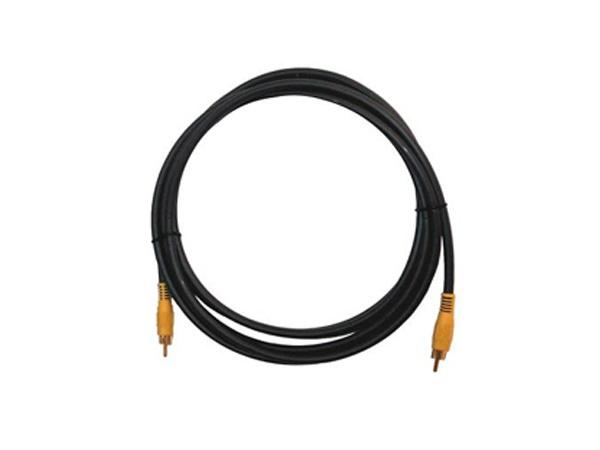

Kramer’s RVM series cables are constructed of RG-59 cable with male RCA connectors at each end. They offer outstanding quality, durability, and high-performance for any composite video or mono audio signal.
- Quality Construction – Constructed from RG-59 cable for transparent performance with composite video signals.
- High-Quality Connectors – Molded connectors are yellow to match video connectors on typical equipment.
- Varied Selection of Lengths – Available in 3, 6, 10, 12, 15, 25, 35, 50, 75 and 100ft versions (0.9 to 30.5m).
SPECIFICATIONS
| Coax Center Conductor: | RG-59, solid 23 AWG bare copper |
| Dielectric: | HD polyethylene. |
| Outer Jacket Color: | Dark Gray w/white lettering. |
| Outer Jacket: | PVC. |
| Shield: | 95% braid, bare copper. |
| Center Conductor: | 0.022 inches, 0.58mm. |
| UL: | CL2. |
| Dielectric: | 0.118 inches, 3.7mm. |
| Outside Diameter: | 0.23 inches, 5.9mm. |
| DC Resistance: | 69- per km. |
| Impedance: | 75-. |
| Temperature: | 68° to 167° fahrenheit, – 20° to 75° celsius. |
| CSA: | C(UL) FT4 |
