Description
The BG-STREAM-NE HDMI to IP/UVC is a compact and efficient video converter that provides a seamless connection between HDMI inputs and IP or USB 3.0 UVC outputs. This device is ideal for high-definition video streaming and recording, offering robust features such as hardware compression, real-time recording, and support for multiple streaming protocols.
Features In-Depth

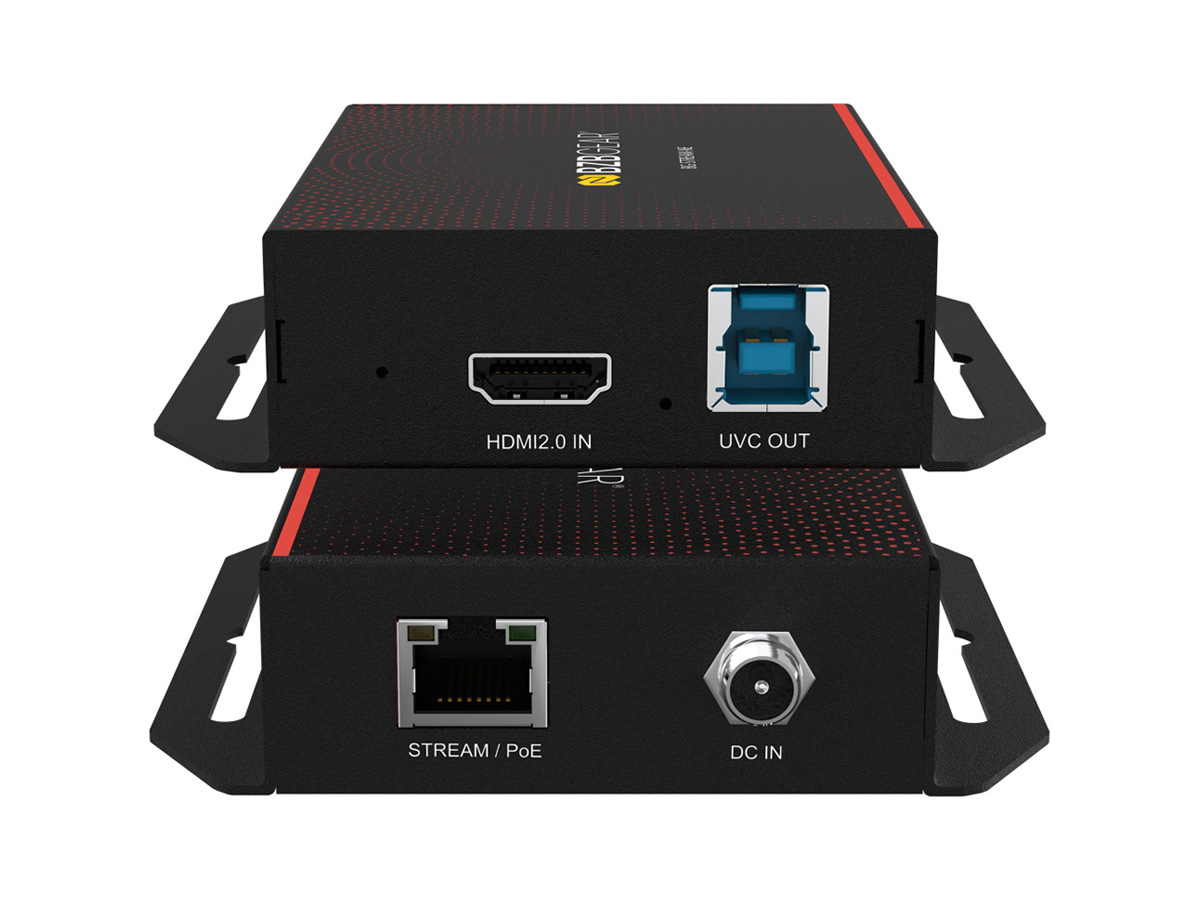

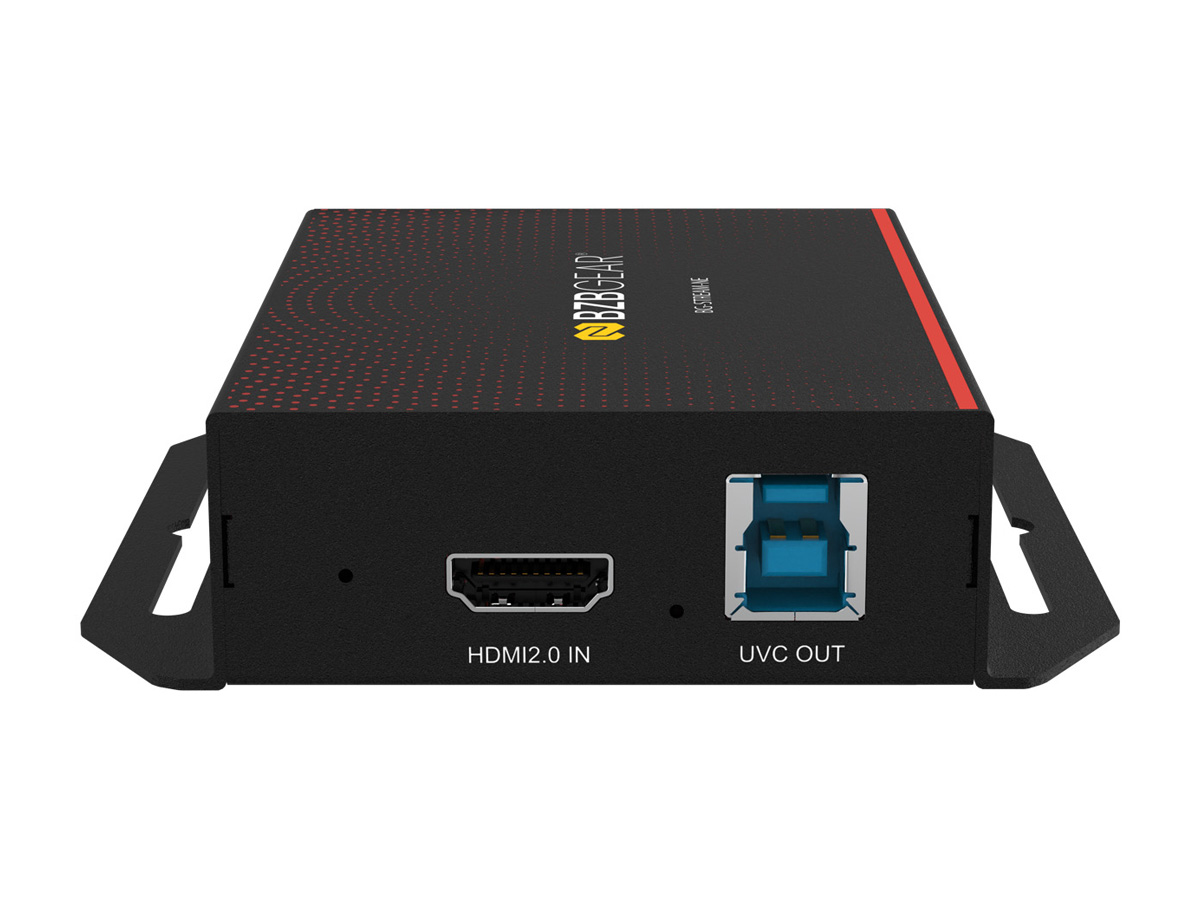

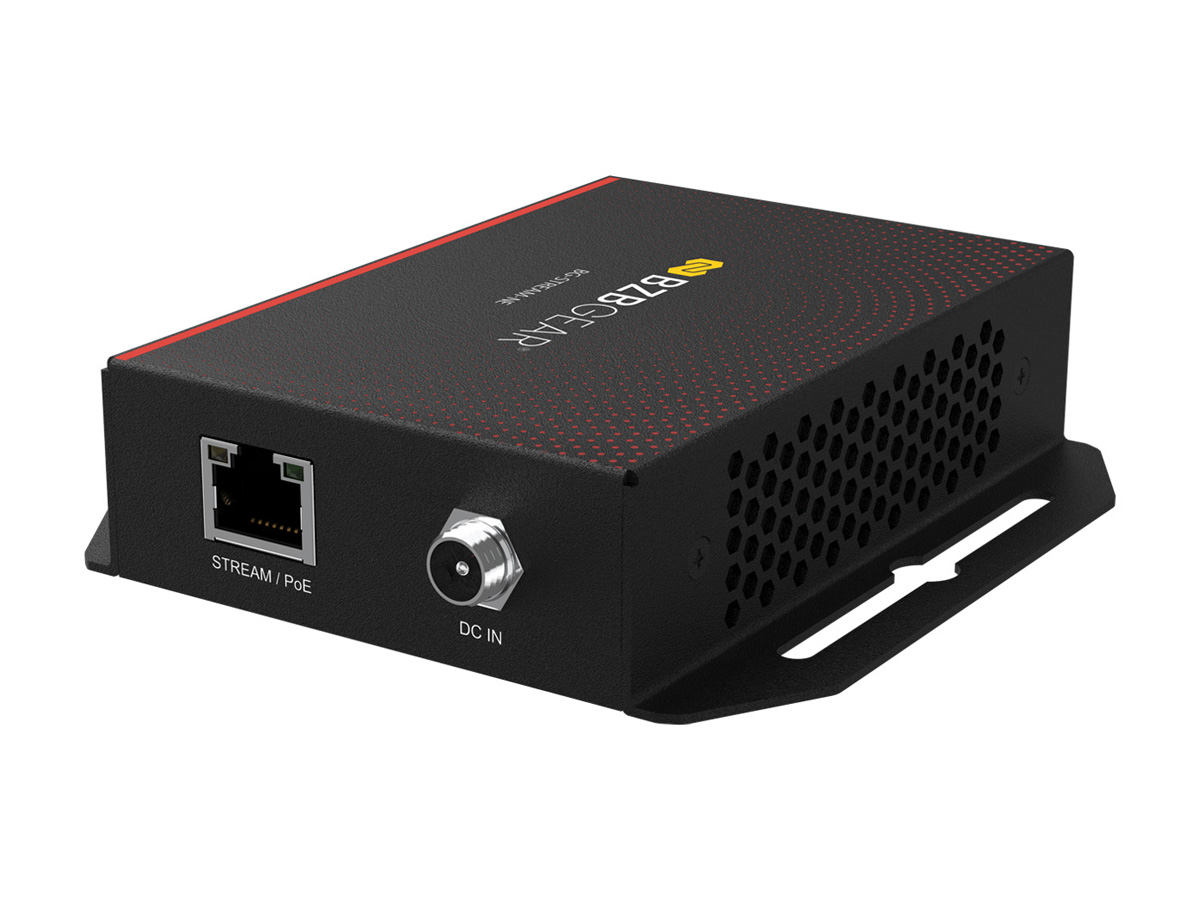

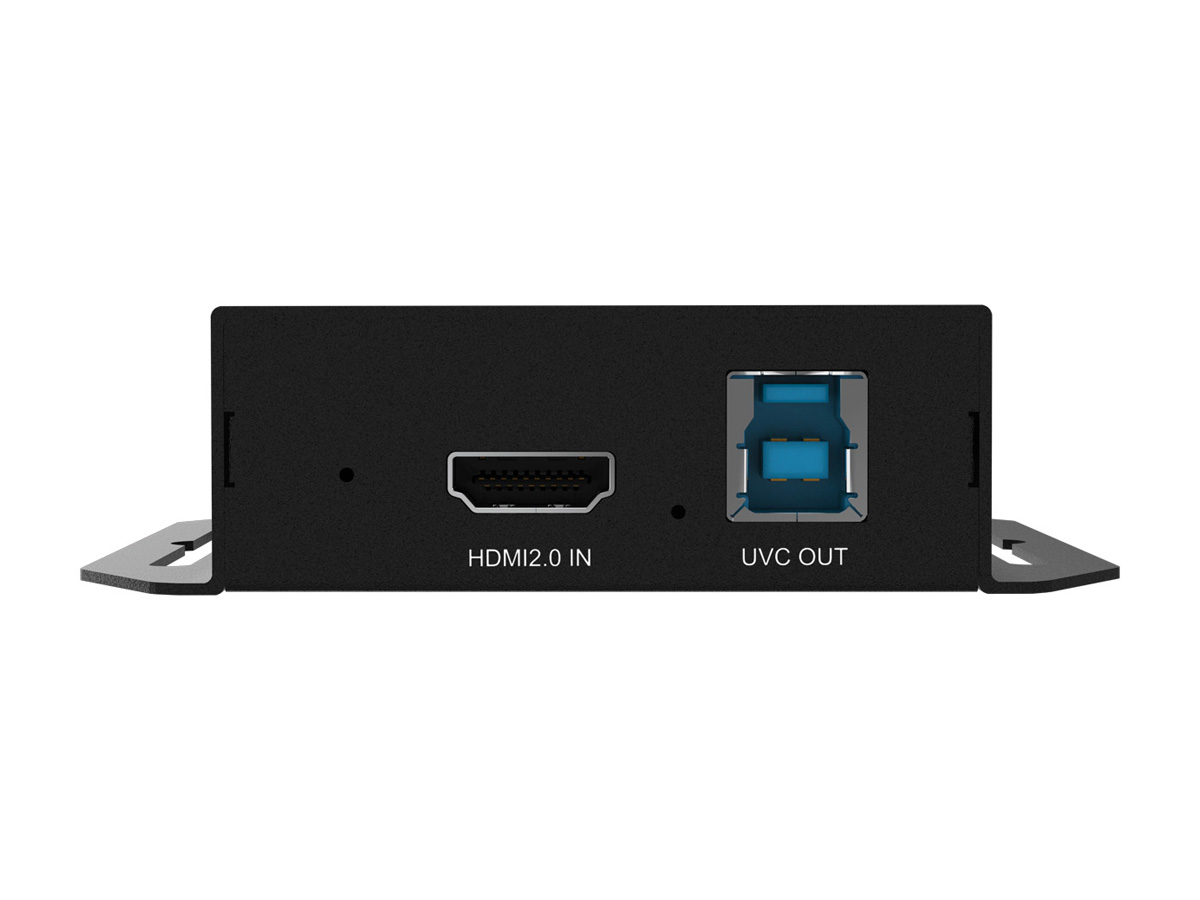

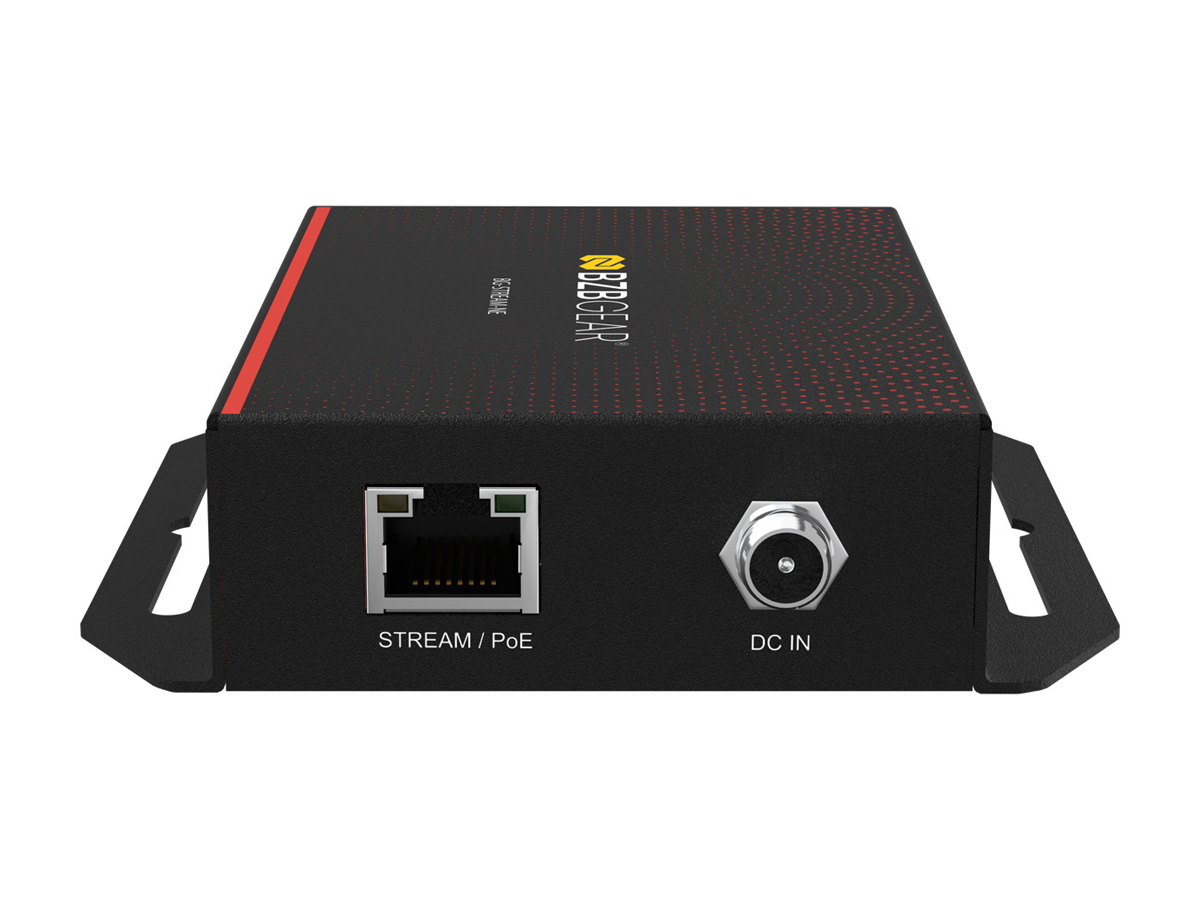

The BG-STREAM-NE HDMI to IP/UVC is designed to facilitate high-quality video conversion from HDMI sources to IP streams or USB 3.0 UVC outputs. Equipped with a single HDMI input and versatile output options including 1 x RJ45 for IP streaming and 1 x USB 3.0 Type-B for UVC output, this converter ensures broad compatibility with various streaming protocols such as RTSP, RTMP, HLS, TS, SRT, and NDI HX.
Supporting resolutions up to 1920x1080p at 60/50fps, the BG-STREAM-NE delivers exceptional video quality. The device features advanced video processing with H.265/H.264/AVC encoding, enabling efficient compression without compromising performance. Audio support includes AAC-LC with a configurable bit rate range from 32Kbps to 384Kbps and a sample rate of 48KHz, ensuring clear and synchronized audio.
Network features such as DHCP client support, POE input, and a user-friendly web UI for system configuration enhance the device’s usability. The compact size and secure locking DC jack power input make it suitable for various professional AV setups.
What is NDI?
Network Device Interface (NDI) is a high performance AV over IP standard that allows anyone to use real time, ultra low latency video on existing IP video networks. The NDI open protocol enables professionals to share video through a local area network (LAN) with video-compatible devices. With a single ethernet cable connection, professionals can merge all stages of production from start to finish. That way, all production tasks and processes will be united, so accomplishing a creative vision will be simple. With the NDI 5.5 tool-kit, users will also be able to connect any audio device as an NDI source with NDI’s Audio Direct tool. This adds audio over IP to NDI’s revolution.
What is NDI|HX3?
NDI|HX3 is an updated version of the HX2 standard. The difference is, HX3 provides a better image quality and lower latency than HX2. NDI|HX3 also uses slightly more bandwidth than NDI|HX2, but the increase in bandwidth is not significant enough to be an issue. There are a limited amount of NDI|HX3 compliant devices due to a hardware limitation most NDI|HX2 compliant devices have. Overall, NDI|HX3 is the latest update to the standard and offers the best features.
Features
- Versatile Connection Options – HDMI, USB 3.0, and IP connections, including support for NDI|HX
- High-Quality Video Processing – Capable of resolutions up to 1920x1080p at 60/50fps
- Audio Support – Features AAC-LC audio codec with configurable bit rate range
- Network Capabilities – Includes DHCP support and Power over Ethernet (POE) functionality
- User-Friendly Interface – Accessible web UI for easy system configuration
- Extensive Protocol Support – Compatible with RTSP, RTMP, HLS, TS, SRT, NDI HX
- UVC Device Support – Ensures compatibility with a wide range of UVC devices
- Real-Time Mode Recording – Enables real-time recording for instant capture and playback
- Easy Integration – Designed for smooth integration with existing AV infrastructure
- Compact and Durable Design – Measuring 103.8mm x 71.2mm x 26mm with a secure locking DC jack power input for reliable operation
- Advanced Compression and Recording – Supports hardware compression and real-time recording mode
- Efficient Encoding – Utilizes H.265/H.264/AVC encoding for high-quality video compression
- Firmware Upgradeable – Easily updateable firmware to keep the device current with the latest features and improvements
