BZBGEAR BG-STREAM-NDE 1 Channel SDI/HDMI Encoder/Decoder/Recorder with Audio/USB 3.0 for Storage plus NDI Support

Description

The BG-STREAM-NDE is a versatile and powerful video and audio streaming decoding/encoding solution designed for both professional and personal use. This all-in-one device supports 1x HDMI 2.0 or 1x SDI input and loop-through, with an additional HDMI 2.0 output for seamless video integration. It also features a 3.5mm analog audio input for audio embedding and a 3.5mm analog audio output for audio de-embedding, making it a comprehensive tool for high-quality media production and streaming.

Features In-Depth

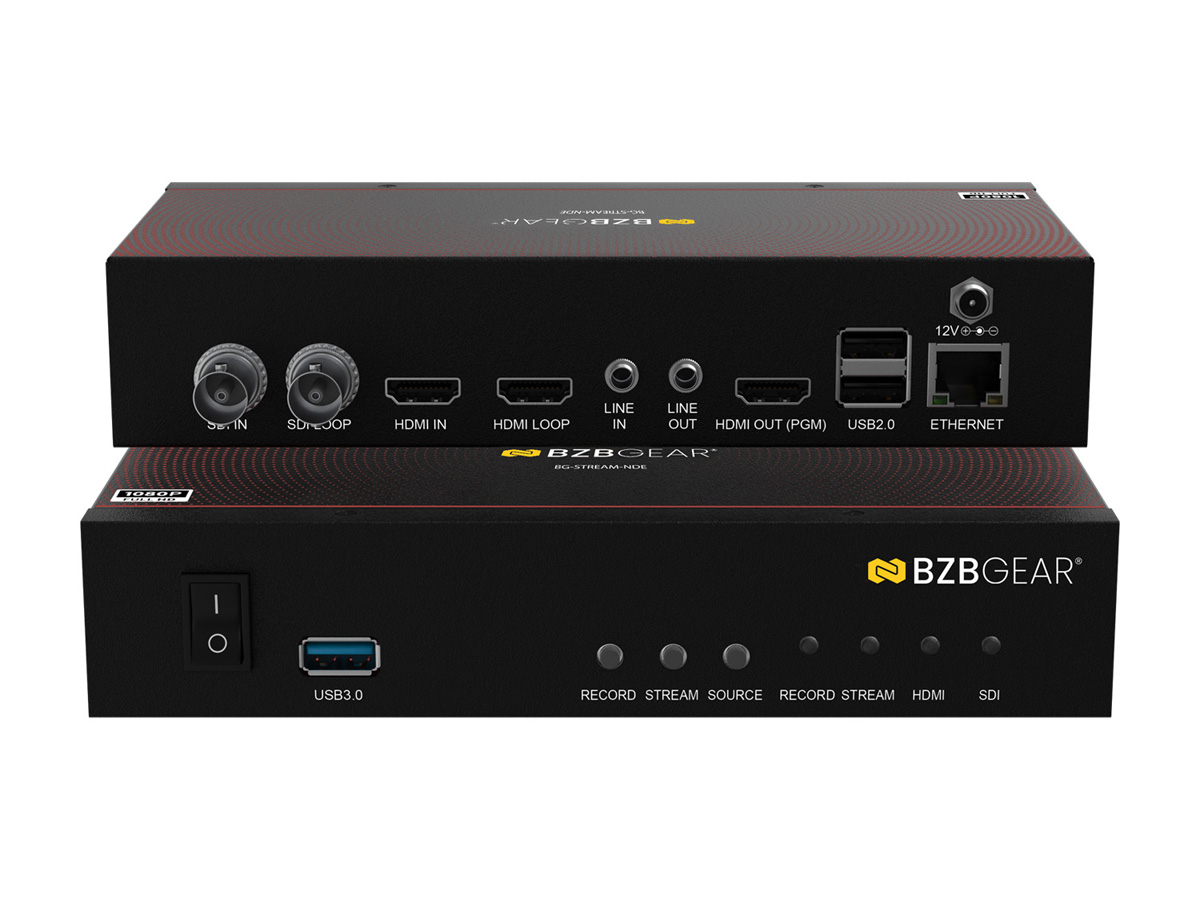

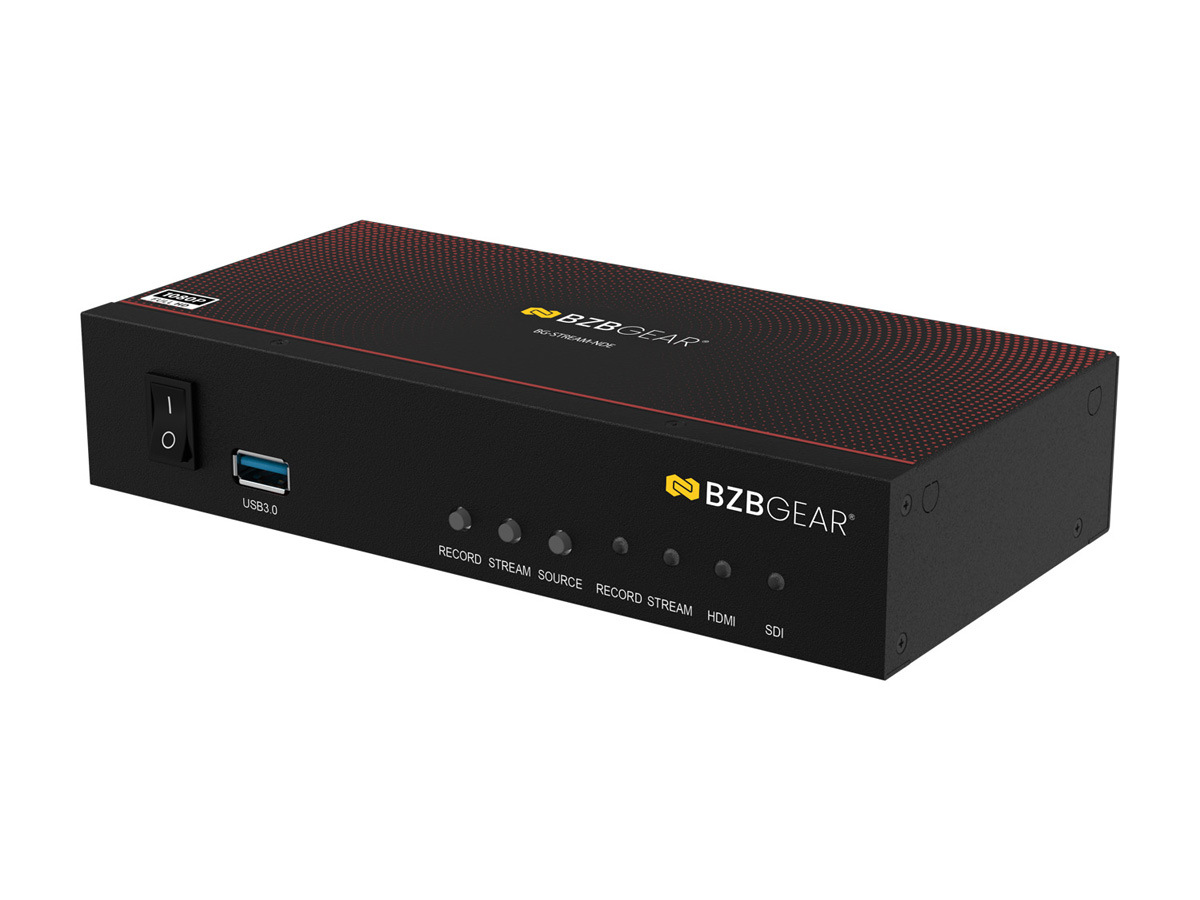

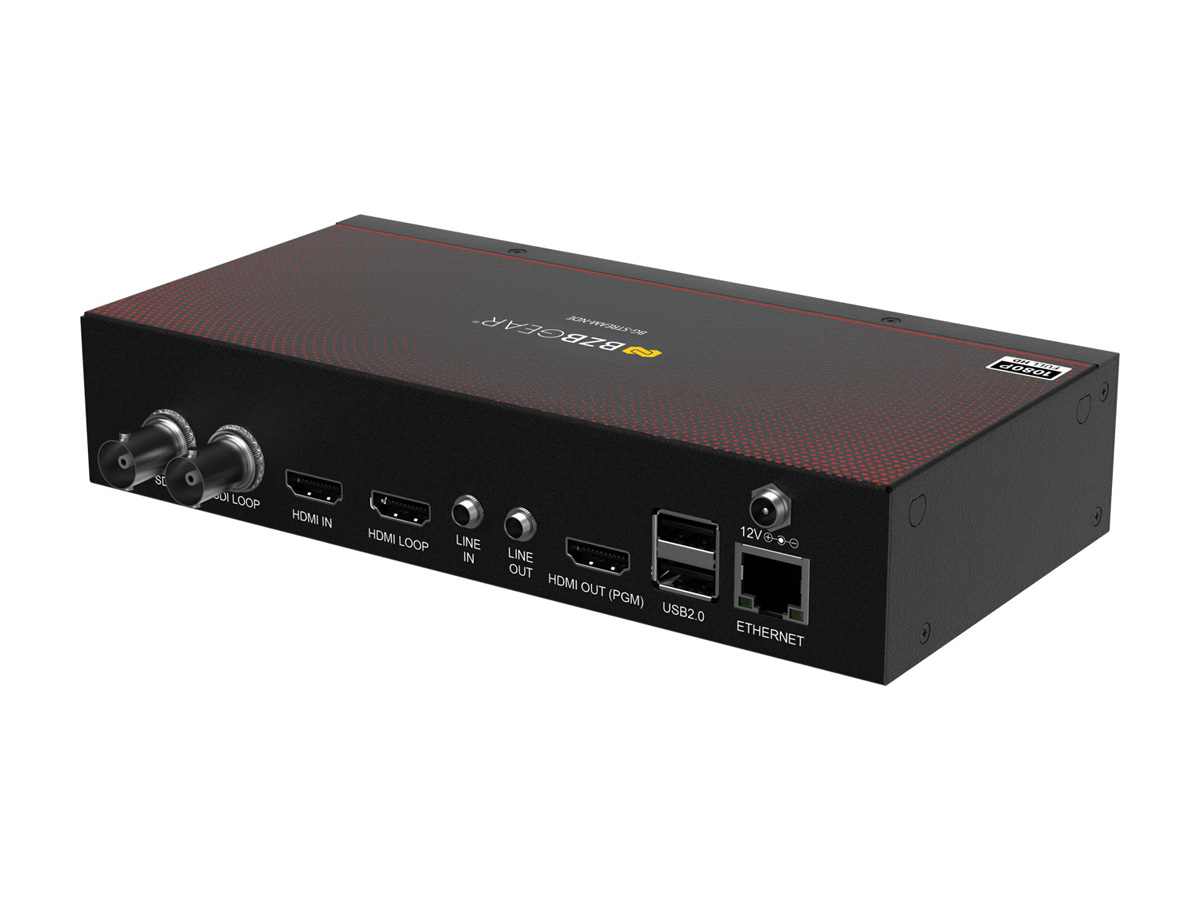

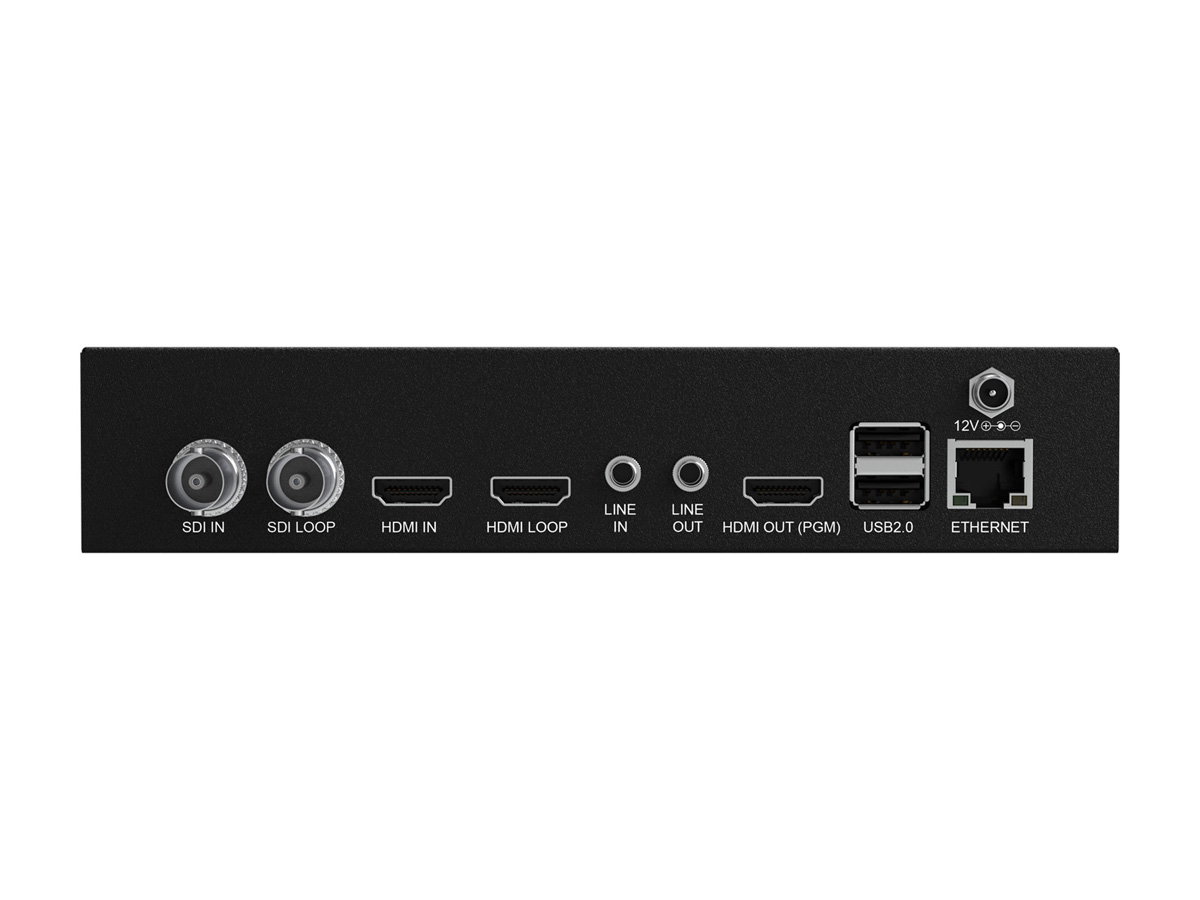

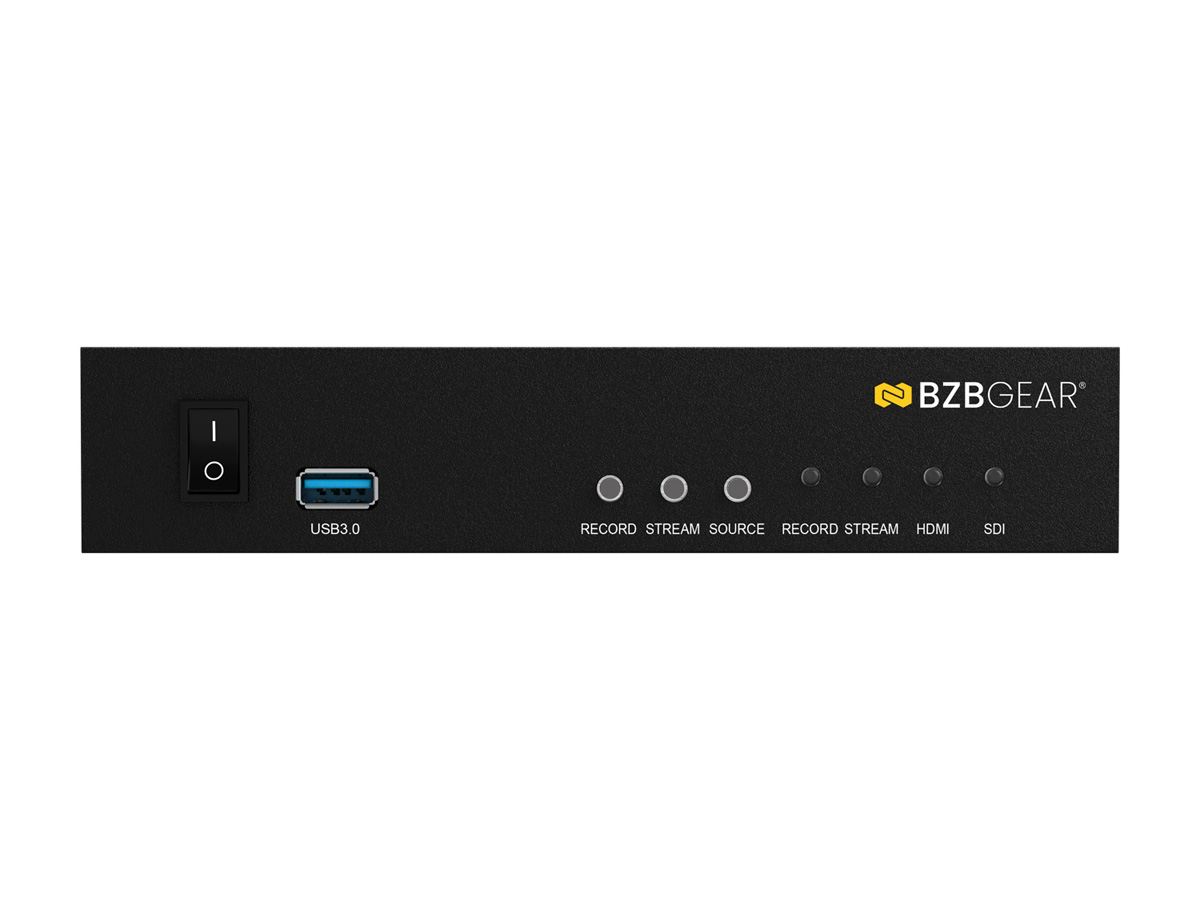

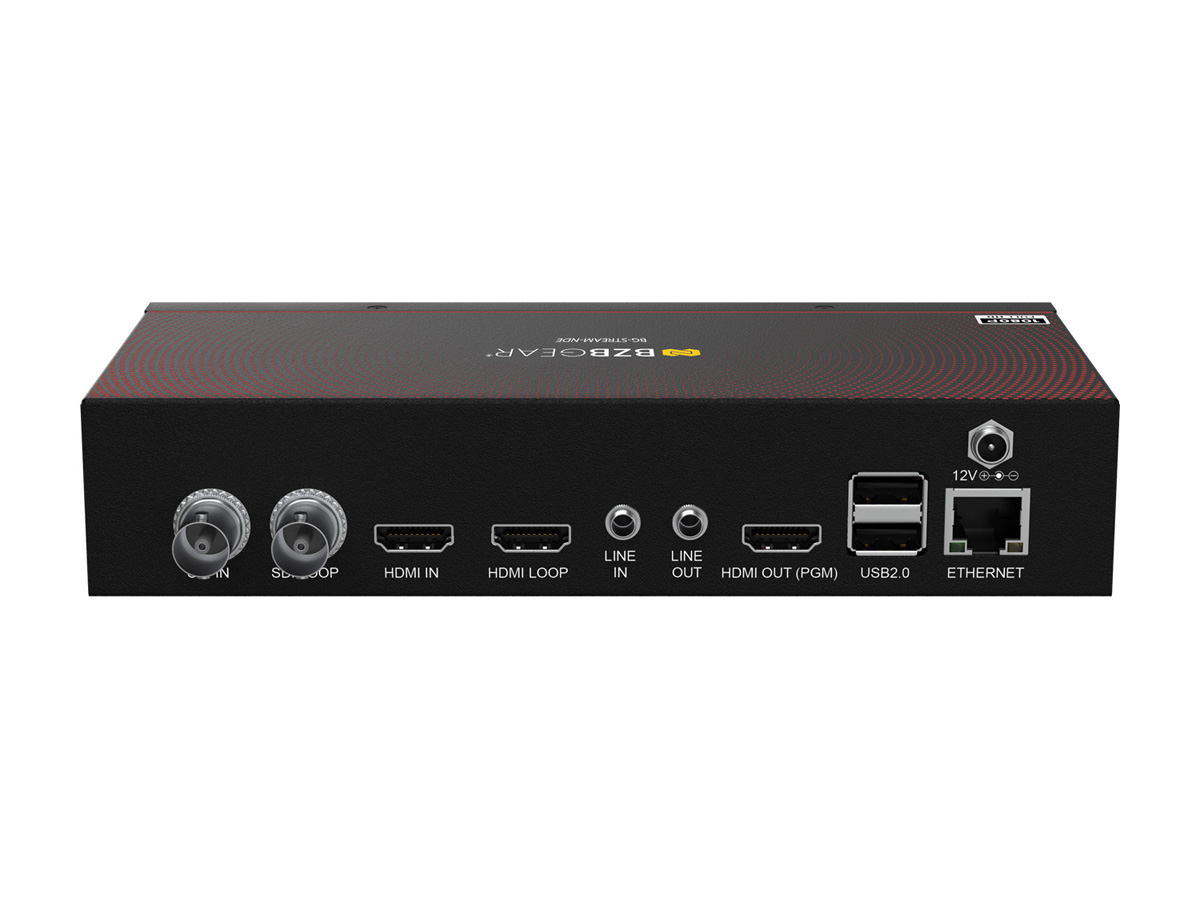

The BG-STREAM-NDE offers a user-friendly experience with intuitive front panel controls, including Record, Stream, and Source select buttons. The USB 3.0 interface allows for high-speed recording of various input formats, ensuring flexibility and ease of use. The rear panel is equipped with an RJ45 port for robust internet connectivity and two USB 2.0 ports for connecting peripherals like a keyboard and mouse, facilitating local user interface control.

Supporting a maximum resolution of 1920x1080p at 60/50fps, the BG-STREAM-NDE includes advanced video features such as H.265/H.264/AVC encoding and a range of output resolutions to meet different display and recording needs. Audio capabilities include AAC input streams for high-quality sound. With an RJ45 port supporting 10/100/1000Mbps Ethernet and multiple streaming protocols like NDI, RTSP, RTMP, and HLS, this device offers extensive streaming flexibility. Users can record in MP4, TS, and MOV formats and utilize various streaming formats, including RTSP, NDI-HX, HLS, RTMP, SRT, TS.

Control options include using a USB keyboard and mouse or accessing a comprehensive web UI for system configuration. The device also features firmware upgradability and LED indicators for easy monitoring, ensuring seamless operation and versatility in various streaming environments.

What is NDI?

Network Device Interface (NDI) is a high performance AV over IP standard that allows anyone to use real time, ultra low latency video on existing IP video networks. The NDI open protocol enables professionals to share video through a local area network (LAN) with video-compatible devices. With a single ethernet cable connection, professionals can merge all stages of production from start to finish. That way, all production tasks and processes will be united, so accomplishing a creative vision will be simple. With the NDI 5.5 tool-kit, users will also be able to connect any audio device as an NDI source with NDI’s Audio Direct tool. This adds audio over IP to NDI’s revolution.

What is NDI|HX3?

NDI|HX3 is an updated version of the HX2 standard. The difference is, HX3 provides a better image quality and lower latency than HX2. NDI|HX3 also uses slightly more bandwidth than NDI|HX2, but the increase in bandwidth is not significant enough to be an issue. There are a limited amount of NDI|HX3 compliant devices due to a hardware limitation most NDI|HX2 compliant devices have. Overall, NDI|HX3 is the latest update to the standard and offers the best features.

Features

• Versatile Connections – HDMI 2.0 & SDI inputs; HDMI 2.0 (PGM), HDMI & SDI (Loop-through) outputs
• Comprehensive Audio – 3.5mm analog input & output
• Recording & Streaming – 1080p60 (MP4, TS, MOV); supports NDI, RTSP, RTMP, HLS, SRT, TS
• Simple Network Configuration – DHCP Client support
• Control Options – Convenient control via USB keyboard/mouse and web UI
• Intuitive LED Indicators – Effortless Status Monitoring at a Glance
• Hardware compression in real-time mode
• Firmware upgradeable
• LED indicators for status monitoring
• Enhanced Functionality: USB 3.0 for storage
