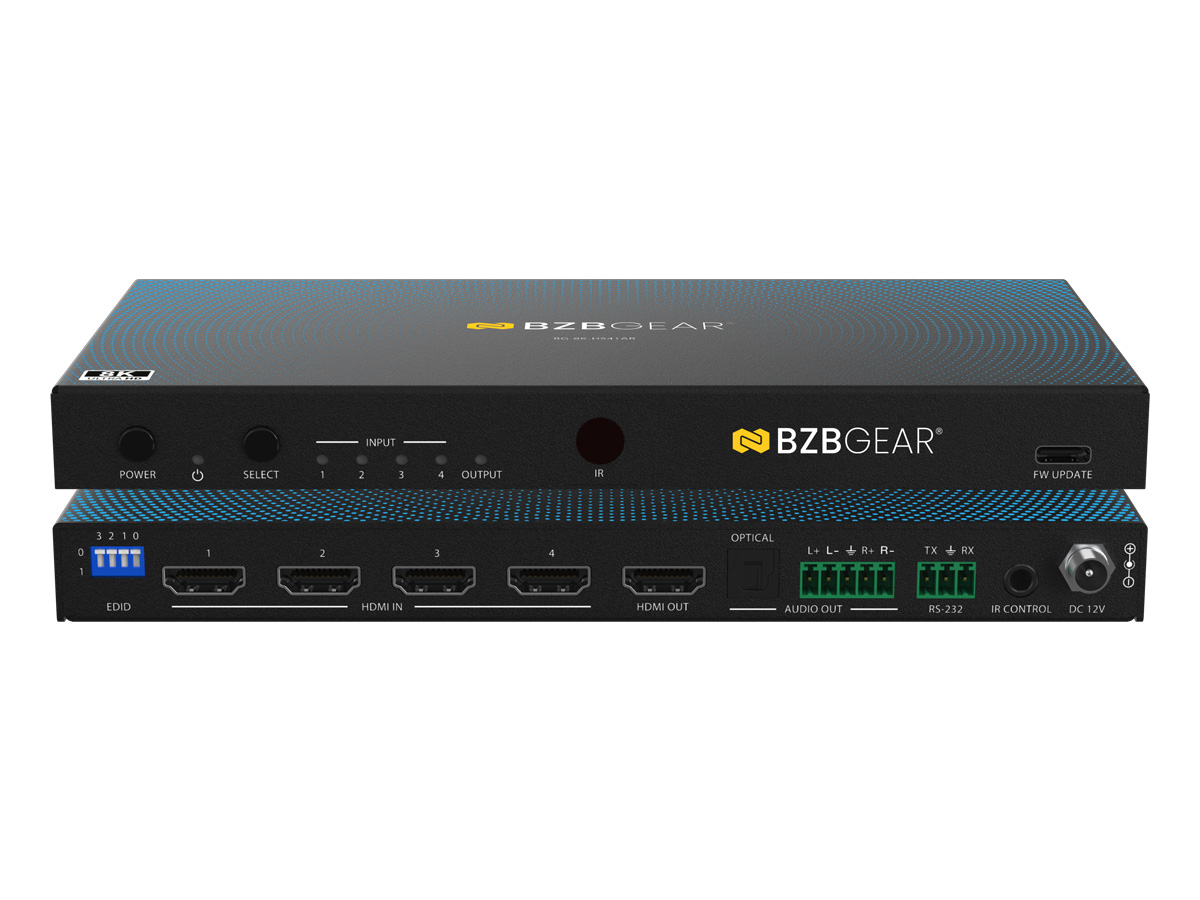

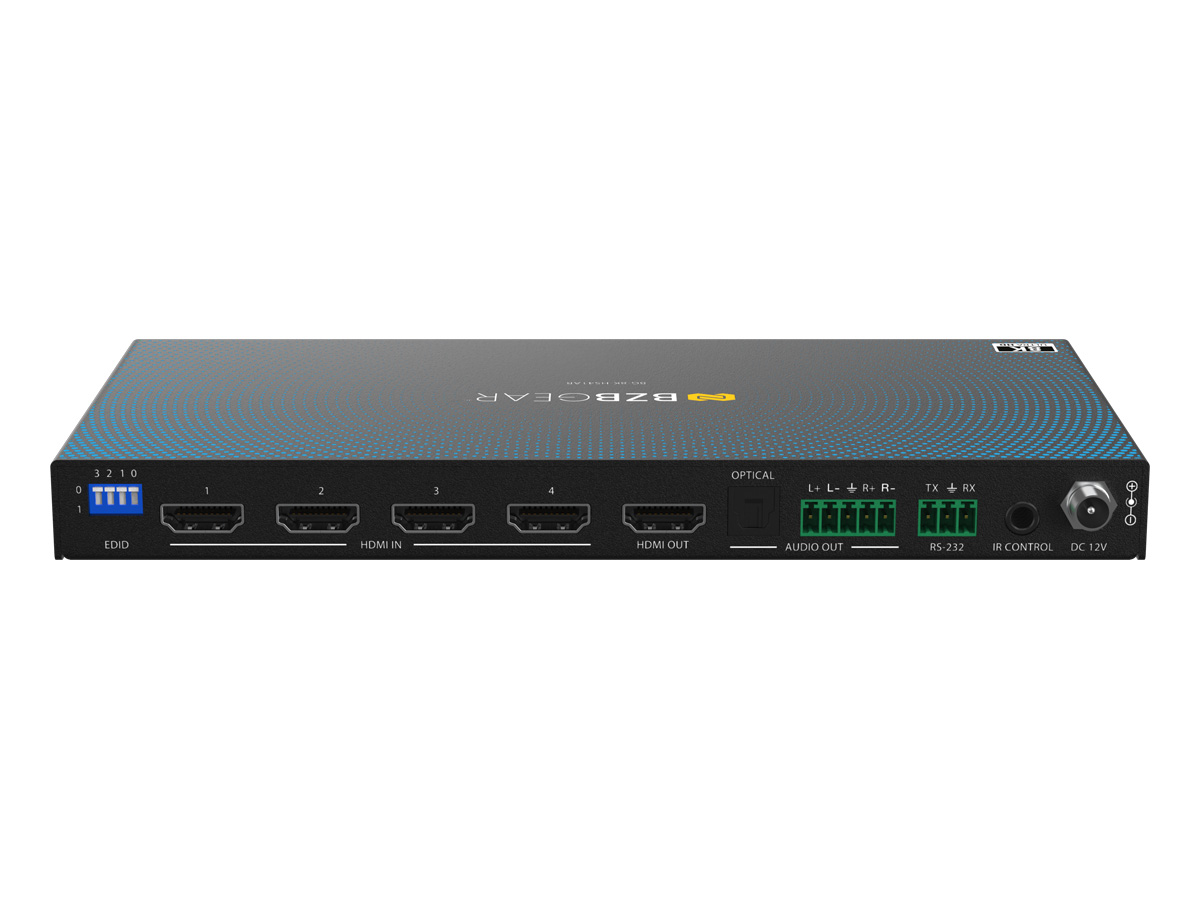

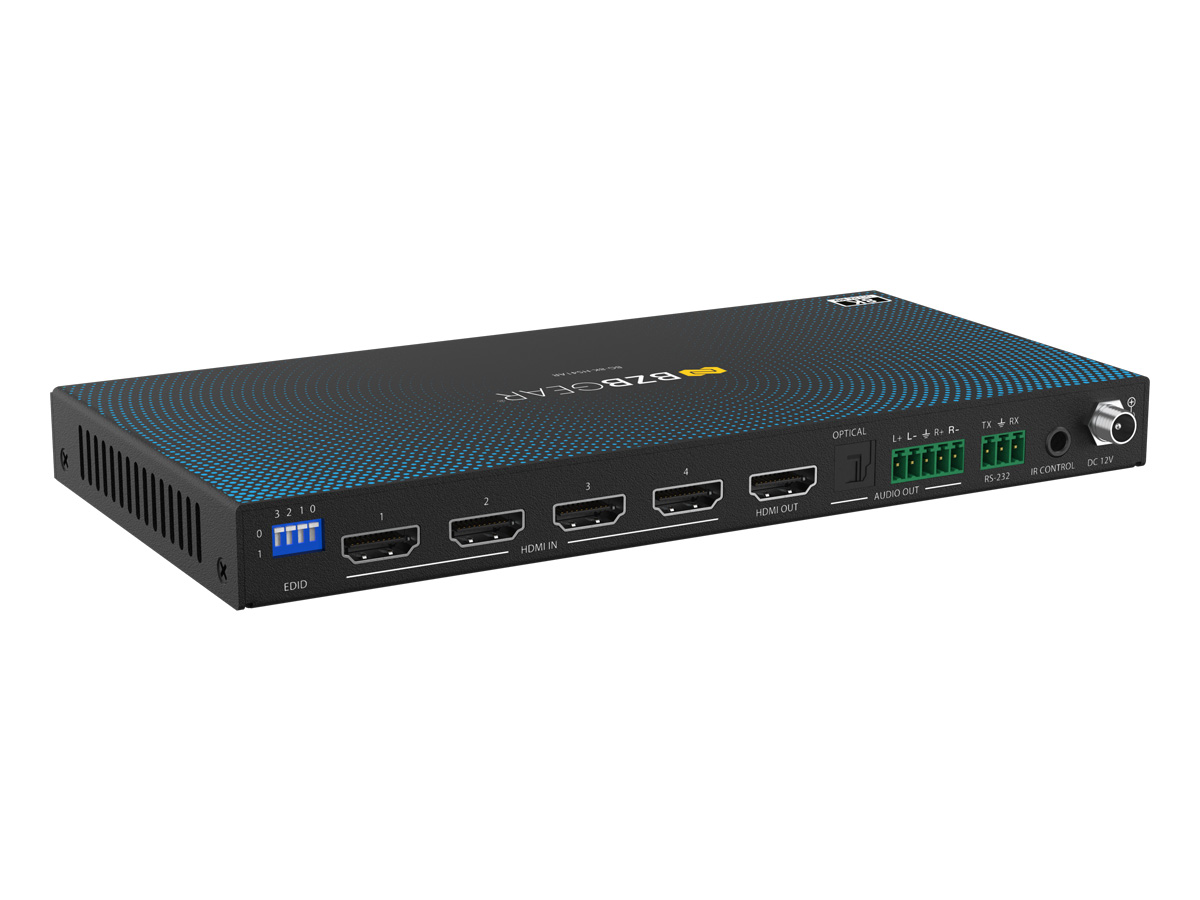

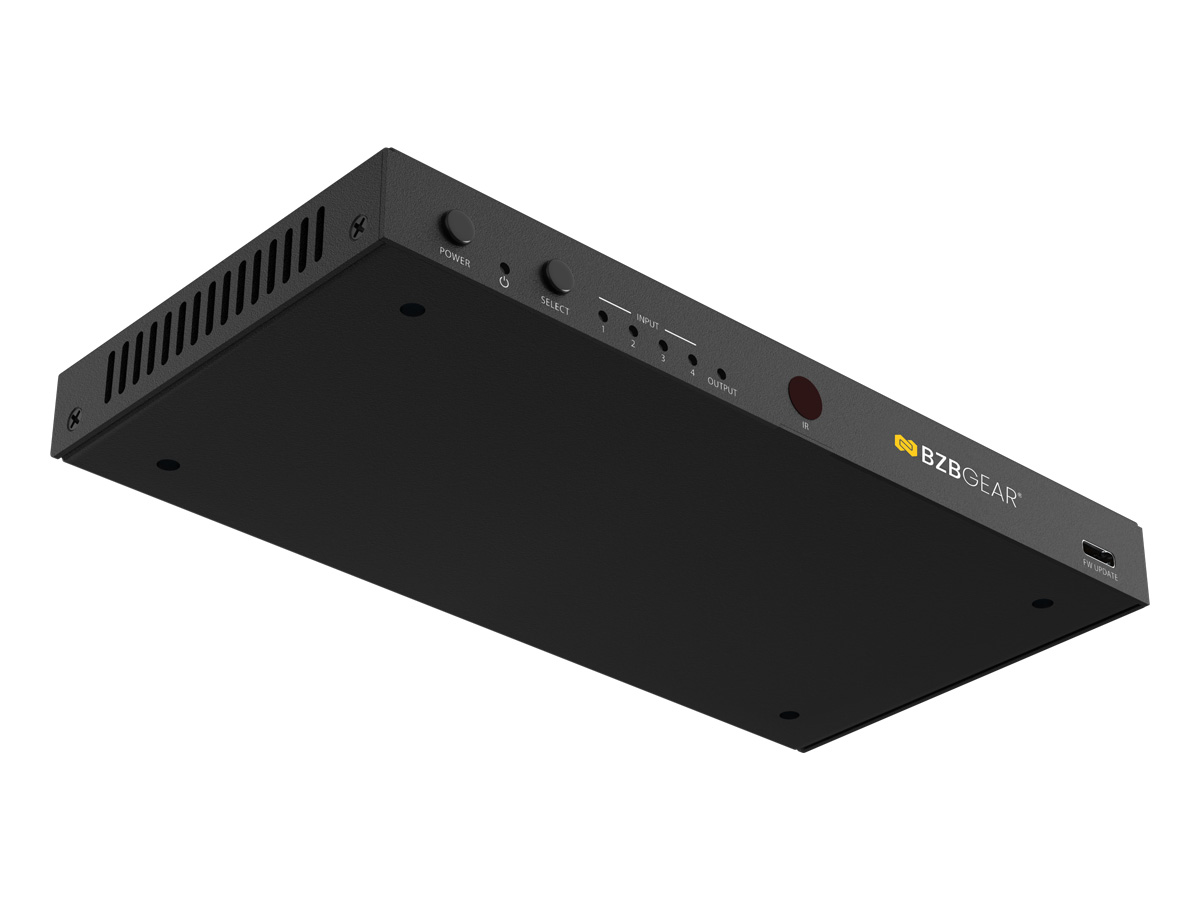

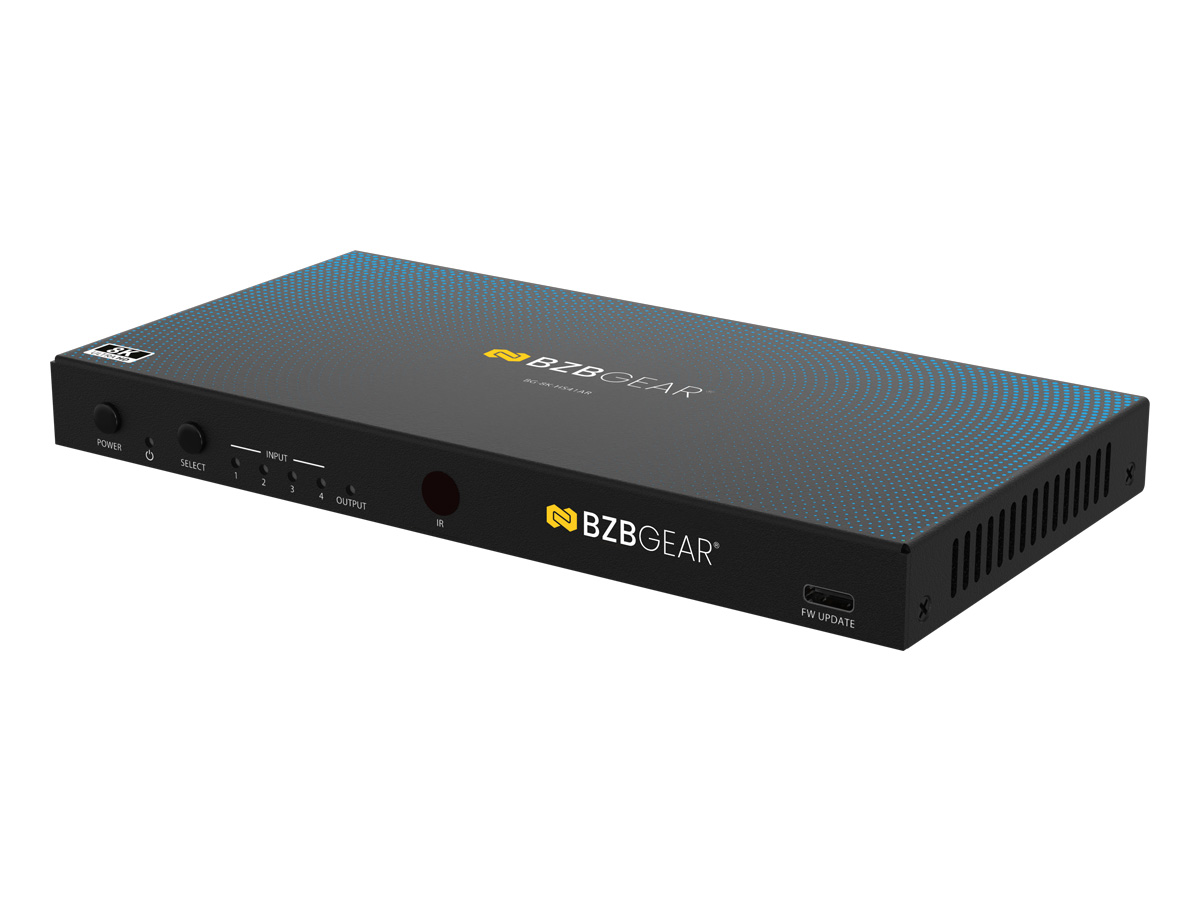

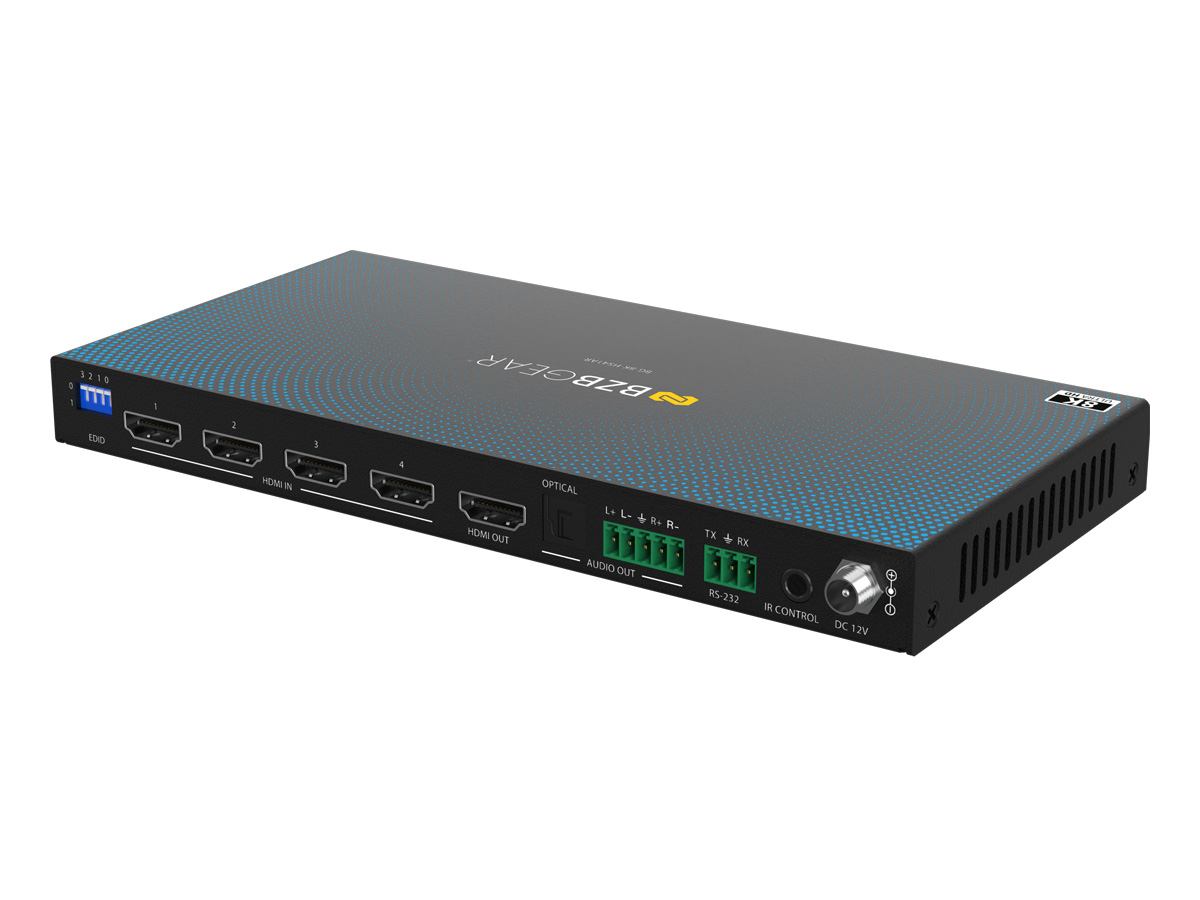

BZBGEAR BG-8K-HS41AR 4×1 8K UHD HDMI 2.1 Switcher with Digial/Analog Audio De-Embedding/EDID/RS-232 (8K60/4K120Hz 4:4:4 VRR/ALLM Support)

Description

The BG-8K-HS41AR is a high-performance 4×1 HDMI switcher designed to deliver seamless switching between up to four 8K HDMI source devices and a single 8K display. Supporting video resolutions up to 8K@60Hz (4:2:0, 12-bit), 8K@30Hz (4:4:4, 12-bit), and 4K@120Hz (4:4:4, 12-bit) as specified in HDMI 2.1, this switcher ensures crystal-clear image quality with HDR formats including HDR10, HDR10+, Dolby Vision, and pass-through for ALLM/VRR. It is fully HDCP 2.3 compliant and supports advanced HDMI audio formats such as Dolby Atmos, DTS-HD Master Audio, and DSD, ensuring compatibility with the latest AV equipment.

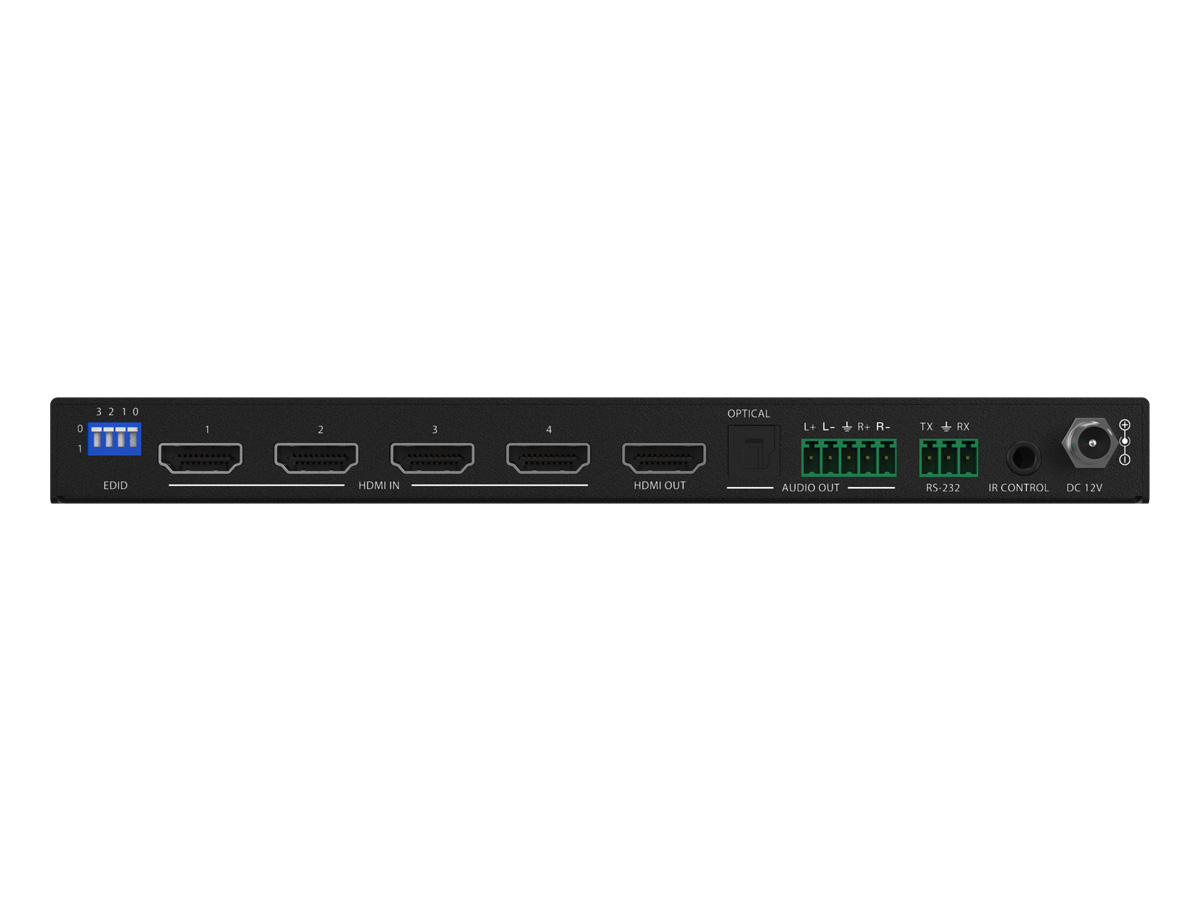

Engineered for versatility and ease of use, the BG-8K-HS41AR offers a built-in HDMI signal generator for quick troubleshooting and supports digital and analog audio de-embedding, with analog audio output featuring adjustable gain control. Advanced EDID management is accessible through a 4-pin DIP switch, while control options include front panel buttons, IR remote, and RS-232 API commands. With its compact design, auto/manual switching modes, and built-in equalization and re-timing circuitry, this switcher is ideal for conference rooms, multimedia classrooms, live demonstrations, and any application requiring reliable big-screen presentations.

Features

• 8K & 4K120 Support – 8K@60Hz YCbCr 4:2:0 12-bit, 8K@30Hz RGB/YCbCr 4:4:4 12-bit, and 4K@120Hz RGB/YCbCr 4:4:4 12-bit

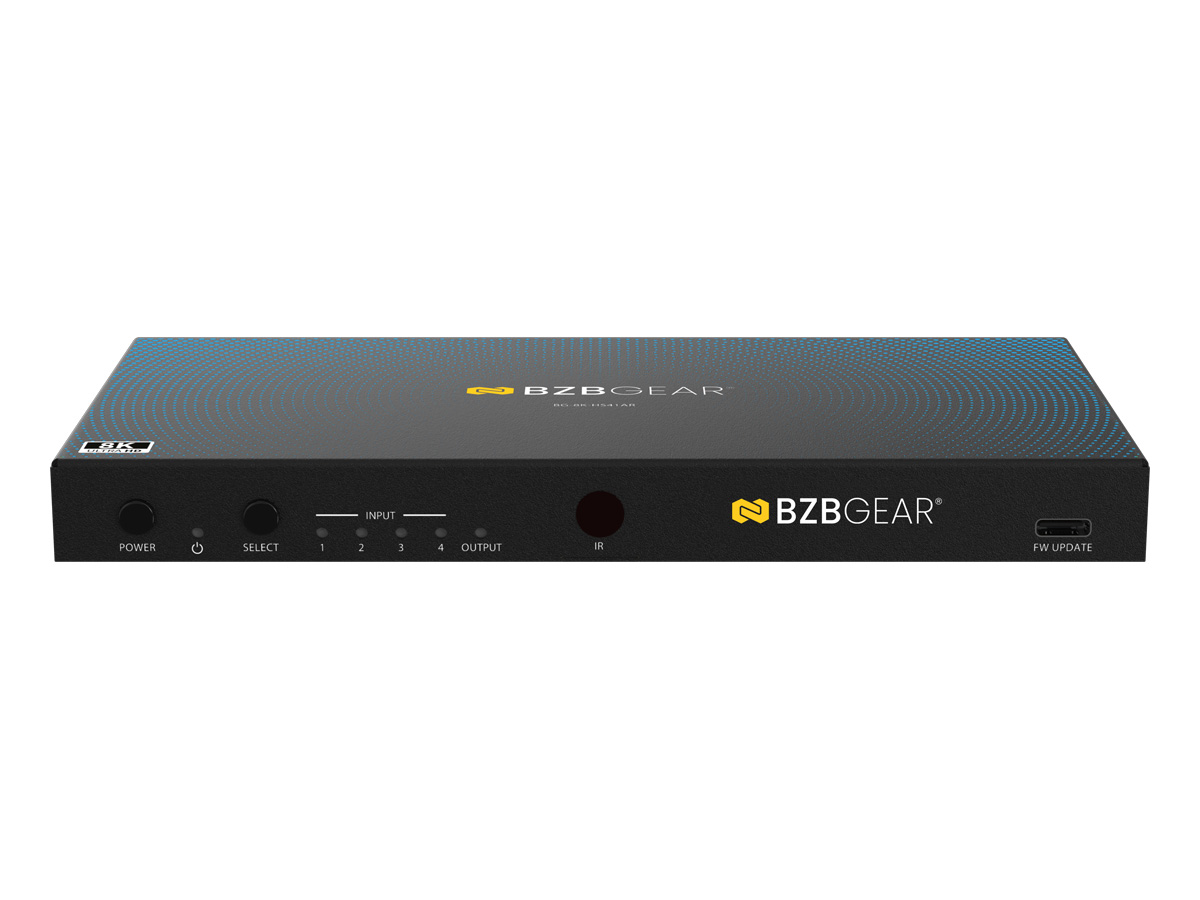

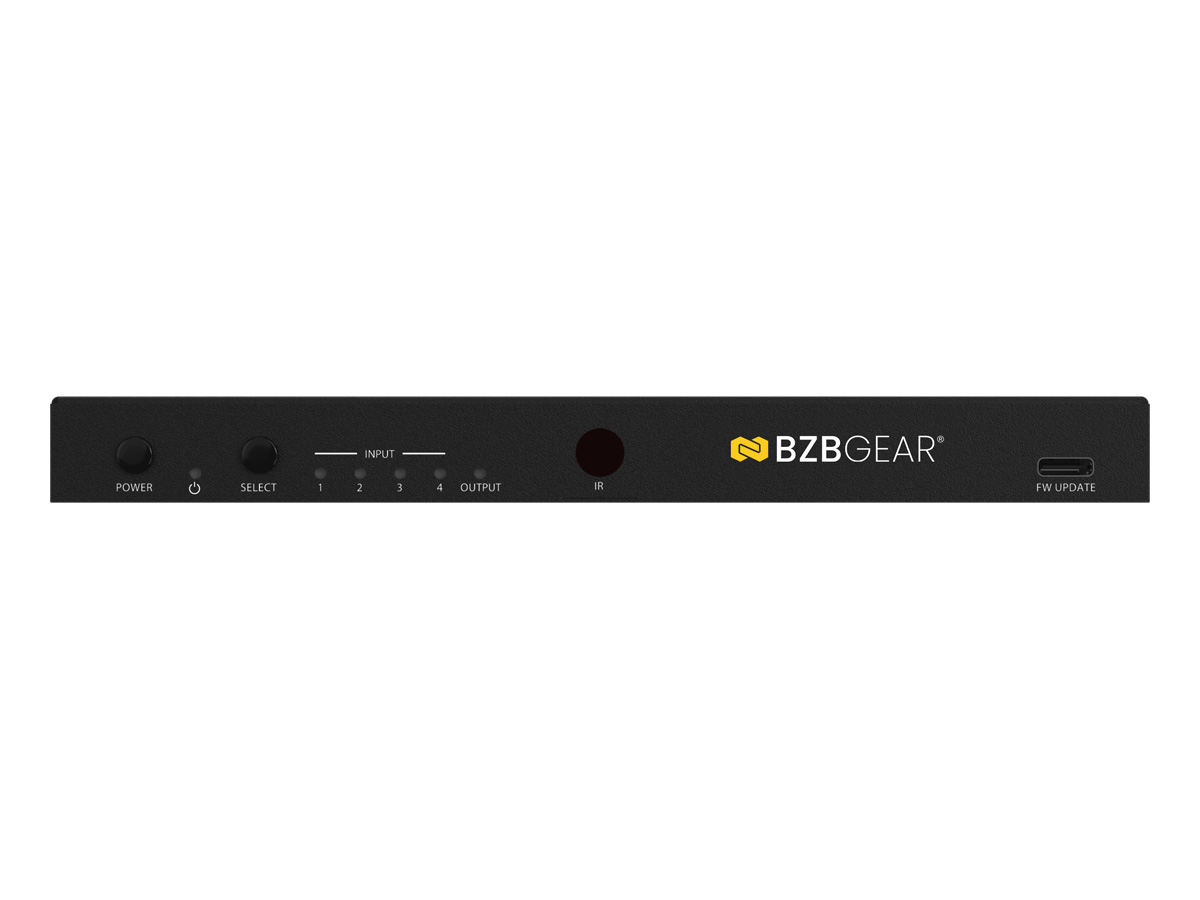

• Control Options – Supports control via front panel buttons, IR remote, and RS-232 API commands
• Audio Format Support – LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS 96/24, DTS High-Res, DTS-HD Master Audio, and DSD
• Audio De-embedding – Supports digital and analog audio de-embedding with analog audio output and gain control adjustment
• Switching Modes – Offers automatic and manual switching between input sources
• HDR & Gaming Features – Pass-through support for HDR10, HDR10+, Dolby Vision, ALLM, and VRR
• HDCP Compliance – Fully compliant with HDCP 2.3 for secure content protection
• Signal Optimization – Built-in equalizer, retiming, and driver circuitry ensure stable and reliable signal transmission
• EDID Management – Advanced EDID management for optimized communication between sources and displays
• Compact Design – Space-efficient form factor for easy and flexible installation
