Description

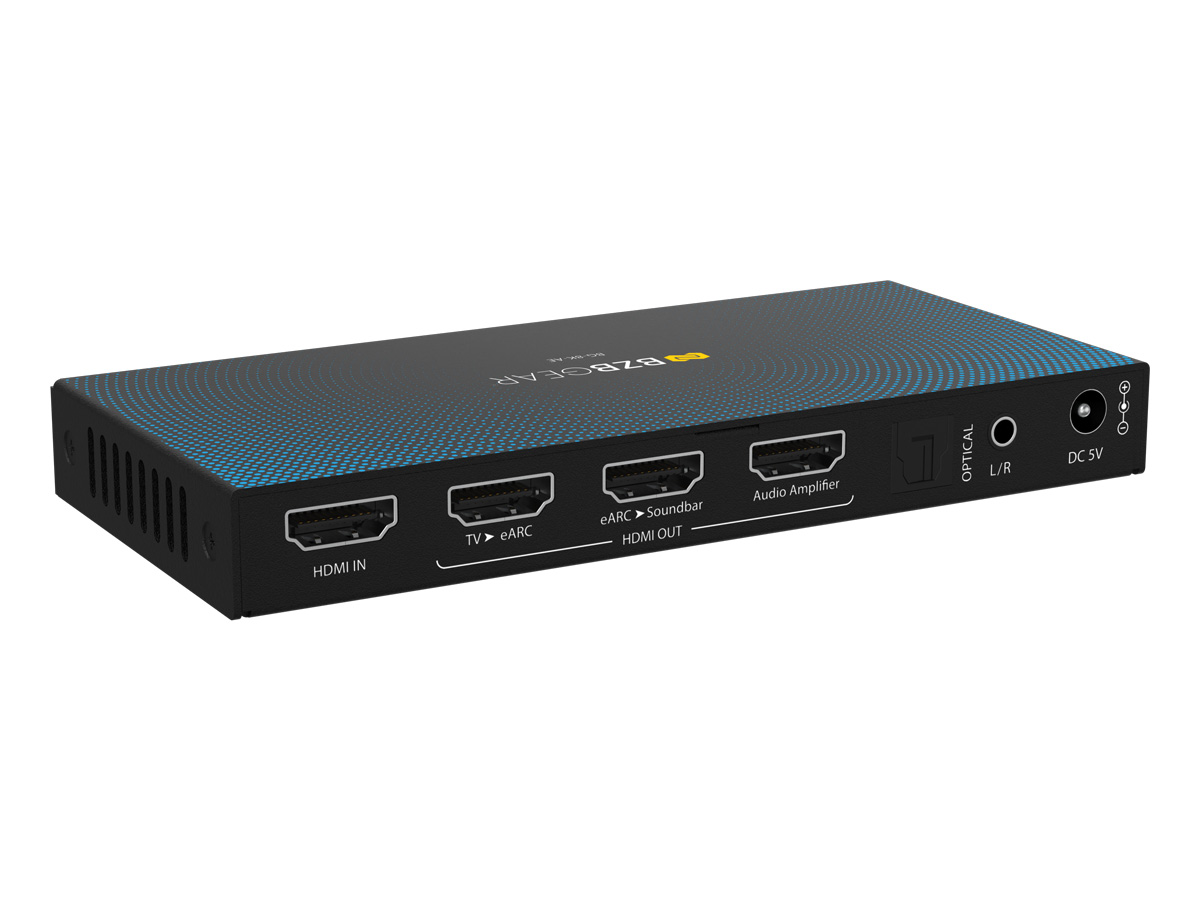

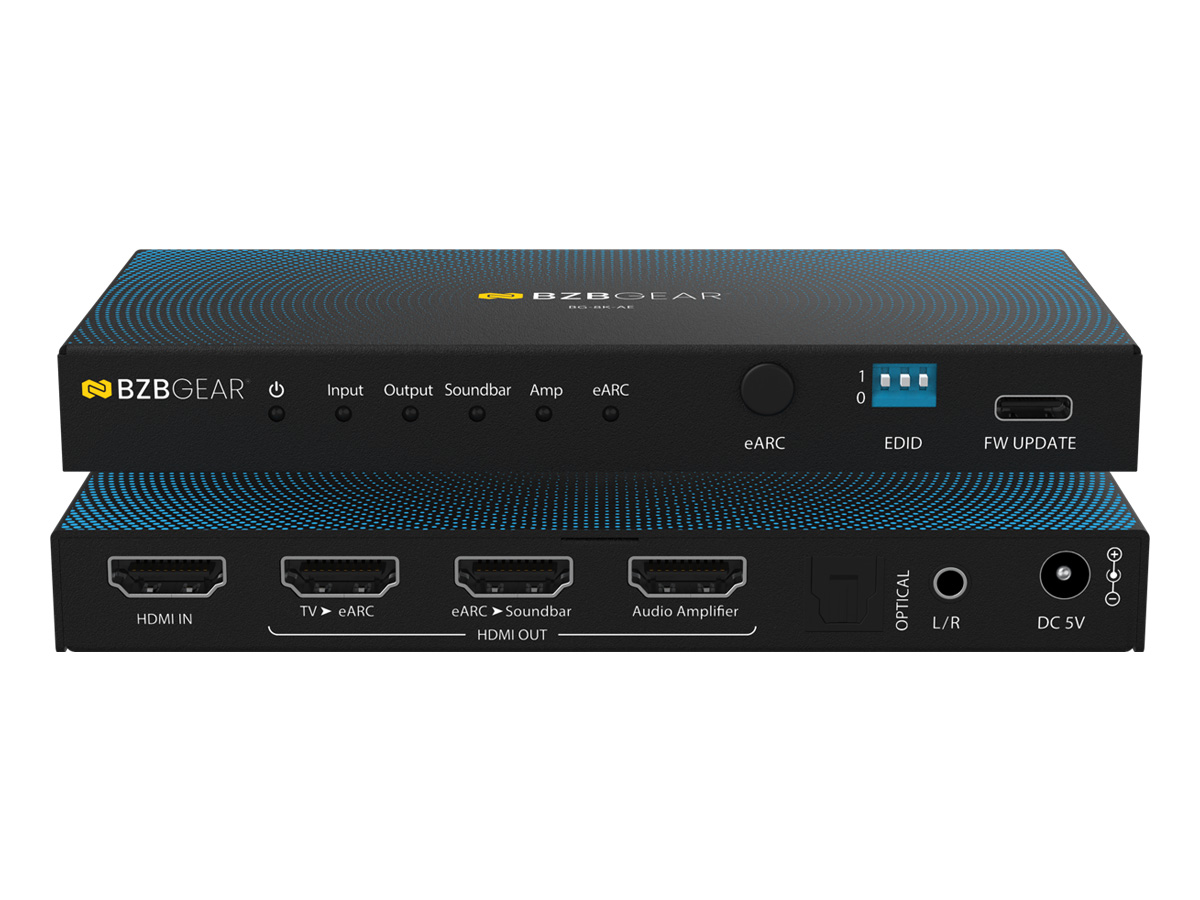

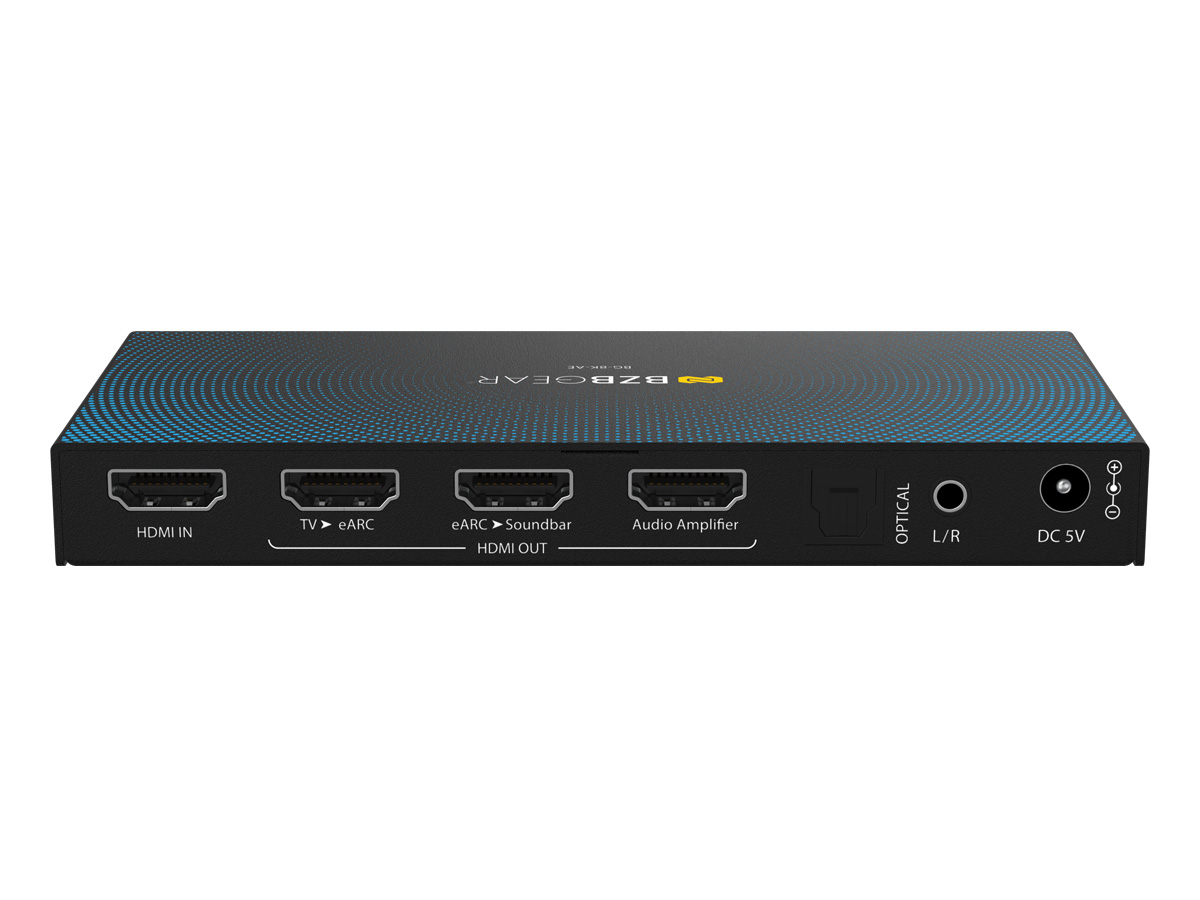

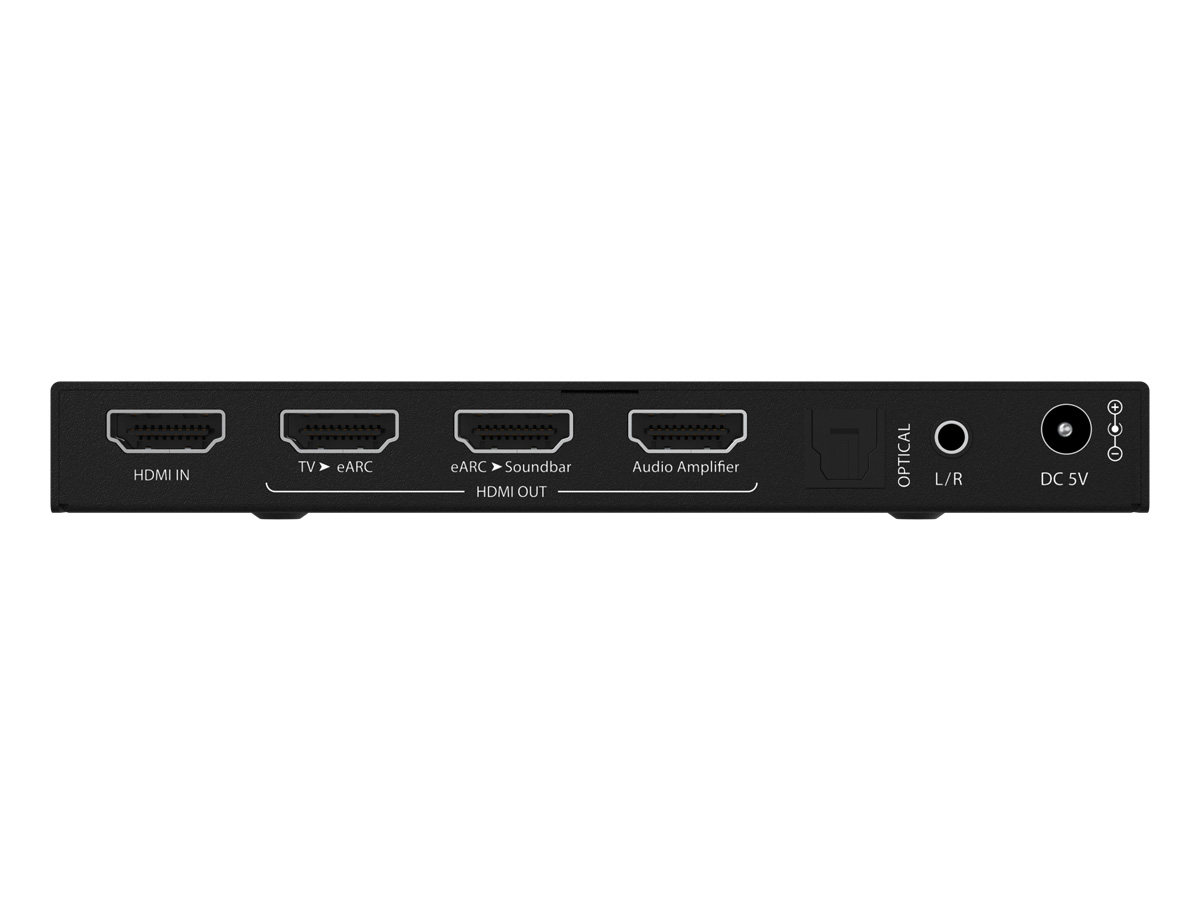

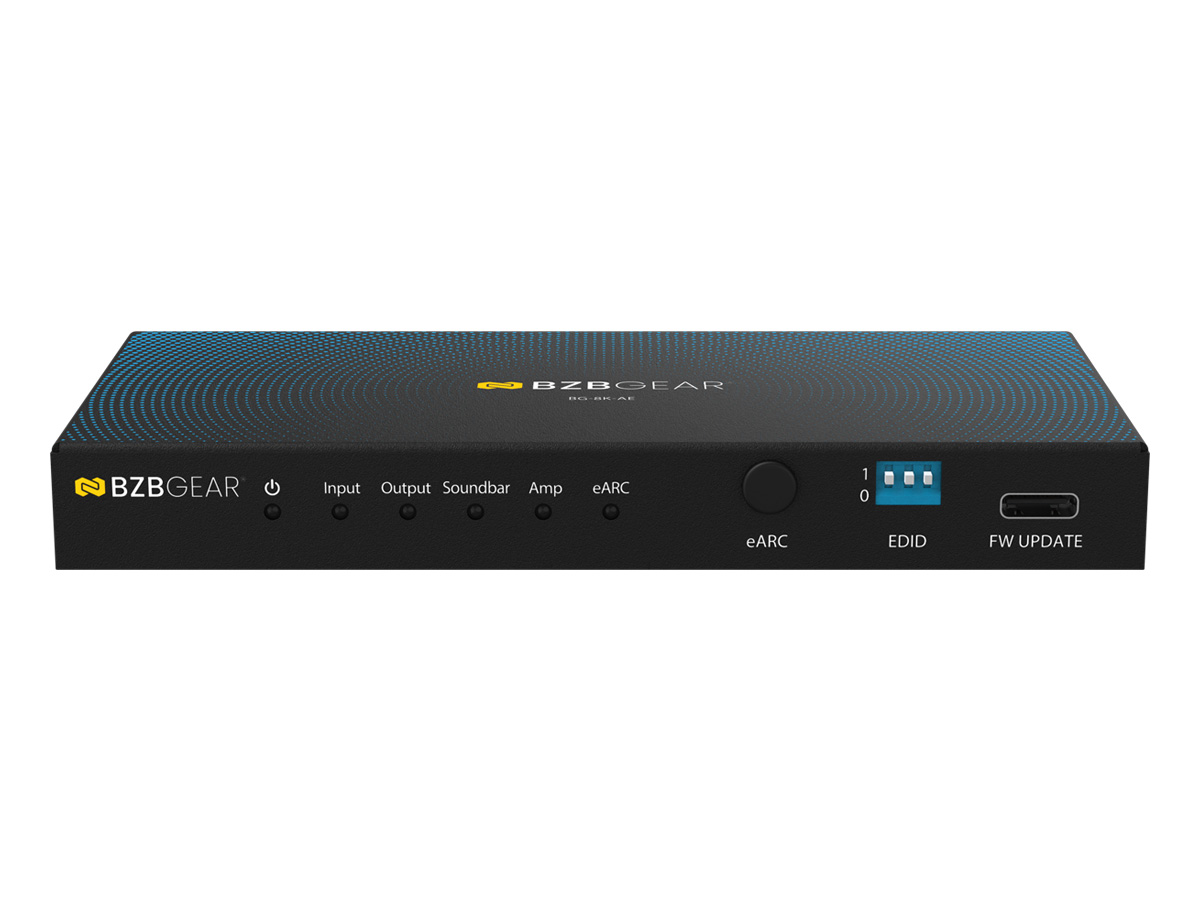

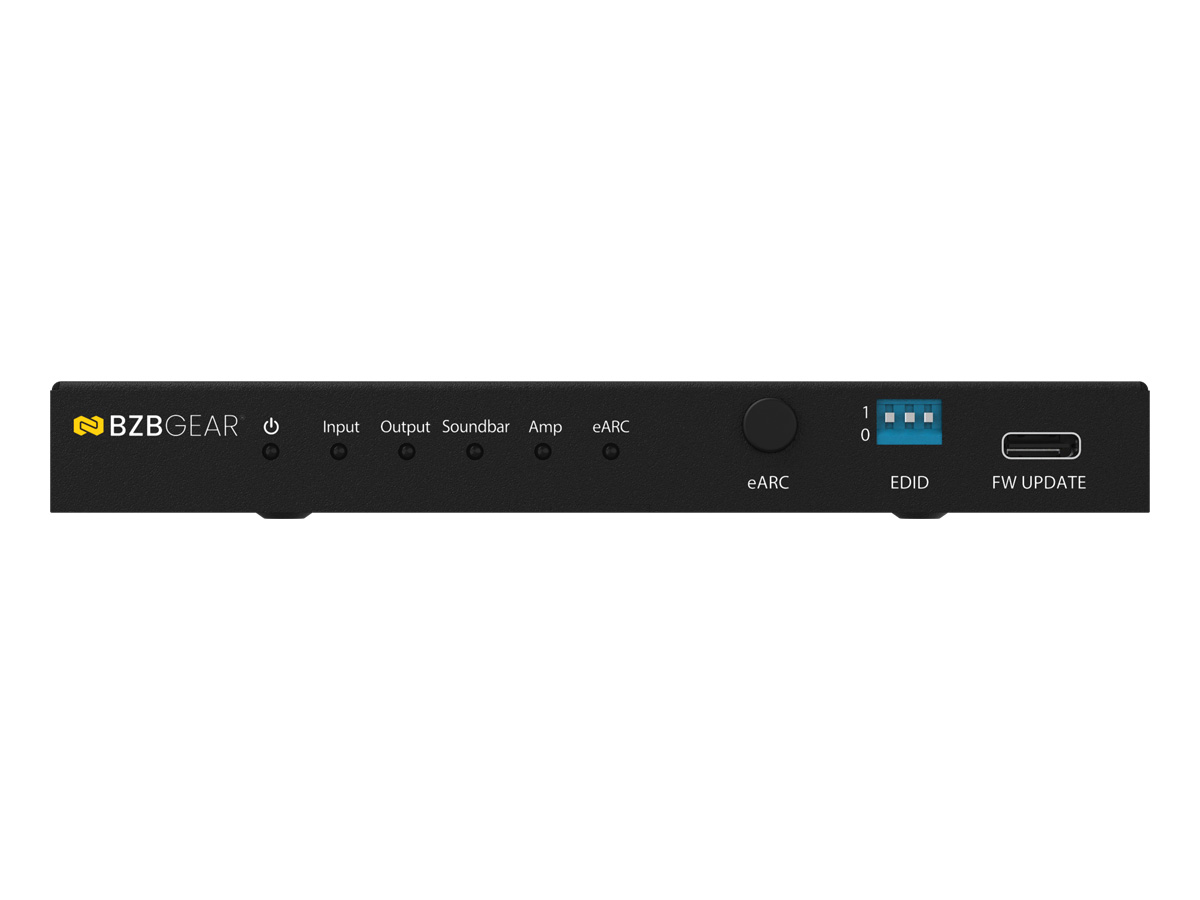

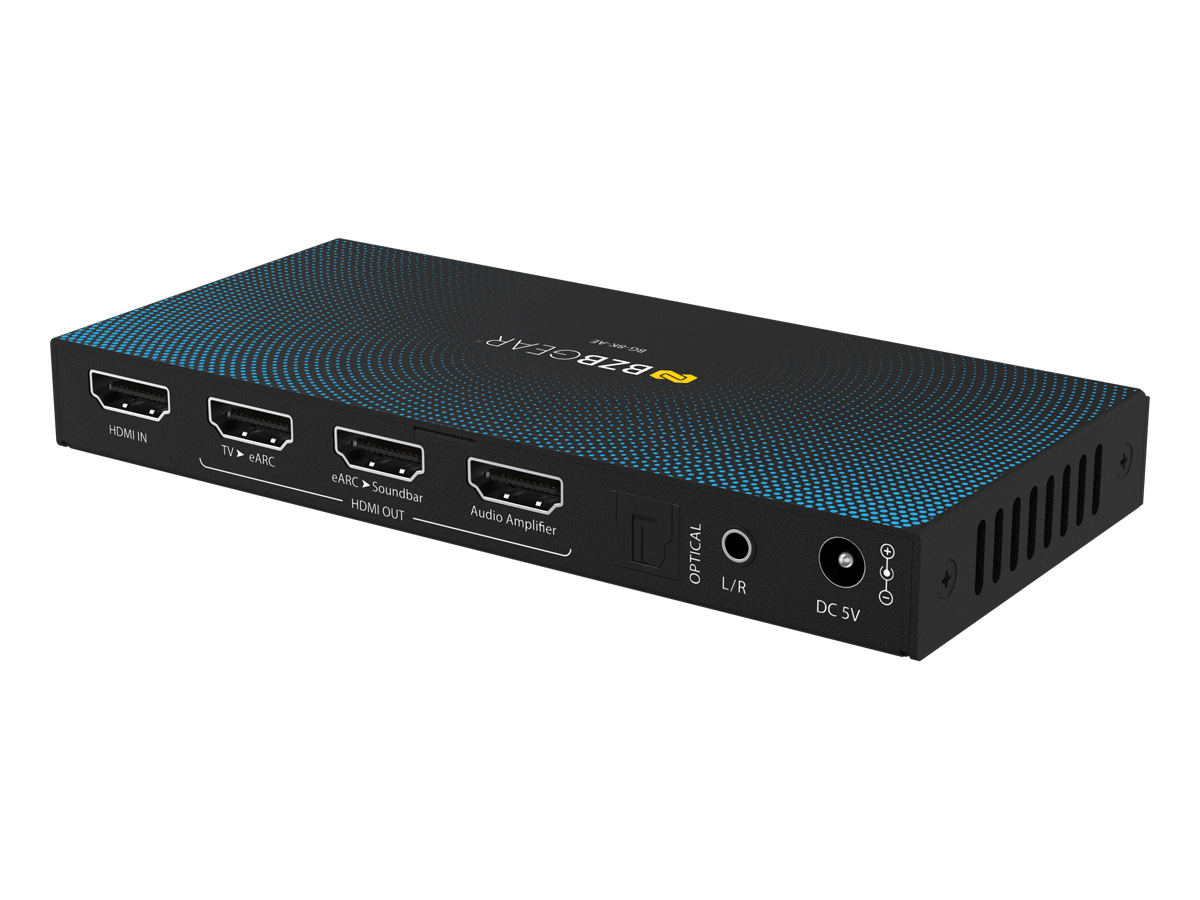

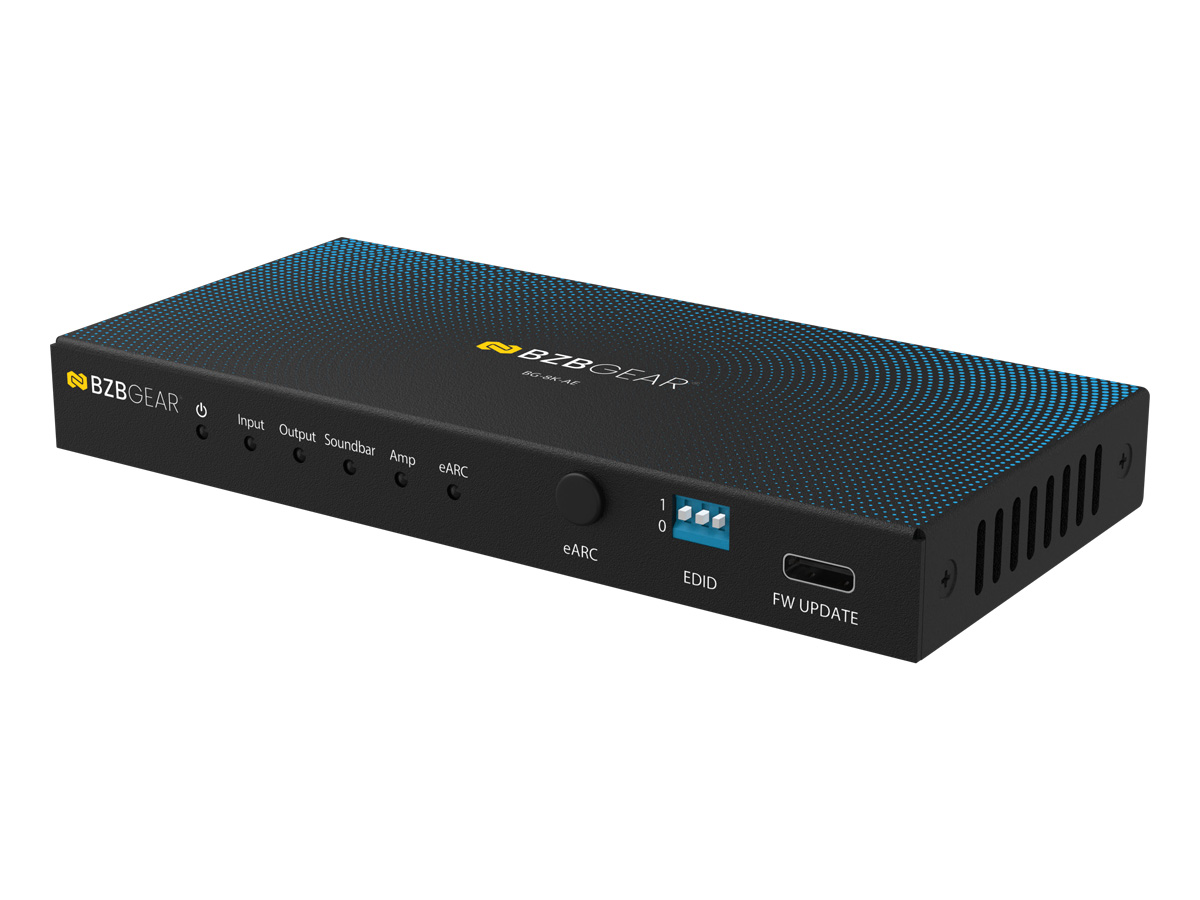

The BG-8K-AE is a high-performance 48Gbps eARC audio adapter engineered to extract audio from an HDMI source or a TV with ARC/eARC functionality and route it to an AV receiver, soundbar, or stereo system. It supports HDMI audio de-embedding to HDMI, digital S/PDIF, or analog L/R outputs, offering seamless audio distribution for modern AV setups.
Fully compliant with HDMI 2.1 and HDCP 2.3, this adapter supports data rates up to 48Gbps, with resolutions up to 8K@60Hz 4:2:0 12-bit and 4K@120Hz 4:4:4 12-bit. It also enables pass-through of advanced HDR formats – including HDR10, HDR10+, Dolby Vision, and HLG—as well as support for VRR, ALLM, QMS, QFT, and SBTM for enhanced video performance.
Designed for effortless integration, the BG-8K-AE includes advanced EDID management, cable equalization, and CEC control, allowing for volume and source control directly from the TV. Whether de-embedding full-quality Dolby Atmos/DTS:X audio to a SONOS ARC, Beam, or eARC-enabled sound system, or routing standard stereo to a 2.0/5.1-channel amplifier, this adapter is a versatile solution for both home theater and professional AV installations.
Features
- HDR Pass-Through – Compatible with HDR, HDR10, HDR10+, Dolby Vision, and Hybrid Log-Gamma (HLG) formats
- High-Definition Audio – Supports audio pass-through for LPCM 7.1-channel, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X formats
- Audio De-Embedding – Extracts audio from HDMI sources and TV eARC/ARC to S/PDIF, stereo L/R analog, and HDMI audio outputs
- eARC/ARC to Soundbar – De-embeds audio from HDMI sources to eARC/ARC soundbars, including SONOS ARC and Beam, supporting full Dolby Atmos/DTS:X audio
- CEC Control Support – Enables CEC control from the TV to HDMI source devices
- CEC Volume Control – Allows CEC-based volume control from the TV to any connected eARC audio system
- HDCP Compliance – Fully compliant with HDCP 2.3 for secure content transmission
- EDID Management – Features advanced EDID configuration for optimized compatibility and performance
- High Bandwidth Support – Supports up to 48Gbps video bandwidth and resolutions up to 8K@60Hz (4:2:0, 12-bit) and 4K@120Hz (4:4:4, 12-bit), following HDMI 2.1 specifications
