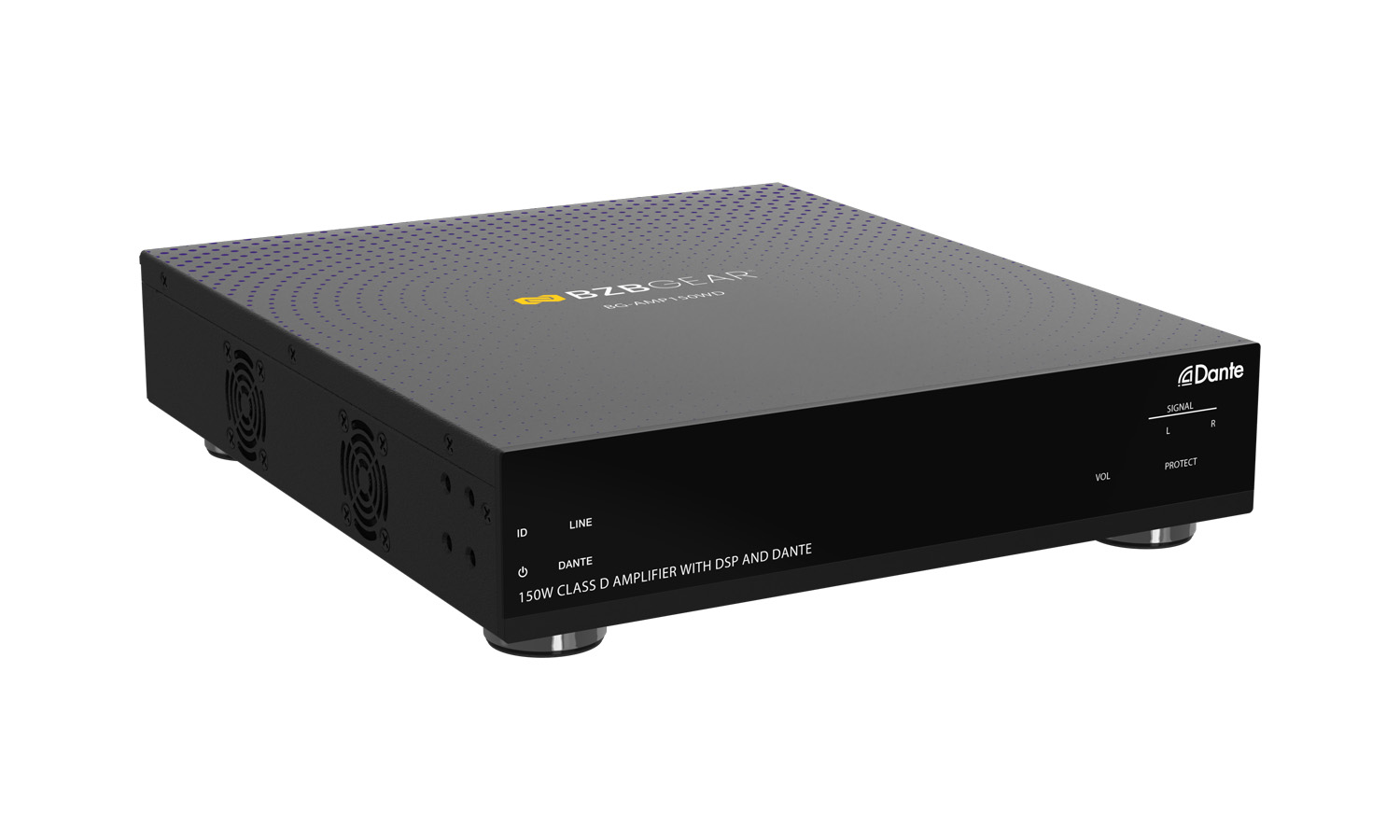

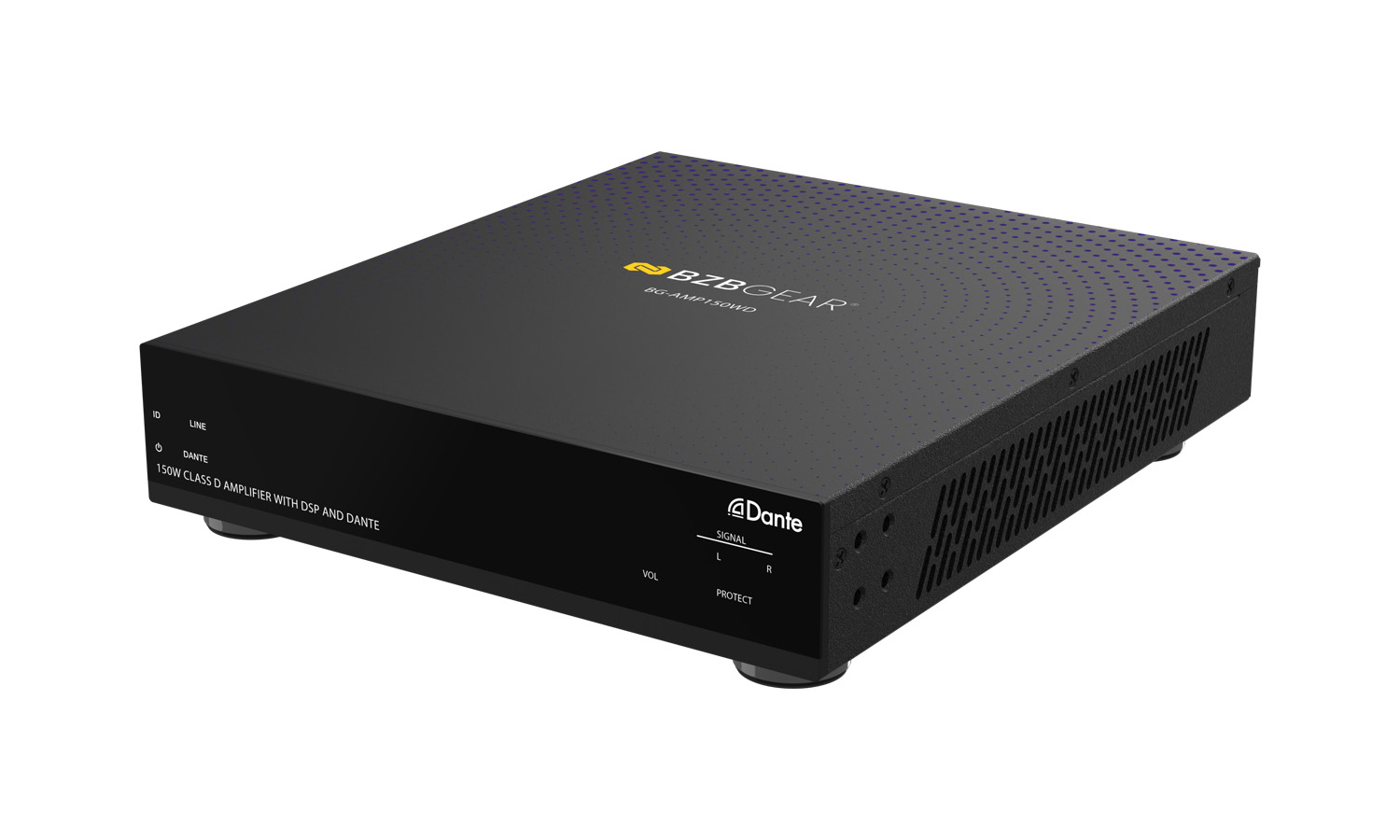

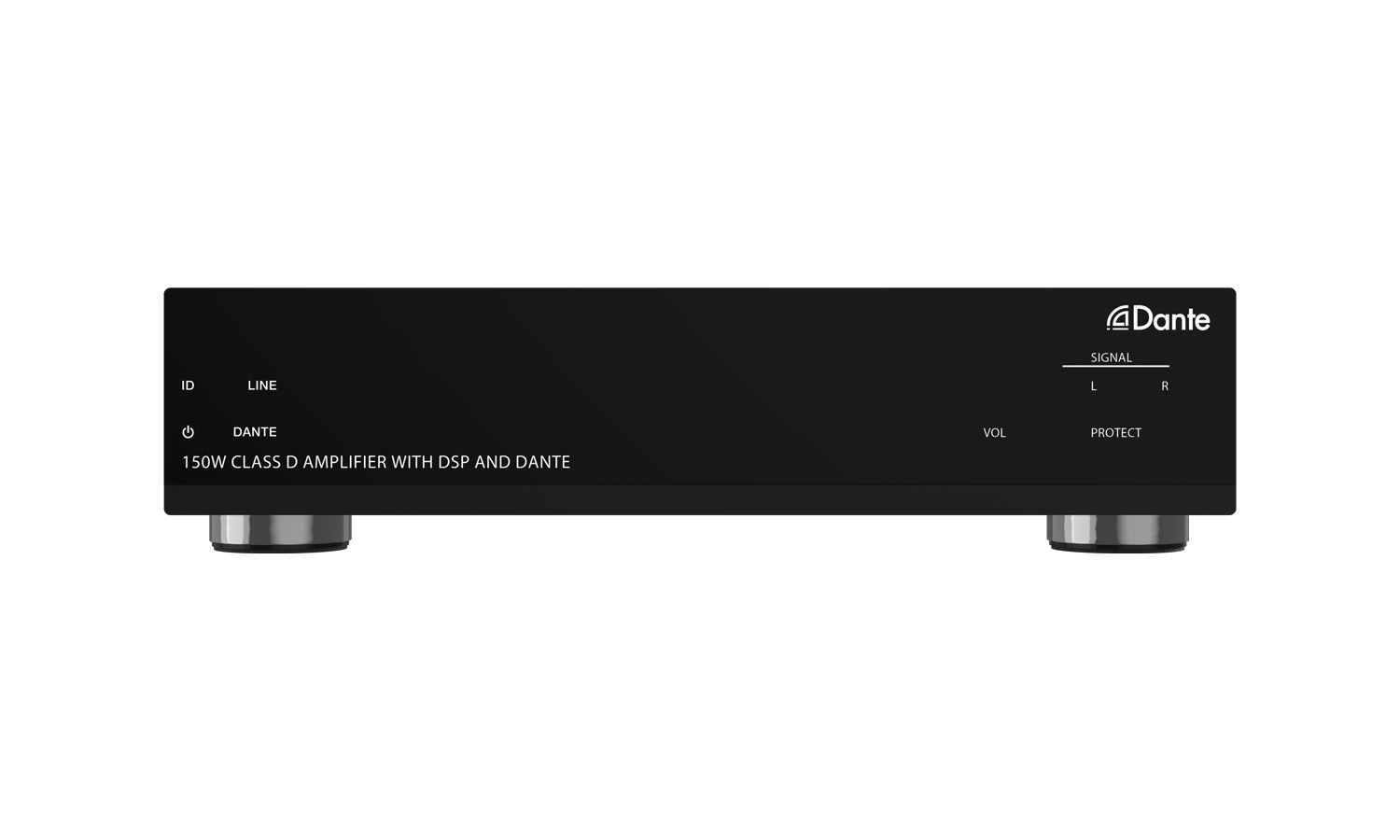

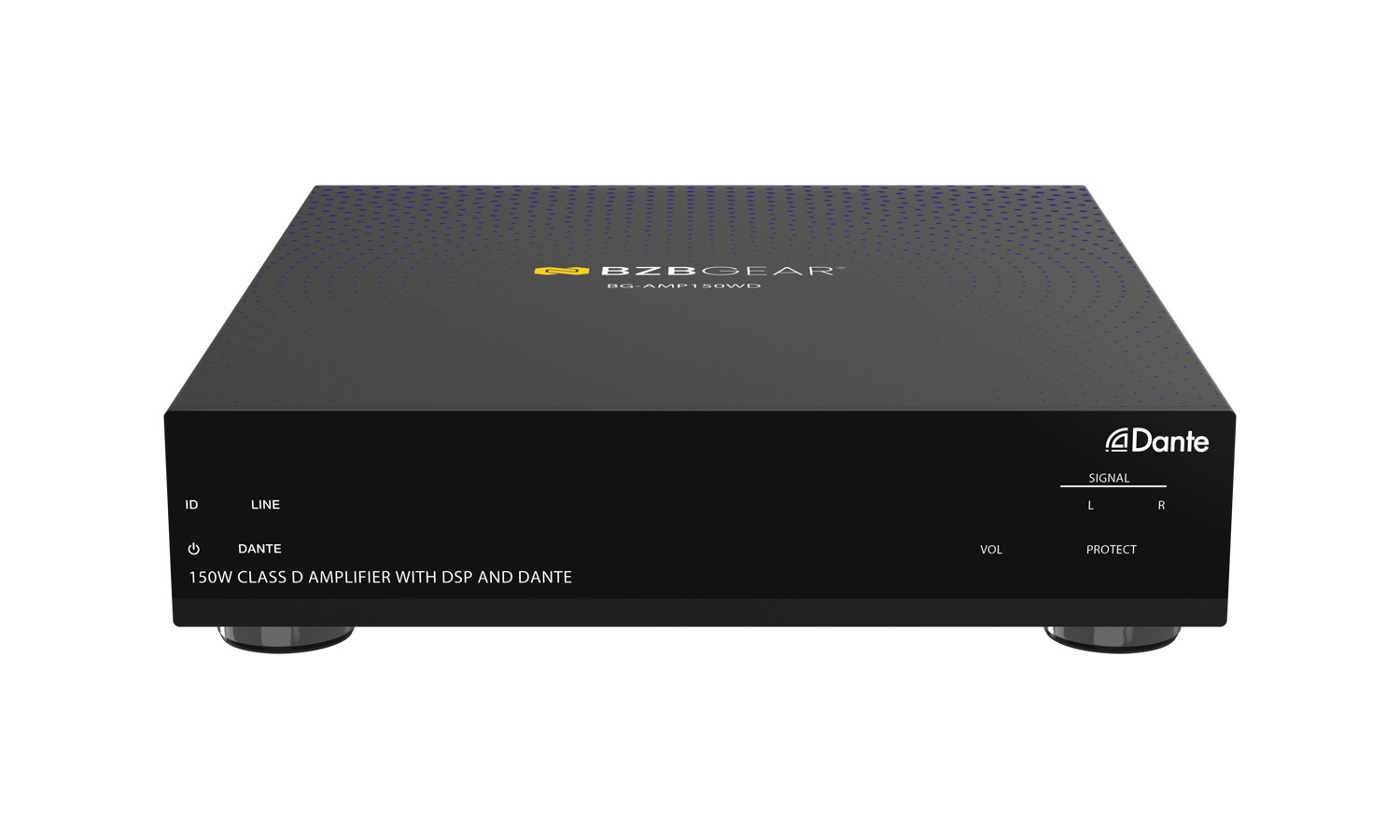

BZBGEAR BG-AMP150WD 2-Channel 150W Compact Class D DSP & Amplifier with Digital/Analog Audio and 2×2 Dante In/Out

Description

The BG-AMP150WD is a versatile two-channel amplifier that harnesses the power of class D amplifier technology, offering outstanding performance and efficiency. Perfectly designed for both low impedance (4Ω/8Ω) stereo systems and constant voltage (100V and 70V) configurations, this amplifier delivers robust and reliable audio solutions for a wide range of AV installations. With a maximum power output of 2 x 75 watts in stereo mode and up to 150 watts when bridged, the BG-AMP150WD is engineered to meet the demands of modern audio environments.

Features in Depth

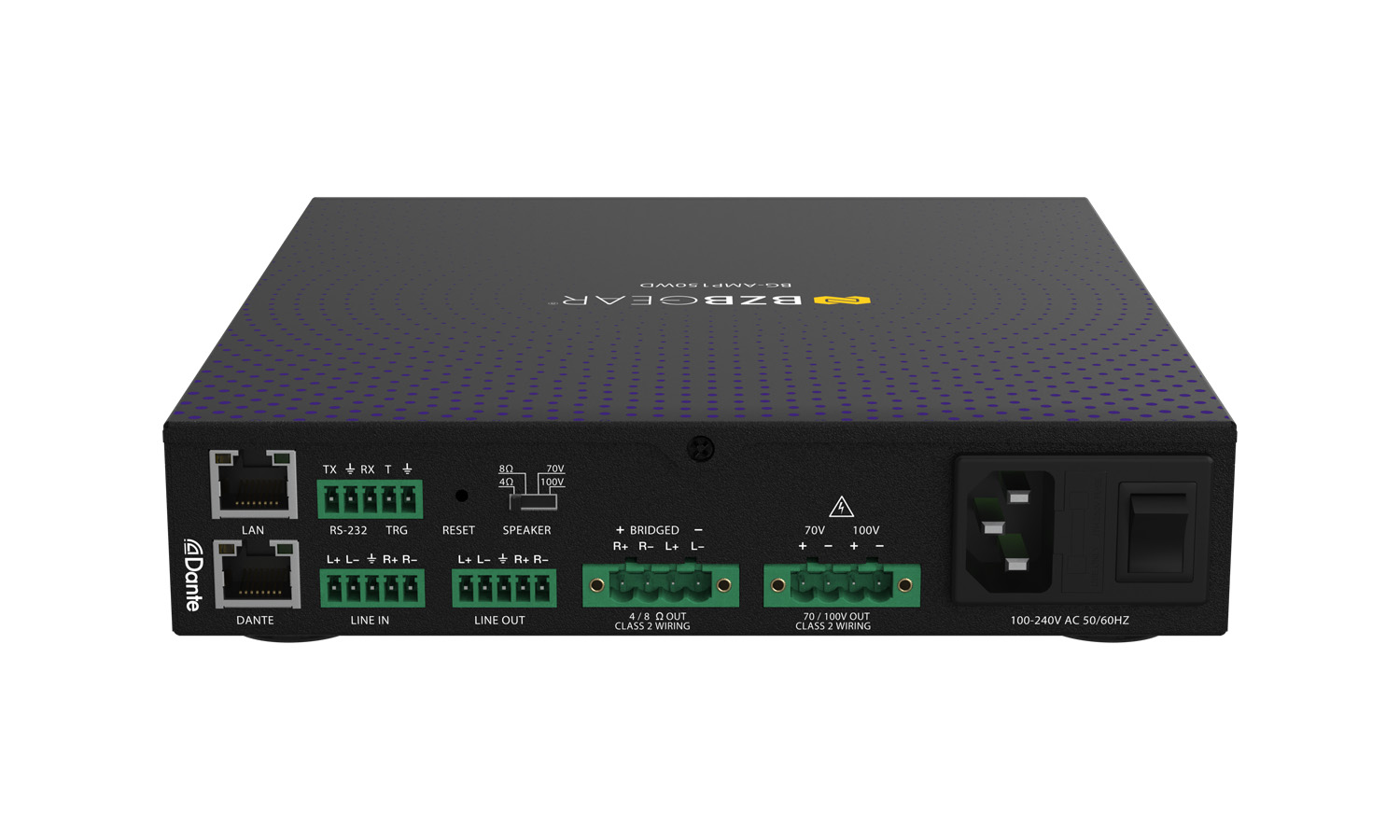

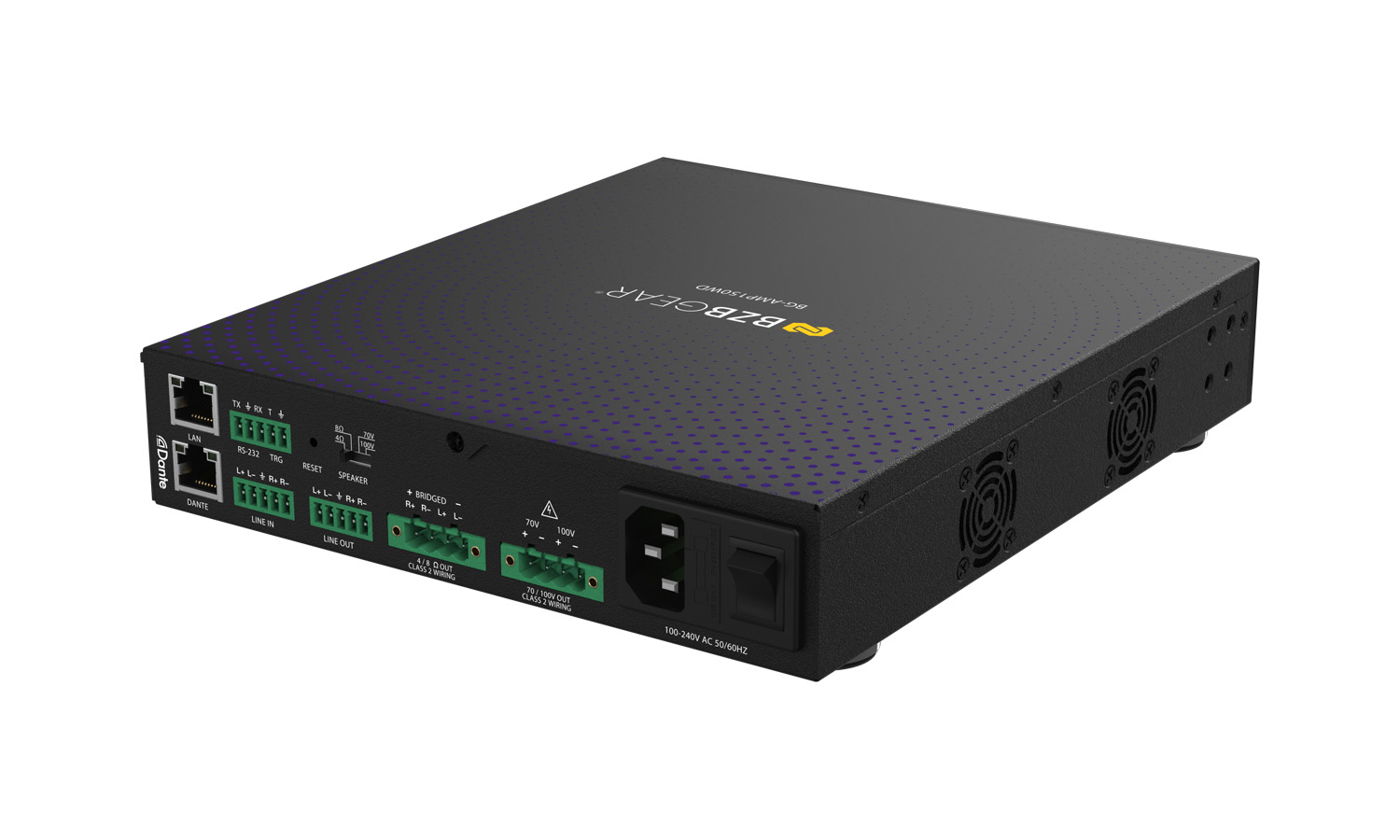

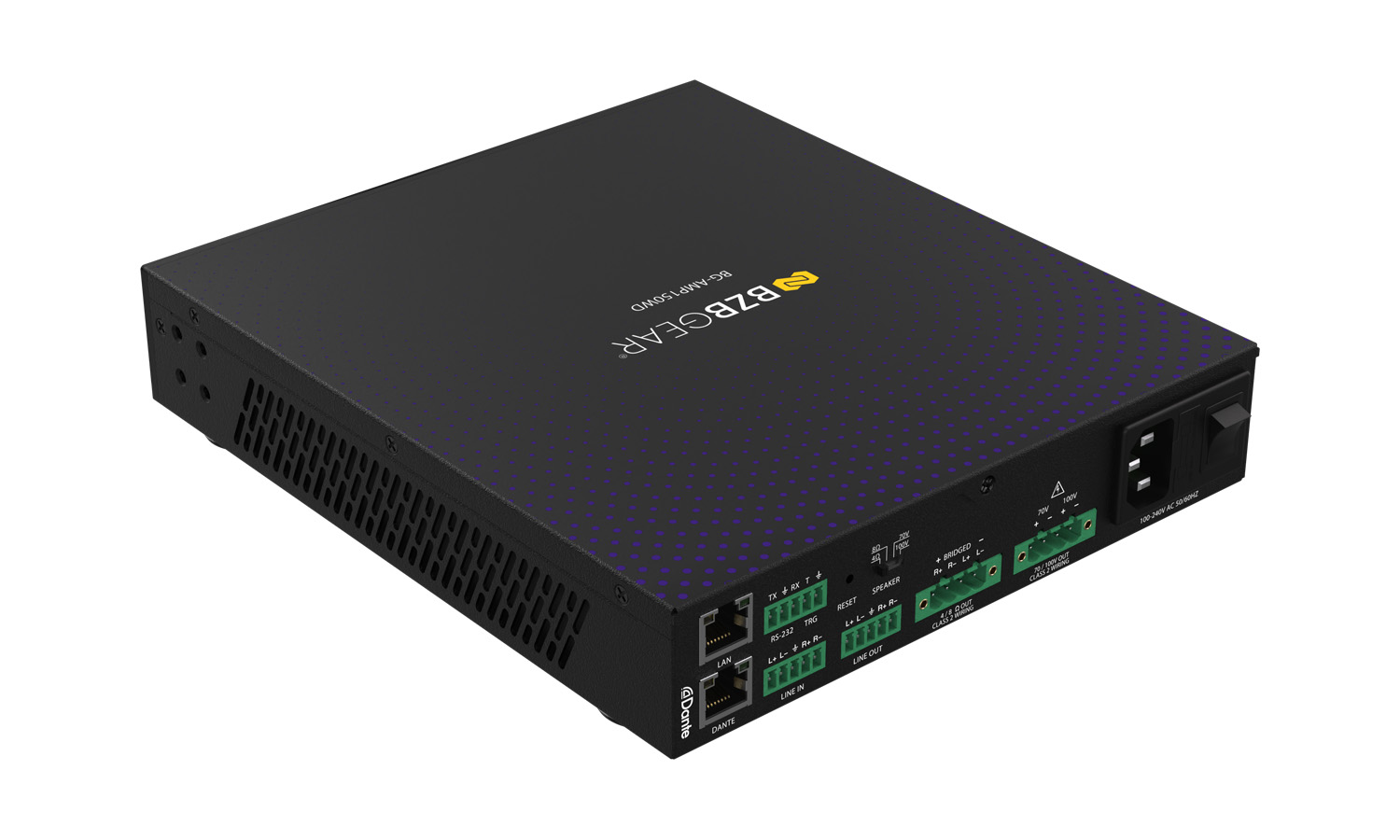

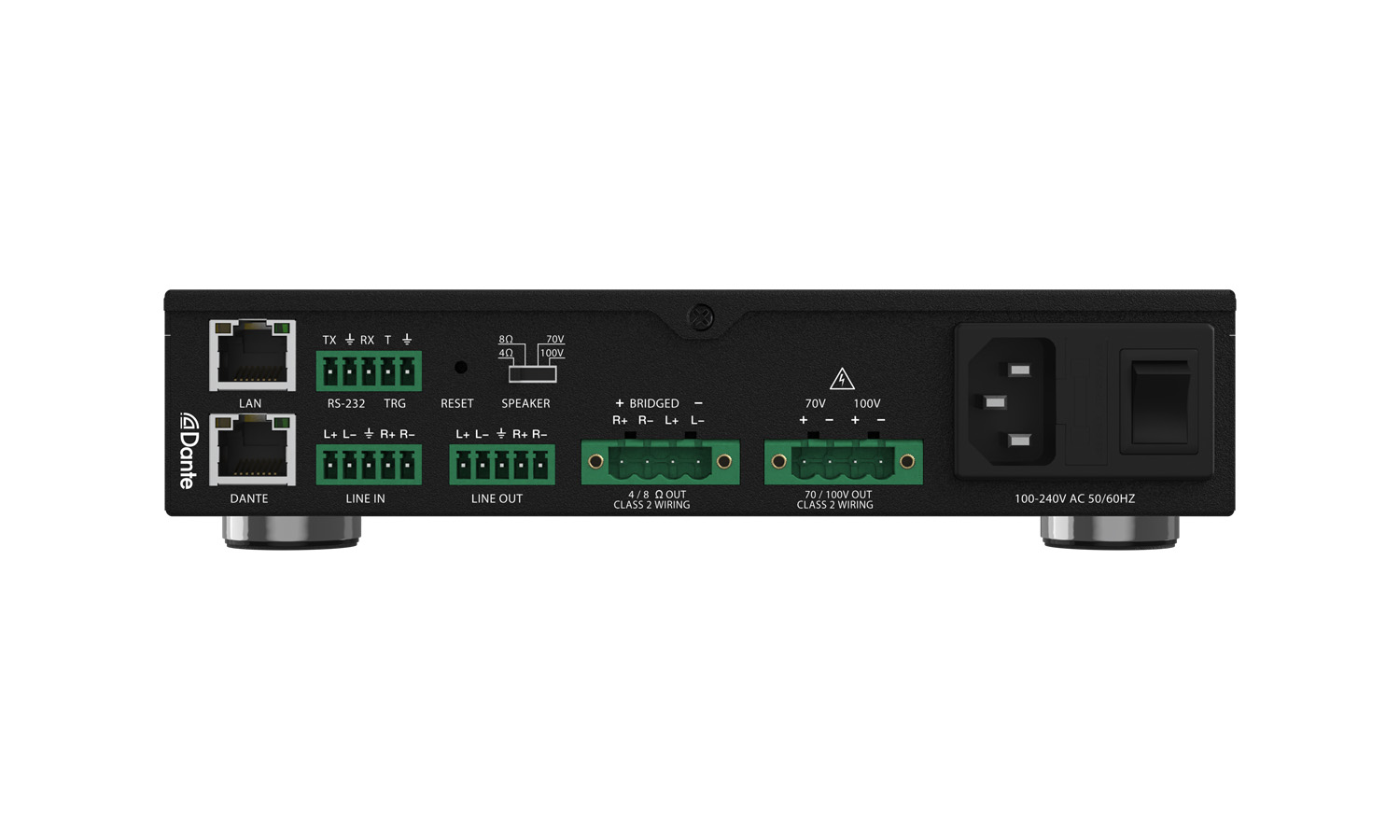

The BG-AMP150WD utilizes advanced class D technology, delivering up to 2 x 75 watts in low impedance (4Ω/8Ω) stereo mode and 150 watts in bridged high impedance (70V/100V) mode. It features Dante 2-channel digital audio inputs and outputs, along with balanced and unbalanced line-level analog inputs and outputs for versatile connectivity, including 1x Dante Network audio input, 1x LINE balanced stereo 0dBu/10kΩ input, 1x Dante Network audio output, and 1x Stereo or constant voltage 70V/100V speaker output.

With a built-in DSP processor, the amplifier offers precise audio control with independent input gain, output EQ, and volume adjustments, operating at a 48KHz sampling rate with 24-bit A/D and D/A converters for superior audio quality. The amplifier’s input sensitivity is set at full power@0.775V (0dBu), and it supports a maximum voltage gain of 27 – 30dB SE/39 – 42dB BTL. It boasts a frequency response of 20Hz – 20kHz @ ±3dB, a signal-to-noise ratio of 87dB (20Hz – 10kHz), and a THD+N (1KHz@1W) of 0.04%.

Control options include RS-232, LAN, and a Web GUI, with a 5-12V trigger input for seamless system integration and an auto-standby function for energy efficiency. The amplifier supports various audio formats, including analog and digital audio, with inputs and outputs designed for maximum performance.

What is Dante AV-H?

Dante stands for digital audio network through ethernet. Dante AV-H by Audinate is one of the leading network based production standards in the AV over IP space. Dante AV-H technology will enable users to stream their camera footage over a local area network with a single ethernet cable. Dante AV-H uses H.26x compression to compress the bandwidth of a camera’s video feed to allow it to stream over a local area network with near zero latency. The H.26x compression standard also provides a high image quality up to YUV 4:4:4 and low latency with 100% audio/visual synchronization. For protection of the user’s content, Dante AV-H is HDCP compliant.

With Dante AV-H, users will also be able to transmit and receive audio and video over their network. Furthermore, with the Dante controller, control for both audio and video will be unified. Users will then be able to control all sources from one screen.

Why use Dante AV-H

The integration of Dante AV-H technology in the BG-AMP150WD offers a range of remarkable advantages. Developed by Audinate, Dante AV-H facilitates seamless video streaming over a single Ethernet cable, ensuring high-quality, low-latency transmission with H.26x compression for exceptional image quality and synchronized audiovisual experience. Its capability to transmit and receive both audio and video over the network simplifies workflows, further enhanced by the unified control provided by the Dante controller. With HDCP compliance for content protection, the BG-AMP150WD maximizes the potential of Dante AV-H, delivering unparalleled user convenience, top-notch image quality, and streamlined control in a cutting-edge AV solution.

Features

• Dante 2-Channel Digital Audio: Supports digital audio input and output via Dante, ensuring high-quality sound transmission and interoperability with other Dante-enabled devices.
• Flexible Analog Inputs/Output: Includes balanced or unbalanced line-level analog inputs and outputs, providing versatile connectivity options for various audio sources and setups.
• Built-In DSP Processor: Features a built-in Digital Signal Processor (DSP) for advanced audio processing capabilities, allowing fine-tuning of sound quality to match specific installation needs.
• Independent Control Options: Offers independent input gain, output EQ, and volume control, enabling precise audio adjustments for optimal performance.
• High-Quality Conversion: Equipped with 48KHz sampling rate and 24-bit independent A/D and D/A converters, ensuring pristine audio quality.
• Control Options: Provides flexible control via RS-232, LAN, and a Web GUI, allowing for easy integration and remote management in complex AV systems.
• Includes a 5-12V trigger input for seamless integration with other AV equipment and systems.

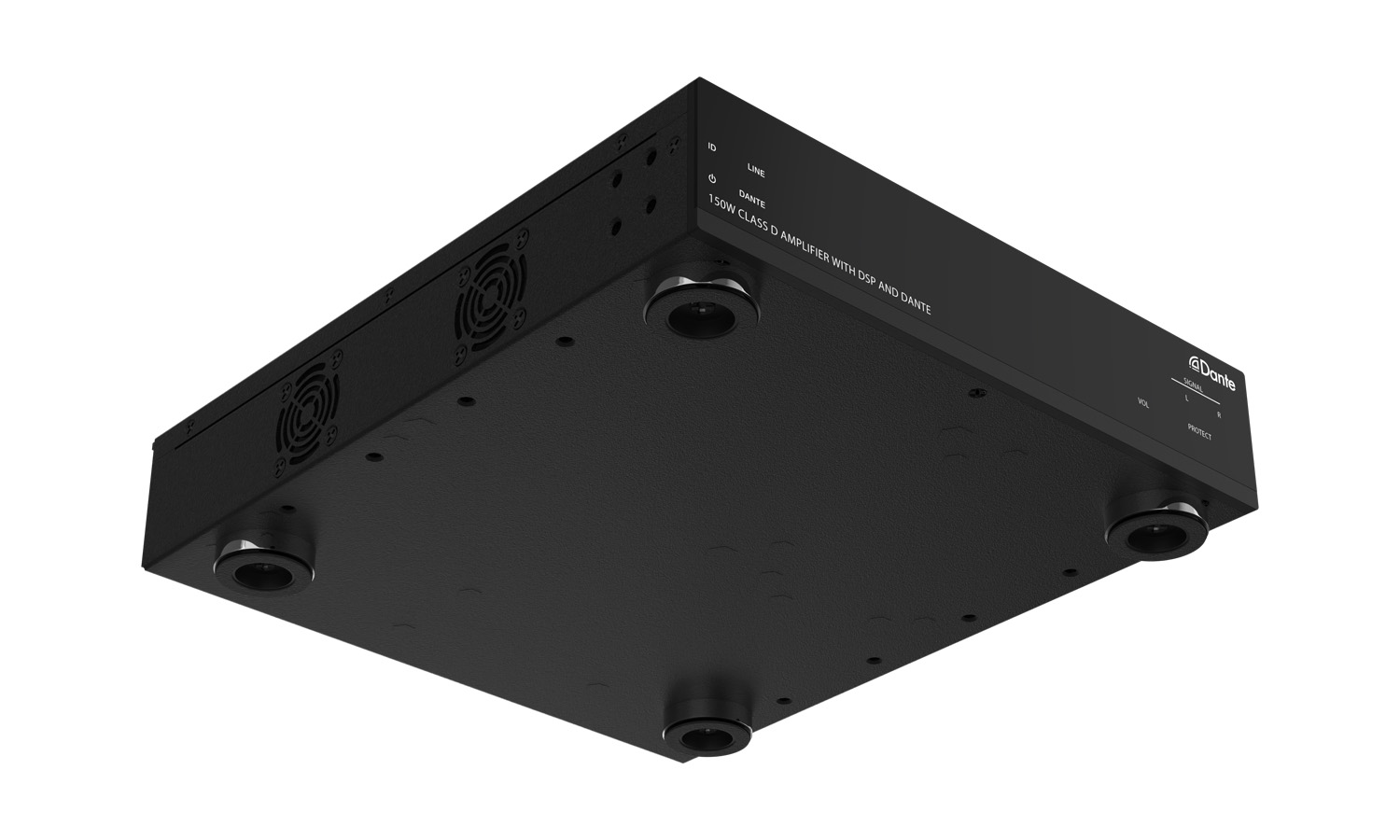

• The half-rack/one-rack design ensures easy installation and integration into standard AV racks and enclosures.
• Adaptive Output Modes: Easily switch between Lo-Z (low impedance) and Hi-Z (high impedance) output modes to accommodate different types of speaker installations. In Lo-Z mode, choose between single-channel 150W or two-channel 2 x 75W at 4Ω/8Ω. In Hi-Z mode, select a single-channel 150W output at 70V/100V.
• Auto Standby Function incorporates an auto-standby feature to conserve energy when the amplifier is not in use.
