Description
The BG-STREAM-DE is a versatile and powerful video and audio streaming decoding/encoding solution designed for both professional and personal use. This all-in-one device supports 1x HDMI 2.0 or 1x SDI input and loop-through, with an additional HDMI 2.0 output for seamless video integration. It also features a 3.5mm analog audio input for audio embedding and a 3.5mm analog audio output for audio de-embedding, making it a comprehensive tool for high-quality media production and streaming.
Features In-Depth

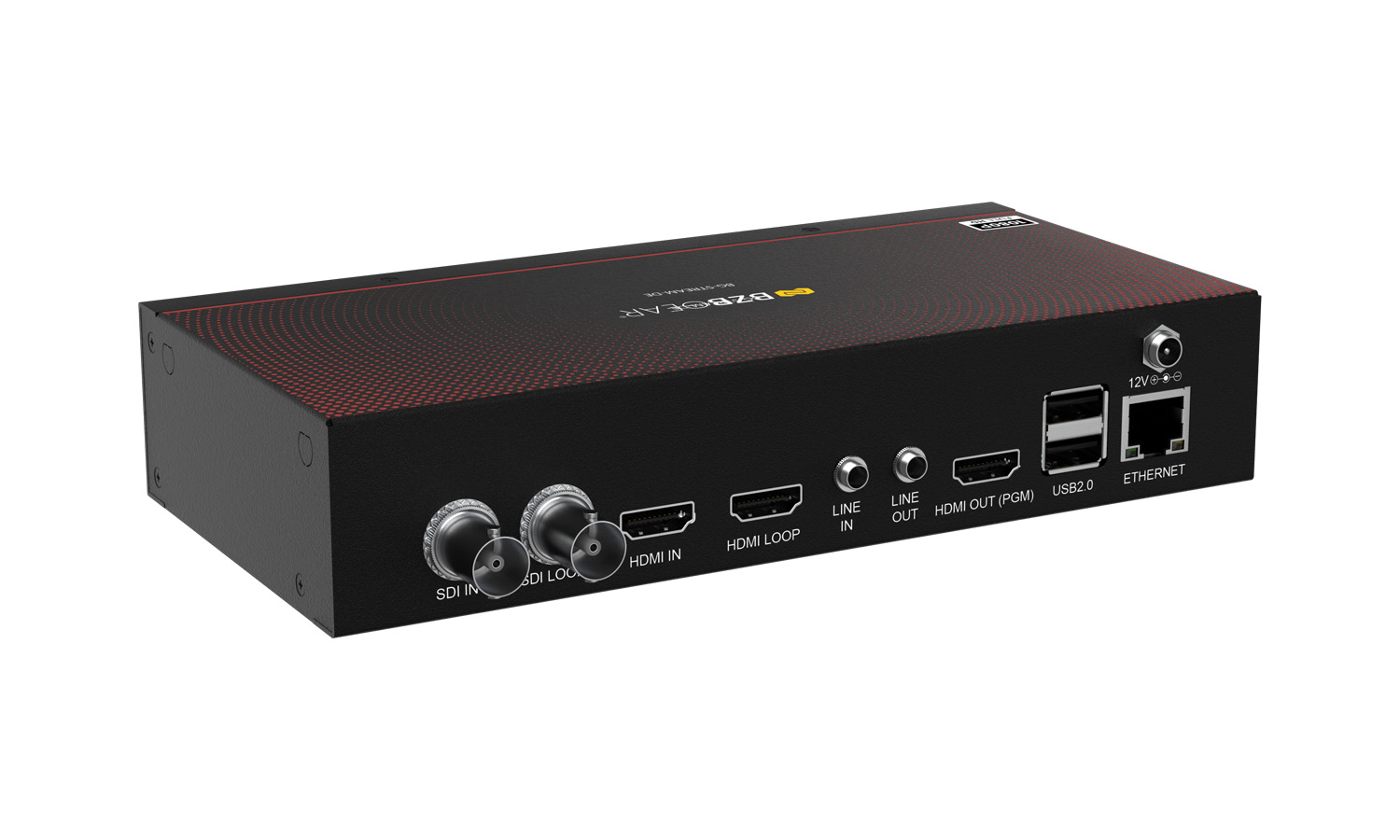

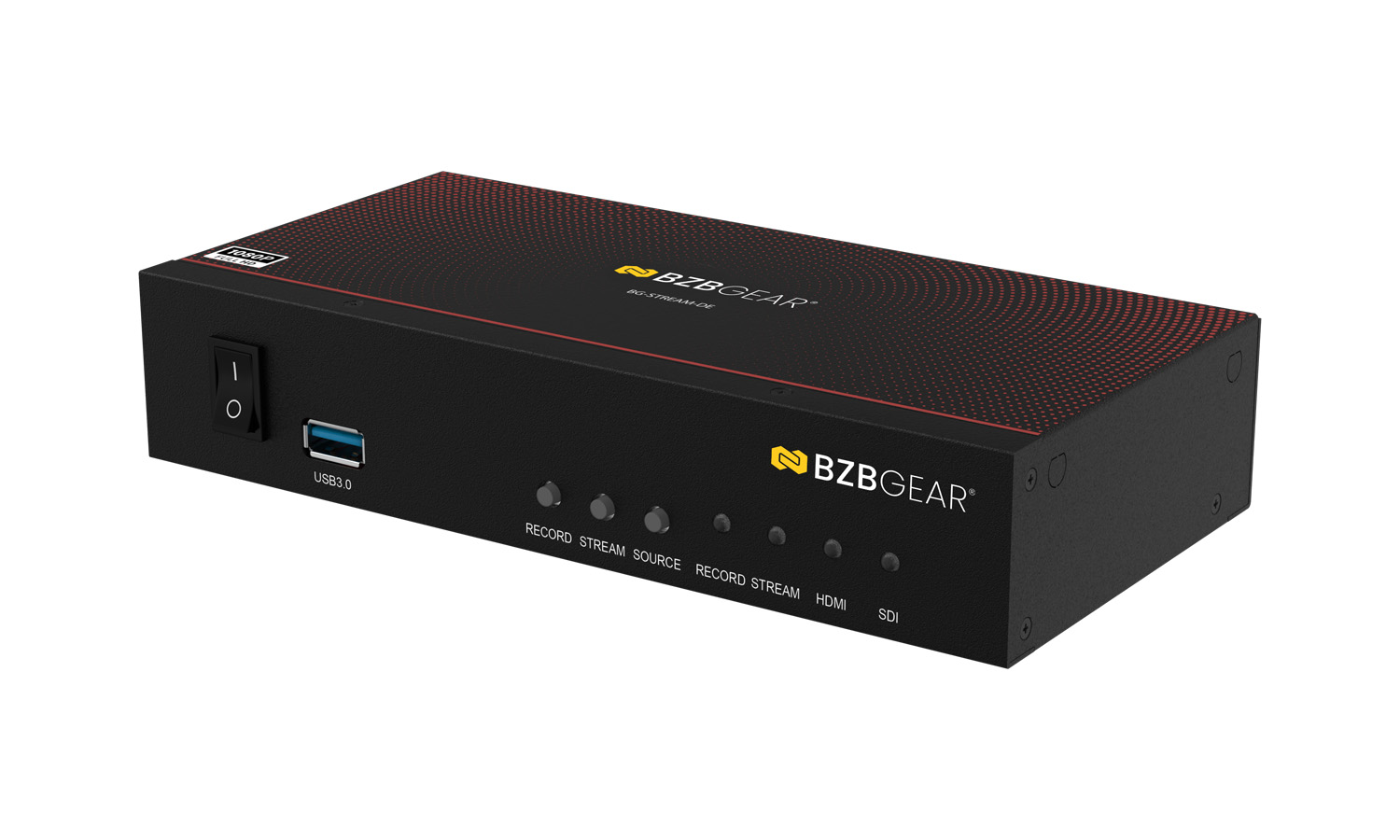

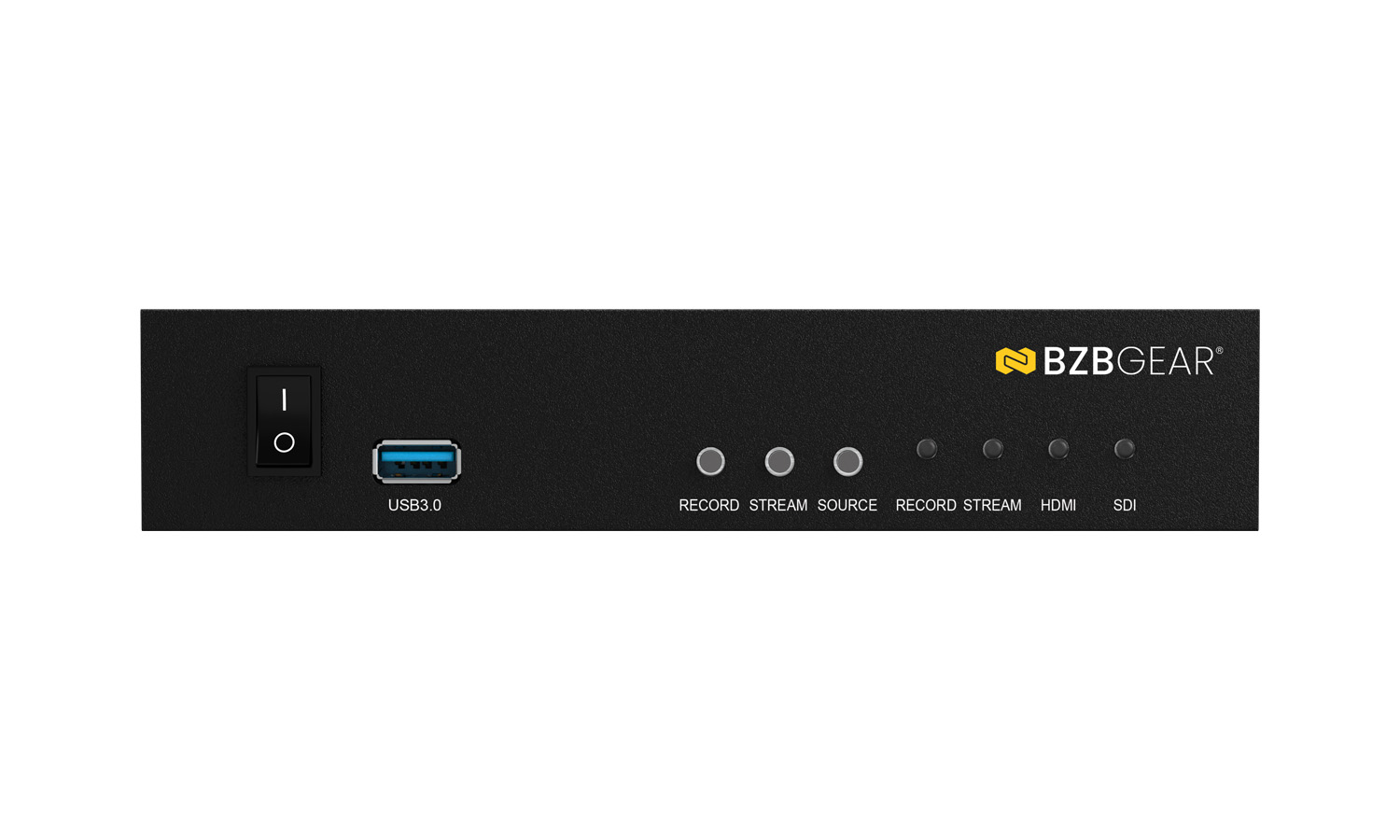

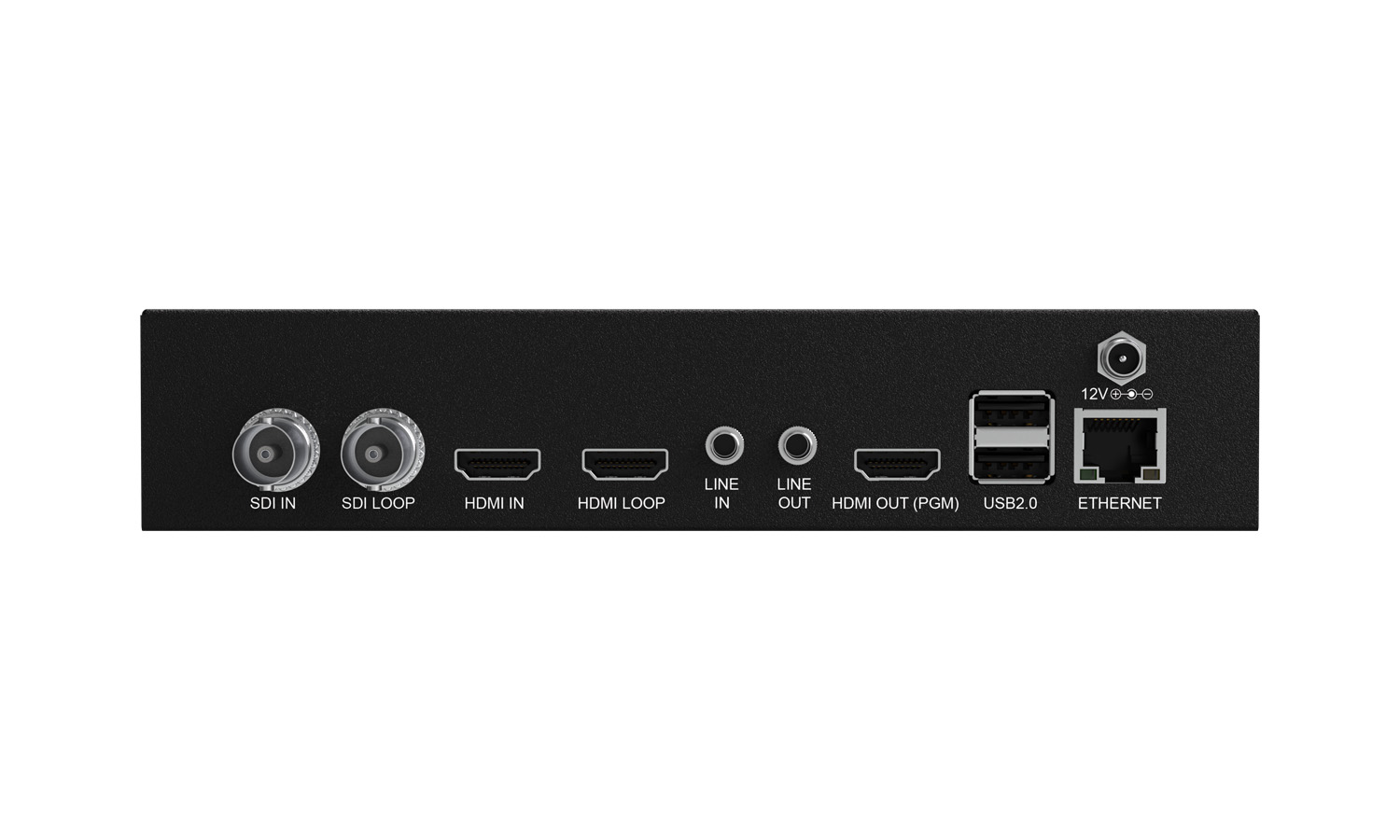

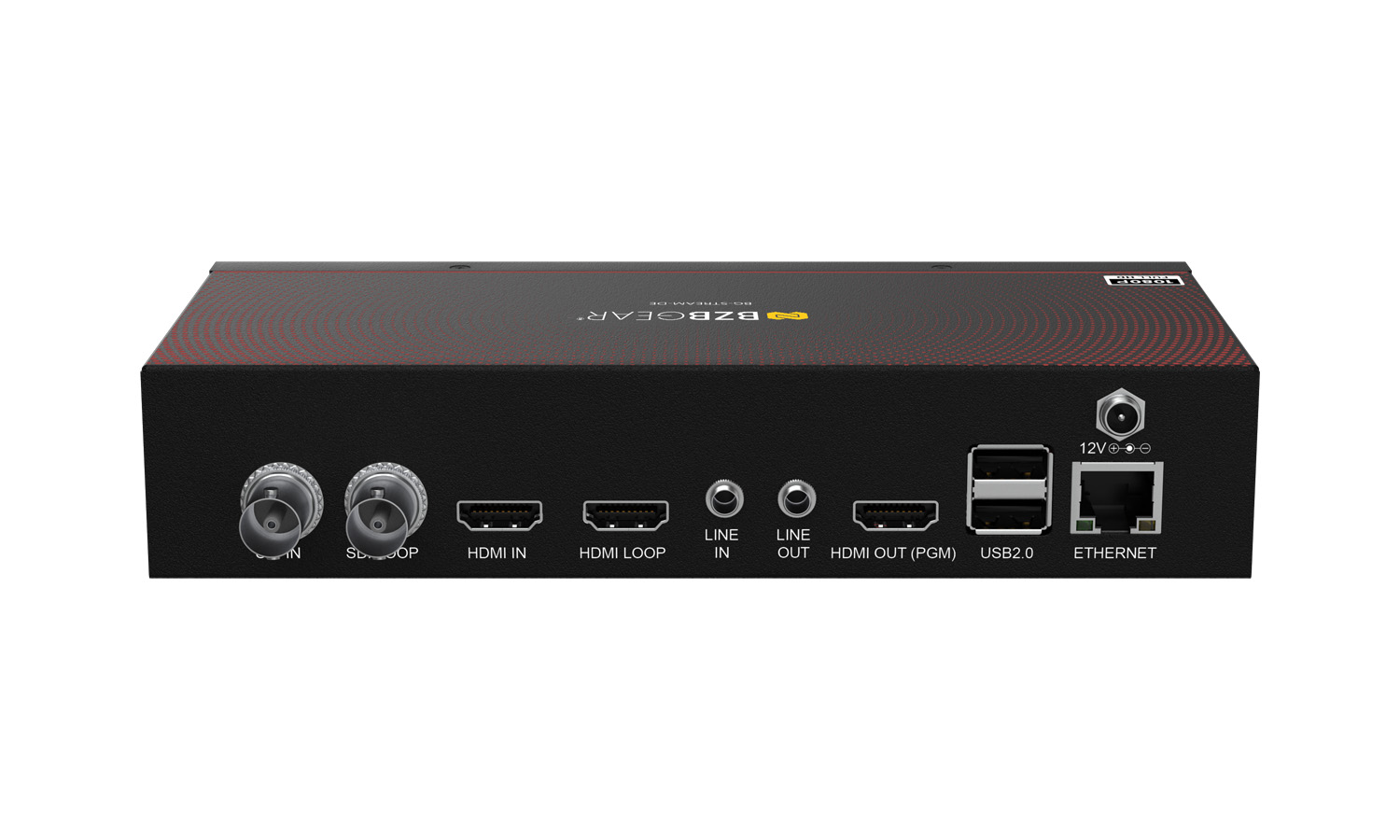

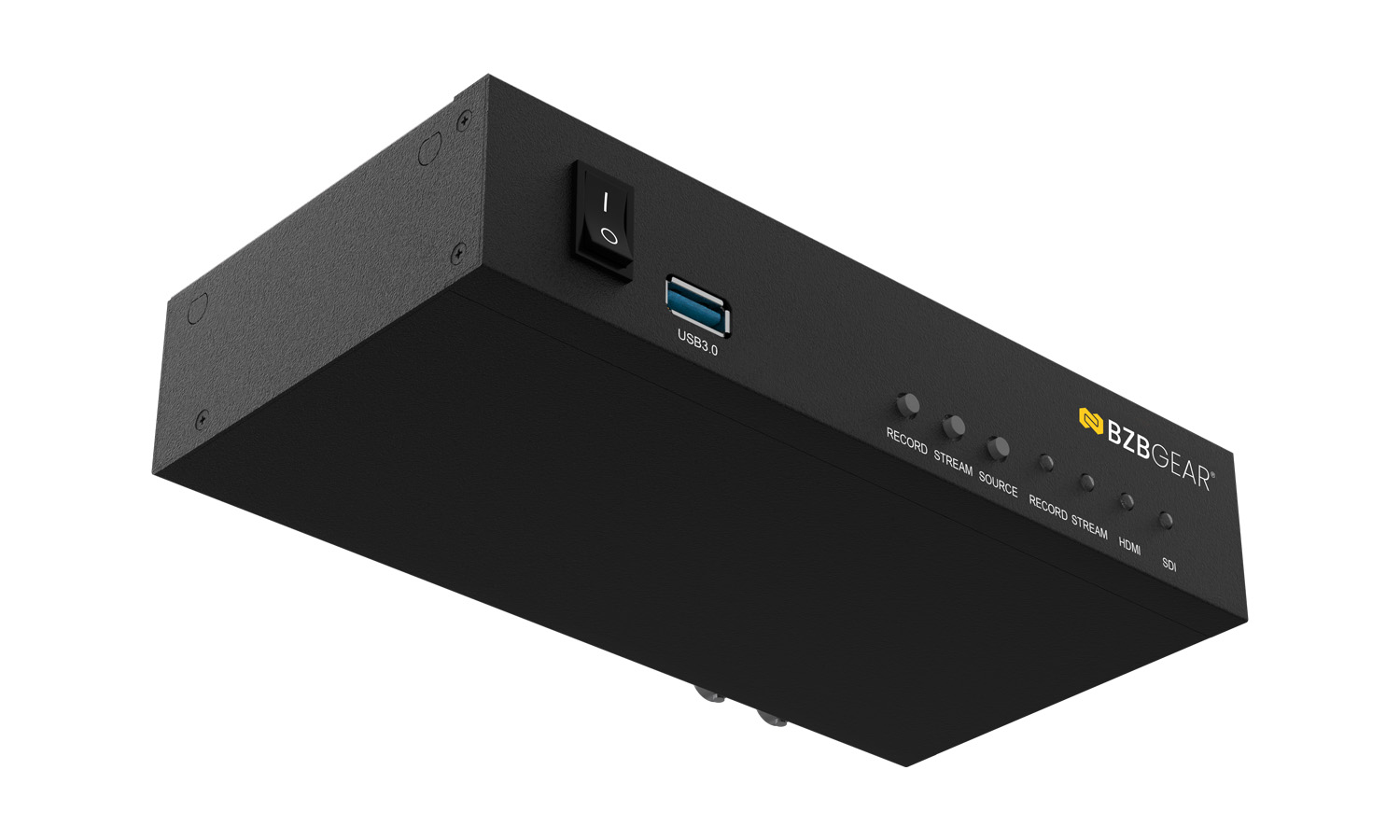

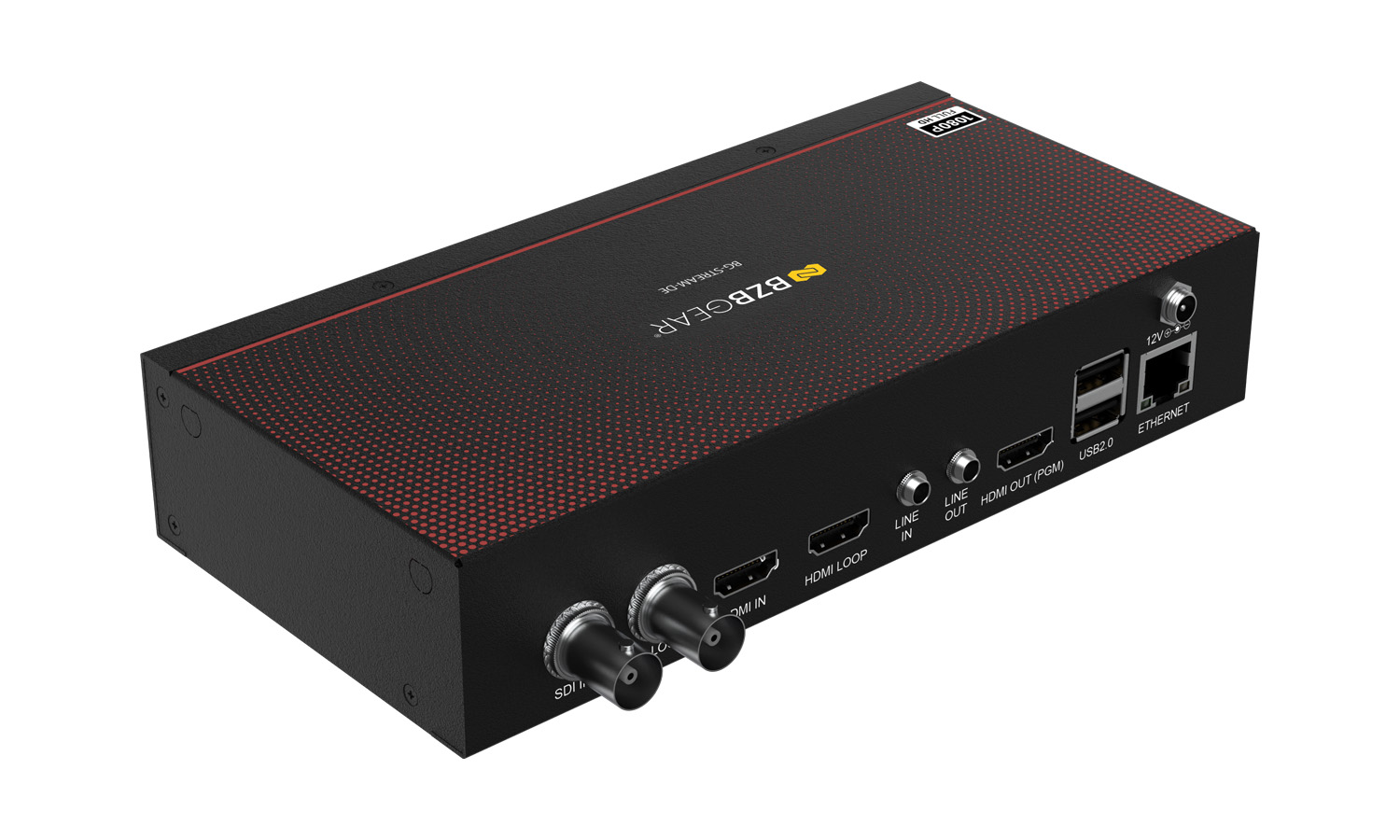

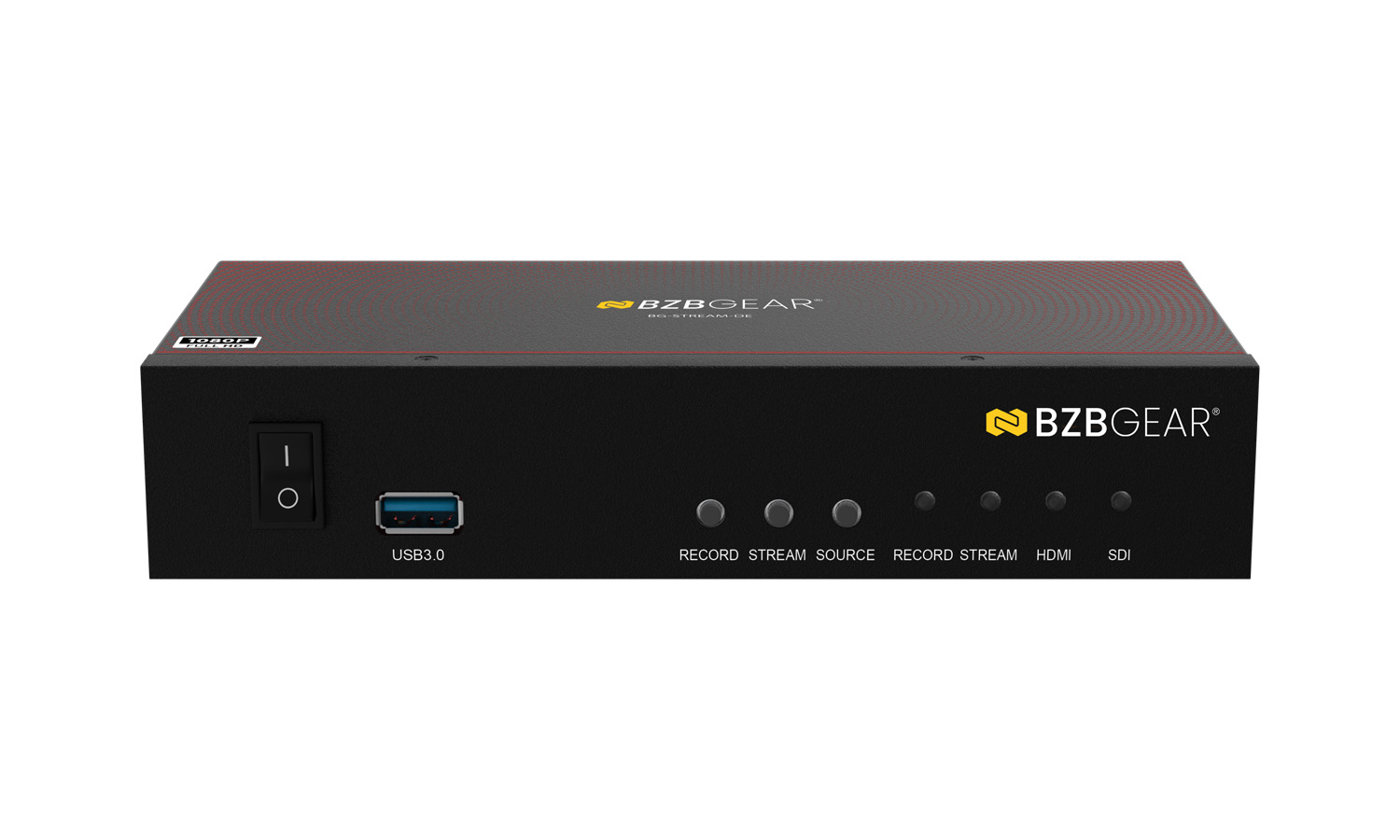

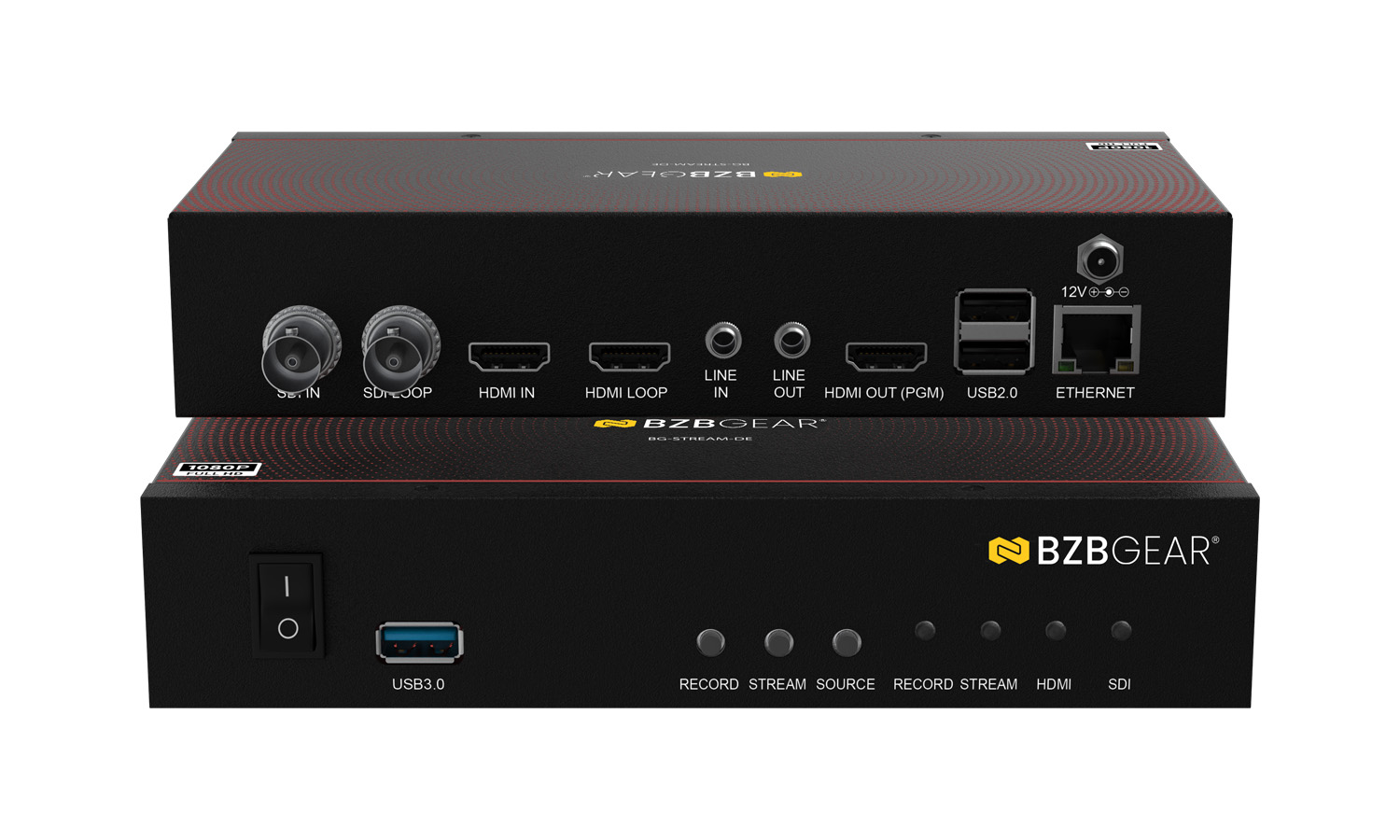

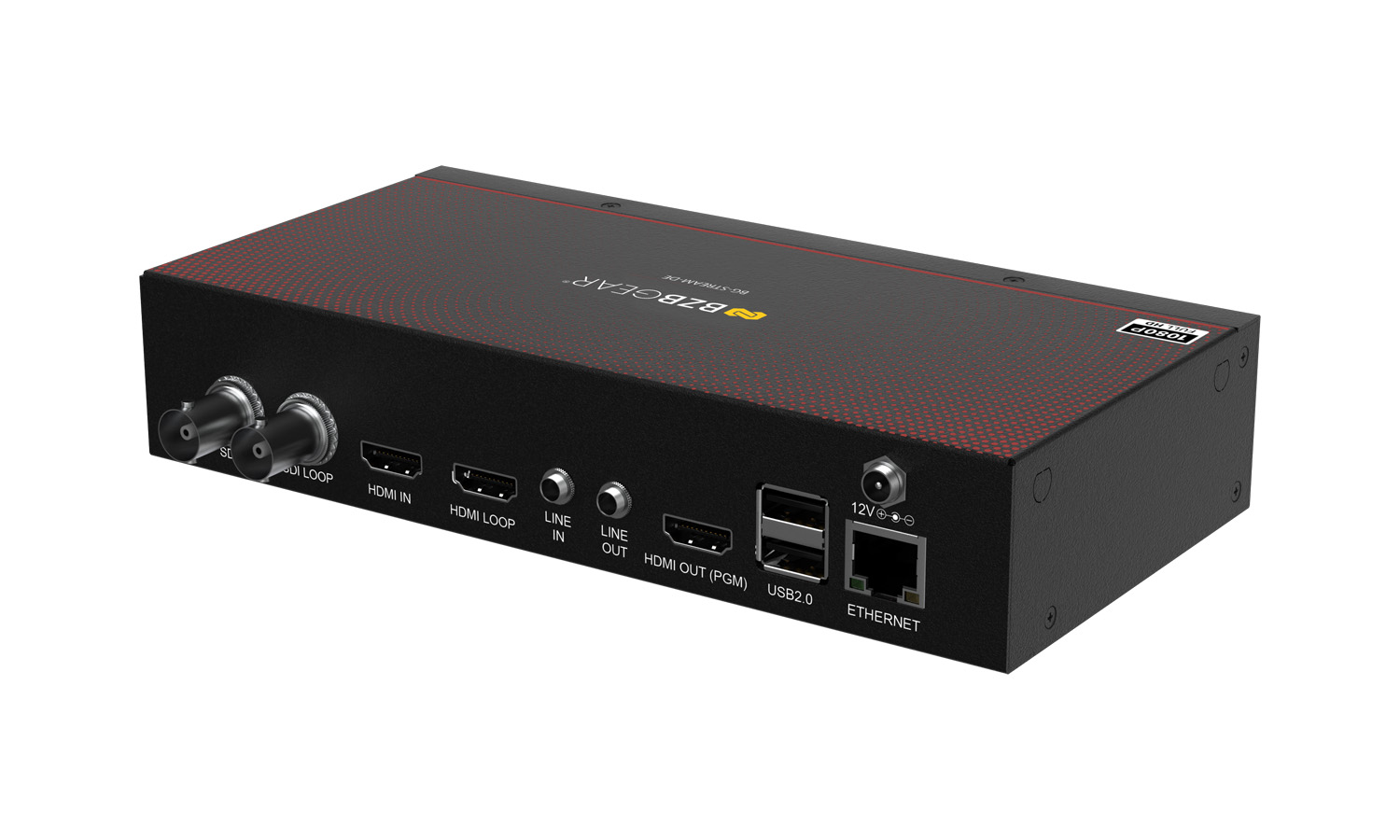

The BG-STREAM-DE offers a user-friendly experience with intuitive front panel controls, including Record, Stream, and Source select buttons. The USB 3.0 interface allows for high-speed recording of various input formats, ensuring flexibility and ease of use. The rear panel is equipped with an RJ45 port for robust internet connectivity and two USB 2.0 ports for connecting peripherals like a keyboard and mouse, facilitating local user interface control.
Supporting a maximum resolution of 1920x1080p at 60/50fps, the BG-STREAM-DE includes advanced video features such as H.265/H.264/AVC encoding and a range of output resolutions to meet different display and recording needs. Audio capabilities include AAC input streams for high-quality sound. With an RJ45 port supporting 10/100/1000Mbps Ethernet and multiple streaming protocols like NDI, Dante AV-H, RTSP, RTMP, and HLS, this device offers extensive streaming flexibility. Users can record in MP4, TS, and MOV formats and utilize various streaming formats, including RTSP, NDI-HX, HLS, RTMP, SRT, TS, and Dante AV.
Control options include using a USB keyboard and mouse or accessing a comprehensive web UI for system configuration. The device also features firmware upgradability and LED indicators for easy monitoring, ensuring seamless operation and versatility in various streaming environments.
What is Dante AV-H?
Dante stands for digital audio network through ethernet. Dante AV-H by Audinate is one of the leading network based production standards in the AV over IP space. Dante AV-H technology will enable users to stream their camera footage over a local area network with a single ethernet cable. Dante AV-H uses H.26x compression to compress the bandwidth of a camera’s video feed to allow it to stream over a local area network with near zero latency. The H.26x compression standard also provides a high image quality up to YUV 4:4:4 and low latency with 100% audio/visual synchronization. For protection of the user’s content, Dante AV-H is HDCP compliant.
With Dante AV-H, users will also be able to transmit and receive audio and video over their network. Furthermore, with the Dante controller, control for both audio and video will be unified. Users will then be able to control all sources from one screen.
Why use Dante AV-H
The integration of Dante AV-H technology in the BG-STREAM-DE offers a range of remarkable advantages. Developed by Audinate, Dante AV-H facilitates seamless video streaming over a single Ethernet cable, ensuring high-quality, low-latency transmission with H.26x compression for exceptional image quality and synchronized audiovisual experience. Its capability to transmit and receive both audio and video over the network simplifies workflows, further enhanced by the unified control provided by the Dante controller. With HDCP compliance for content protection, the BG-STREAM-DE maximizes the potential of Dante AV-H, delivering unparalleled user convenience, top-notch image quality, and streamlined control in a cutting-edge AV solution.
This device is Dante AV-H ready, meaning it includes the necessary integration to support Audinate’s Dante AV-H software-based video-over-IP protocol.
Activation is completed via a license purchased through the Audinate website, after which Dante AV-H functionality becomes fully available. Once enabled, the unit can transmit and receive H.264/H.265 video streams with precise Dante clock synchronization, ensuring audio and video remain perfectly aligned across the network. This allows the product to operate as part of a standard Dante environment, delivering scalable, low-latency AV-over-IP without requiring dedicated hardware codecs.
Features
- Versatile Connections – HDMI 2.0 & SDI inputs; HDMI 2.0 (PGM), HDMI & SDI (Loop-through) outputs
- Comprehensive Audio – 3.5mm analog input & output
- Recording & Streaming – 1080p60 (MP4, TS, MOV); supports Dante AV-H, RTSP, RTMP, HLS, SRT, TS
- Simple Network Configuration – DHCP Client support
- Control Options – Convenient control via USB keyboard/mouse and web UI
- Intuitive LED Indicators – Effortless Status Monitoring at a Glance
- Hardware compression in real-time mode
- Firmware upgradeable
- LED indicators for status monitoring
- Enhanced Functionality: USB 3.0 for storage
