Description

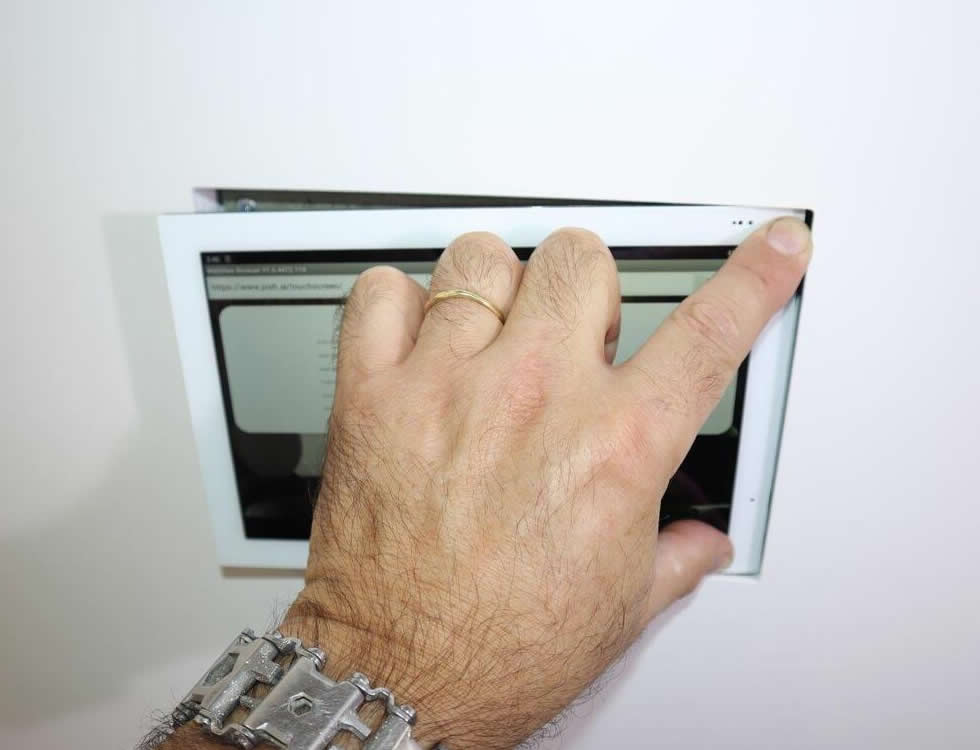

The in-wall adapter provides a flush mounting solution for 8in touch screens and is engineered to blend with finished walls. It secures the touch screen while permitting easy insertion and removal. The unit is supplied unpainted to be finished as part of the wall surface.

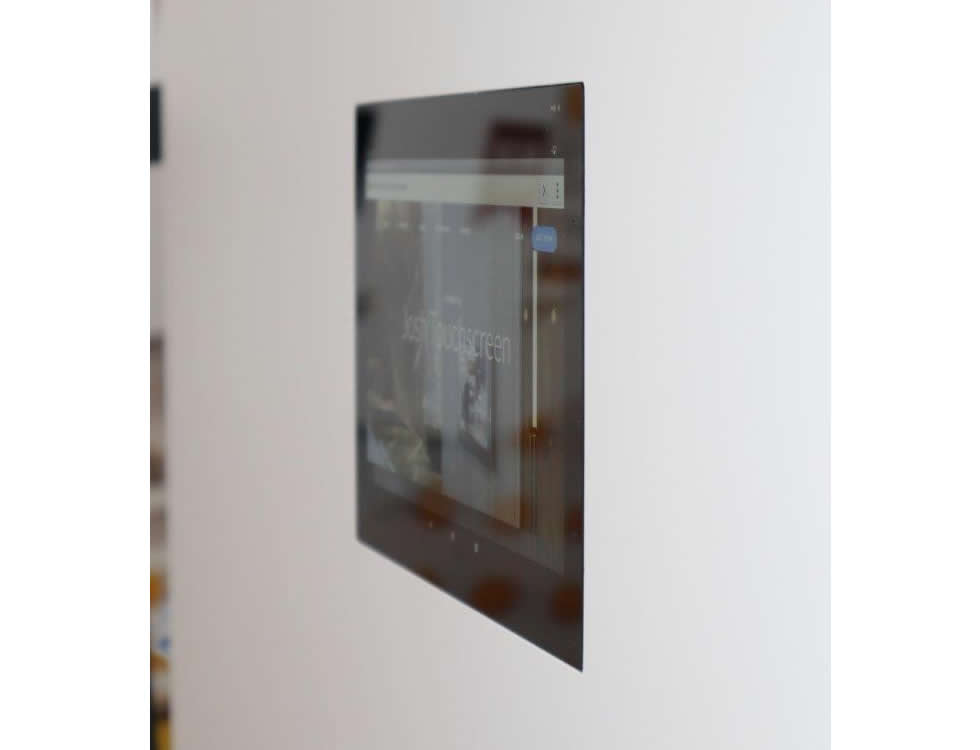

Key features include a depth calibration mechanism and a paintable front that accepts any wall paint or texture. The adapter mounts flush with the wall and supports precise alignment of the touchscreen face. It is built to allow straightforward maintenance access without damaging the wall finish.
Technical specifications include external dimensions of 274.3mm x 214.1mm x 44mm and a net weight of 0.75Kg. The adapter requires no power supply and is manufactured from moisture resistant MDF for stability in typical interior environments. It ships with fasteners and a screen adapter to complete the installation.
Connectivity and compatibility are simple – the adapter is designed specifically for BL/WH 8in touch screens and does not include the touchscreen itself. For concrete or block walls, a separate concrete box P/N 10-01-131 is required. Installation follows common drywall construction methods and references Wall-Smart installation documentation.

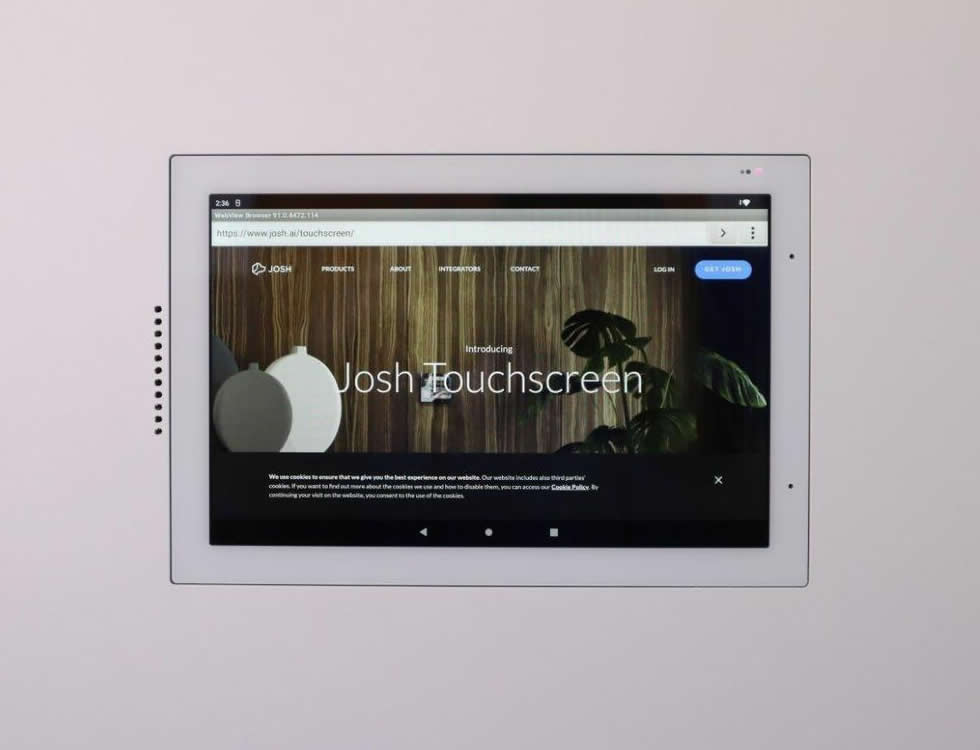

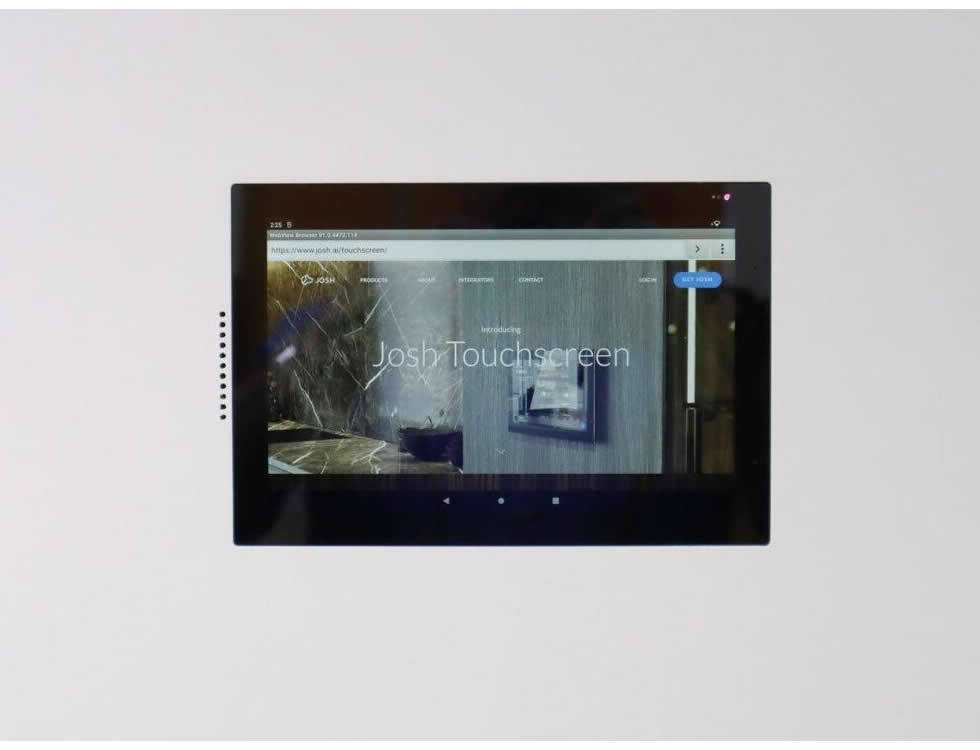

Typical use cases include commercial control rooms, residential smart home panels, and retail information kiosks where a flush, paintable finish is required. The adapter supports clean aesthetics by recessing the touchscreen into the wall plane and minimizing protrusion. It is suitable for installations where a finished look and easy access are both priorities.
Installation is straightforward for trained installers – the adapter is intended for 1/2″ drywall and an optional shim pack P/N 10-01-067 is available for 5/8″ drywall. Detailed installation steps are available in Wall-Smart instruction documents. The construction and included hardware provide a reliable mounting solution with professional results.
