Wall-Smart 032-1-773-WO In-Wall Flush Retrofit Touchscreen Adapter / Magnetic Bezel / Unpainted

Description

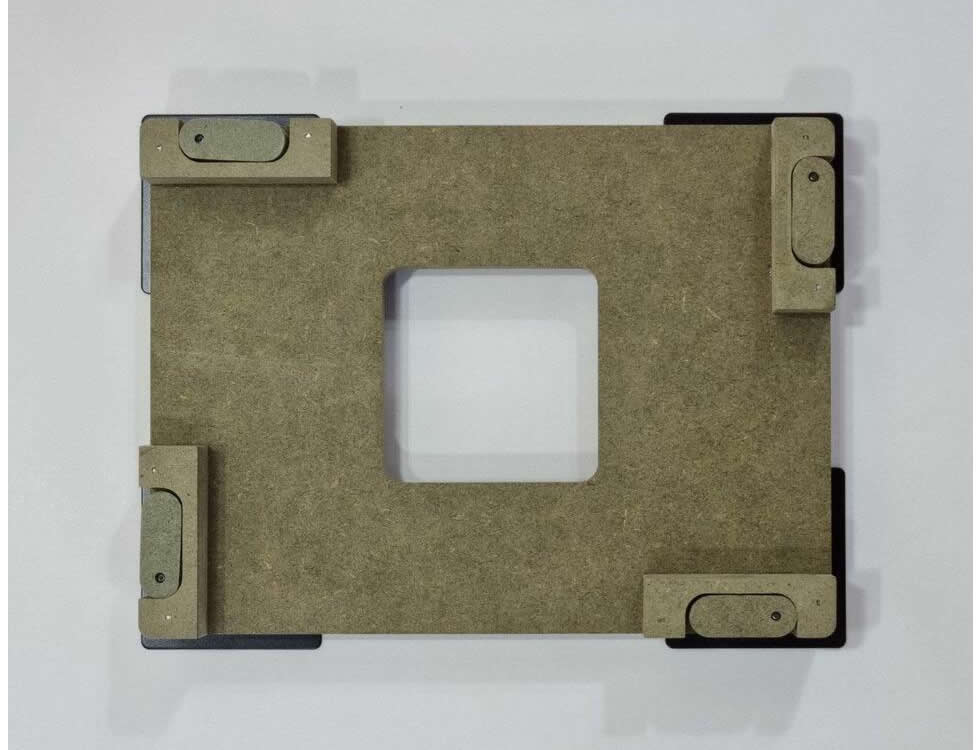

The Wall-Smart in-wall flush retrofit adapter provides a clean near-flush installation for compatible touchscreen panels. It is engineered to hold the touchscreen securely while minimizing protrusion from the wall. The design focuses on a slim on-wall bezel that keeps the appearance low-profile and professional.

Key features include a nearly flush 4mm on-wall bezel and a magnetically attached bezel for fast access. The adapter supports a range of wallboard thicknesses and is supplied in selectable finishes including unpainted. The magnetic bezel design makes service and panel removal quick and repeatable.

Technical details include support for board thickness from 10mm to 22mm and an overall adapter footprint sized to fit standard retrofit openings. The assembly is manufactured from moisture resistant MDF that meets TSCA Title VI compliance. Exact dimensions are 261.7mm x 201.1mm x 48mm and the unit weight is 0.6Kg.

Compatibility is focused on compatible touchscreen panels that match the mounting profile and opening dimensions. The adapter secures to the retrofit wall mount base and the bezel snaps into place magnetically – no special fasteners are required for bezel attachment. Finish options include painted black, painted white or unpainted for on-site finishing.

Typical applications include residential automation panels, commercial touch control installations, and retrofit upgrades where a near-flush aesthetic is required. Installers benefit from the reduced reveal and simplified bezel removal for maintenance. The adapter is particularly useful in installations where board thickness varies and a consistent final reveal is desired.

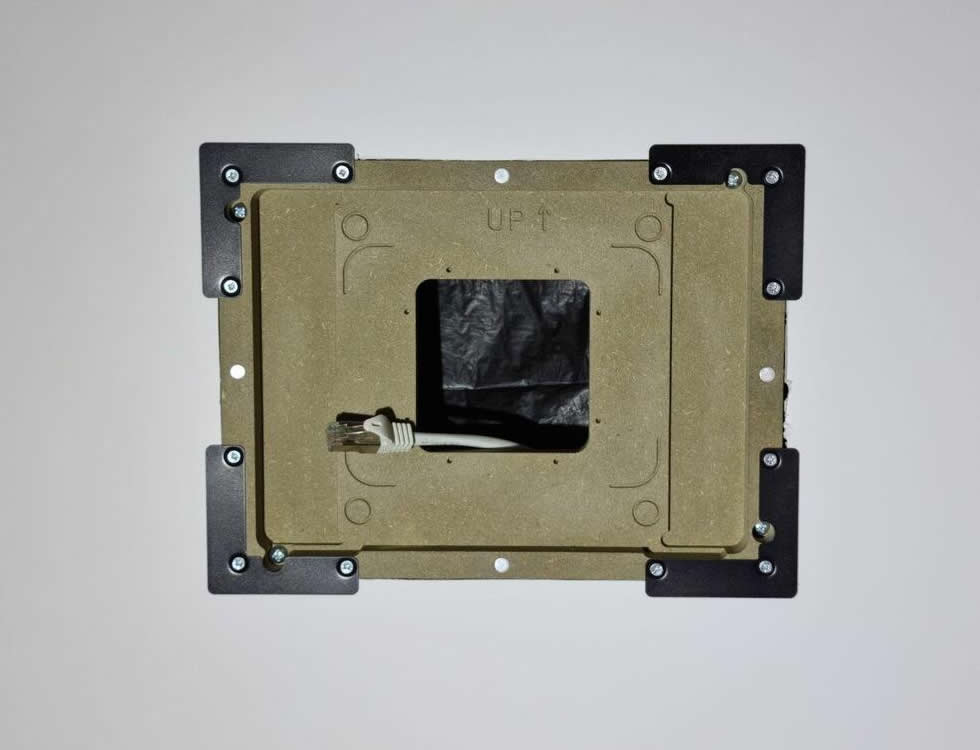

Installation is straightforward for experienced AV technicians and carpenters – the kit mounts into the wall cavity and accommodates regular drywall or substrate thicknesses. The moisture resistant MDF construction delivers a stable mounting surface and consistent finish readiness. The magnetic bezel reduces installation time and simplifies future service access.
