DESCRIPTION

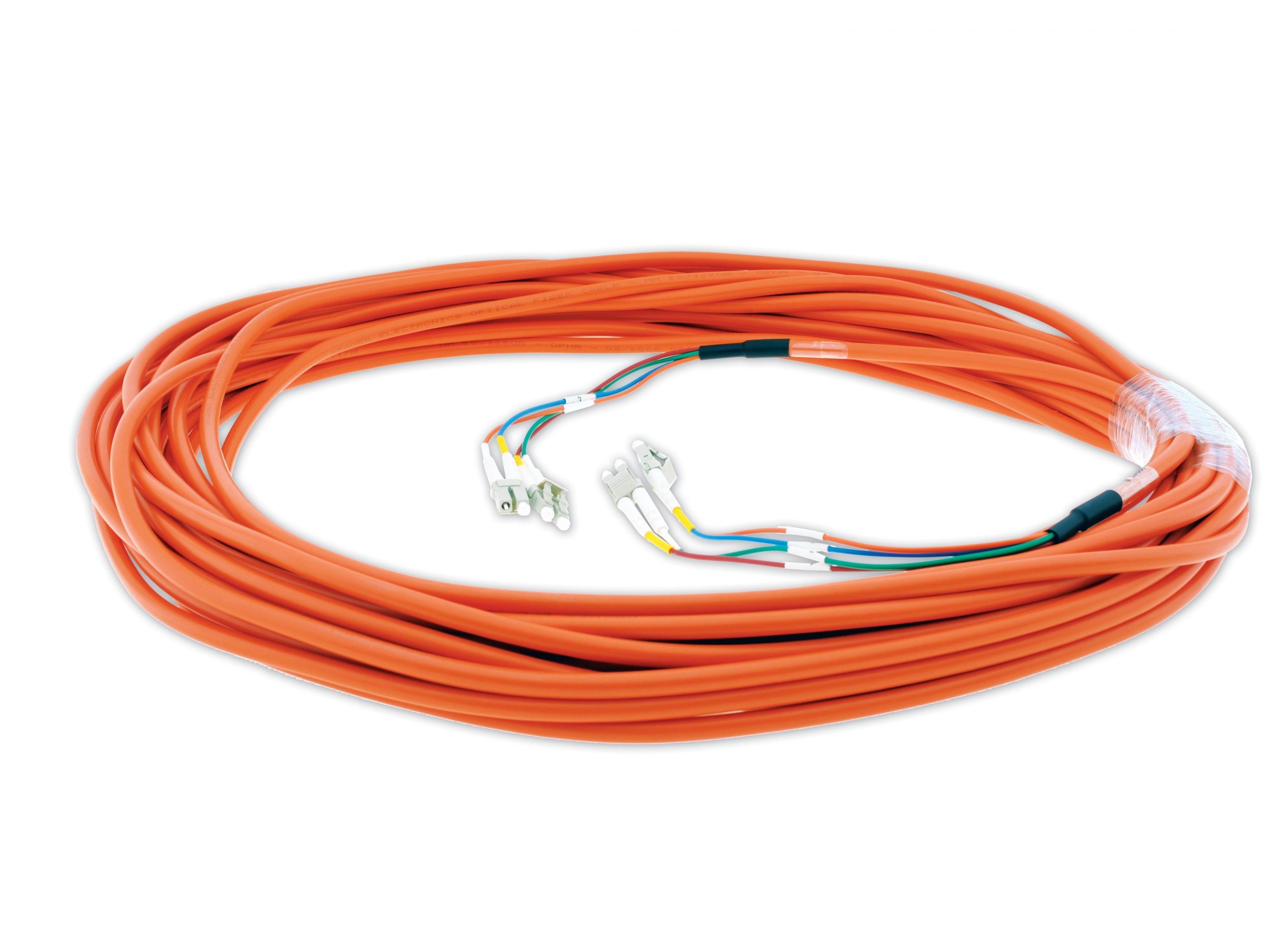

Kramer’s 4LC fiber optic cables are constructed of four color coded multi-mode 50/125um simplex cables of 2.0mm (0.079in) diameter each, contained in a round overall orange jacket. They are intended primarily as companion to various Kramer detachable transmitter/receiver sets.
- Quality Construction – Multimode optical fiber with an operating wavelength of 850nm. Sub-cables are color coded: red, green, blue and orange, terminated with the popular LC connectors for easy installation and are shipped with dust caps at the ends.
- Numerous Applications – Use these cables to connect our optical transmitter and receivers for DVI and HDMI, such as: 610T/R, 621T/R and 631T/R.
- Varied Selection of Lengths – Available in versions of 10, 20, 30, 50, 60, 100, 200, 300 and 500m (33 to 1640ft).
SPECIFICATIONS
| FIBER: | Multimode 50/125µm optical fiber. |
| FIBER CORD: | PVC (OFNR) 2.0 x 4. |
| OUTER DIAMETER: | 7.0mm (0.275in), orange. |
| OPERATING WAVELENGTH: | 850nm. |
| INSERTION LOSS: | 0.3dB. |
| TEMPERATURE: | -40° to 80°C (-40° to 176°F). |
