DESCRIPTION

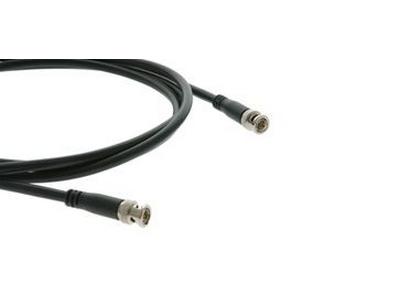

Kramer’s BM series cables are constructed of high performance RG-6 cable with 75ohm BNC connectors at each end. They offer outstanding quality, durability, and high performance for any video signal application.
- Quality Construction – RG-6 cable for the highest resolution signals.
- High-Quality Connectors – True 75ohm BNC connectors maintain correct impedance end-to-end.
- Cable Specs – Tested to 3G. For detailed cable specs, see Kramer BC-1X.
- Varied Selection of Lengths – Available in versions of 0.45 to 45m (1.5, 3, 6, 10, 15, 25, 35, 50, 75, 100 and 150ft).
SPECIFICATIONS
| COAX | |
| Conductor: | 18 AWG solid bare copper. |
| Dielectric: | Skin foam. |
| Shield: | (A) 61% braid 34 AWG aluminum wire. (B) Dual foil/Mylar 25% overlap rate. |
| CONSTRUCTION | |
| Outside Jacket: | PVC. |
| Outside Jacket Color: | Dark gray with white lettering. |
| DIAMETERS | |
| Center Conductor: | 1.02mm (0.0403in). |
| Dielectric: | 4.57mm (0.179in). |
| Outside Diameter: | 6.95mm (0.391in). |
| ELECTRICAL | |
| Impedance: | 75ohm. |
| DC Resistance: | 21.8ohm/km (6.6ohm/1000ft). |
| Capacitance: | 53.1pF/m (16.1pF/ft). |
| Velocity of Propagation: | 82%. |
| Temperature: | -20° to 75°C (-4° to 167°F). |
| Attenuation (dB/100 ft.): | -0.3dB @1MHz -0.6dB @5MHz -0.8dB @10MHz -1.6dB @50MHz -2.0dB @100MHz -2.8dB @180MHz -4.4dB @400MHz -5.7dB @750MHz -6.7dB @1000MHz. |
| REGULATORY | |
| UL: | CL2. |
| CSA: | C(UL) CL2. |
