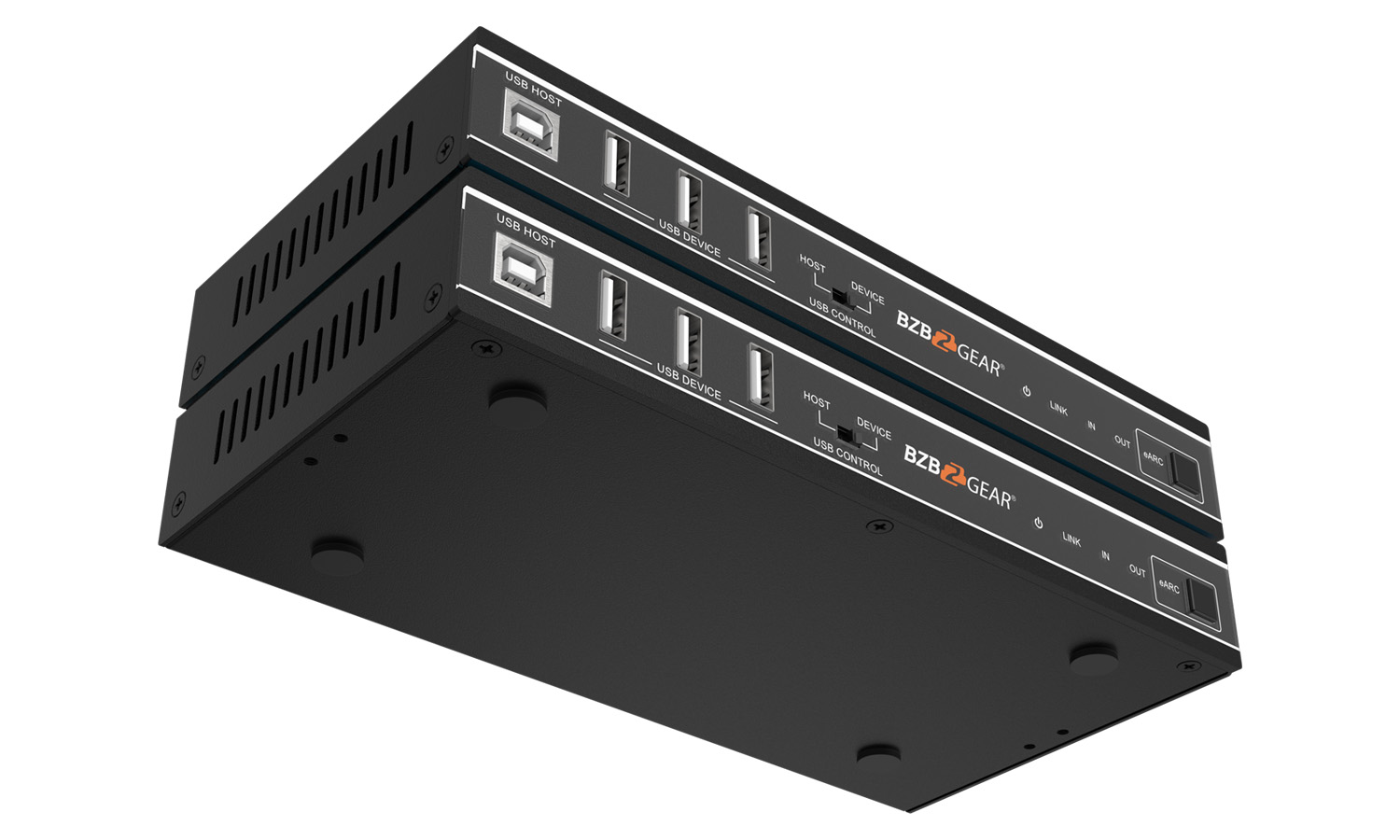

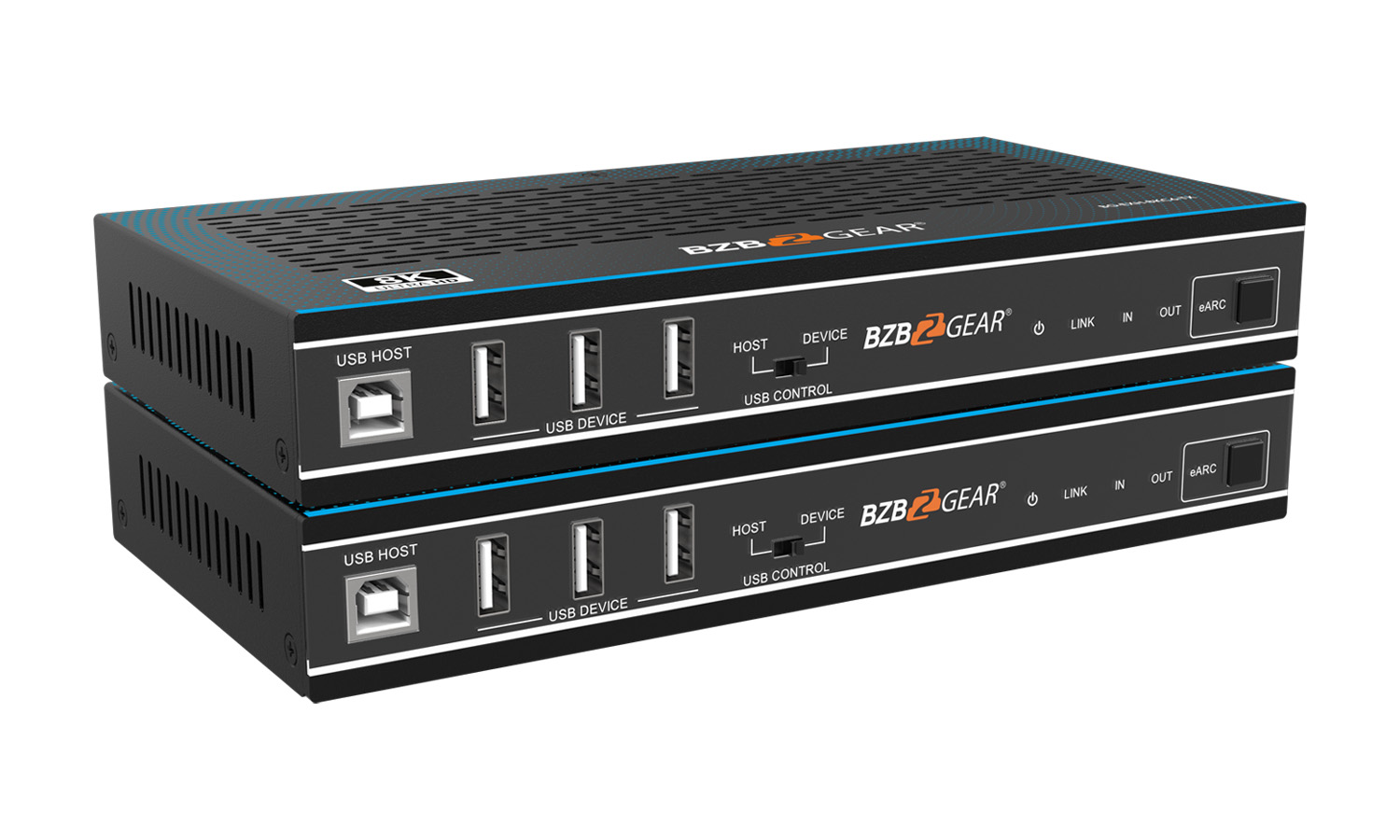

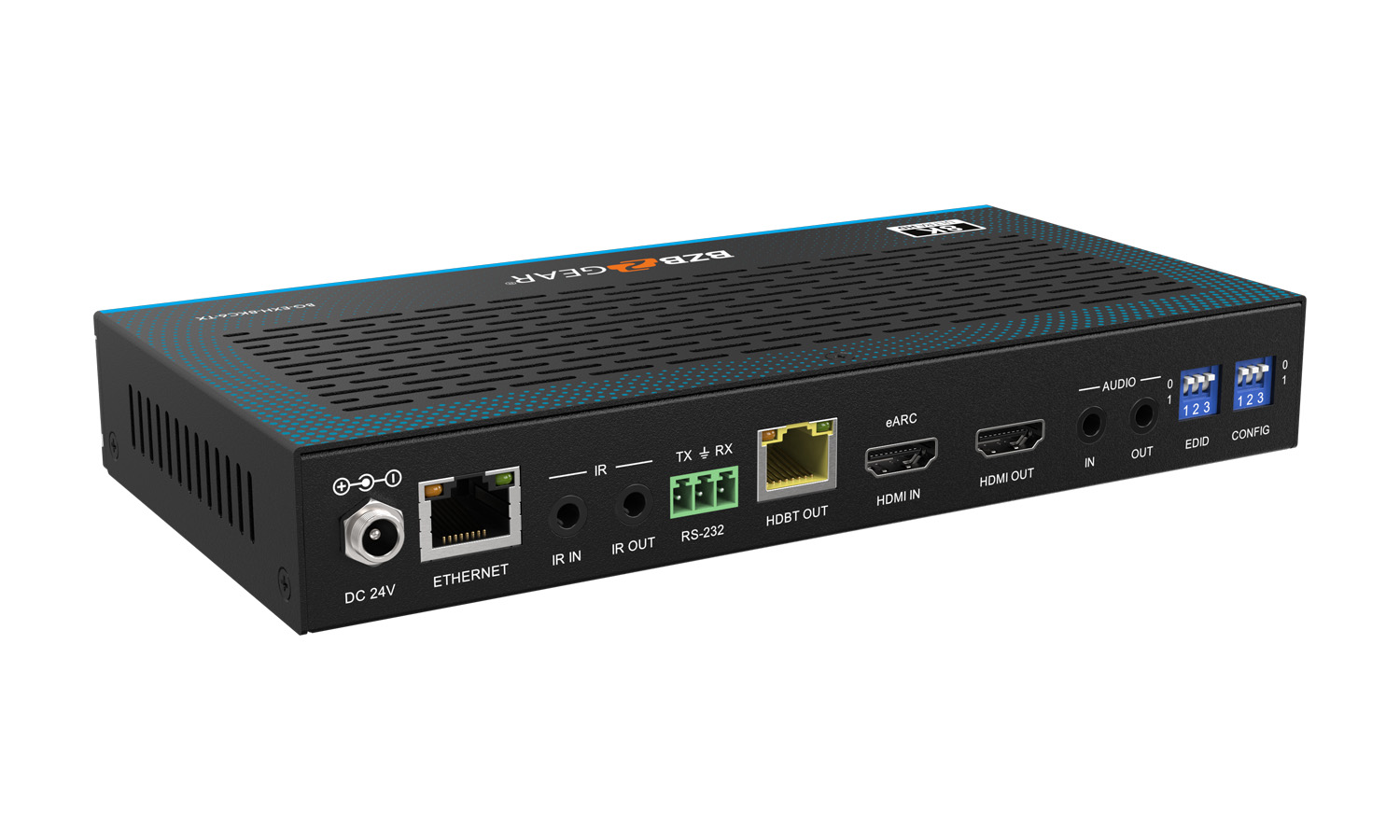

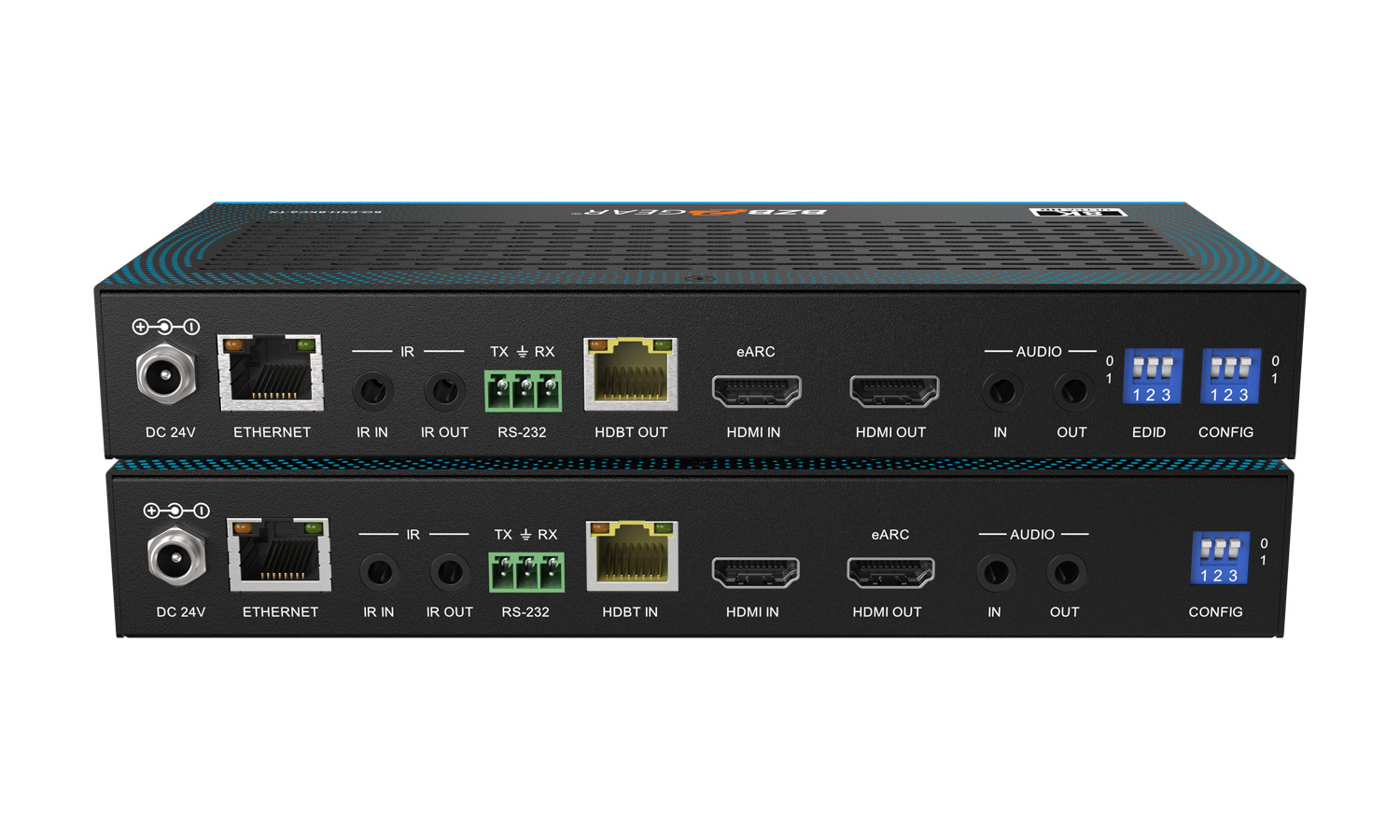

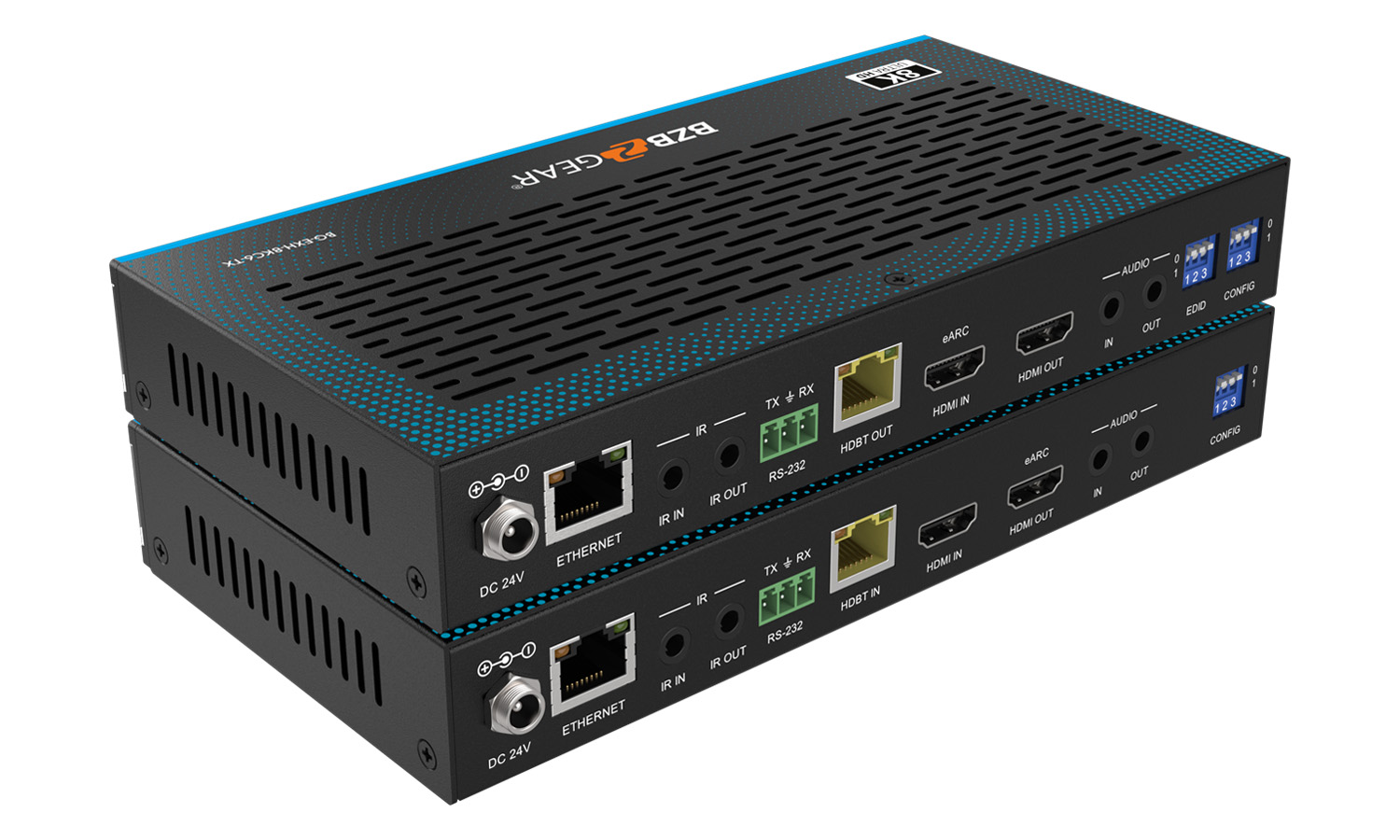

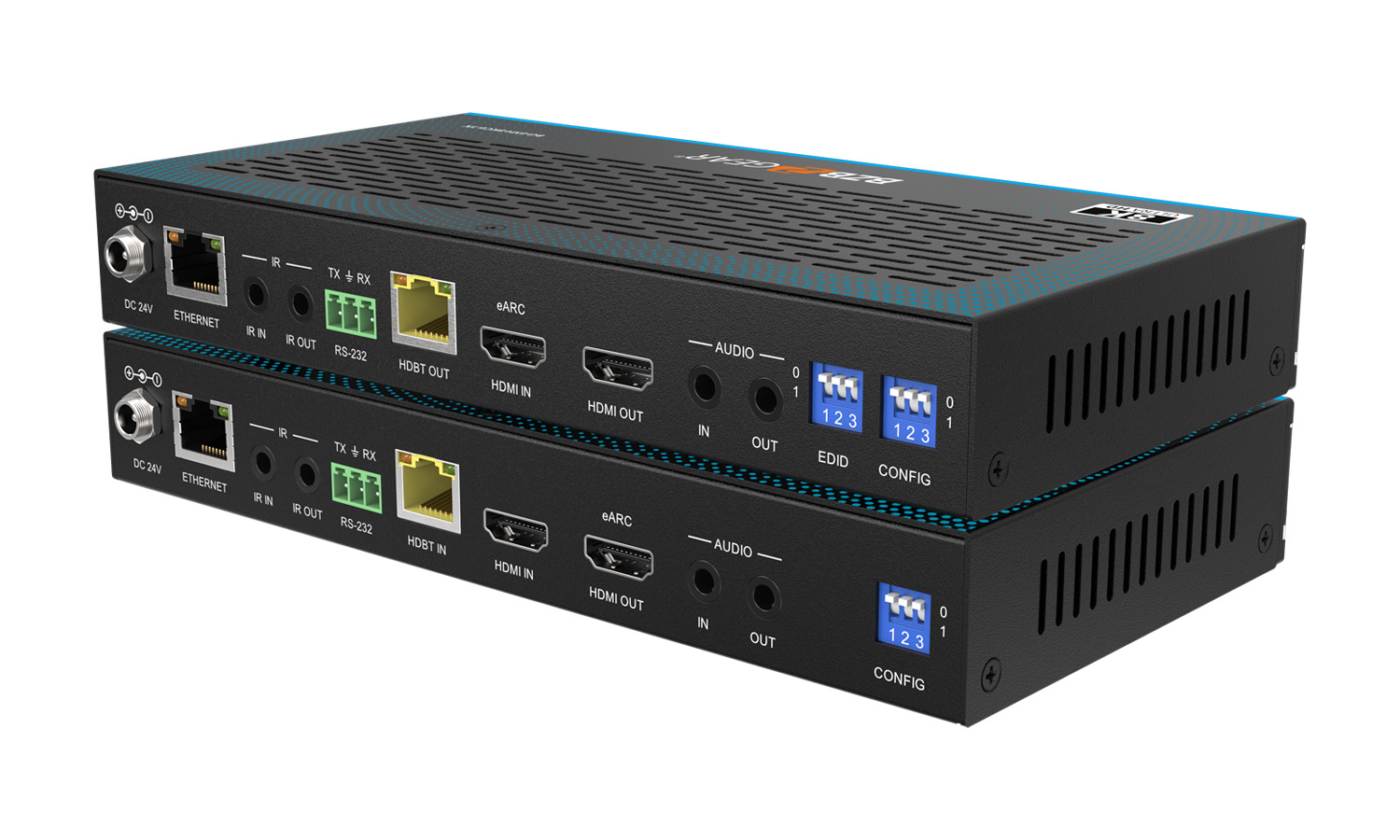

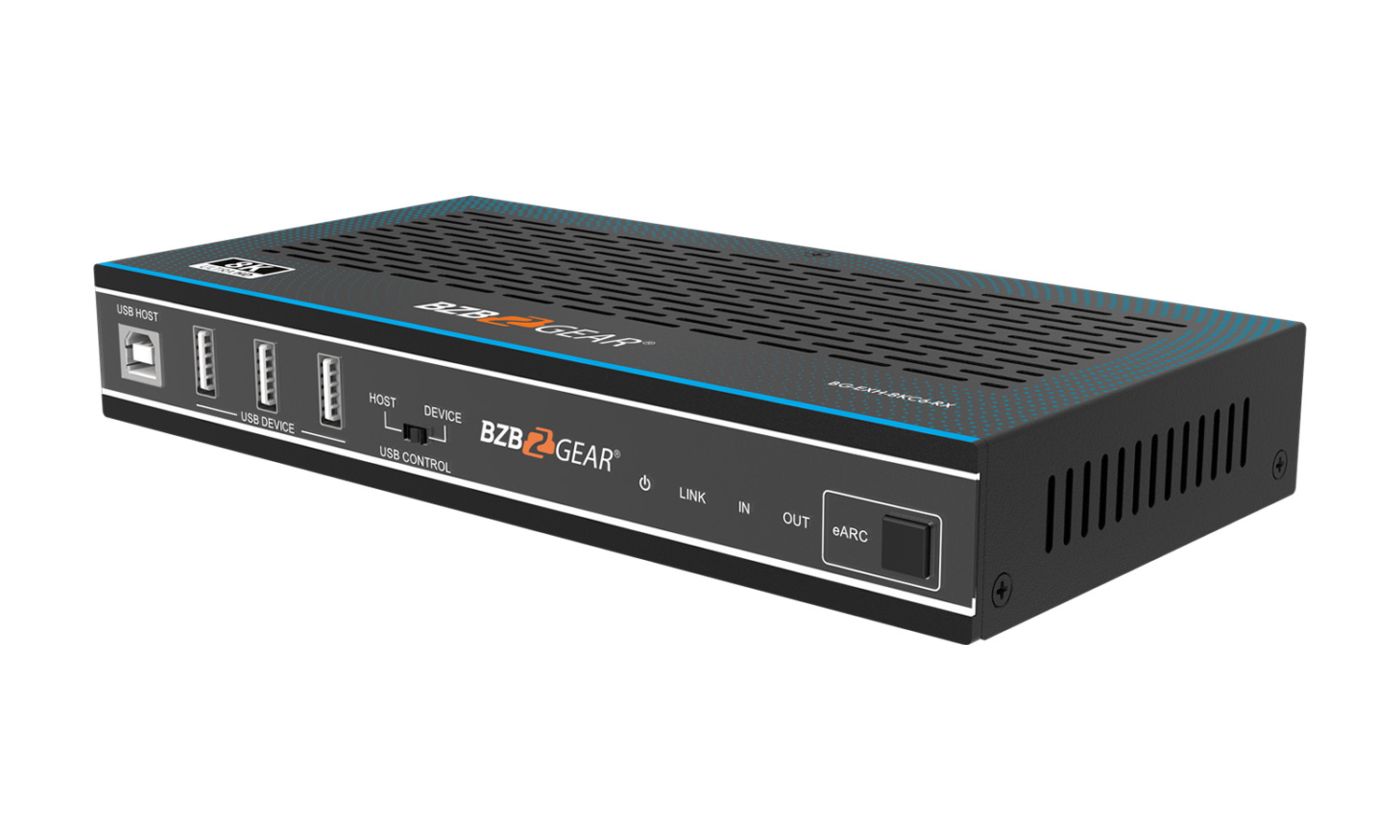

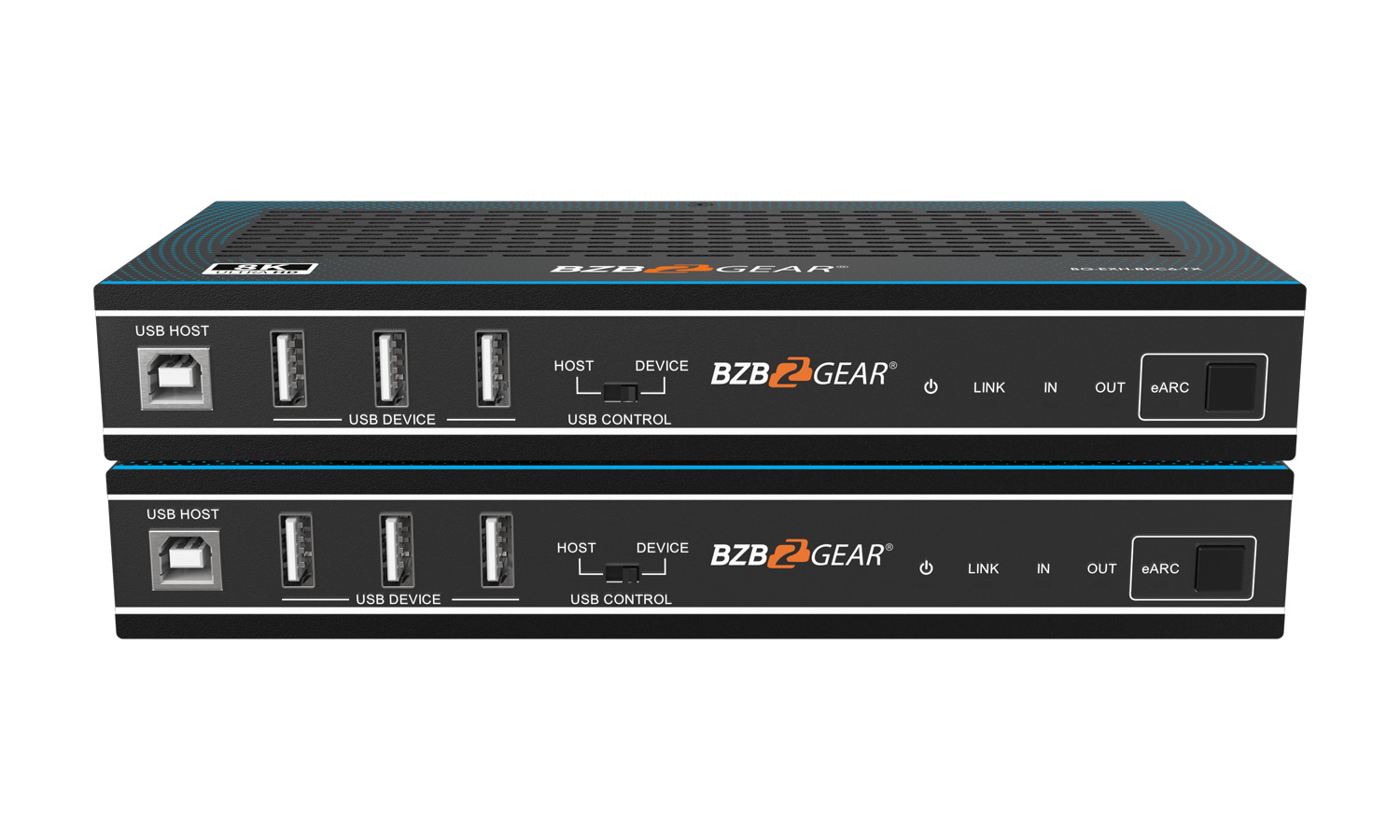

BZBGEAR BG-EXH-8KC6 8K UHD HDMI 2.1 Extender – 8K30/4K120Hz with IR/eARC/ARC/PoC/RS-232/Ethernet/USB 2.0 and Audio Embedding/De-embedding up to 295ft

Description

The BG-EXH-8KC6 is an 8K HDMI and USB over HDBaseT Extender designed to extend the range of uncompressed HD/UHD video and audio signals, including eARC/ARC, RS-232, bi-directional IR, 1GbE Ethernet, and USB 2.0 signals, up to 295ft (90m) using a single CAT6A/7 cable.

This extender supports video resolutions up to 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit, and 4K@60Hz 4:4:4. Additionally, it incorporates eARC/ARC functionality, allowing the transmission of audio signals from the receiver HDMI output pass-through to the transmitter’s HDMI input or audio de-embedding to the transmitter’s output port.

The device also facilitates USB 2.0 signal transmission with configurable Host/Device settings per device and bi-directional Power over Cable (POC) functionality. For home or commercial applications requiring long-distance signal transmission, the BG-EXH-8KC6 stands out as the ideal 8K signal solution.

Features

• Compliant – HDMI 2.1, HDCP 2.3, and HDBaseT 3.0 compliant
• 8K @ 30Hz and 4K @ 120Hz – Video resolution is up to 8K @ 30Hz 4:4:4 10bit, 4K @ 120Hz 4:4:4 10bit
• 8K Exclusive Features – Variable Refresh Rate (VRR), Fast as Possible V-active (FVA), Auto Low Latency Mode (ALLM) support
• Smooth Image Processing – HDR, HDR10, HDR10+, Dolby Vision and HLG pass-through
• HDMI Audio Formats – Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
• Advanced EDID – Management through EDID DIP switches
• Signal transmission distance up to 295ft (90m) via a single CAT 6A/7 cable
• HDMI re-clocking on the HDBaseT Receiver to help resolve HDMI HDCP compatibility and handshaking issues with displays
• Up to 40 Gbps Fixed Rate Link (FRL) and 18Gbps Transition-Minimized Differential Signaling (TMDS) video bandwidth
• CONFIG DIP switches allow for RS-232 serial port feature control
• Bi-directional support for Ethernet (1Gb), analog audio, IR, RS-232 signal pass-through, and 24V POC
• Support for all industry-standard video resolutions including VGA-WUXGA and 480i – 8K30
• USB 2.0 transmission (with speeds up to 350Mbps)
• The transmitter or receiver can be configured as either a Host or a Device
• Support for eARC/ARC (from RX to TX) sound systems
