Wall-Smart 032-1-773-BL Nearly Flush Wall Adapter / Bezel Black 4mm Bezel Board 10mm-22mm

Description

The WS RF adapter is a nearly flush in-wall retrofit mounting solution designed to secure a TKP-8600 touchscreen while maintaining a low-profile appearance. It provides a slim on-wall bezel that reduces visual protrusion and preserves the surrounding wall finish. The product is offered in painted black, painted white, or unpainted finishes to match installation aesthetics.

Key features include a 4mm on-wall bezel thickness, magnetic bezel attachment for fast access, and support for board thicknesses from 10mm to 22mm. The adapter kit is engineered to allow easy insertion and removal of the touchscreen while keeping the unit firmly mounted. The magnetic bezel and supplied fasteners streamline service and maintenance tasks.

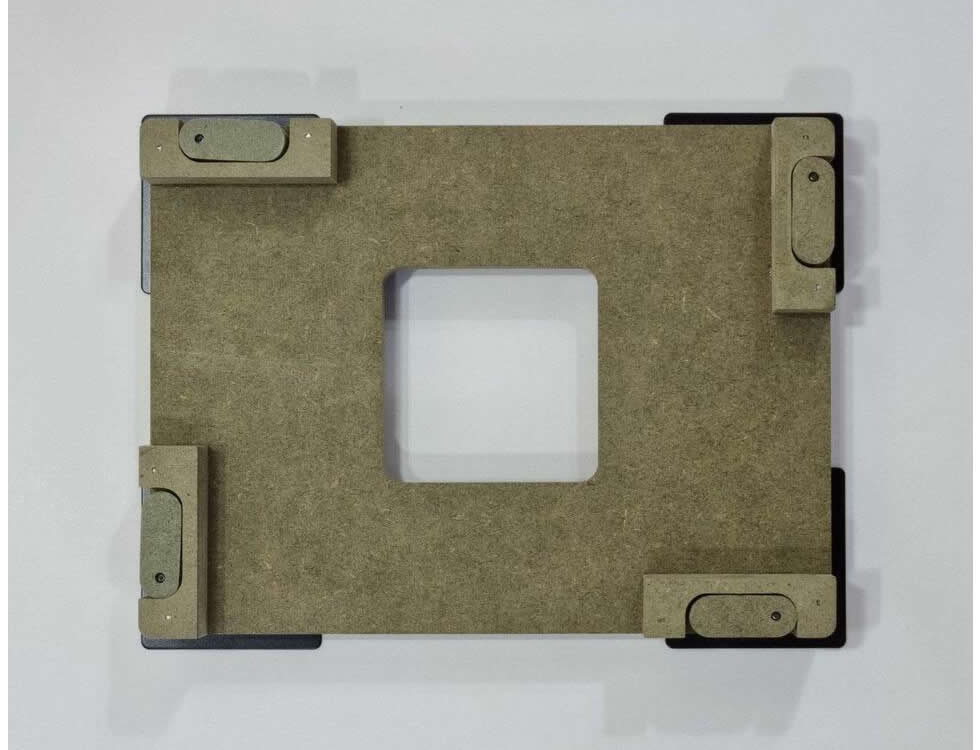

Technical details are straightforward and focused on reliable fit and finish. Overall dimensions are 261.7mm width by 201.1mm height by 48mm depth. The adapter weighs 0.6Kg (1.32lbs) and is constructed from moisture resistant MDF compliant with TSCA Title VI to ensure stable performance in indoor environments.

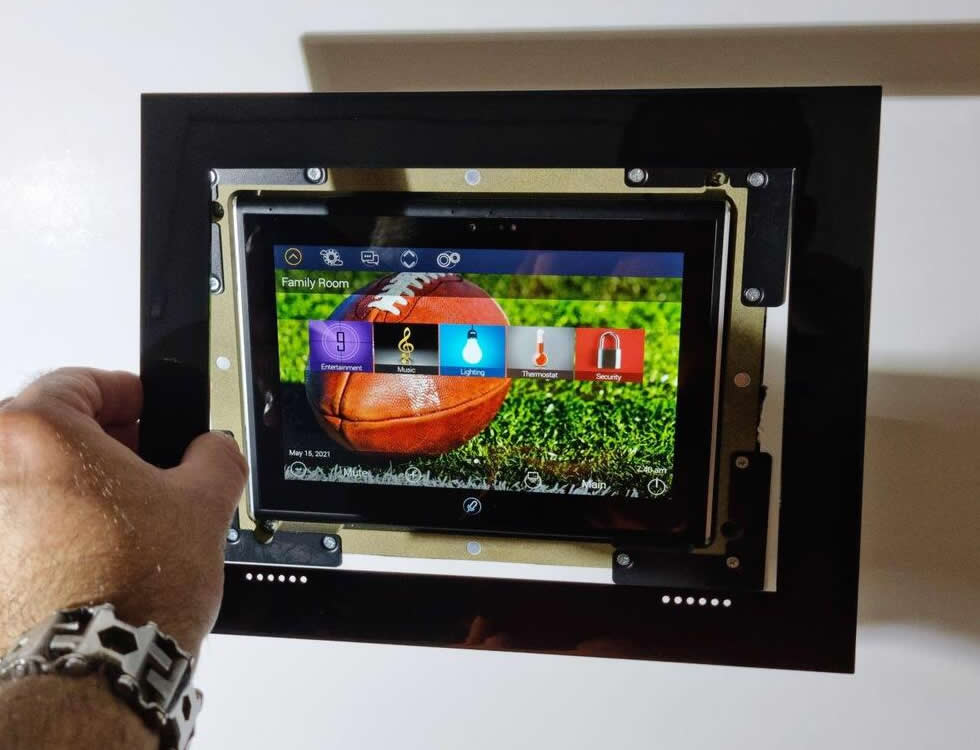

Connectivity is provided via the mechanical interface rather than electrical ports – the adapter is designed to accept the TKP-8600 touchscreen form factor and to provide a secure mounting surface. The bezel attaches magnetically to the retrofit wall mount base to allow access without tools. The kit includes mounting screws to complete a clean retrofit installation.

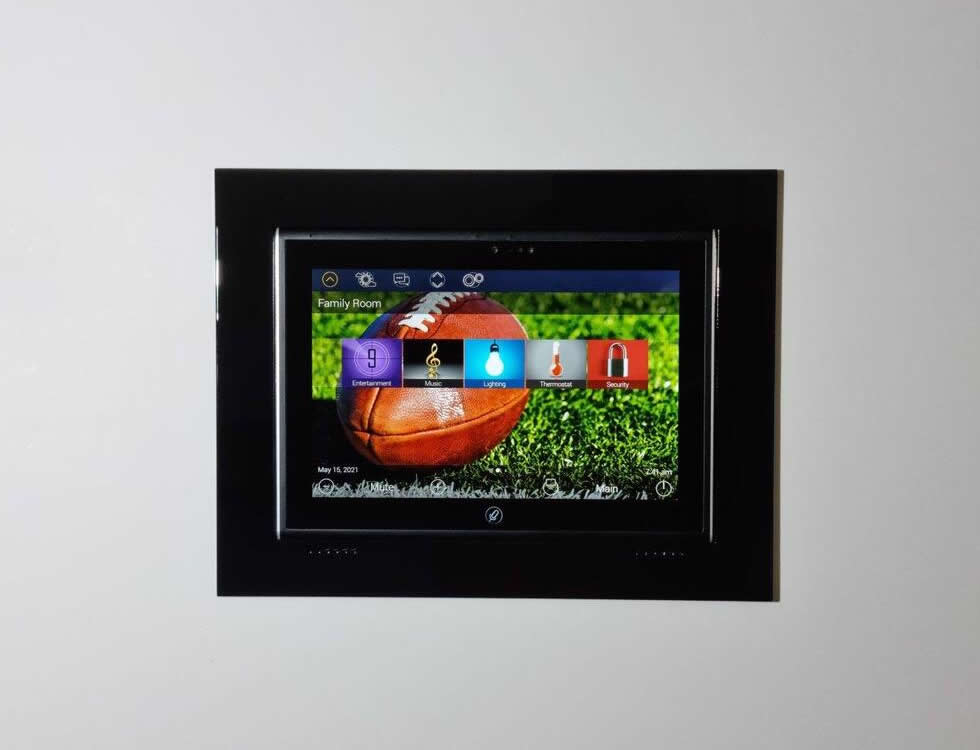

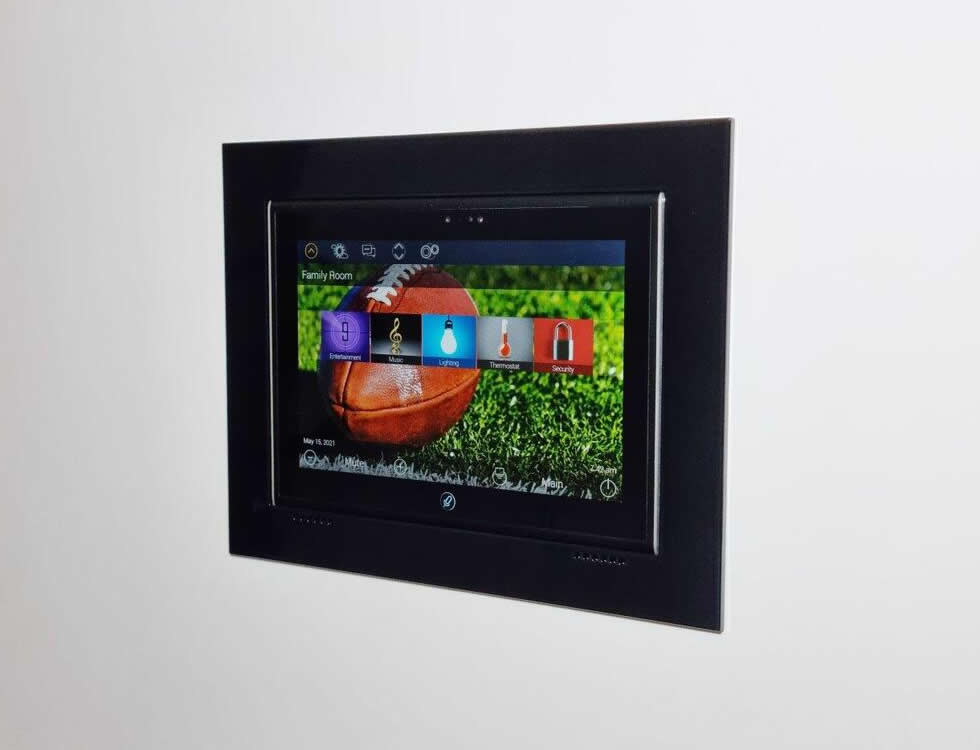

This adapter is suitable for retrofit installations in residential automation, commercial control rooms, and hospitality environments where a near-flush touchscreen appearance is desired. Typical applications include wall-mounted control panels in living rooms, meeting rooms, and public spaces where visual integration is important. The low-profile bezel helps conceal gaps and provides a neat, professional finish.

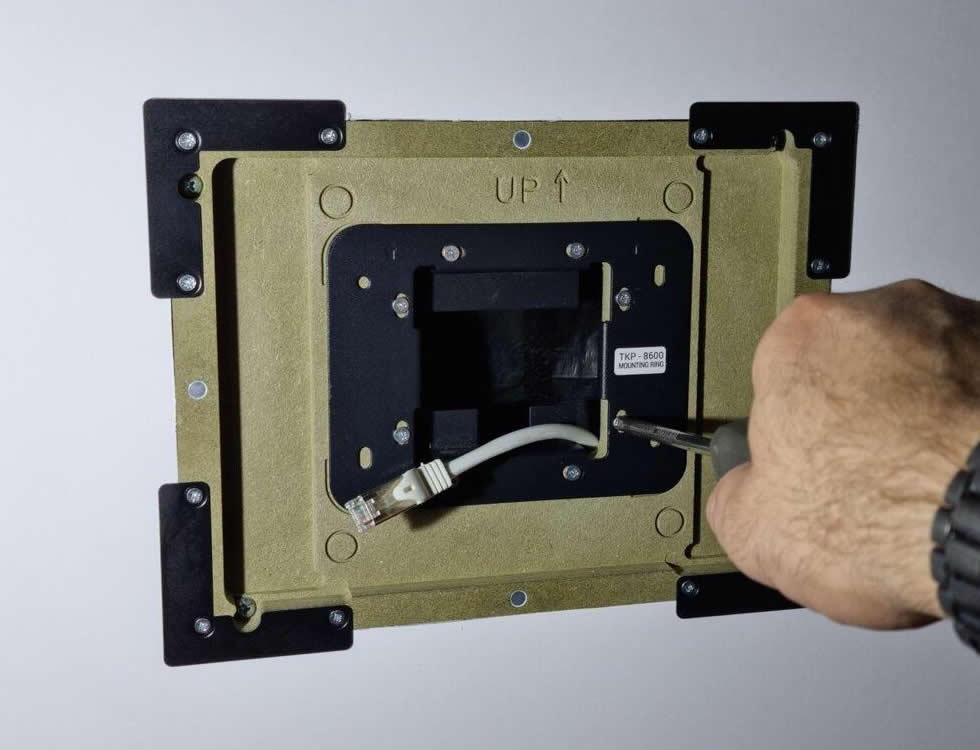

Installation is simplified by the magnetic bezel and standard screw fasteners included in the kit. The design supports board thicknesses from 10mm to 22mm and accommodates common wall mounting scenarios. The moisture resistant MDF construction provides solid mechanical support and consistent aesthetics for long-term installations.
