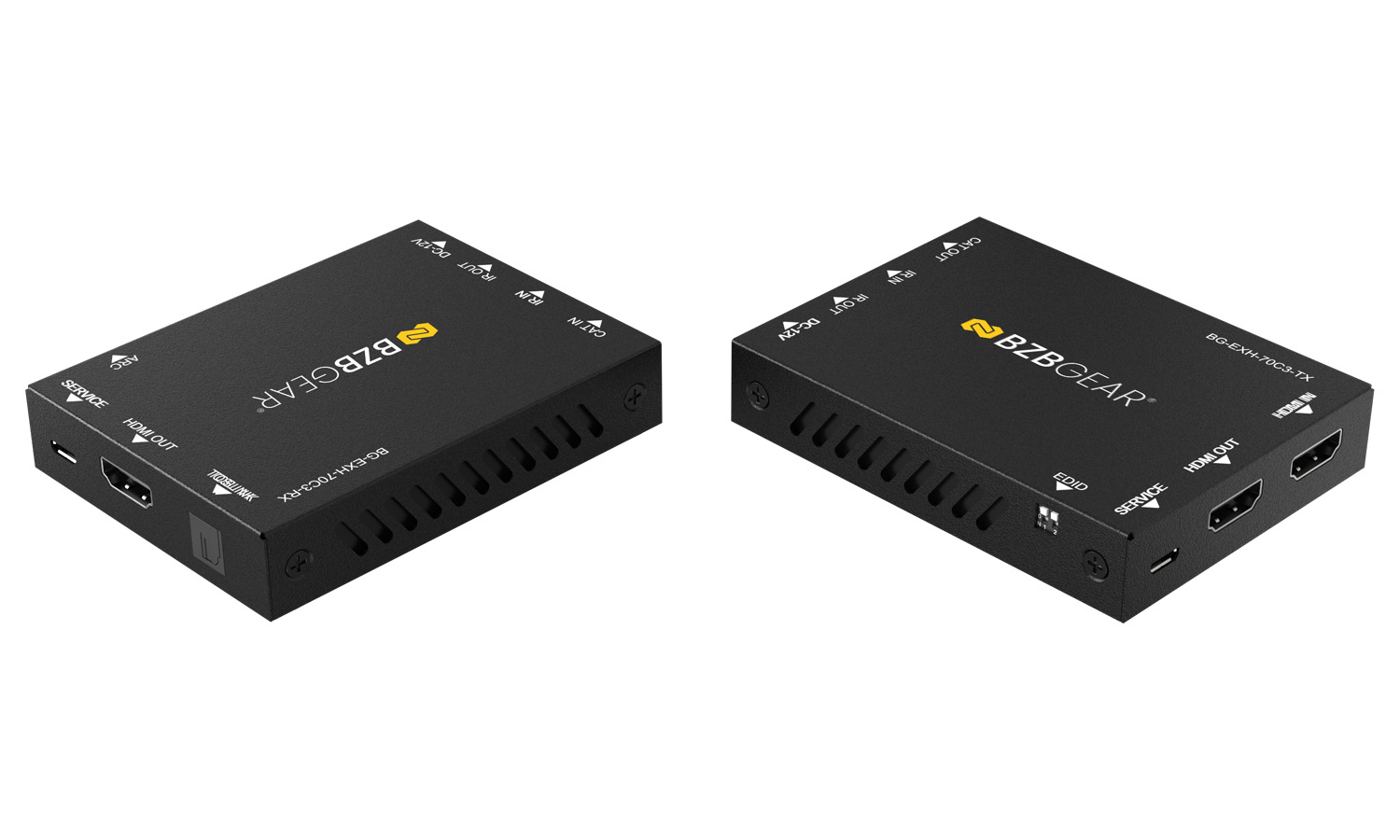

BZBGEAR BG-EXH-70C3 4K UHD HDMI Extender Over Cat5e/6 with Bi-directional IR/PoC/ARC and Audio De-embedding up to 230ft

Description

.whbthbgc img{max-width:450px!important}.ntcamwrap{max-width:1170px;margin:auto;}img{max-width:100%}.ncamdescr{max-width:1000px;margin:auto;line-height:30px!important;font-size:16px}.template2icimwr{width:100%;background-color:efefef;margin-top:50px}.template2icim{max-width:1140px;margin:auto;padding-top:50px;background-color:efefef}.template2icim1,.template2icim3{max-width:297px;width:100%;float:left;text-align:center;color:626262;font-size:18px;margin-bottom:30px}.picoht{min-height:225px!important}.template2icim1,.template2icim3{text-align:center;color:626262;font-size:18px}.picbrt{margin-top:14px;font-size:15px}.picoht img{max-width:95px!important;margin:auto}.nnfeat ul li{font-size:19px;list-style:none;padding:7px 0 10px 45px;color:585858;margin-left:10px;line-height:28px;background-size:26px auto!important;background:url(https://bzbexpress.com/img/icotp2sp.png) no-repeat left 8px top 8px;background-size:auto}.nnfeat{margin-top:45px;padding-bottom:45px}.nnfeatwrap2{padding-left:10px!important;padding-right:10px!important}.t2comptim img{max-width:230px!important;display:inline-block}.t2compth{margin-left:100px;font-size:24px;font-weight:700;margin-bottom:35px}.whbthbg{width:1190px;height:546px;background-image:url(https://bzbexpress.com/img/bgwht2.png);margin:auto}.idbuyt{font-weight:400!important;font-size:18px!important;margin-top:30px;line-height:32px}.fllt2{float:left;width:49%;margin-top:50px}.idbuyim{margin:0 30px 0 90px}.idbuyim,.idbuyc{float:left}.whbthbgc{margin-top:90px;margin-left:20px;text-align:center}.fllt2{float:left;width:49%;margin-top:80px}.idbuyc{font-weight:700;font-size:32px;margin-top:20px}.ttintwr p{font-weight:700;font-size:24px}.ttintwr{width:385px;min-height:175px;color:444446;text-align:left;line-height:22px}.ttintwr_l{margin-left:10px}.ttintwr_l,.ttintwr_r{display:inline-block;vertical-align:top}.ttintwrimg{float:left;margin-right:10px;width:160px;height:120px}.vd1{max-width:683px;margin:auto;border:1px solid ccc;max-height:380px}.tmopuntwr{margin:20px;background:f0f4f7;margin-top:50px;padding-top:30px;padding-bottom:30px;min-height:300px}.tmopuntwr img{display:inline-block;max-width:350px}.t2faqsb{margin-left:150px;line-height:40px;font-size:20px}
@media screen and (max-width: 1000px){
.whbthbgc img{display:none}.template2icim {display: none;}.picoht {min-height: 150px !important;}.template2icim1, .template2icim3 {width: 230px!important;margin-left:60px;margin-bottom: 0px;}.whbthbg {max-width: 98%!important;}.fllt2 {width: 95%!important;}.template2icim2{display:none}.t2compth{margin-left:15px!important}.t2faqsb{margin-left:15px!important}.nnfeatwrap2{padding-left:0!important}.idbuyim{margin:0 3px 0 15px !important}.ttintwr{width:inherit!important}.tmopuntwr img{display:inline-block;max-width:250px!important}.ntcamwrap{color:000!important}.t2comptim img{max-width:155px!important .ncamdescr {font-size: 16px!important;color:000!important}
}

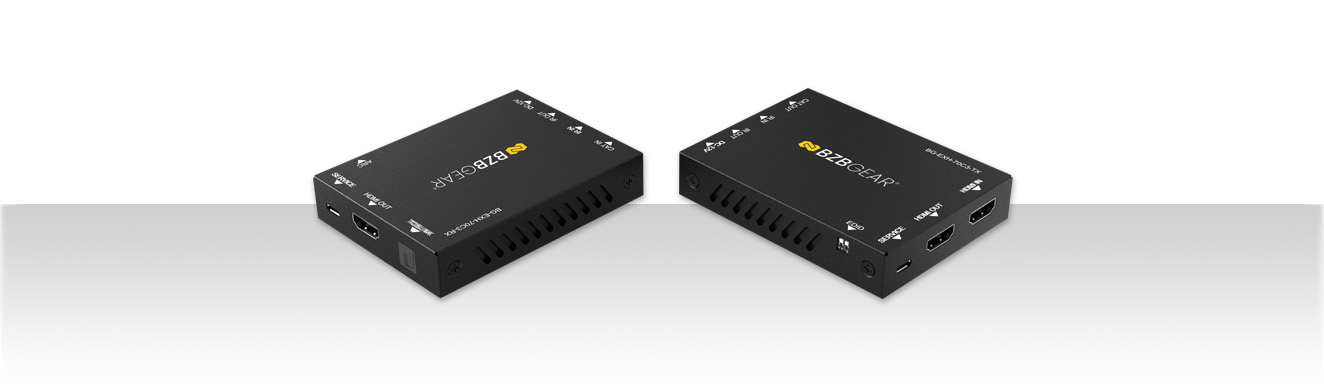

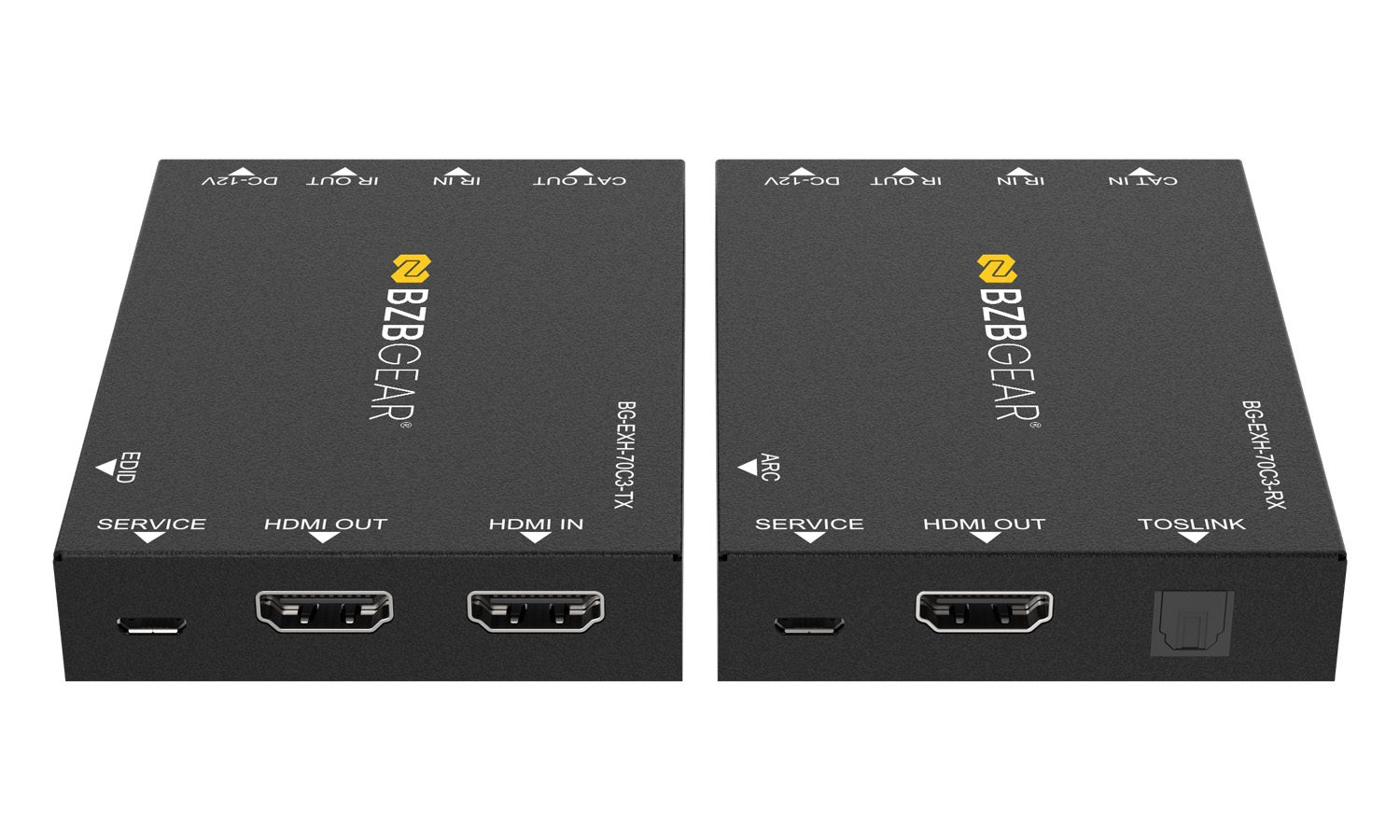

The BG-EXH-70C3 is an 18Gbps HDMI extender that can transmit HDMI and IR control signals up to 230ft(70m) via a single CAT6/6a cable and the uncompressed, long-distance transmission between the transmitter and receiver is achieved with zero-delay. These devices are also HDMI 2.0b and HDCP 2.2 compliant ensuring content is protected. The extenders feature bi-directional IR and power over cable(PoC) meaning only one of the units in the pair needs a power supply while IR blaster and receiver cables can be utilized to control devices on either end of the system simplifying a clean installation.

EDID copy pass-through between the source and display devices help to ensure the best signal quality possible. Video resolution is crystal clear with up to 4K2K @ 60Hz 4:4:4 along with rich colors provided by HDR, HDR10, HDR10+, Dolby Vision, and HLG. The receiving unit (RX) can extract LPCM 5.1, Dolby True HD, and DTS HD Master formats from the ARC connection on a display to its TOSLINK port. The flexible and compact design of the BG-EXH-70C3 allows for a wide range of uses where signal sources may need to be further away from their displays.

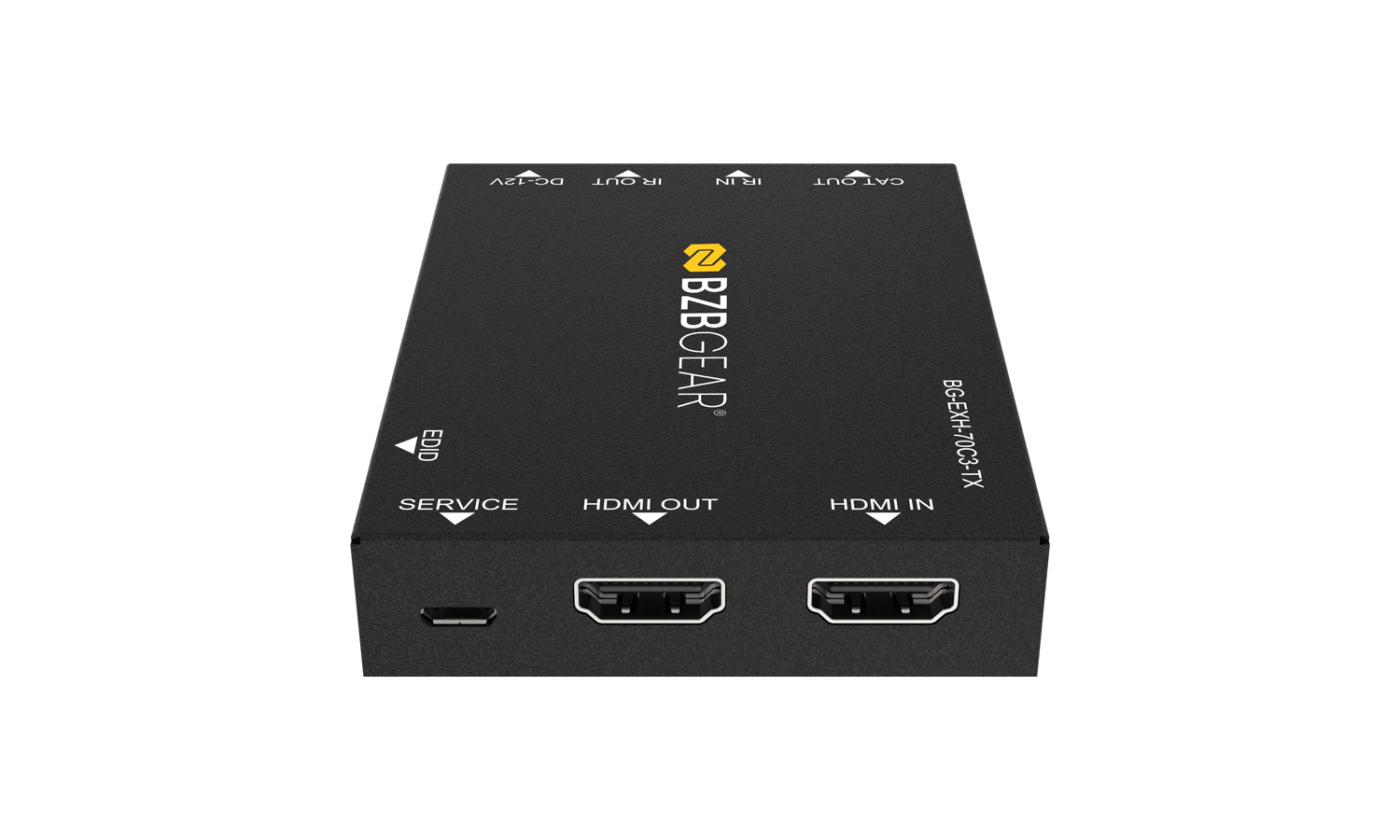

HDMI Loop-Out:

Loop-out to view content locally at the transmitter side

EDID Copy Pass-Through:

Features an EDID copy pass-through function between the source and display devices

HDR Support:

Specifically mentions support for HDR, HDR10, HDR10+, Dolby Vision, and HLG

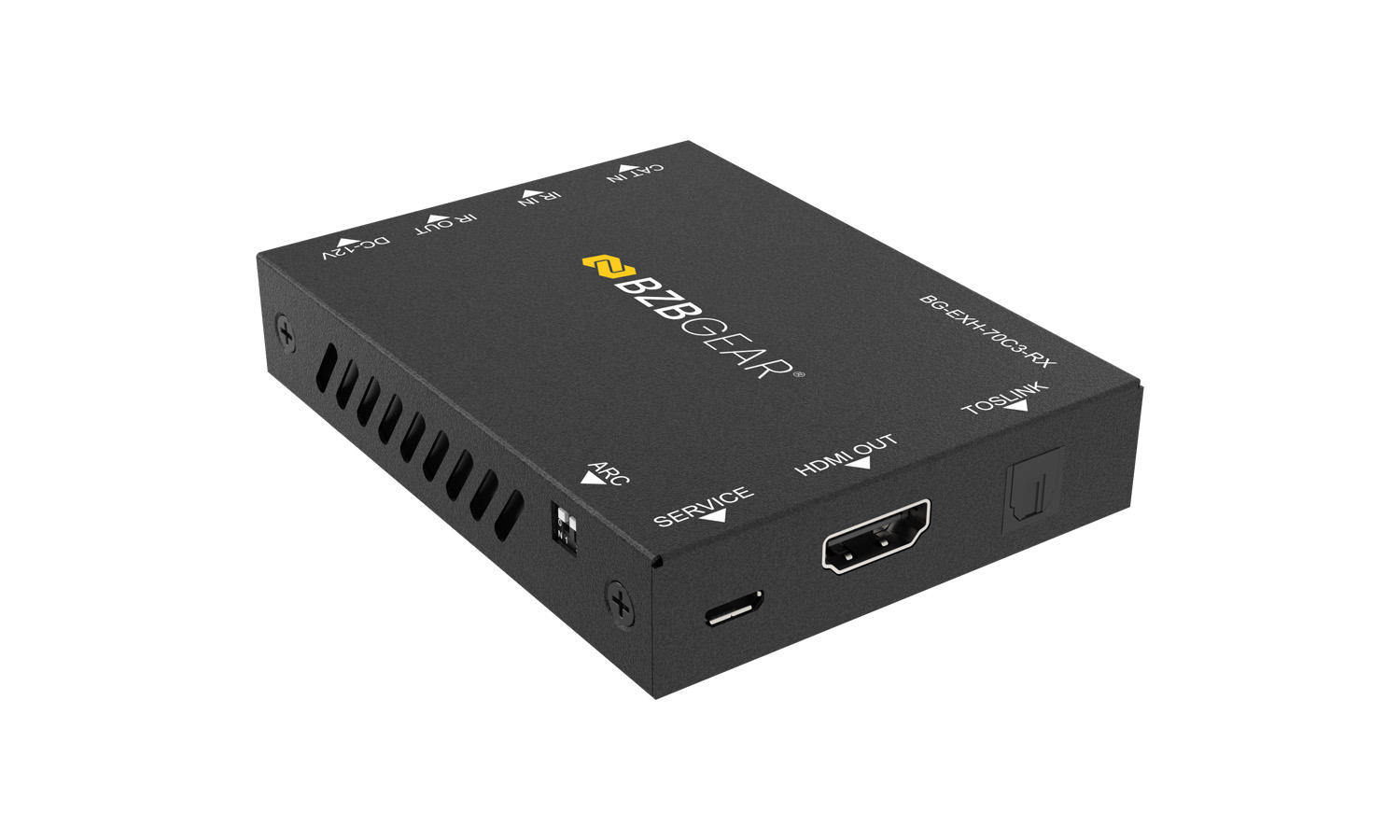

Digital Audio Extraction:

The receiving unit (RX) can extract digital audio from the transmitter via ARC from a display through the TOSLINK port

Audio Formats:

Supports LPCM 5.1, Dolby True HD, and DTS HD Master audio formats

Long Distance:

Supports a transmission extension distance of up to 230ft/70m via a CAT6/6a cable

• The receiving unit (RX) can extract the digital audio from the ARC connection on a display to its TOSLINK port
• EDID copy pass-through
• Audio Formats: LPCM 5.1, Dolby True HD, DTS HD Master, Dolby 5.1, DTS 5.1, PCM 2.0

Video
