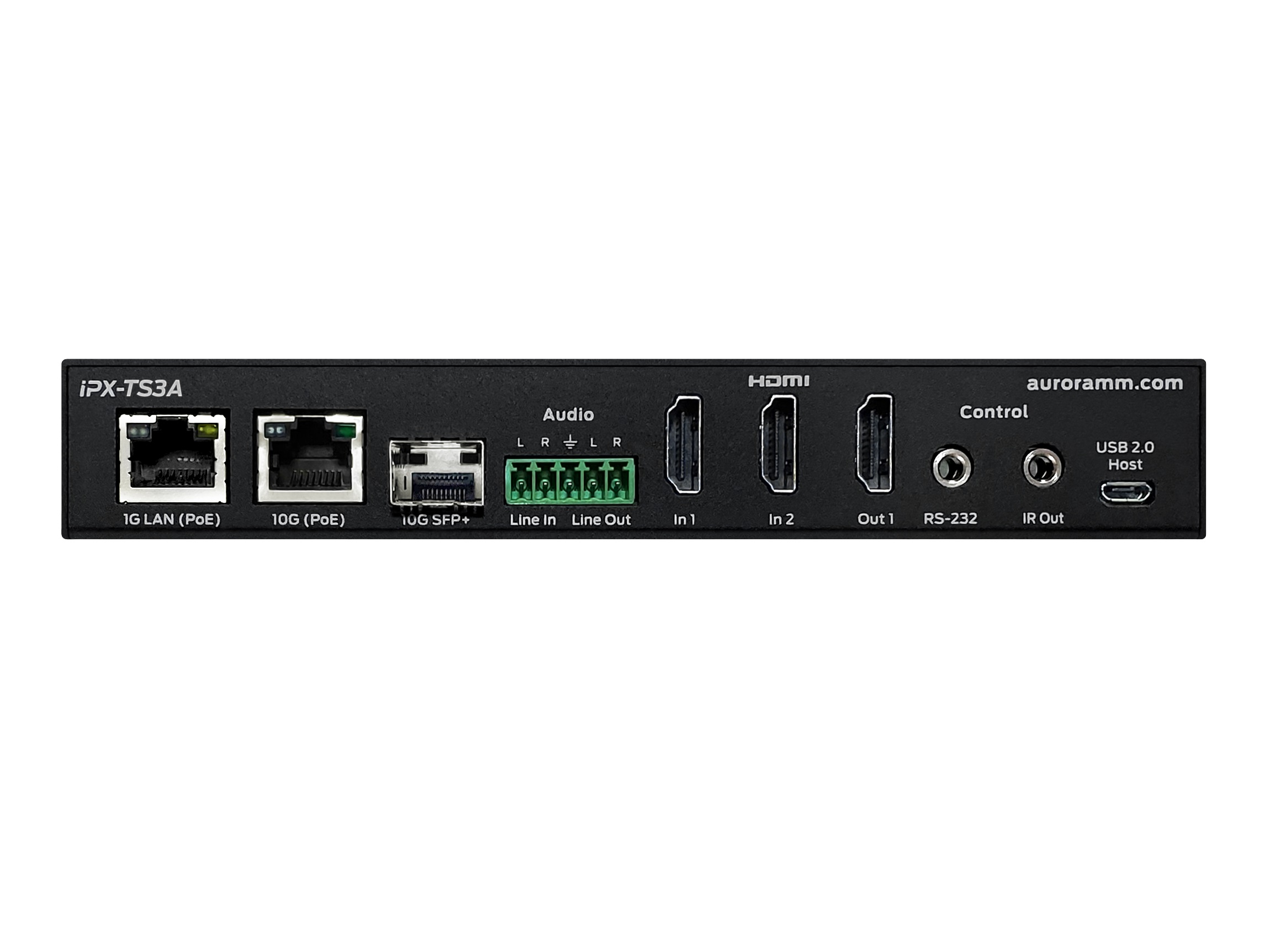

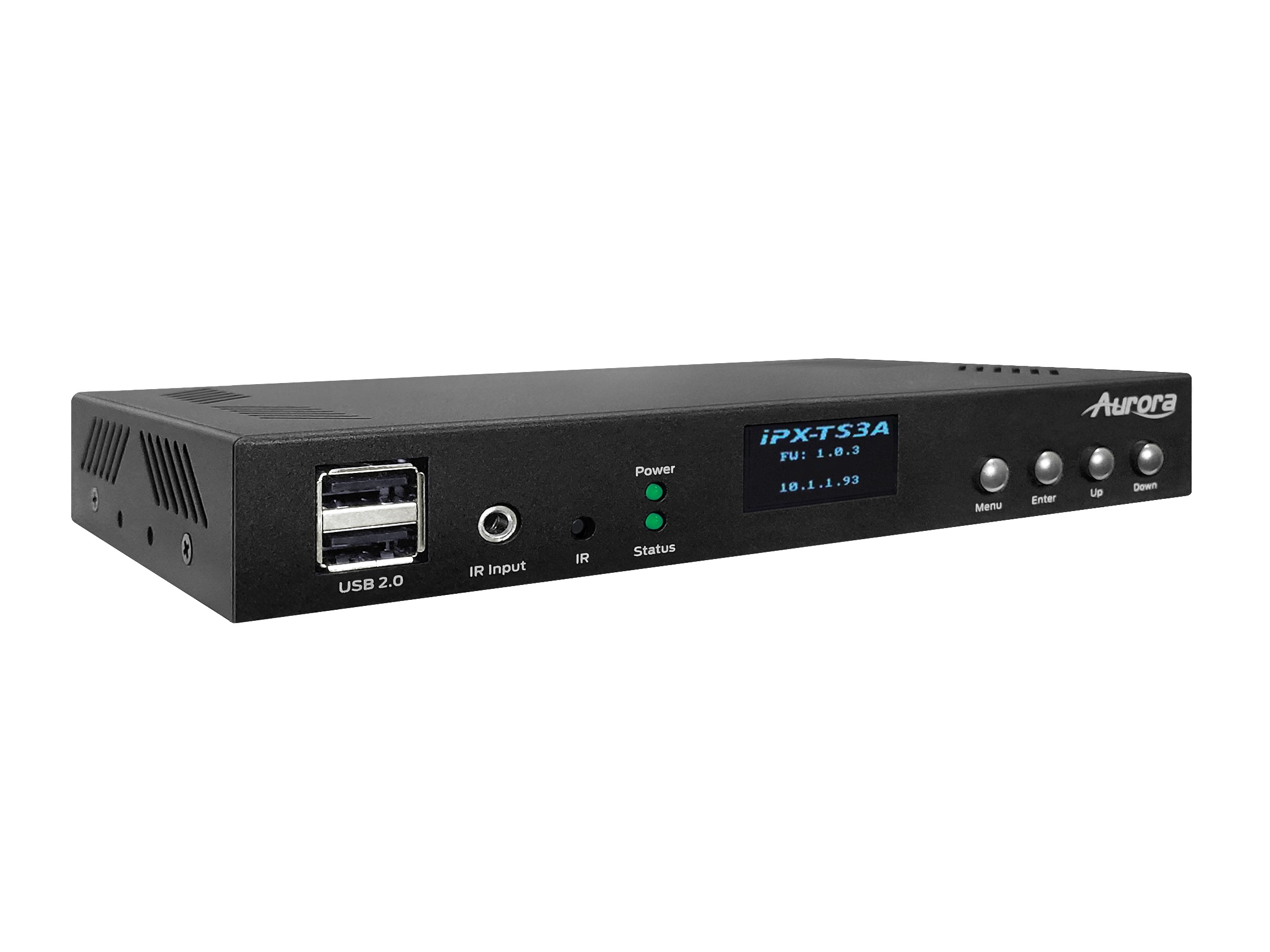

Aurora Multimedia IPX-TS3A-CF-Pro 4K 10Gbps SDVoE AV-over-IP Simultaneous Encode/Decode Transceiver Box with 2 HDMI In/1 HDMI Out

Description

The IPX-TS3A-Pro provides one of the most advanced IP Streaming solutions on the market utilizing SDVoE technology. It is the industry’s first 4K2K transceiver with zero compression (4K60 4:2:0, 4K30 4:4:4), lossless compression (4K60 4:4:4), and zero frame latency based on BlueRiver NT+ platform.

Aurora pioneered the transceiver in AV over IP – now we take it to the next level with simultaneous transmit and receive over a single cable. Another industry first is the option slot to add other IP capabilities, like ExtremeUSB® (USB 2.0 over IP) or Dante® audio, for a more complete, distributed system.

Audio, video, data, and control can be sent securely to one or many units using off-the-shelf 10G Ethernet switches. Seamless switching of the sources further enhances the presentation. Regardless of how the IPX is set up, the audio can be de-embedded at any location, break away, and/or be sent to or received from a Dante® enabled device. The USB 2.0 option is also flexible, working as a KVM and/or a high-speed data transfer (480Mbps) for memory sticks. Each IPX USB feature can also be set as a host or a device. To keep the system friendly, a customizable OSD and web server are available to be programmed as required. For RJ-45 LAN devices, the 1G Ethernet port allows full bandwidth end-to-end over the IPX 10G fiber or copper port.

Note: The selected network switch needs to support: 10Gbps, Non-blocking IGMP.

Power Supply NOT included, please order separately.

Features:

• Simultaneous Transmitter (Encoder) and Receiver (Decoder) over single CAT cable (IPX-TS3A-CF Pro Box & IPX-TS3A-WP3 Wall Plate)
• 4K60 4:4:4 Over 10G Fiber or Copper
• 1.3:1 Lossless Compression and Zero Frame Latency (100us) for 4K60 4:4:4
• Zero Compression/Frame Latency (22us) for 4K60 4:2:0 and below
• Secure Content Encryption
• 128×128 Capable with HDCP, Larger for Non-Encrypted Sources
• Video Wall Capability (8×8)
• Windowing/Multi-viewer up to 16 windows
• 3ms Scaling
• Seamless Switching including local inputs & Break-away Switching
• Audio DSP
• SFP+ for Multi/Single Mode Fiber
• Dual Fiber Redundancy (IPX-TC3A-DF)
• 10/100/1000Mbps LAN PoE (PD)
• Line In/Out Stereo
• RS-232 Serial Port and IR (Bidirectional)
• USB 1.1 (HID) or USB 2.0 480Mbps IP Extension
• Dante®/AES67 IP 2Ch and 8Ch Audio (Optional)
• ReAX IP Control (Option)

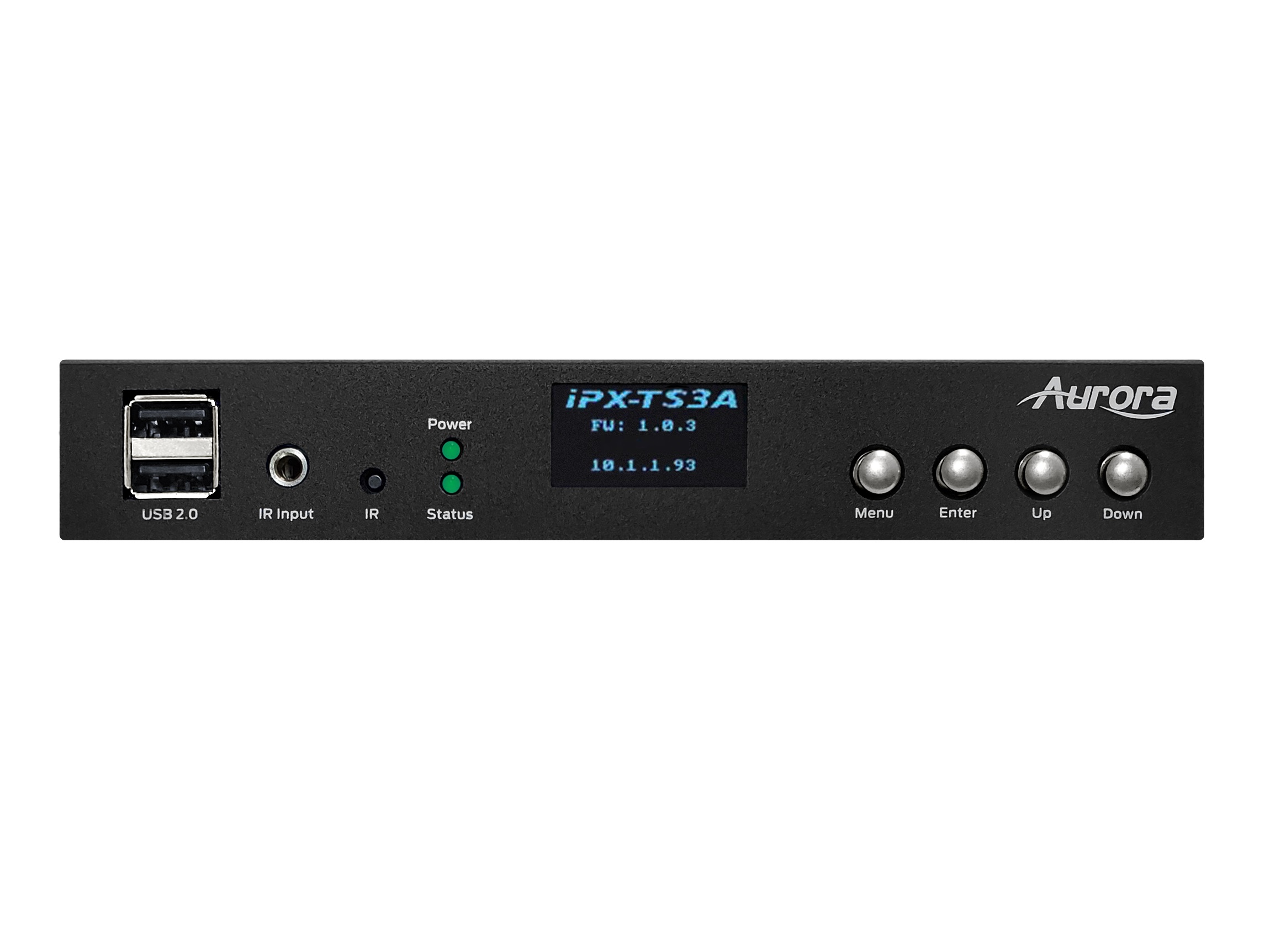

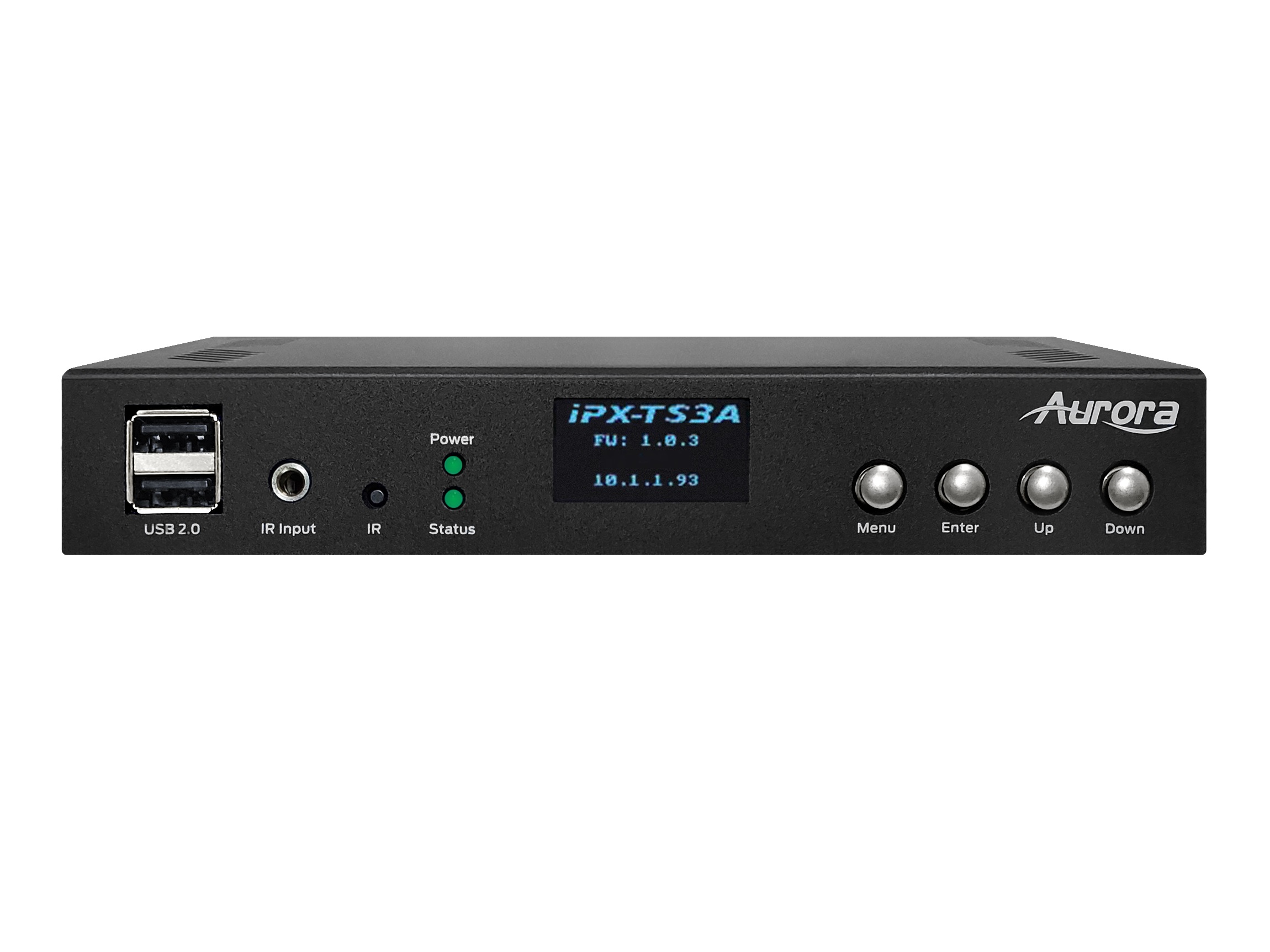

• Front Keypad with OLED Display
• Auto Sense Switching
• Rack and Under Table Mounting
