Blackmagic Design BMD-VHUBSMAS12G120120 Videohub 120x120 12G Zero-Latency Video Router

Description

Support a mix of multiple video formats using the Videohub 120×120 12G Zero-Latency Video Router from Blackmagic Design. This advanced router provides 120 x 12G-SDI inputs and 120 x 12G-SDI outputs for routing any combination of SD, HD, UHD 4K, and DCI 4K video. The Videohub 120×120 12G centralizes all your SDI cables in one hub, enabling you to connect any video input to any video output, or a single video input to multiple video outputs while eliminating clusters of cables and the need for complex diagrams. This versatile unit can be used with multiple HyperDeck recorders for redundant mastering to route video to multiple streaming processors for all your broadcast platforms or to add extra inputs to an ATEM switcher.

12G-SDI Multi-Rate Connections
Multi-rate 12G-SDI connections enable you to route up to 120 different video standards at the same time.
Supports up to DCI 4K60 video resolutions.
Provides 4:2:2 8 or 10-bit color routing in any standard.
Works with 4:4:4 12-bit SDI up to DCI 4K30 for feature films.

SDI Reclocking
Reclocking on every 12G-SDI input regenerates the signal, providing the maximum video quality.
Reduces or eliminates signal loss and jitter when using longer cables that can degrade the signal.

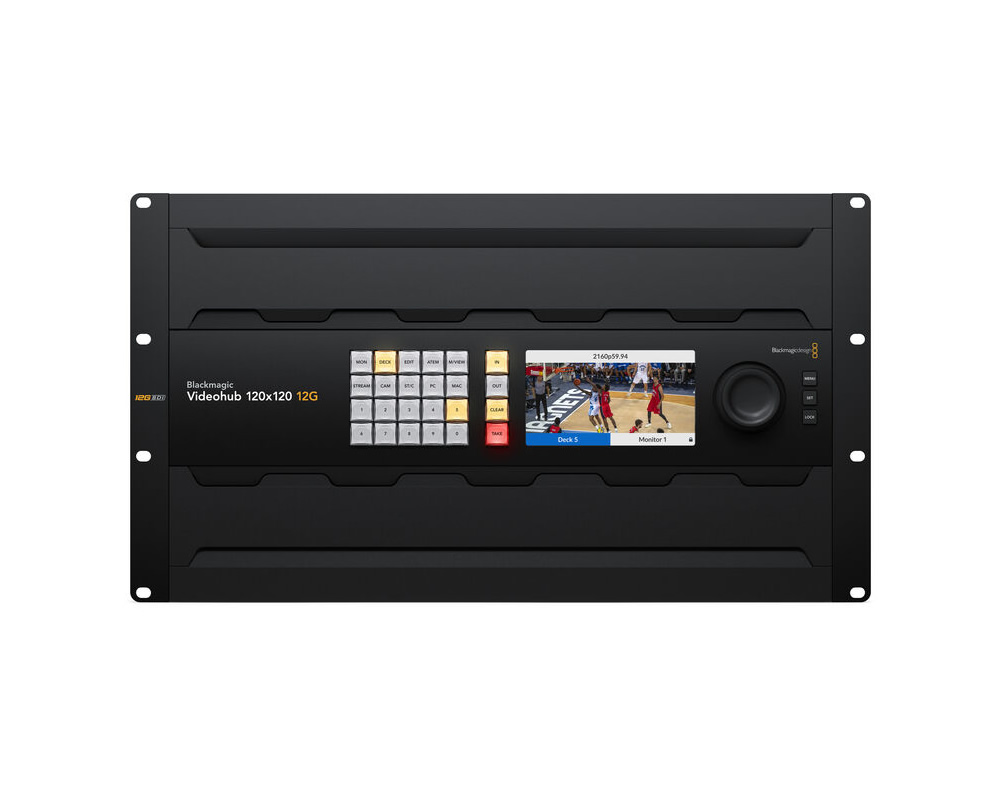

Front-Panel Controls
A sleek front panel offers multiple control options.
Buttons include assignable shortcuts and In, Out, Clear, and Take buttons.
The machined metal spin knob provides precise control using an electronic clutch.

Optional Hardware Control Panels
Can be used with optional hardware panels for easier control when components are spaced out in large facilities.
Compatible with both the Videohub Master Control Pro and the Videohub Smart Control Pro.
The Videohub Master Control Pro is similar to the front panel and has a spin knob, LCD, and shortcut buttons.
The Videohub Smart Control Pro model features an all-button design and is generally programmed, so the panel controls a single router output with each button programmed to a router input, enabling you to cut along the panel buttons to change the router output instantly.

Flexible Router Control
The macOS, iPad, and Windows-compatible Videohub Software Control provides easy-to-use touchscreen router control. This software features large buttons that are easy to press, and you can run it on the computers you’re already using for creative work. Each button can be customized to a router input or a router output, and it has an icon assigned to help you identify it visually.

Setup Utility and SDK
Use the Videohub Setup software to get started or the SDK to add protocol support for broadcast automation systems.

Built-In LCD
View your live input before routing the signal on the built-in 5″ LCD screen.
Bottom labels enable you to scroll through your sources in alphabetical order.
Eliminates the need to add an external SDI monitor to your setup.

Multiple Language Support
Customized support is available in:
English, Chinese, Japanese, Korean
Spanish, German, French, Russian
Italian, Portuguese, Turkish, Polish, Ukrainian

Specifications

Processing
Switching Type	Pushbutton, Software
Processing Resolution	DCI 4K at 60
Color Processing	10-Bit 4:2:2 YUV, 12-Bit 4:4:4 RGB
Audio Processing	48 kHz / 24-Bit
Input

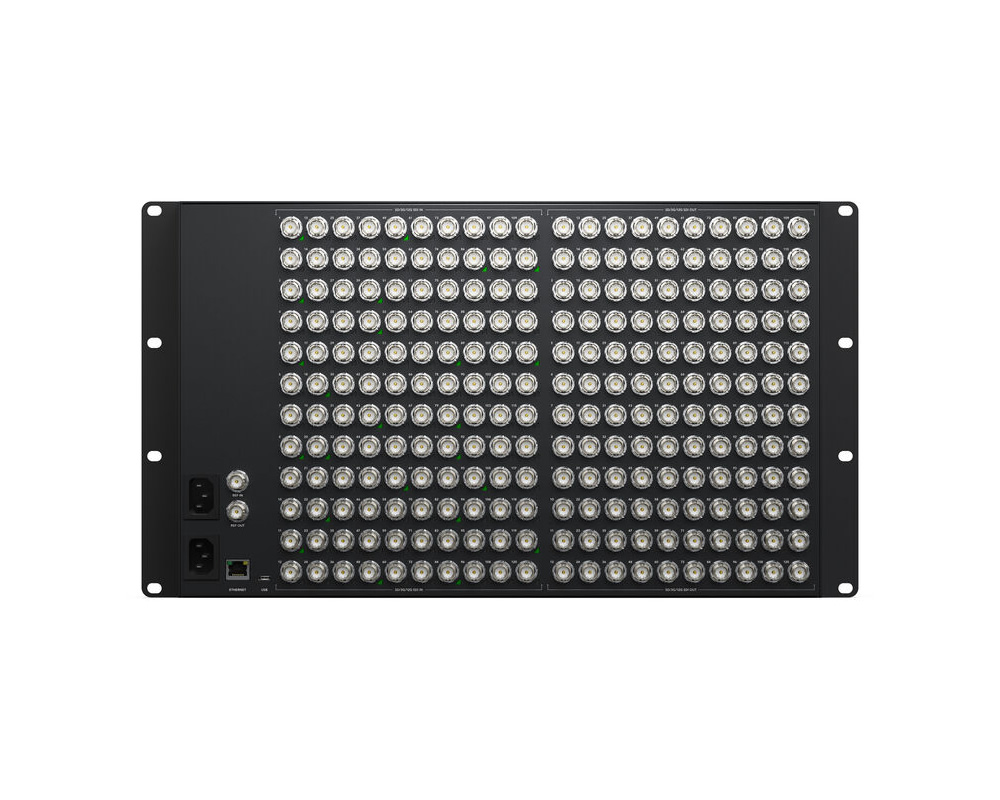

Video Inputs	120x BNC (12G-SDI)
Input Video Format	SDI (10/12-Bit 4:4:4/4:2:2 RGB, YUV), DCI 4K up to 60 fps, UHD 4K up to 60 fps, DCI 2K up to 60 fps, DCI 2KPsF up to 30 fps, 1080p up to 60 fps, 1080PsF up to 30 fps, 1080i up to 60 fps
Embedded Audio Input	SDI
Output
Video Outputs	80x BNC (12G-SDI)
Output Video Format	SDI (10/12-Bit 4:4:4 RGB, YUV), DCI 4K up to 30 fps, UHD 4K up to 30 fps, DCI 2K up to 60 fps, DCI 2KPsF up to 30 fps, 1080p up to 60 fps, 1080PsF up to 30 fps, 1080i up to 60 fps, 720p at 50/59.94/60 fps, 576i / 625 lines at 50 fps, 480i / 525 lines at 59.94 fps
Embedded Audio Output	SDI
Connectivity
Other I/O	1x RJ45 LAN, 1x USB-C, 1x BNC Reference Input, 1x BNC Reference Output
Video Standard Compliance	SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-10, ITU-R BT.601/BT.656
HDCP Support	Yes
HDR Support	Yes
Display
Display Size	5"
Hardware
OS Compatibility	macOS 13 or Later / Windows 10 or Later
Wireless	Bluetooth / Wi-Fi
Power
Power I/O	2x IEC C14 (100 to 240 VAC) Input
Power Consumption	140 W
General
Operating Conditions	32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions	-4 to 140°F / -20 to 60°C
Rack Form Factor	6 RU
Dimensions	19 x 10.47 x 6.52" / 48.3 x 26.59 x 16.56 cm
Weight	33 lb / 15 kg
Packaging Info
Package Weight	40.975 lb
Box Dimensions (LxWxH)	21.8 x 15.8 x 15.6"
