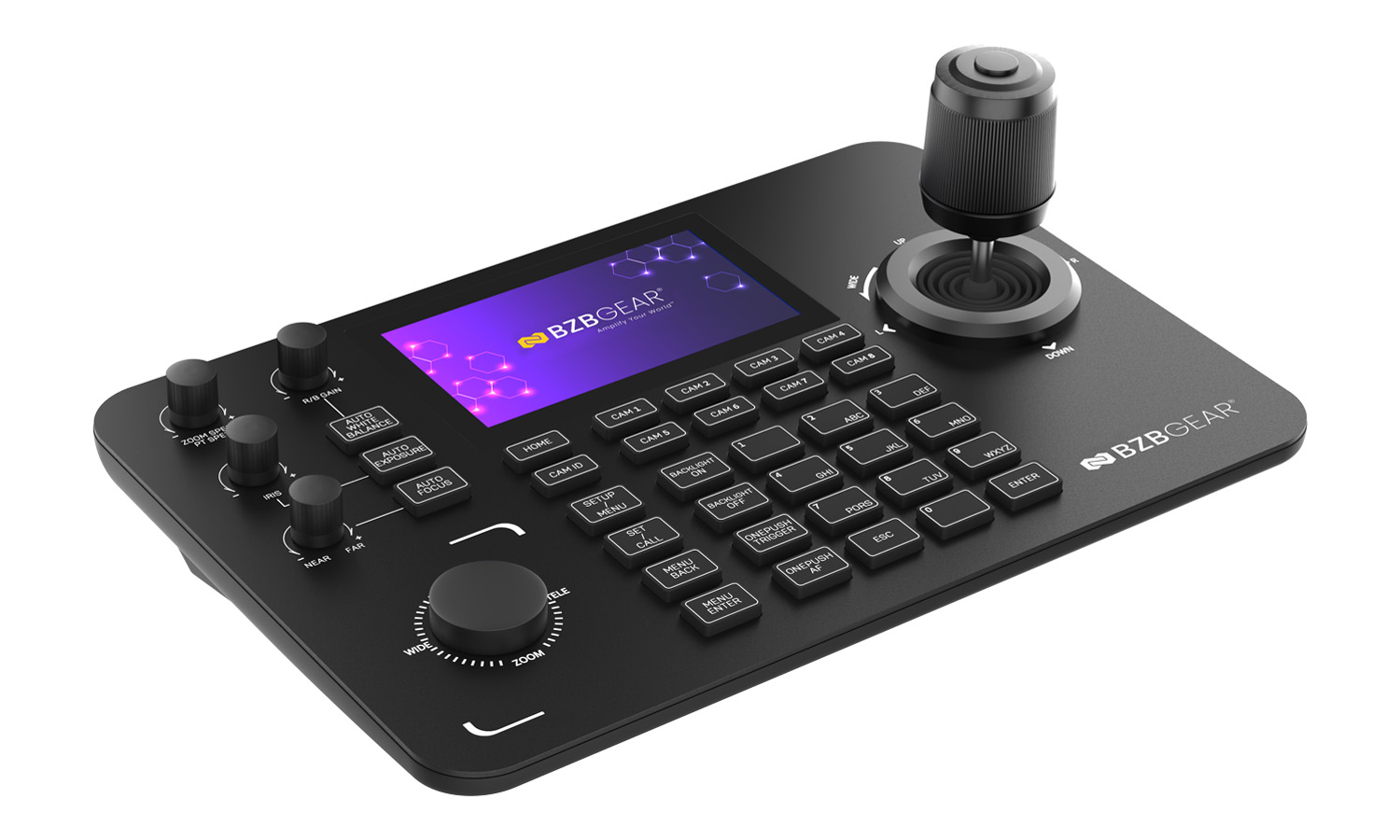

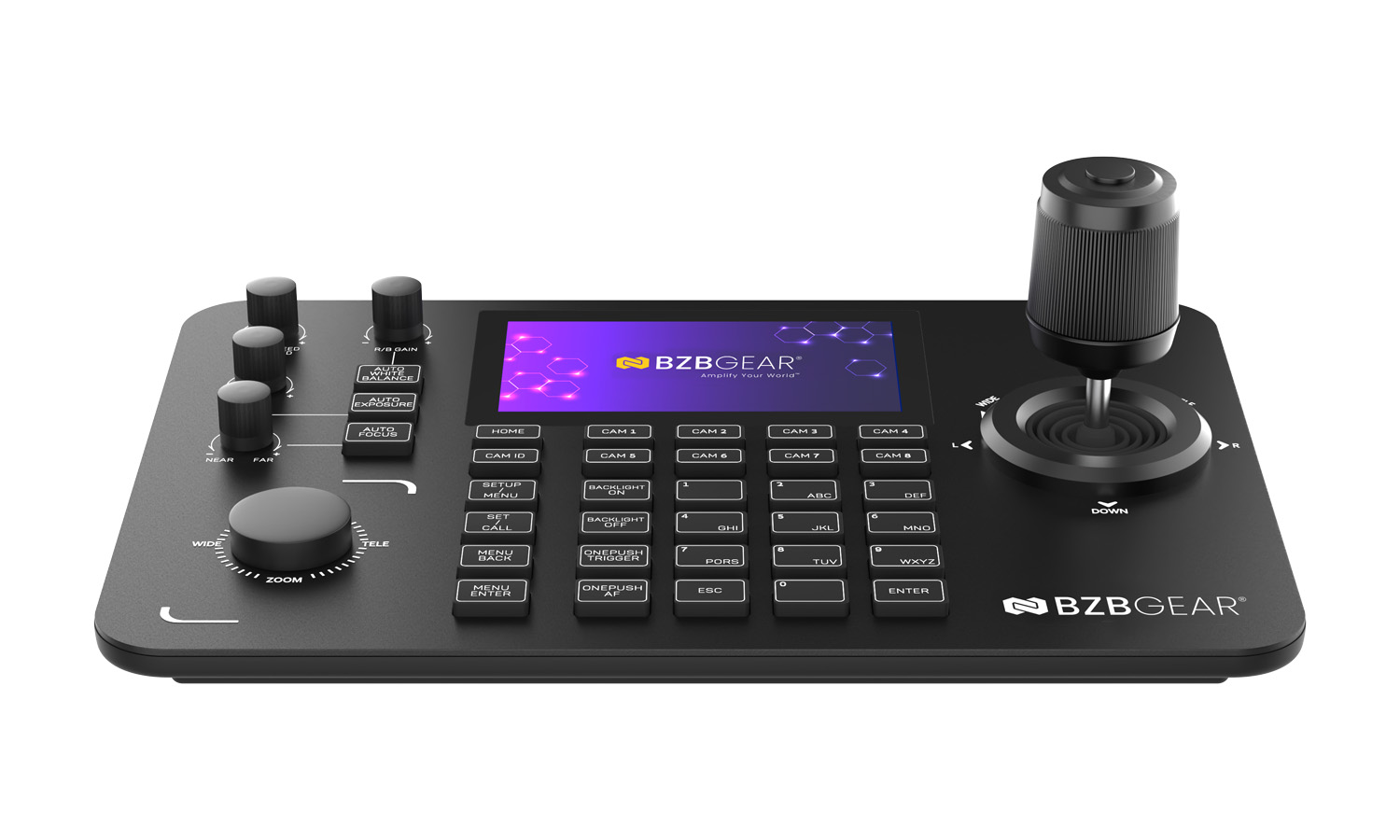

BZBGEAR BG-Commander-G2 Universal Advanced Serial and IP PTZ Joystick Controller with 5'' Touch LCD Screen and POE/NDI/RS-232/422/485

Description

The BG-Commander-G2 is our 2nd generation Commander PTZ joystick controller delivering precise control for both IP and serial PTZ cameras. With high-quality backlit buttons, the BG-Commander-G2 offers a pleasing user experience – even in low-light conditions. The solid metal chassis provides a durable, stable platform and is designed to stand up to years of heavy use. This controller is a great choice for live events, houses of worship, and broadcast settings.

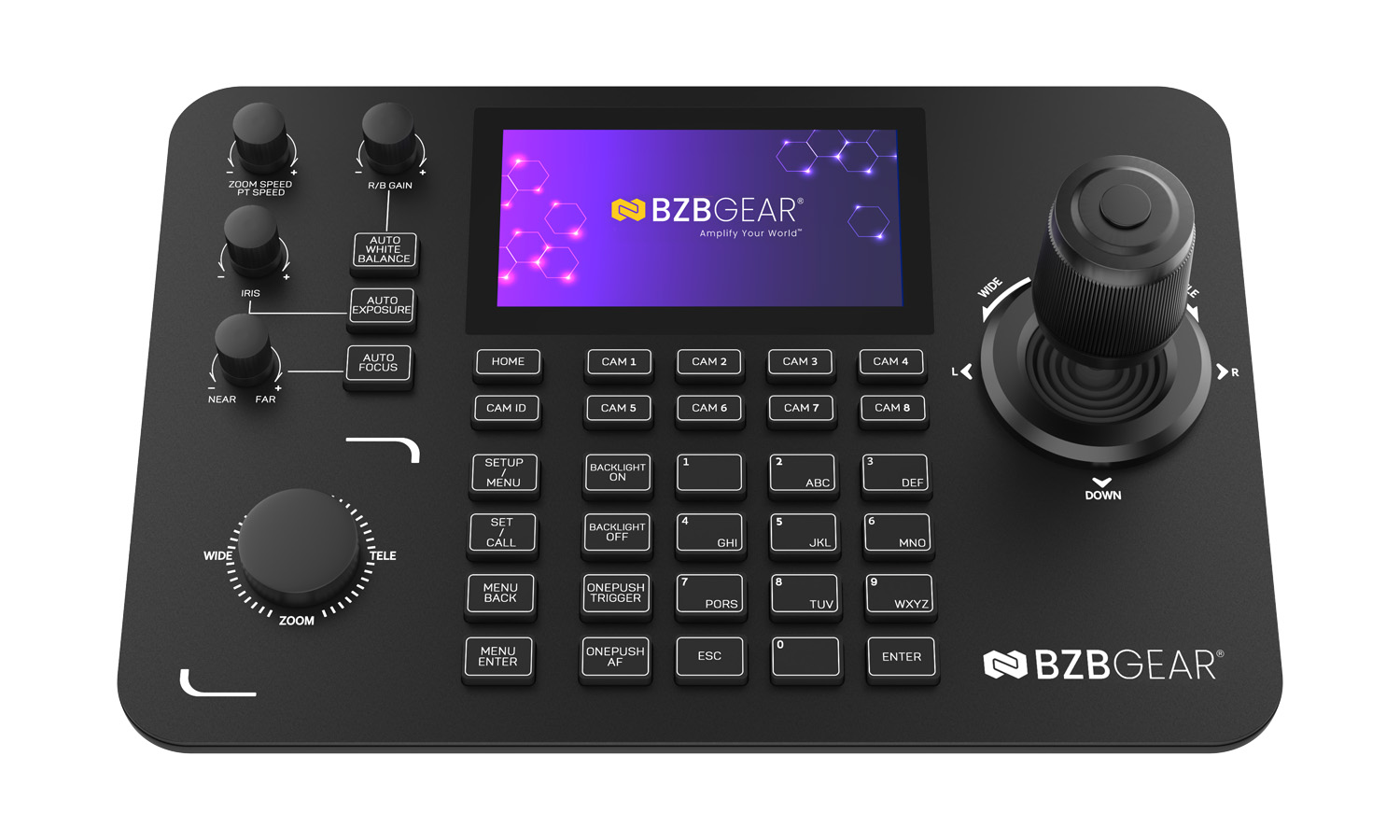

Capable of controlling over 250 cameras, the BG-Commander-G2 provides a clean and uncluttered platform with 7 camera hot keys for your favorite devices and the capability to select other cameras with a simple button press makes this unit ideally suited for small- to medium-scale productions.

Control for either IP or serial based PTZ cameras is provided by a LAN port or RS232, RS422, and RS485 connections. The BG-Commander-G2 supports IP VISCA, ONVIF, VISCA, PELCO-D, and PELCO-P control protocols.

Features

IP-CONTROL Easily control any compatible IP camera
POE ENABLED Single cable installation
5-inch Touchscreen Display The large touchscreen display makes management and monitoring simple
VARIABLE SPEED Adjust PTZ speed to get the perfect shot every time
FOUR CONTROL MODES IP VISCA, ONVIF, RS422, and RS232
INTEGRATED LCD SCREEN Review settings at a glance

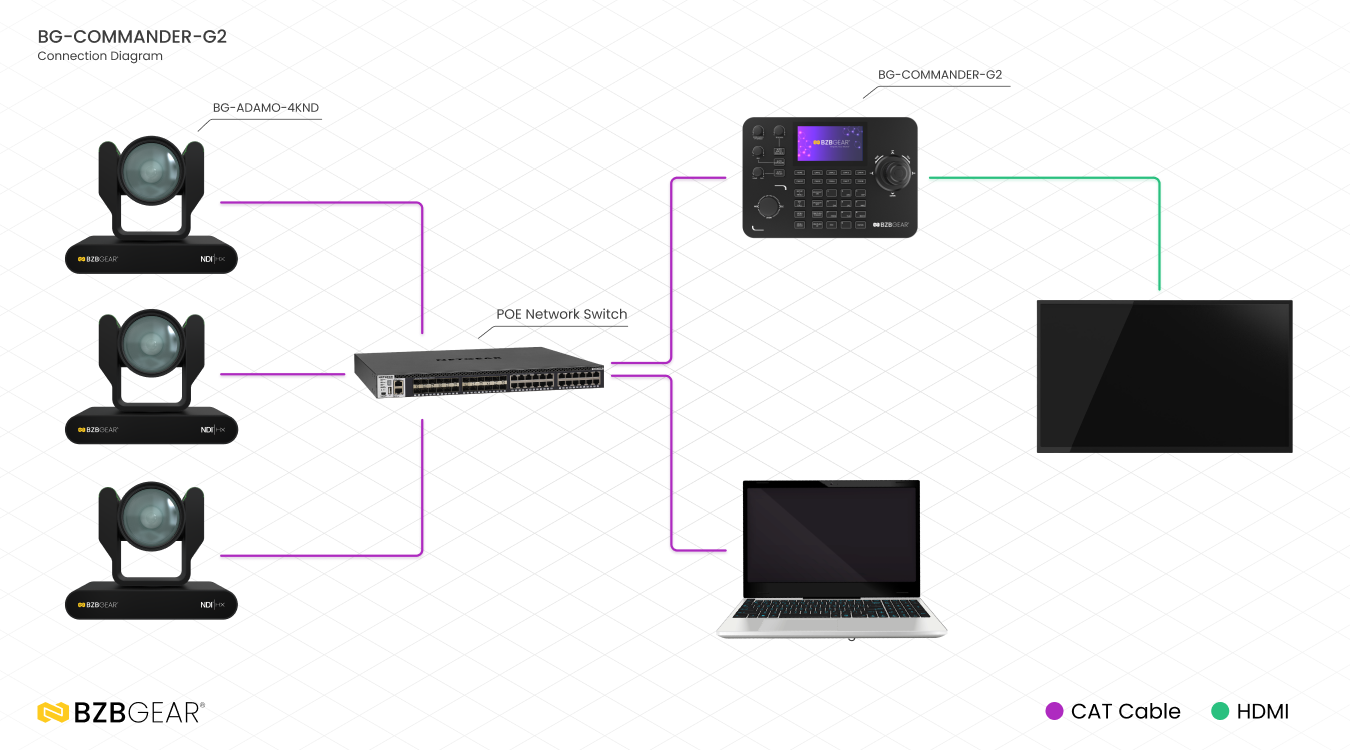

Product Diagrams

View Diagrams

Specifications

Technical
Operating System	Linux
Supported Protocols	VISCA over IP (UDP/TCP), ONVIF, NDI, VISCA, PELCO-P, PELCO-D
Camera Search Protocols	ONVIF, NDI

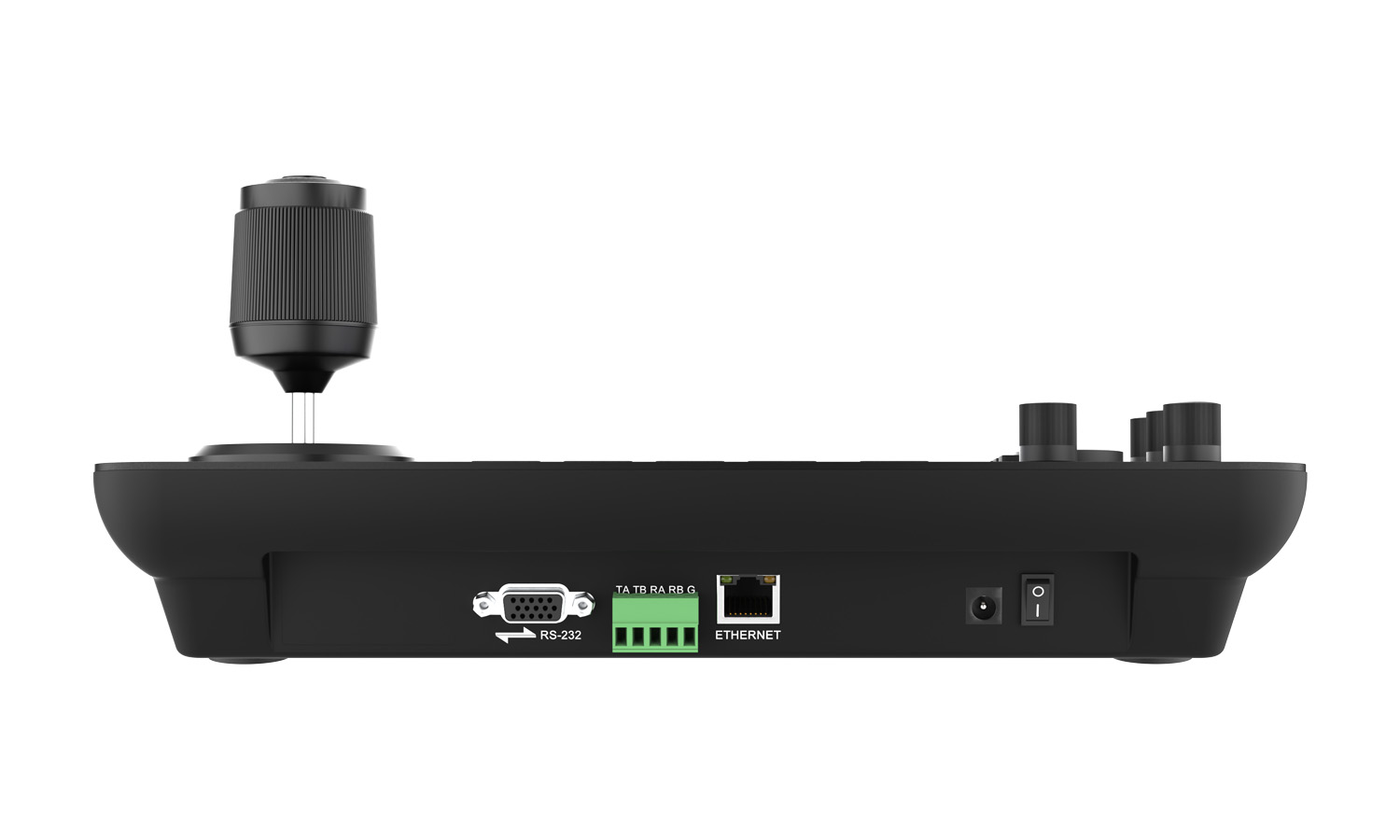

Communication Interfaces	RS-422, RS-232, RJ45
Display	HD touchscreen (720x1280)
Cue Tone	Button sound prompt (On/Off)
Mechanical
Key Physical Features	Self-resetting knob, stepless knob, backlit silicone buttons, 4D joystick
Power Consumption	<5W
PoE Standards	PoE 802.3af/802.3at/802.3bt standards
Power Supply	DC12V-2A (Center Positive, Outer Negative)
Operating Temperature	14°F to 131°F / -10°C to 55°C
Operating Humidity	20% to 80% (non-condensing)
Storage Temperature	14°F to 140°F / -10°C to 60°C
Storage Humidity	0% to 90% (non-condensing)
