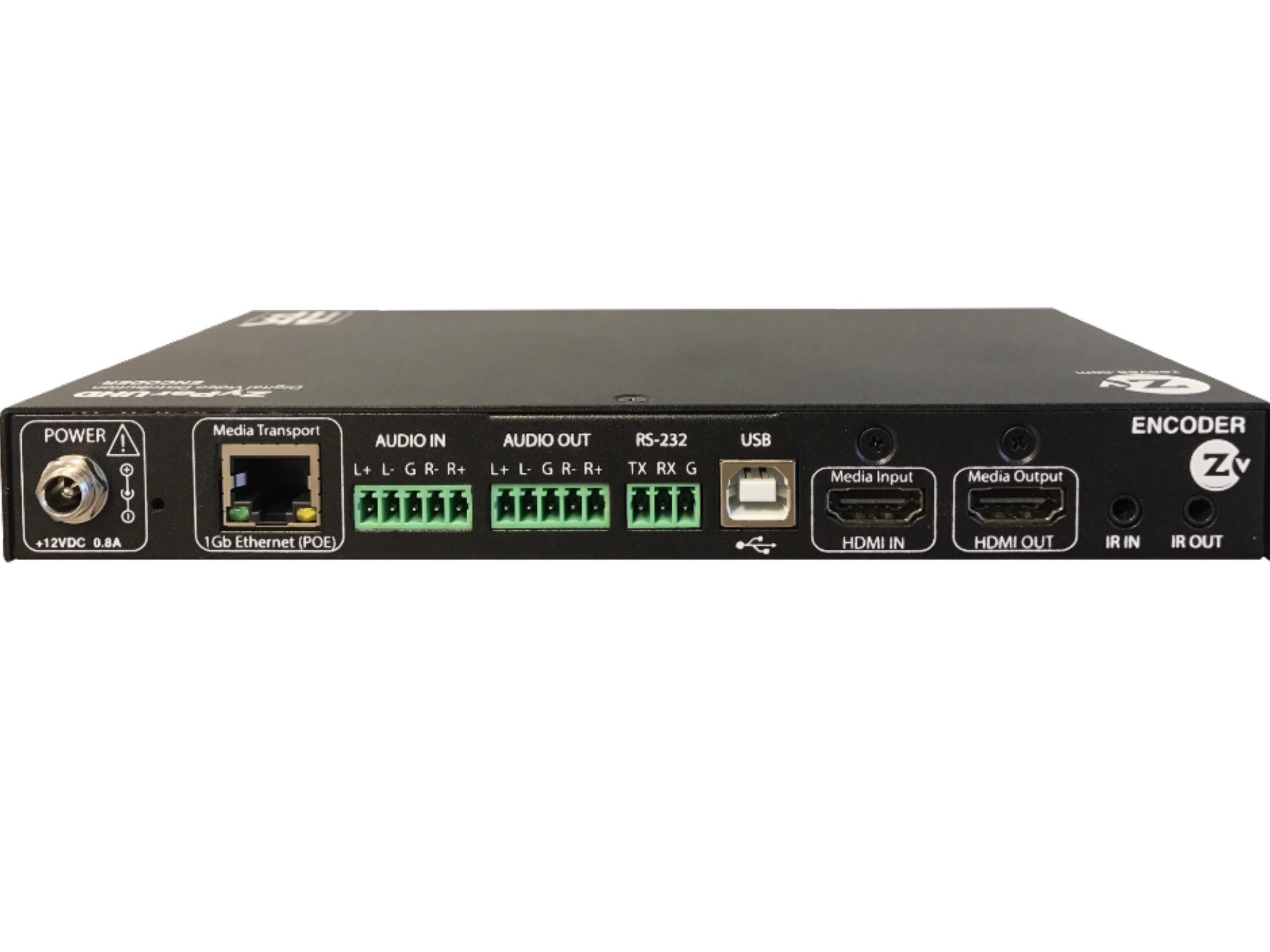

ZeeVee ZYPERUHD-E HDMI 2.0 Input Encoder with Phoenix Connectors for Analog with IP Streaming via Gbit/Copper

Description

ZyPerUHD, HDMI 2.0 input Encoder with phoenix connectors for analog, with IP streaming via Gbit/copper. Supports USB, IR, RS-232 (via phoenix), HDMI passthrough, and POE.

Includes power supply, IR pigtail and wall mount brackets.

Cables not included.

Features:

JPEG 2000 compressed 4K video, audio, and control using off-the-shelf (OTS) 1Gb Ethernet switches. Support for both analogue and digital audio
ZyPerMP (Management Platform) with Maestroz software GUI allows simple set up and control of ZyPerUHD. ZyPerMP also has an open API allowing control via 3rd party systems
Power over Ethernet support (PoE)
Ultra low latency (less than 2 frames)
Supports HDR
Video Wall support up to 5×5
Source and display control (RS232, IR, USB)
HDCP 2.2 compliant
Wallplate Encoder option
ZyPerUHD can also be used in a point-to-point configuration to encode a 4K video source across a dedicated copper connection to a display up to 100m away

Specifications

ZyPerUHD Encoder	Information	Connector
Video	HDMI 2.0a with HDCP pass-through	HDMI type A (Wallplate: HDMI and VGA 15-pin D-sub)
Video Loopout	HDMI	HMDI type A (Wallplate: NA)
Audio (Digital)	Multi-channel linear PCM up to 8 channels, Dolby Digital, AC3	HDMI type A
Audio (Analogue)	Balanced Stereo (Input & Output)	Phoenix (Wallplate: 3.5mm jack, unbalanced input only)
IR	Input/Output ports	3.5mm mini jacks (Wallplate: built in sensor)
Serial	Full Duplex up to 115.2 kbps	Phoenix (Wallplate: 3.5mm jack)
USB	Single USB 2.0	USB Type B
Ethernet (PoE)	1 Gb for Video/Audio/Control	1 Gb RJ45 port
Other Specifications	ZyPerUHD Encoder	ZyPerUHD Decoder
Formats	Supports all major VESA resolutions and variations including: VGA: 640x480 (4:3) SXGA: 1280x1024 (5:4) 1080p/i: 1920x1080 (16:9) SVGA: 800x600 (4:3) WXGA: 1366x768 (16:9) QXGA: 2048x1536 (4:3) XGA: 1024x768 (4:3) SXGA+: 1440x1080 (4:3) Ultra HD: 3840x2160 (16:9) HDTV: 1280x720 (16:9) UXGA: 1600x1200 (4:3) 4K: 4096x2160 (17:9)
Video Other	Color Depth: 24 bit, 30 bit
Signal Transmission Distance	Cat6a: 328 ft (100 m)
Power input (locking connector	12 VDC 1A
Power consumption	Approximately 6W
Dimensions	200mm x 120mm x 25mm (LxWxH) Wallplate: 2-Gang Standard
Temperature	Operating Temperature +32°F ~ +113°F (0°C ~ +45°C) Storage Temperature -4°F ~ +158°F (-20°C ~ +70°C)
Humidity	10% ~ 90%, non-condensing
