Description

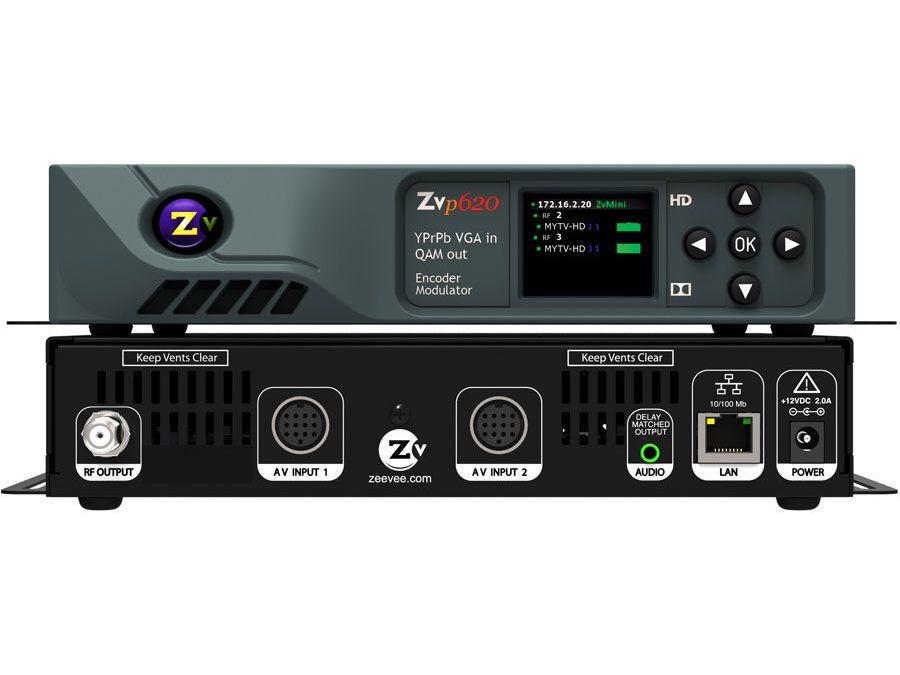

ZvPro620-NA is a HD video encoder/QAM modulator with 2 DIN inputs for component video/digital and analog audio or VGA video/analog audio up to 1080i/1080p. Mpeg2 QAM RF output. 1 delay match analog audio output for analog audio input. Closed Captions supported on component input. Includes power supply. Cables and Rack Kit sold separately.
Smarter, Smaller HD Video Distribution over Coax
- Component/VGA input
- Our best video quality yet! 1080p/i, 720p, 480p/i
- Single and dual channel versions in a smaller, fan-cooled package
Ideal uses:
- Distribute HD video throughout your facility
- Replace multiple signage players
- Commercial or residential-
- Use existing coaxial cabling
- Compatible with any HDTV
Key Features:
- Shelf or rack mount – via integral flanges or optional mounting kit
- Front-Panel Color LCD – for Configuration and Status
- Web-based mangement – local or remote setup and monitoring

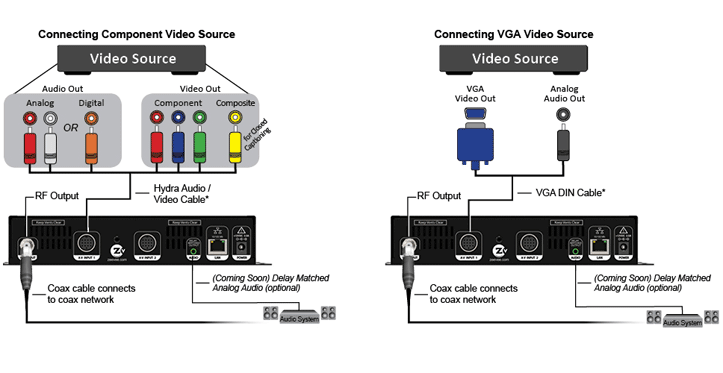

- Component/VGA input – two choices, from a full sized DIN connector:
- Hydra cables with 7 inputs (component HD video, analog and digital audio) for clean wiring, easy diagnostics and maximum flexibility
- VGA with analog audio input
- Analog and Digital Audio – internally encoded and broadcast as AC-3 or MPEG1 Layer 2 Audio Encoding (varies by region)
- Integrated Closed Caption support – required for ADA compliance in many applications.
- High power output – up to 45dBmV
- Strong retention force power connector
- Two year warranty
- Proudly designed in Massachusetts and Built in the USA
