ZeeVee ZUHD60-2EMP ZyPerUHD60 Encoder, 3x1 Switching Input, Dual LAN with Integrated Management

Description

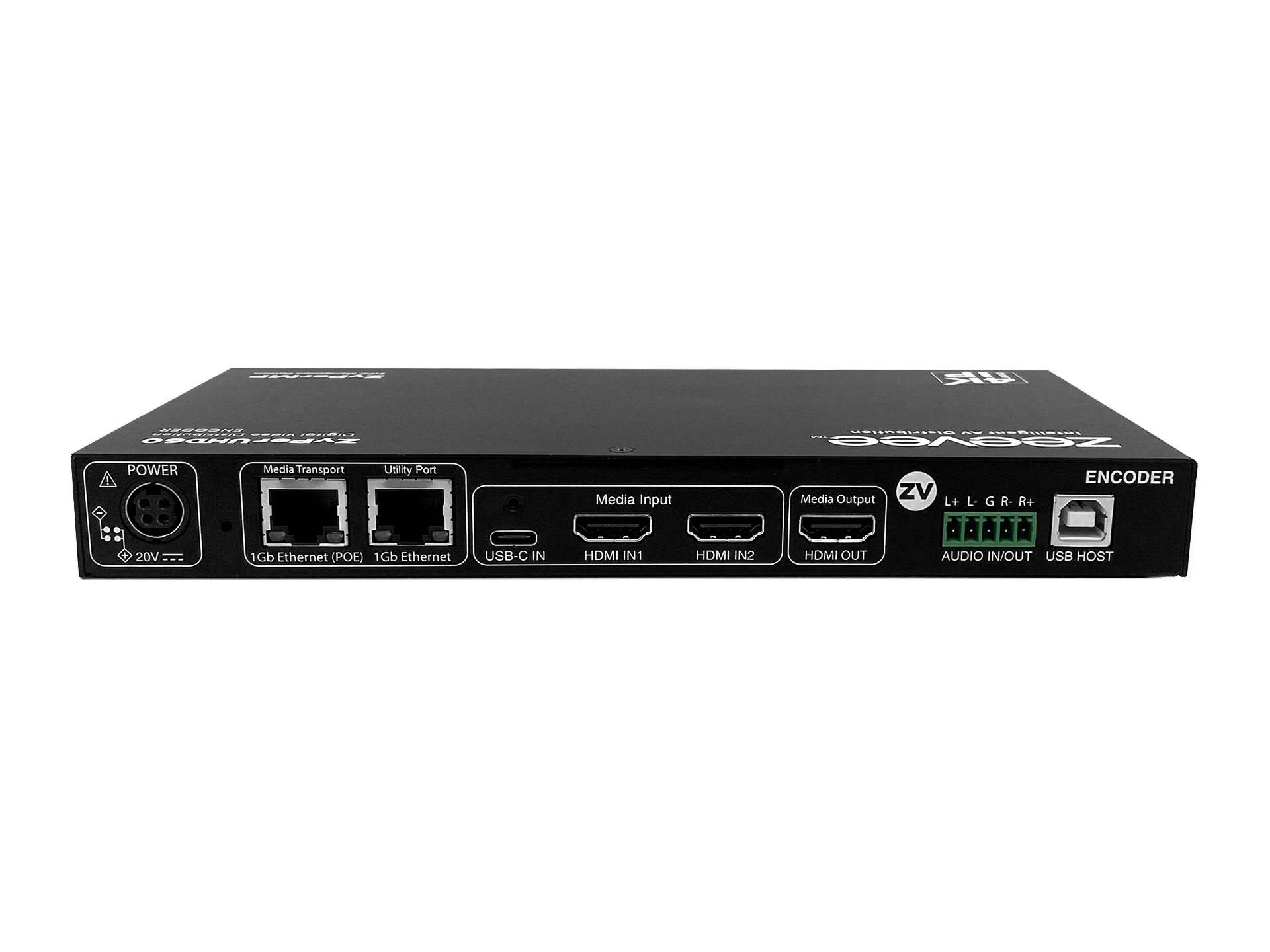

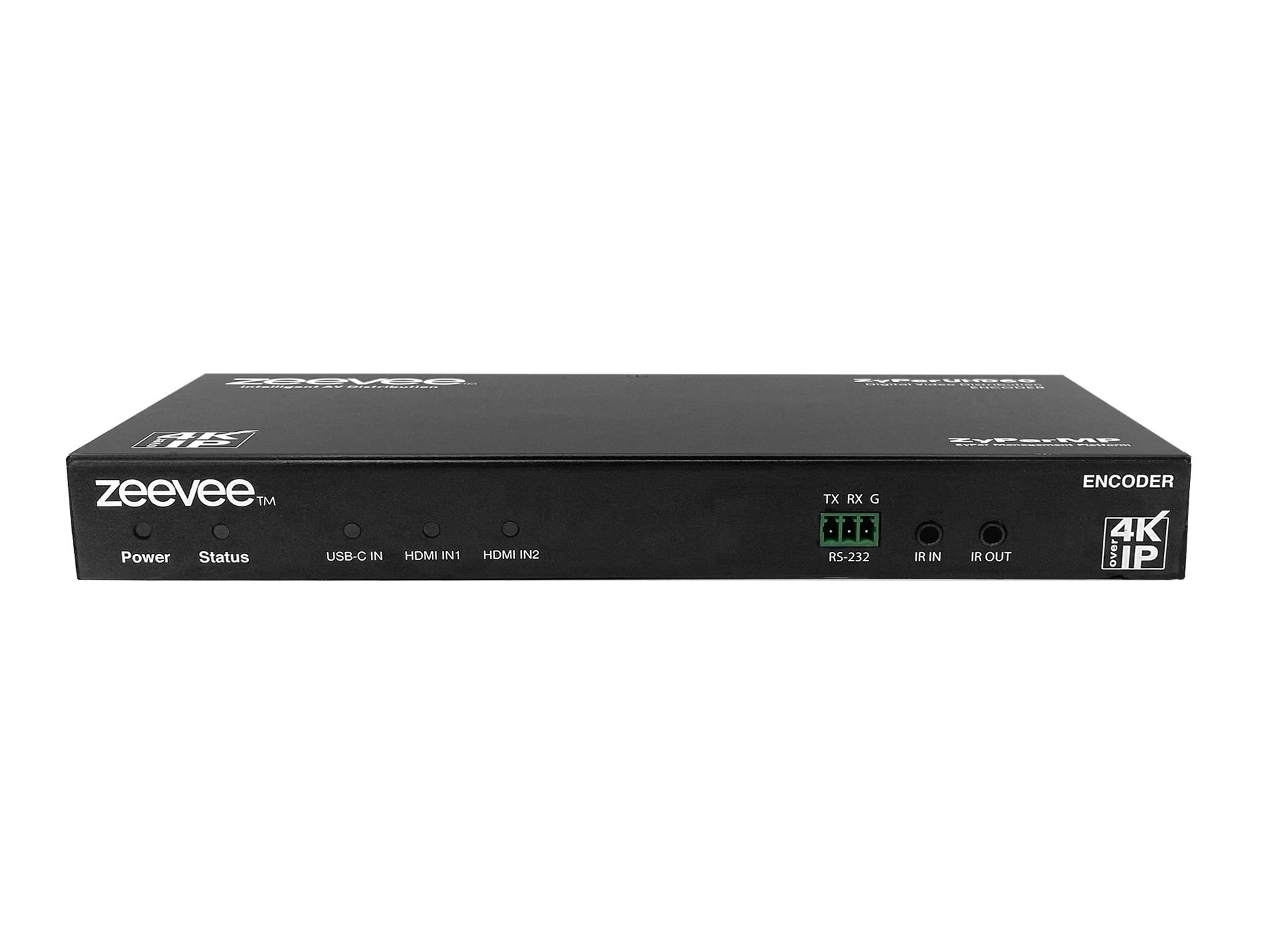

ZUHD60-2EMP is an HDMI 2.0a, Switching, triple-input AVoIP Encoder (Dual HDMI and USB-C) that is part of the ZyPerUHD60 product line. It supports IP streaming up to 4KP60 4:4:4 resolution with embedded and AES67 audio support; HDCP 2.3 and AES-256 encryption. Includes integrated ZyPer Management Platform running on a dedicated processor. This encoder has a 5-pin Phoenix/Euroblock connector for analog audio in/out and gigabit copper. Other features include USB-A, IR, RS-232 (via 3-pin Phoenix/Euroblock), and HDMI loopout. The ZUHD60-2EMP requires a ZyPerUHD60 AVoIP Decoder for operation and comes with an IR emitter, receiver, and wall mount bracket included. Ethernet, HDMI, USB, and audio/serial cables are not included. Can use POE or AC (20v Power supply sold separately).

Features

Compessed 4K
HDMI 2.0
Video Wall
AES Encryption
HDCP 2.3
AES67
USB 2.0, 802.1x compatible

Specifications

Video	HDMI 2.0a with HDCP pass-through and USB-C: 2x HDMI type A and USB–C
Video Loopout	HDMI: HDMI type A
Audio (Analog)	Balanced Stereo (Input or Output): 5–pin Phoenix
IR	Input/Output ports: 3.5mm mini jacks
Serial	Full Duplex up to 115.2 kbps: 3–pin Phoenix
USB	Single USB 2.0: USB Type B
Ethernet (PoE)	1 Gb (Video/Audio/Control), 1 Gb (Dante): 2x 1 Gb RJ45 port (One or two ports)
Supported Formats	VGA, SVGA, XGA, SXGA, WXGA, SXGA+, 1080p/i, QXGA, UXGA, Ultra HD, HDTV, 4K
Video Other	Color Depth: 24 bit, 30 bit
Maximum distance	Cat6a: 328 ft (100 m)
Copy Protection/Security	AES–256, HDCP 2.3, 802.1X compatible
Power Consumption	Approximately 7W
Temperature (Operating)	+32°F ~ +113°F (0°C ~ +45°C)
Temperature (Storage)	-4°F ~ +158°F (-20°C ~ +70°C)
Humidity	10% ~ 90%, non–condensing
Product Dimensions	215mm x 25mm x 120mm (W x H x D)
Product Weight	705 grams
