Description
This listing is for XD150FX-SM-US (Singlemode)
Extender Set only. Use description below as a general reference.

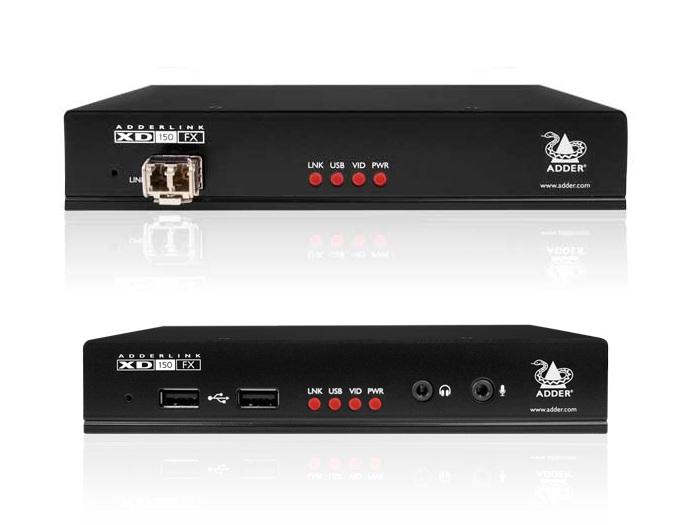

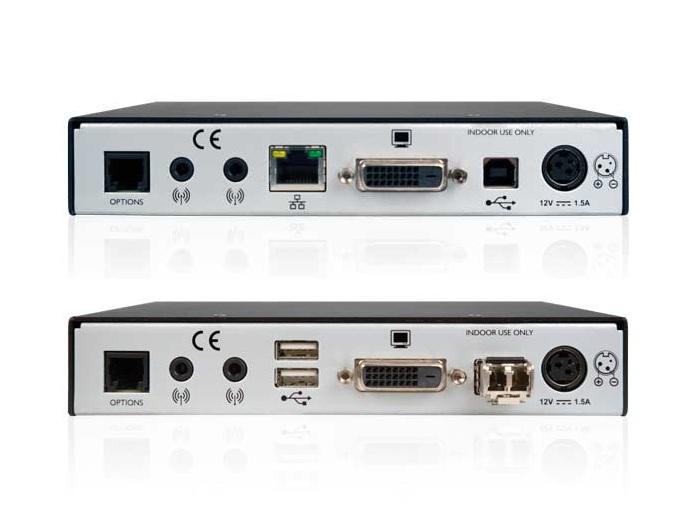

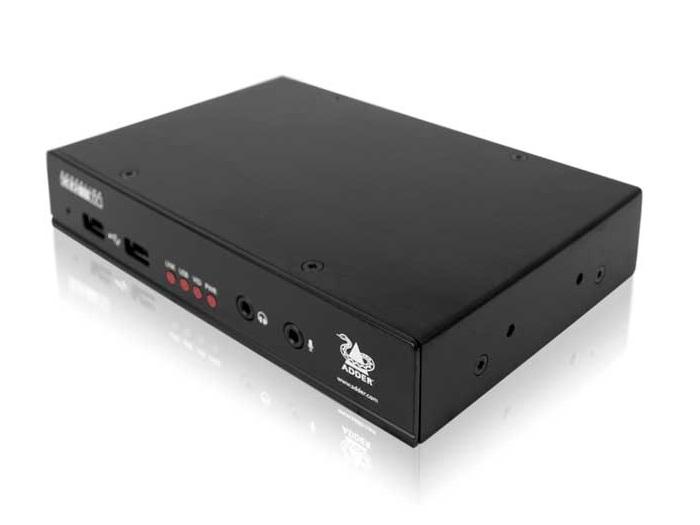

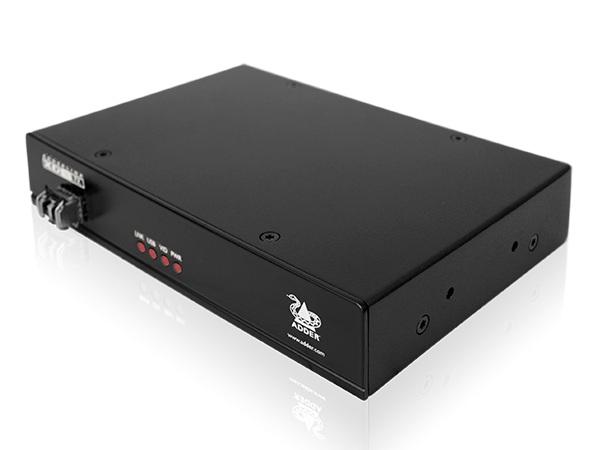

ADDERLink XD150FX is a high performance KVM (Keyboard, Video, Mouse) extender
that enables you to locate your critical computing hardware in a secure and
temperature controlled environment away from the user work station whilst
maintaining the original user desktop experience.
Perfect digital video, real time control
The video extension system is visually lossless with no visible artefacts or
latency allowing you to be certain of quality and control whilst seperated from your
computer.

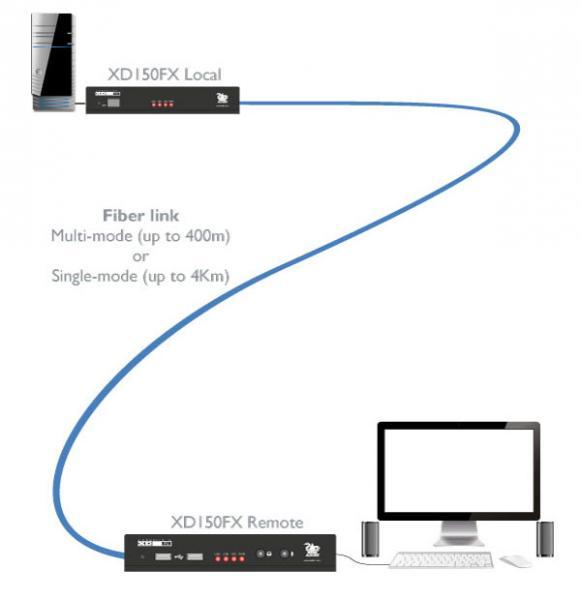

Single duplex LC fiber cable required
Video, USB2.0 and audio all pass along a single duplex LC fiber cable.
Flexible extension distances from 150 meters to 4km
The unit is fitted with SFP cages allowing different types of fiber to be
utilised. Distance is dependent on the cable type and fiber module. See table below
for details.
USB 2.0
Enables connection of any USB human interface device from mice and keyboards
through to touch screens, graphics tablets, jog shuttles, joysticks and 3D
explorers. Mass storage devices and isochronous devices such as webcams and headsets
can also be used.
EDID management
The extender has an intelligent EDID management to allow the true characteristics
of the monitor to be passed back to the computer.
REST API
A REST (REpresentational State Transfer) API is available with all functionality
to which authorized 3rd party control systems can interface.
Web interface control
The XD150FX can be controlled and monitored via a web interface. Temperature and
status are viewable and each function can be individually controlled. Web interface
security is by HTTP digest authentication (RFC 2617) with username and password as
requested information.
Plug and Play
The AdderLink XD150FX extender is delivered in a zero config state so you can
plug in the units and start working with them straight away. There is no need for
drivers or software to be installed.
Bidirectional CD-quality analog audio
The unit delivers CD-quality stereo audio (24-bit sampling at 96kHz) is available
to transfer audio between local and remote. A microphone and headphones are also
supported.
Features
- Resolutions up to 2560 x 1600 @60Hz
- 150m extension distance for OM2 multi-mode fiber
- 4km extension distance for a single mode fiber. 400m extension for OM4 fiber
- USB2.0 Hi-speed for mass storage devices
- USB2.0 (Low, Full, High speed) for keyboard, mouse, tablet and touch screen
- Bidirectional analog audio (Line in/out with microphone & headphone
support)
- RS232 with RTS/CTS flow control
