Description

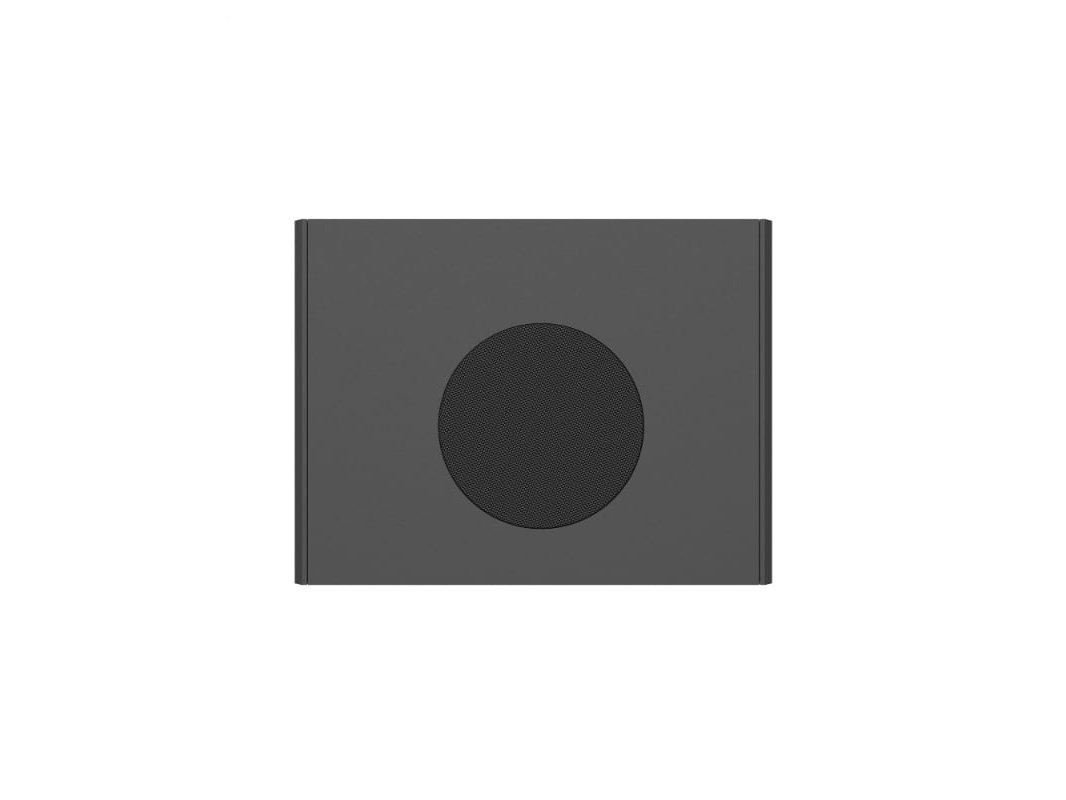

The WM-8P-SUB is an 8in passive wall-mount and desktop subwoofer designed to extend low-frequency response and add authoritative bass to commercial audio systems. It is built to integrate with satellite speakers and deliver consistent background music performance in public and commercial spaces. The compact industrial form factor allows unobtrusive mounting while producing impactful low end.
Key features include dual low-impedance and high-impedance operation supporting 8ohm or 70V/100V systems, four satellite output ports and a dedicated subwoofer output port. The unit handles 80W continuous power and 120W peak power, enabling reliable playback at moderate SPL levels. Sensitivity and SPL ratings provide clear guidance for system planning and speaker pairing.
Performance is tuned for low frequencies with a specified frequency range of 43Hz to 700Hz and a sensitivity of 83dB SPL (1W@1m, free field). The maximum SPL is rated at 102dB continuous and 104dB peak measured at 1m, which is suitable for background and foreground music in many installation types. Humidity and temperature operating ranges are specified to support commercial environments.
Connectivity is provided via six pluggable Euroblock connectors including four satellite outputs and a single subwoofer output, plus a 3-pin input connector for signal feed. The speaker supports both traditional low-impedance connection and high-impedance constant-voltage lines for distributed audio. Compatibility with common amplifier topologies and satellite speaker arrays simplifies integration into existing systems.
Typical applications include background music systems in retail, hospitality and corporate facilities where discrete wall-mount or desktop placement is required. The subwoofer integrates with multiple satellite cabinets to provide balanced coverage and improved bass response across listening areas. Its output capability and matching options make it a practical choice for multi-zone distributed audio setups.
Installation is straightforward with an industrial wall-mountable enclosure that also permits desktop placement when required. The construction and connection scheme are aimed at installers seeking simple wiring and reliable mechanical mounting. Eco-friendly mono-material packaging reduces waste and simplifies recycling for integrators and facility managers.
Overall, the WM-8P-SUB provides a focused low-frequency extension for multi-speaker systems while offering flexible connection modes and installer-friendly features. Its power ratings, satellite outputs and SPL performance deliver a clear value proposition for commercial audio deployments. The product balances compact physical design with practical technical capabilities for everyday AV installations.
