Aten VS0104 4-Port VGA/Audio Splitter (450MHz)

Description

The ATEN VS0104 4-Port VGA Splitter with Audio is VGA splitter that allow a single VGA video & audio signal to be distributed to four output displays with independent stereo control. The splitter support up to 450MHz video bandwidth, which provides optimum video quality, supported by resolutions up to 1920×1440. Furthermore, for complete systems integration, serial control is standard through the VS0104 built-in RS-232 ports, which allow the splitter to be controlled through a high-end controller or PC. The VS0104 is perfect for conference rooms,training facility & multi-display broadcasting, with cascadable support up to three levels allowing a single video signal to be sent across up to 64 video displays while sustaining the highest quality possible.

One video input to 4 video outputs
Superior video quality – up to 1920 x 1440 @ 60Hz
Supports up to 450MHz bandwidth for high performance video
Long distance transmission – up to 65m *
Supports VGA, SVGA, UXGA, WUXGA, and multisync
EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display
Expandable – provides up to 64 video displays
Features RS-232 serial port for command controls **
RS-232 chain control – use RS-232 commands to control cascaded devices via VGA cable
Supports stereo audio
Plug-and-play – no software installation required Note: * Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality ** The VS0104 AP and GUI operation instructions can be downloaded from the ATEN website

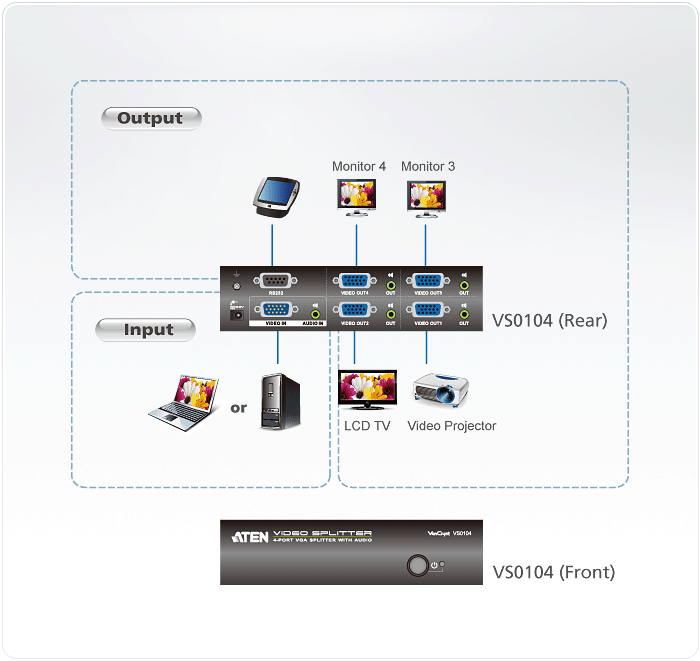

Product Diagrams

View Diagrams

Specifications

Video Input
Interfaces	1 x HDB-15 Male (Blue)
Impedance	75 ?
Max. Distance	1.8 m
Video Output
Interfaces	4 x HDB-15 Female (Blue)
Impedance	75 ?
Video
Max. Bandwidth	450 MHz
Max. Resolution	Up to 1920 x 1440
Max. Distance	Up to 30 m
Audio
Input	1 x Mini Stereo Jack Female (Green)
Output	4 x Mini Stereo Jack Female (Green)
Control
RS-232	1 x DB-9 Female (Black)
EDID Settings	EDID Mode: Port 1 / Auto / Default
Power
Connectors	1 x DC Jack
Consumption	5.3 VDC, 1.2W
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.68 kg ( 1.5 lb )
Dimensions (L x W x H)	20.00 x 7.61 x 4.40 cm (7.87 x 3 x 1.73 in.)
Carton Lot	10 pcs
