TASCAM VS-R264 Video Encoder/Decoder Full HD H.264 RTMP

Description

The VS-R264 is a standalone Full HD audio/video encoder and decoder designed to stream, record, and decode live video over IP. It encodes 1920x1080p video using H.264 and supports simultaneous streaming and local recording to SD, USB, or internal storage. The unit is compact and operates independently without a dedicated PC – ideal for reliable 24/7 AV distribution.

Key capabilities include H.264 long GOP encoding up to 30 Mbps, 3 simultaneous RTMP outputs for simulcast and backup, and support for RTMP RTSP HLS RTP UDP streaming protocols. The VS-R264 also embeds digital audio in HDMI and accepts balanced analog inputs for professional audio integration. Recording formats include MPEG2-TS and MP4 allowing native archive and delivery options.

Performance details include selectable encode scaling up to 1920x1080p, frame rate limiting, adjustable keyframe intervals, and variable or constant bit rate control from 500 kbps to 30 Mbps. The device includes 17 GB internal storage in firmware version 2.0.1 and supports MP4 recording in addition to TS. Audio encoding uses AAC at 64k to 512k bps and supports 32k 44.1k and 48k Hz sampling.

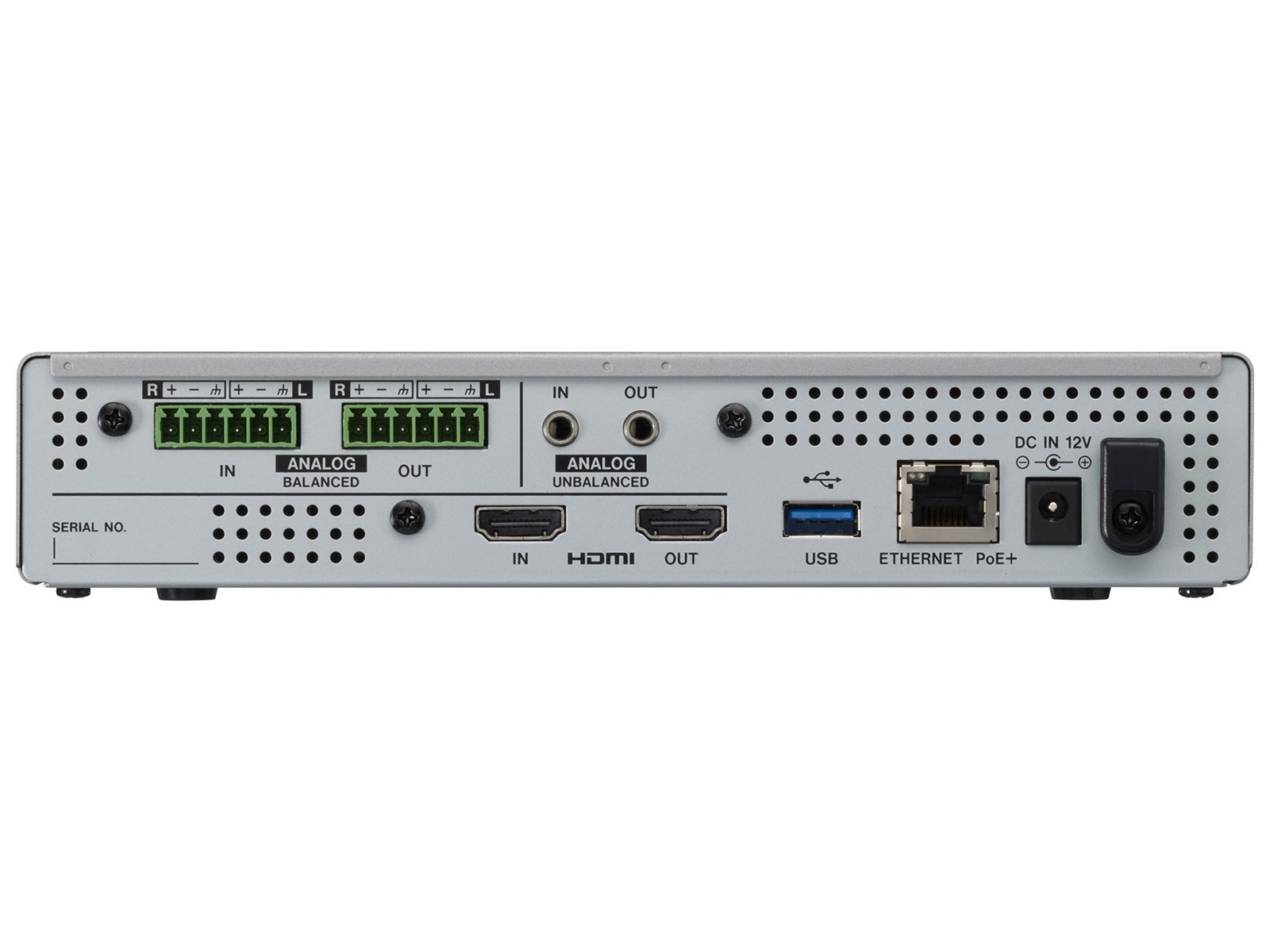

Connectivity covers HDMI IN v1.4a and HDMI OUT v2.0, balanced Euroblock analog I/O and unbalanced 3.5 mm jacks, Gigabit Ethernet with PoE+ support, and USB 2.0/3.0 for external media. Control and integration are available via a RESTful API V2 and standard TCP/IP UDP HTTP protocols for use in control systems. The unit accepts Category 5e or faster STP cables and supports 1000BASE-T networks.

The VS-R264 suits corporate AV, education, houses of worship, government, and live event streaming where stable long-duration encoding and local backup are required. Use cases include live campus feeds, auditorium events, remote training, and distributed digital signage where simultaneous streaming and archival recording are essential. Multiple RTMP outputs provide redundancy and multi-platform distribution.

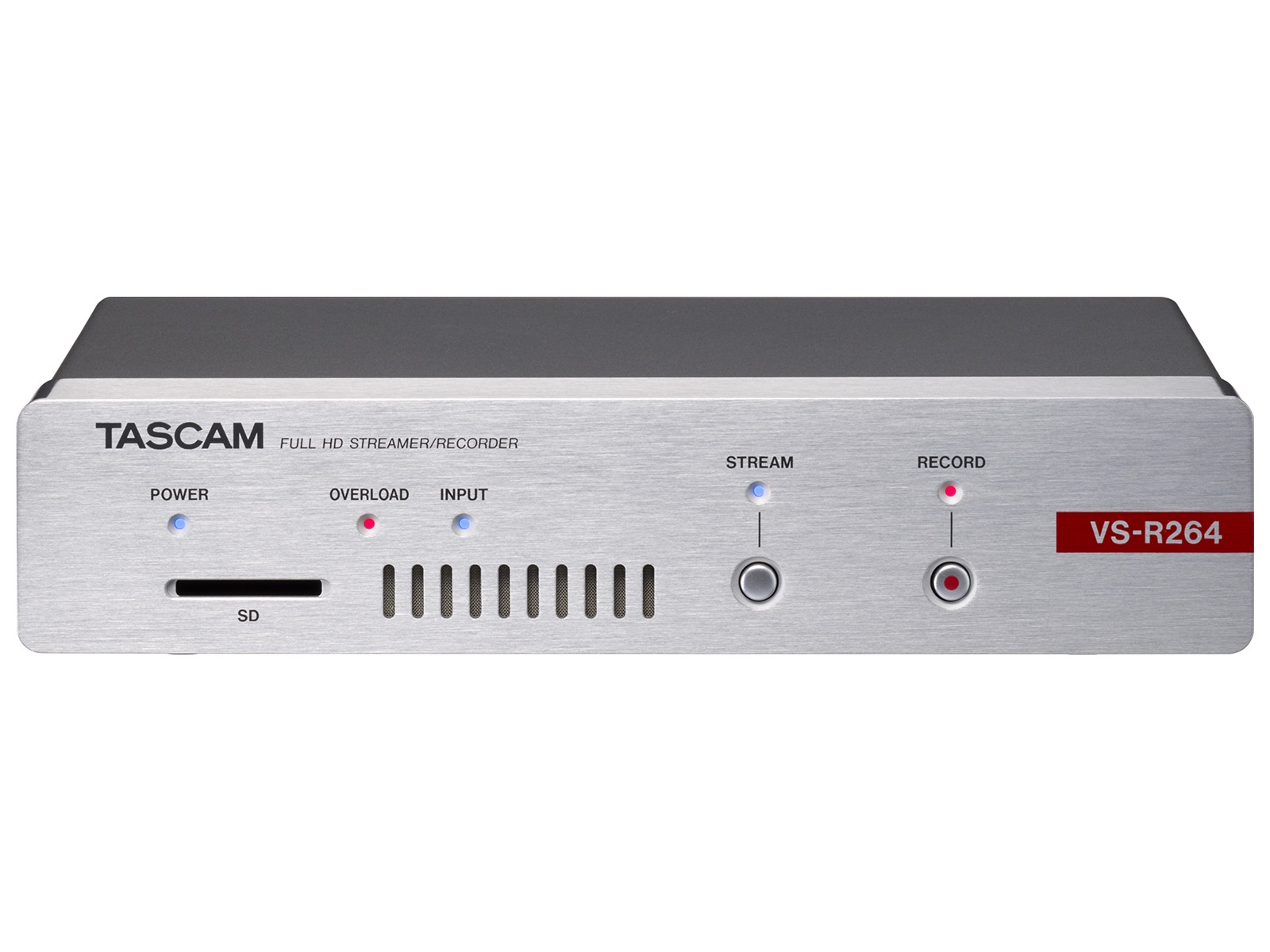

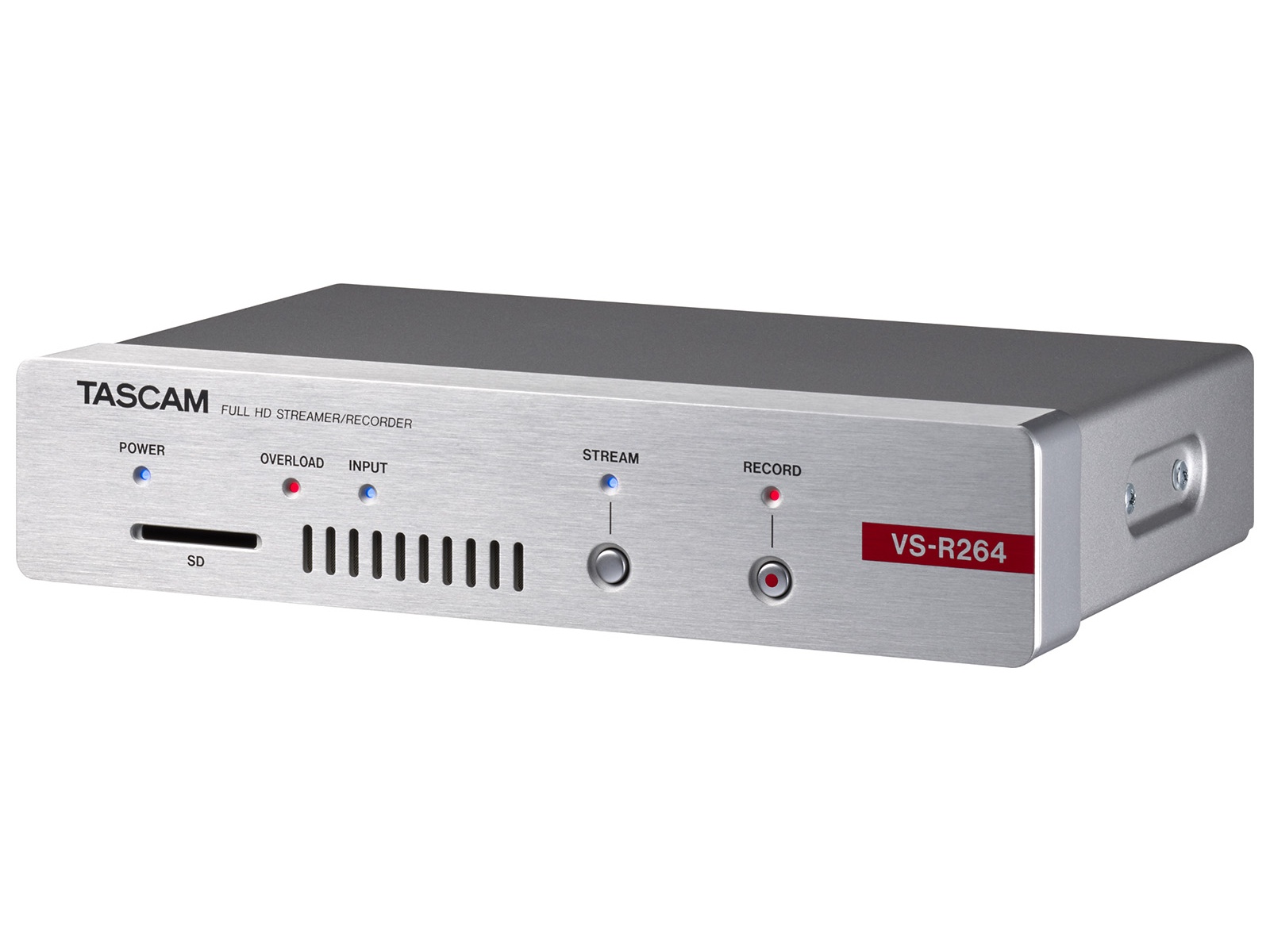

Installation and operation are straightforward – the half-rack chassis includes mounting brackets and Euroblock plugs for quick wiring. PoE+ support simplifies deployment where remote power is preferred, and front-panel controls plus RESTful API enable both local and centralized control. Firmware updates and configuration options allow integration into complex AV over IP systems and ensure long-term reliability.

Specifications

HDMI IN	HDMI v1.4a (Type A receptacle)
HDMI OUT	HDMI v2.0 (Type A receptacle)
2160p	-
1080p	60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps
720p	60 / 59.94 / 50 fps
576p	50 fps
480p	60 / 59.94 fps
Frame Rate Limiting	on/off
Encode Scalling Resolutions	Passthrough / 1920x1080p / 1280x720p / 950x540p / 720x576p / 720x480p / 640x360p / 480x270p / 320x180p
Encoding Format	H.264
Encoding bitrates	500k to 30M bps
Bit rate Control	Variable, Constant
Key frame interval Seconds	0.25 - 16.5(default: 1) in 0.25 intervals
Key frame interval Frames	3 - 1000
Supported protocols	RTMP, RTMPS, RTSP, HLS, RTP, UDP
Number of simultaneous stream	8 (3 x RTMP/RTMPS, 1 x RTSP, 1 x HLS, 2 x RTP/UDP Unicast, 1 x RTP/UDP Multicast)
ANALOG IN (BALANCED) Connectors	Euroblock (balanced) 3.81 mm pitch
ANALOG IN (BALANCED) Nominal input level	+4dBu(1.23Vrms) , +6dBu(1.55Vrms)
ANALOG IN (BALANCED) Maximum input level	+15dBu(4.36Vrms) , +18dBu(6.16Vrms) , +20dBu(7.75Vrms)
ANALOG IN (BALANCED) Input impedance	10 kΩ or higher
ANALOG IN (UNBALANCED) Connector	3.5mm (1/8") stereo mini jack
ANALOG IN (UNBALANCED) Nominal input level	-10dBV (0.316Vrms)
ANALOG IN (UNBALANCED) Maximum input level	+6dBV (2.0Vrms)
ANALOG IN (UNBALANCED) Input impedance	10 kΩ
ANALOG OUT (BALANCED) Connectors	Euroblock 3.81 mm pitch
ANALOG OUT (BALANCED) Nominal output level	+4dBu(1.23Vrms) , +6dBu(1.55Vrms)
ANALOG OUT (BALANCED) Maximum output level (switchable)	+15dBu(4.36Vrms) , +18dBu(6.16Vrms) , +20dBu(7.75Vrms)
ANALOG OUT (BALANCED) Output impedance	200Ω or lower
ANALOG OUT (UNBALANCED) Connector	3.5mm (1/8") stereo mini jack
ANALOG OUT (UNBALANCED) Nominal output level	-10dBV (0.316Vrms)
ANALOG OUT (UNBALANCED) Maximum output level	+6dBV (2.0Vrms)
ANALOG OUT (UNBALANCED) Output impedance	200Ω
Output Volume	-∞, -72 to +6dB (1dB step)
Audio Codec	AAC, 64k to 512k bps, 32k/44.1k/48k Hz
Recording media	USB Drive, SD/SDHC card, Internal storage
Recording format	MPEG2-TS, MPEG4
Recording bit rates	500k to 30M bps
ETHERNET / PoE+ Connector	RJ-45
Transmission protocol	TCP/IP, UDP, HTTP
Gigabit Ethernet standard	1000BASE-T (IEEE 802.3ab)
Cables	Category 5e or faster STP cables
USB Connector	USB A-type 4-pin
Protocol	USB 2.0, USB 3.0
Power	PoE Plus Class 4
Power Supply	TASCAM PS-P1220E AC adapter (sold separately)
Power consumption	12.2W
Dimensions	214(W) × 44.5(H) × 136.1(D)mm (including protrusions)
Weight	850g
Operating temperature range	0 to 40 °C
Included items	Installation brackets x2, Euroblock plugs x4, Cable band kit, USB memory, Quick Start guide (Warranty)
0dBu reference	0dBu=0.775Vrms
AD Distortion (THD+N)	0.002%
AD S/N ratio	102dB
DA Distortion (THD+N)	0.00035%
DA S/N ratio	130dB
Analog input to Digital output Frequency response	20Hz to 16.5kHz (+0.5/-0.5dB)
Analog input to Digital Distortion (THD+N)	0.008% or less
Analog input to Digital S/N ratio	94dB or higher
Analog input to Digital Dynamic range	95dB or higher
Analog input to Digital Channel crosstalk	90dB or higher
Digital input to Analog output Frequency response	20Hz to 16.5kHz (+0.5/-0.5dB)
Digital input Distortion (THD+N)	0.007% or less
Digital input S/N ratio Balanced output	113dB or higher
Digital input S/N ratio Unbalanced output	109dB or higher
Digital input Dynamic range	96dB or higher
Digital input Channel crosstalk	100dB or higher
JEITA compliance	JEITA CP-2150
