Kramer VS-611DT 6x1/2 4K60 4x2x0 HDBaseT Extended Reach PoE Auto Switching HDMI Switch

Description

VS−611DT is a high−performance automatic switcher for HDMI video signals with resolution up to 4K@60Hz (4:2:0). With six HDMI inputs, the unit can automatically or manually switch to a predefined or last connected input whenever the currently active video signal is interrupted or whenever a higher−priority video signal is introduced. The output signal is distributed to HDBaseT and HDMI 4K@60Hz (4:2:0) outputs.

Features:

Max. Data Rate — 8.91Gbps (2.97Gbps per graphic channel).
Max. Resolution — 4K@60Hz (4:2:0) and WUXGA.
HDTV Compatible.
HDCP 1.4 and HDMI 1.4 Compliant.
HDMI Support — Deep Color, Ethernet, ARC, 7.1 PCM.
Step–in Master Support.
Automatic Input Detection & Selection.
Auto–Power Off — When no HDMI input for 30 seconds (selectable).
HDCP On/Off Switching.
EDID Configuration Options.
Selectable Switching — Manual or fast auto–switching according to last connected or preset priority.
Full HDBaseT Certification — Including bidirectional RS–232, Ethernet, IR and POE.
HDBaseT Extended Reach — Up to 100m@ 4K60 (4:2:0).
POE Source for HDBaseT Receivers.
Contact Closure — For remote manual switching override.
HDMI ARC De–Embedding — From output to balanced stereo audio line, uncompressed.
Firmware Upgrade — Over mini–USB, RS–232 or RJ–45 Web page.
Varied Control Options — Front panel keyboard, HDBaseT Ethernet, RS–232 local and over HDBaseT.
Built–in Web Server.
Software Support — For Protocol 3000, K–Router Plus, EDID Designer, K–Upload.

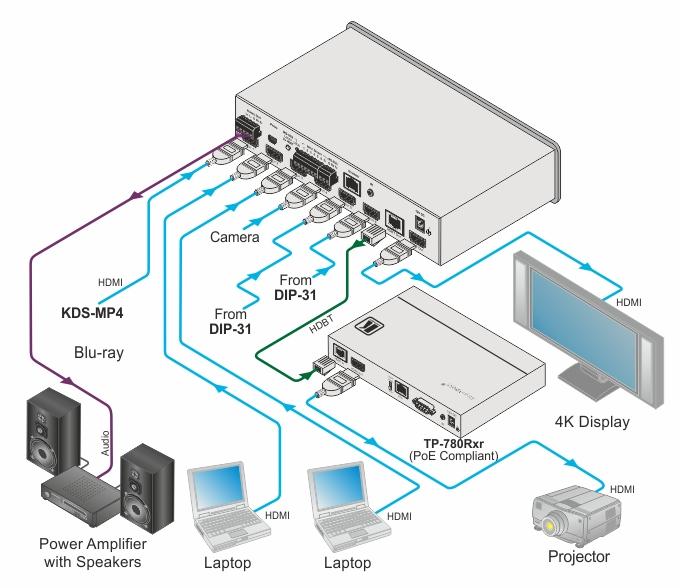

Product Diagrams

View Diagrams

Specifications

INPUTS

6 HDMI connectors, 1 IR on a 3.5mm mini–jack

OUTPUTS

1 HDMI connector, 1 HDBaseT on an RJ–45 connector, 1 balanced stereo audio on a 5–pin terminal block

PORTS

1 Ethernet on an RJ–45 connector, 1 RS–232 connector on a 3–pin terminal block, 6 contact closures on a 7–pin terminal block,1 USB mini–A connector for firmware upgrading

MAX. DATA RATE

8.91Gbps (2.97Gbps per graphic channel) with 4K@60Hz (4:2:0) support

COMPLIANCE WITH HDMI STANDARD

Deep Color, Ethernet, ARC, up to 7.1 Audio Channels, CEC

OUTPUT RESOLUTIONS

Up to UXGA, 4K x 2K, 4K @60 4:2:0

CONTROL

Local: front panel keyboard, contact closure, HDBaseT
local and over HDBaseT: RS–232, Ethernet

SOFTWARE SUPPORT

Protocol 3000, K Router Plus, EDID Designer, K–Upload

OPERATING TEMPERATURE

0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

–40° to +70°C (–40° to 158°F)

HUMIDITY

10% to 90%, RHL non–condensing

POWER CONSUMPTION

12V DC, 750mA

INCLUDED ACCESSORIES

Power cord, rack “ears”

OPTIONS

RK–1 19” rack adapter

PRODUCT DIMENSION

21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H

PRODUCT WEIGHT

1.0kg (2.1lbs) approx

SHIPPING DIMENSION

35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H

SHIPPING WEIGHT

1.6kg (3.5lbs) approx
