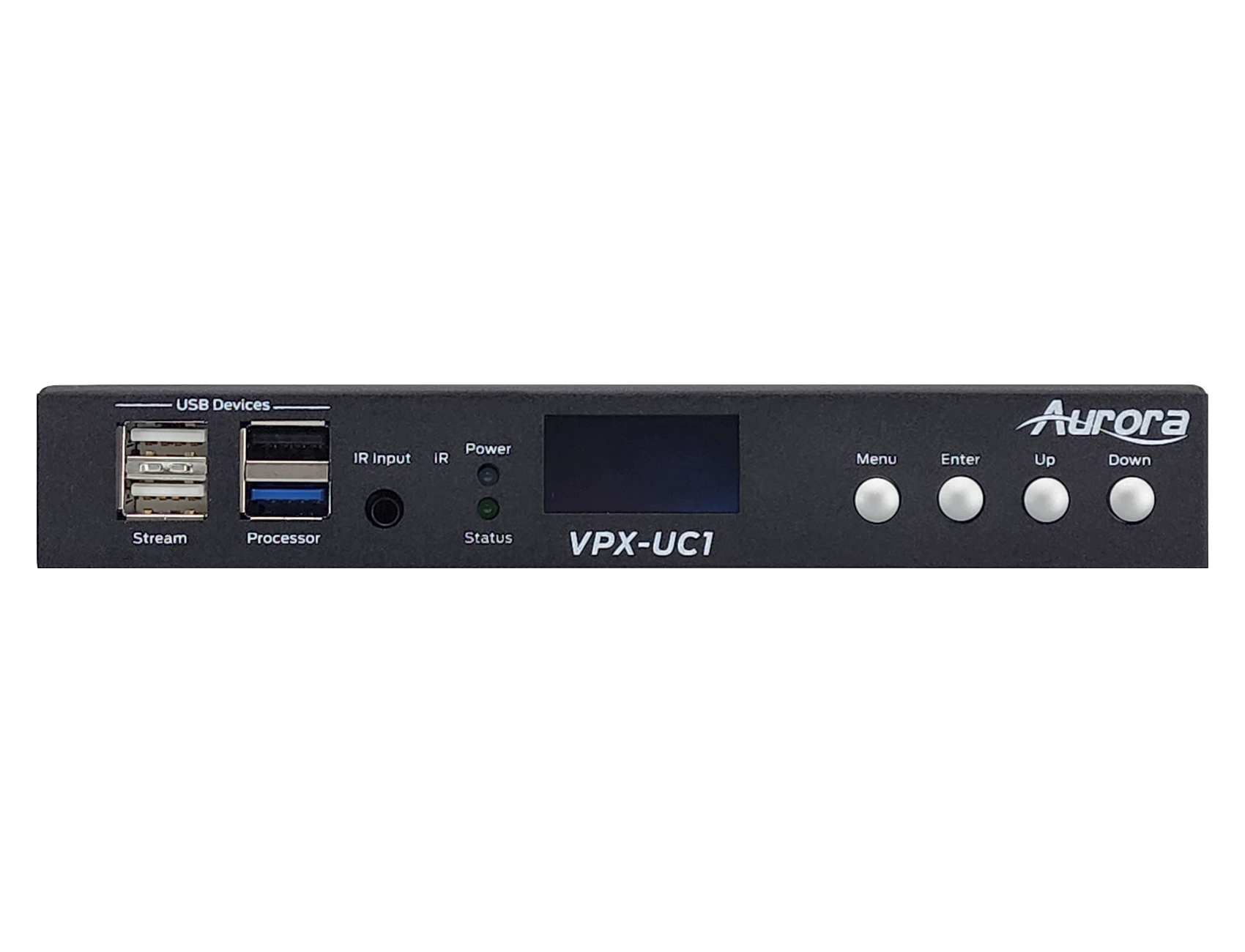

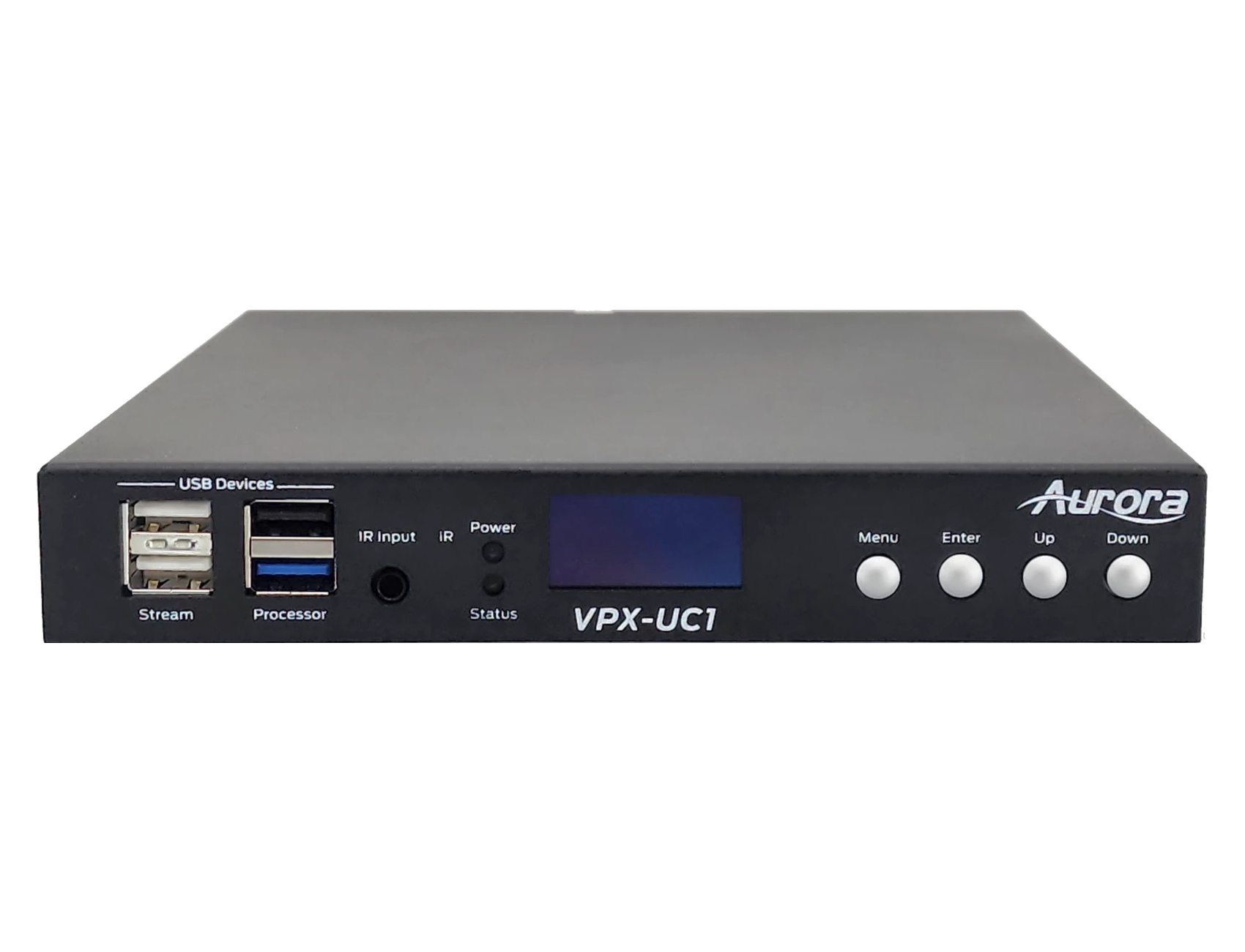

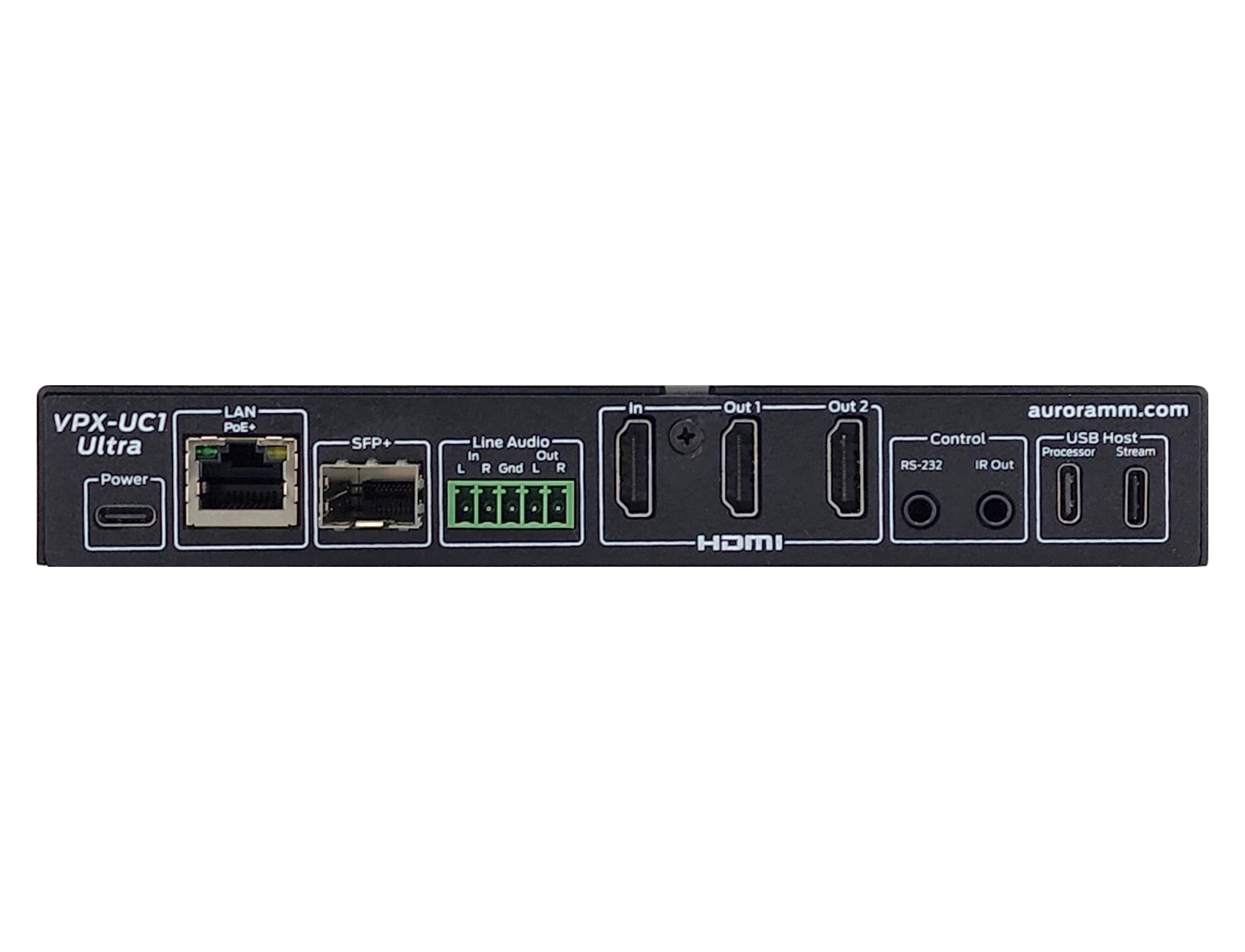

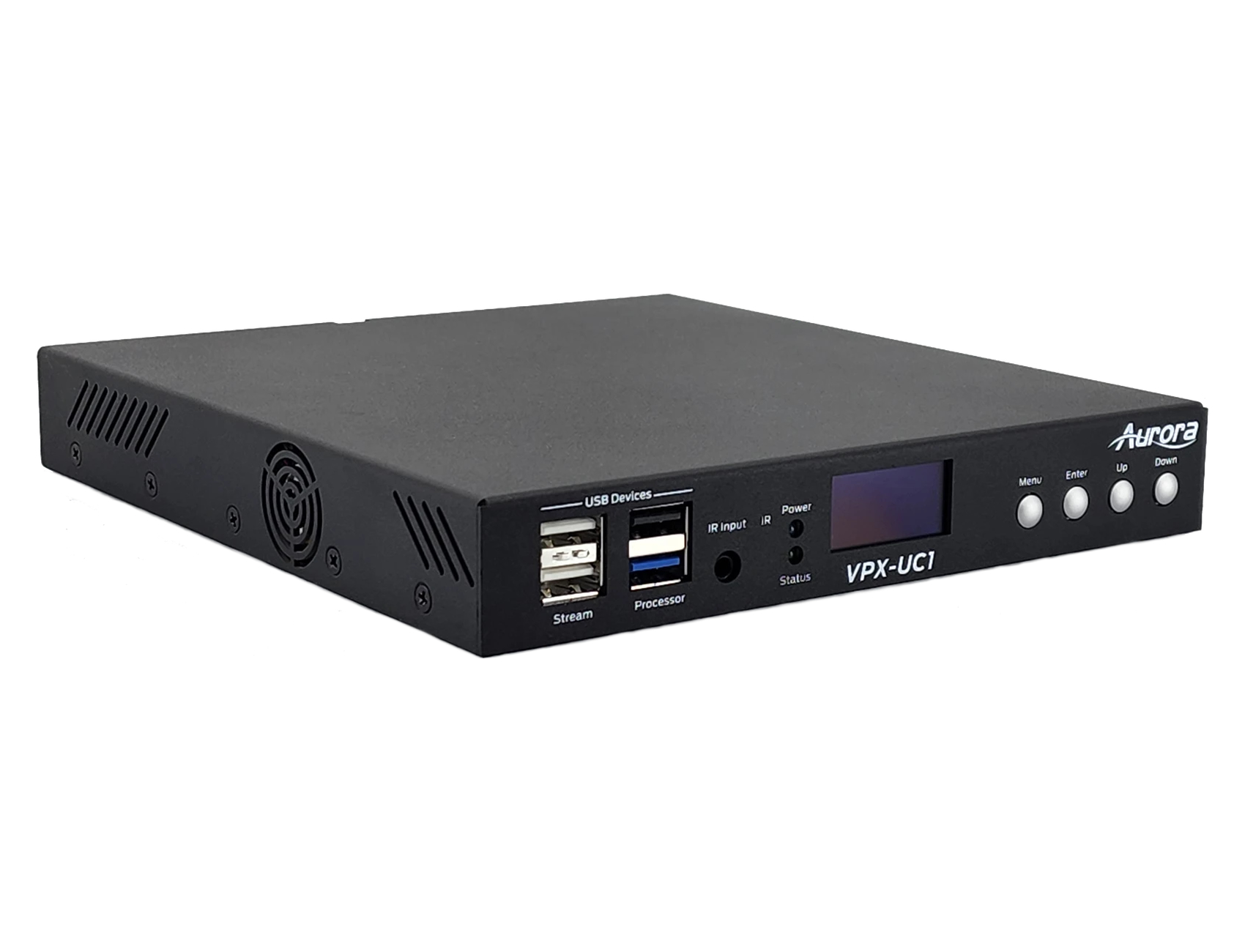

Aurora Multimedia VPX-UC1-ULTRA-1TB 4K60 1G Unified Communication AVoIP Transceiver with 8-Core 2.4GHz Processor & 8K60, Built-in 1TB SSD

Description

The VPX-UC1 Ultra provides the most advanced 1G IP Streaming Unified Communications solutions on the market utilizing Aurora’s new Mimix™ CODEC technology. Mimix™ compression allows for near perfect reproduction of video and graphic images at resolutions up to 4K60 4:4:4 over 1G networks. It has zero frame (1.78ms) latency and seamless switching for fast lag free content.

The combined 8 Core Android 12 Processor allows 8K output with advanced features like the TeamStream 4K Wireless WiFi Video and the ReAX Control System for room automation.

Perfect for UC and Digital Signage applications, the VPX-UC1 Ultra sets a new standard in price and performance.

Features

Configure as Encoder or Decoder
Zero Frame Latency (1.78 ms)
4K60 4:4:4 UHD up to 120 m over 1G CAT 5e
HDMI 2.0b, HDCP 2.2
HDR10, HDR10+, Dolby Vision
LPCM up to 12 channels, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio & ATMOS
12-bit color depth processing, 16-bit OSD
Enterprise Security (AES-256, 802.1X, HTTPS & SSH)
Scaling, seamless switching & video wall with rotation
MJPEG preview up to 720p30
2.5G LAN PoE+ and 1G SFP for fiber or second RJ-45
2 × HDMI Outputs, 1 × HDMI Input
Line In/Out Stereo
RS-232 Serial Port and IR (In/Out)
Channel mapping with on-screen preview
Integrated web server for configuration
USB 2.0 ports for cameras, HID devices, mass storage, etc.
AES67 included
Dante® 2-channel audio license option
Rack and under-table mounting
Processor
8-Core 2.4GHz Processor • Android 12 OS
1TB SSD option
3 × USB 3.1 ports
Single 8K HDMI Output or Dual 4K HDMI Outputs
Options
TeamStream 4K Wireless WiFi Video
ReAX Control Server

Specifications

CPU
Processor	Android 12, 8-Core 64-bit ARM Processor 2.4GHz with 6TOP NPU
Memory	32GB FLASH with 4GB RAM & up to 1TB SSD Expansion
USB Ports	2 × USB 3.1 Type-A, 1 × Type-C
HDMI Outputs (Mirrored)	2 × HDMI 2.1 (HDCP 2.3) Up to 8K60 Note: Only 1 can be 8K60 while the other will be 4K
AVoIP
Compression	Mimix™ 13:1
Latency	0 Frame (1.78ms) with Ultra Low Latency Mode
HDMI Inputs	1 × HDMI 2.0b (HDCP 2.2)
Encryption	AES-256
Audio Analog	Stereo Line In/Out (3.5mm TRS)
1G Ethernet	RJ-45 and SFP
LAN	RJ-45 10/100/1000M PoE
Video Bandwidth	600 MHz (Up to 4K2K 4:4:4 @ 60Hz)
Audio Support	Up to 12 Channels
Video Stream Bandwidth	10 Mbps – 800 Mbps (4K60 4:4:4)
USB Bandwidth	200 Mbps (Camera), 160 Mbps (HID / Mass Storage Devices)
RS-232	Up to 115k Baud (3.5mm TRS)
IR	Bi-Directional (3.5mm TRS)
USB Connector	1 × USB 2.0 Type-C, 2 × USB 2.0 Type-A
Options	Dante® 2-Channel License
Interface	IR or Keyboard via OSD, Web Server
Mechanical
Housing	Black Aluminum Enclosure
Dimensions (L × W × H)	7” × 7.44” × 1.094” (17.7 × 18.9 × 2.75 cm)
Weight	0.453 kg (1 lb)
Mounting	Optional: Rack Mount Vertical, Rack Mount Horizontal, Under Table Mount
Power Supply	48V DC (2-Pin Euro) or PoE+ (LAN)
Power Consumption	12 Watts, up to 20 Watts with USB
Operating Temperature	0–40°C (32–104°F)
Storage Temperature	-20–60°C (-4–140°F)
Relative Humidity	20–90% RH (No Condensation)
Package Contents	1 × VPX-UC1-ULTRA, 2 × Mounting Ears
