VP-771 Presentation Switcher DP HDMI SDI 2x10W

Description

The VP-771 is a 9-input presentation switcher and scaler designed to handle mixed signal environments – it accepts DisplayPort, HDMI, SDI, VGA, component and composite sources. The unit scales and converts incoming video to a selected output resolution while maintaining sync to prevent display glitches. Built-in audio handling and an integrated amplifier provide both embedded audio routing and powered speaker outputs.

Key features include picture-in-picture and picture-and-picture windowing, precision scaling and de-interlacing, and ultra-fast fade-thru-black switching for clean transitions. The VP-771 supports advanced proc amp controls including color, contrast, brightness and gamma per input. It also offers powerful noise reduction, time base correction and 3D comb filtering for improved composite video quality.

The scaler outputs HDMI, VGA, SDI and DGKat twisted-pair simultaneously and supports output resolutions up to 2K and 1080p. HDMI deep color and HDCP compliance are supported for protected content. SDI operation covers SD, HD and 3G formats to meet broadcast and pro AV standards.

Audio routing supports embedded HDMI and SDI channels, analogue inputs including mic with talk-over and delay, plus S/PDIF and unbalanced stereo outputs. The unit embeds and de-embeds HDMI audio and provides 0-90 ms audio delay for lip-sync. A built-in 2x10W balanced stereo amplifier supplies speaker outputs for room audio without extra amplification.

Connectivity and control options include front-panel buttons, on-screen display, IR remote, RS-232 and Ethernet with firmware upgrade capability. Advanced input/output EDID management and DGKat integration extend long-run twisted-pair connectivity for remote displays. The unit includes a mass notification overlay function to display emergency messages across outputs.

The VP-771 is rack-mountable in a 1U 19 inch chassis and includes rack ears and a worldwide 100-240V AC power supply. Non-volatile memory stores configuration and selectable power-save modes reduce standby consumption. The design and feature set make it suitable for lecture halls, corporate meeting rooms and control facilities where mixed signal sources must be managed and delivered reliably.

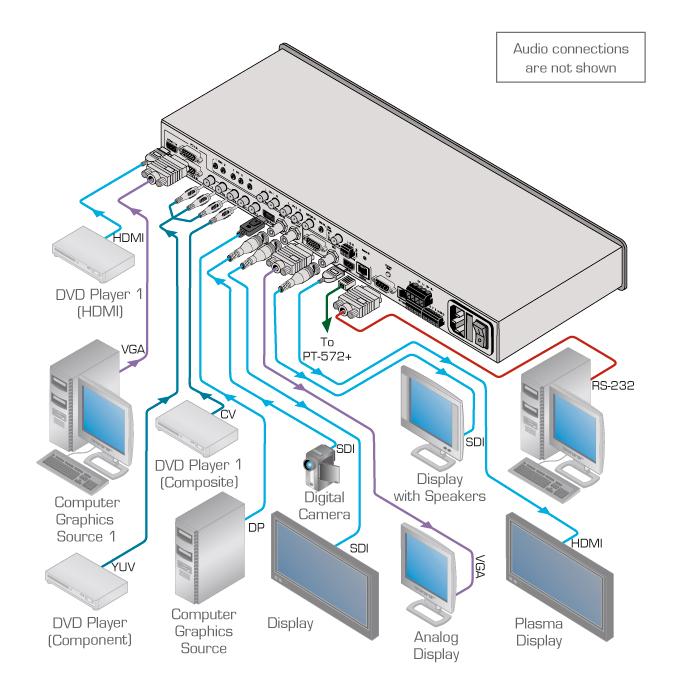

Product Diagrams

View Diagrams

Specifications

Picture-in-Picture Technology	K-IIT XL,PIP,PAP,Split Screen,Window Positioning,Sizing Controls
Scaling Technology	PixPerfect,Precision Pixel Mapping,3:2 Pull-down,2:2 Pull-down,Up/Down Scaling
Switching	Ultra-Fast Fade-Thru-Black,Constant Sync,Glitch-Free
Deinterlacing	Method,Sync,Selectable Film Modes,Diagonal Correction,Motion Detection,3:2,2:2,24sf
HDTV Compatibility	HDTV Compatible
HDCP	HDCP Compliant
SDI Standards	SMPTE 259M, SMPTE 344M, SMPTE 292M, SMPTE 424M
EDID Management	Advanced Input/Output EDID Management
MNEC	Mass Notification Emergency Communication System,Text Overlay,Crawler,Full Screen,Audio Alert
DGKat Integration	DGKat TMDS over Twisted Pair,Recommend DGKat Cables
DGKat Range	BC-DGKat524 90m@1080i 295ft,30m@1080p 98ft; BC-DGKat623 90m@1080i 295ft,70m@1080p 230ft; BC-DGKat7a23 100m@1080i 330ft,90m@1080p 295ft
Video Inputs	2 HDMI,2 VGA 15-pin,1 Component RCA Y Pb Pr,2 Composite RCA,1 DisplayPort,1 SD/HD/3G HD-SDI BNC with Loop
Scaled Outputs	1 HDMI,1 VGA 15-pin,1 SD/HD/3G HD-SDI BNC,1 DGKat RJ-45
SDI Channeling	One Active Signal,Three Bypassed Signals,From Eight Embedded Stereo Audio Channels
Output Resolutions	Up to 2K,1080p,Multiple Resolutions Listed
HDMI Features	Deep Color Support,HDCP
Keying	Luma Keying via PIP Window
Keystoning	Vertical Keystoning
ProcAmp	Color,Sharpness,Contrast,Brightness,Gamma Per Input
3D Comb Filter	3D Comb Filtering for Composite Inputs
Time Base Corrector	Built-In TBC
Noise Reduction	Temporal,Block,Mosquito,Combing
Picture Zoom	100% to 1600% Main and PIP,Separate V/H Sharpness
Aspect Ratios	Follow Input,Follow Output,Best Fit,Letterbox,Overscan
Dual Window Display	Preset PIP,PAP,Split Screens,Custom Layouts
Audio Inputs	2 HDMI Audio,2 VGA Audio,1 DP Audio,1 Mic 3.5mm,2 CV RCA,1 S/PDIF RCA
Audio Outputs	1 S/PDIF RCA,1 Unbalanced Stereo 3-Pin Terminal Block,2x10W Speaker Terminal Block
Audio Amplifier	Built-In 10W Per Channel Balanced Stereo
HDMI Audio Delay	Embed/De-Embed,Delay 0-90 ms
Microphone Input	Mic Mix/Talk-Over,Delay 0-90 ms
Memory	Non-Volatile Memory
Firmware Upgrades	Ethernet,RS-232
Control Options	Front Panel Buttons,Contact Closure,OSD,IR Remote,Control App via Ethernet,RS-232
Power Save	Selectable Power Save Modes
Power Supply	Worldwide 100-240V AC
Size	19in 1U Rack Mount
INPUTS	2 HDMI (deep color),2 VGA 15-pin,1 Component 3 RCA,2 Composite RCA,1 DisplayPort,1 SD/HD/3G HD-SDI BNC with Loop,Audio on 3.5mm,MIC 3.5mm,S/PDIF RCA
OUTPUTS	1 VGA 15-pin,1 SD/HD/3G HD-SDI BNC,1 HDMI (deep color),1 DGKat RJ-45,1 S/PDIF RCA,1 Unbalanced Stereo 3-Pin Terminal Block,2x10W Balanced Stereo Terminal Block
COMPLIANCE WITH STANDARDS	HDMI Deep Color,HDCP,DisplayPort 1.1a
OUTPUT RESOLUTIONS	640x480@60,640x480@75,800x600@50,800x600@60,800x600@75,1024x768@50,1024x768@60,1024x768@75,1280x768@50,1280x768@60,1280x800@60,1280x1024@50,1280x1024@60,1280x1024@75,1360x768@60,1366x768@50,1366x768@60,1400x1050@50,1400x1050@60,1600x900@60,1600x1200@50,1600x1200@60,1680x1050@60,1920x1200@60,480i60,480p60,576i50,576p50,720p50,720p59.94,720p60,1080p23.976,1080p24,1080p25,1080p29.97,1080p30,1080p50,1080p59.94,1080p60,2048x1080@60,2048x1080@50
CONTROLS	Front Panel Buttons,OSD,IR Remote,RS-232 9-pin D-sub,Ethernet,Contact Closure
POWER CONSUMPTION	100-240V AC,56VA Max
OPERATING TEMPERATURE	0 to 40 C,32 to 104 F
STORAGE TEMPERATURE	-40 to 70 C,-49 to 158 F
HUMIDITY	10% to 90% RHL Non-Condensing
DIMENSIONS	19in x 9.3in x 1U
WEIGHT	2.5 kg,5.5 lbs Approx
INCLUDED ACCESSORIES	Power Cord,Rack Ears,IR Remote
