Description
The VP-558 is an 11×4 presentation matrix switcher and scaler designed to deliver multiple independent scaled outputs for professional AV installs. It accepts HDMI, HDBaseT, VGA and USB sources and provides four independently scaled HDMI/HDBaseT outputs. The unit includes audio processing, a built-in amplifier and remote control options to support integrated presentation systems.
Core features include Pix-Perfect scaling, HDCP compliance and HDTV compatibility to preserve image integrity across resolutions. The device offers six HDMI inputs, four HDBaseT inputs, one VGA input and a 4×1 USB switcher that can follow video switching or operate independently. Audio functionality includes analog and embedded audio support, microphone input, selectable talkover/mix modes and adjustable input/output levels.
Performance and format support cover common presentation resolutions up to 1920x1080p and UXGA outputs, with internal ProcAmp controls for color, hue, sharpness, noise, contrast and brightness. HDBaseT links support transmission distances up to 70m depending on cable quality and resolution. The VP-558 provides non-volatile memory to retain settings and firmware upgrade via Ethernet for ongoing maintenance.
Connectivity is comprehensive with HDMI and RJ-45 HDBaseT outputs on each channel, multiple analog and S/PDIF audio outs, a monitor output and a USB port for control or KVM switching. Control options include front-panel OSD with LCD, RS-232 ports, Ethernet with built-in web pages and physical buttons for local operation. The front panel OSD simplifies setup and configuration for integrators and technicians.

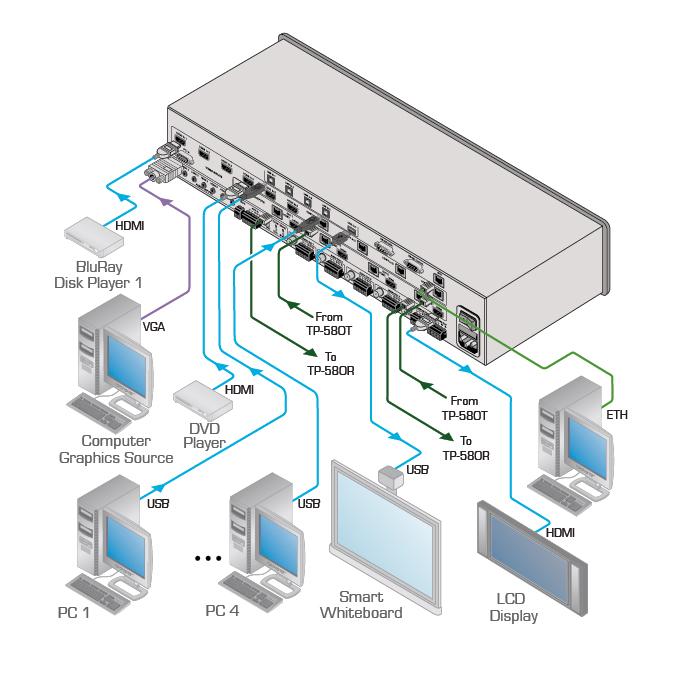

Typical applications include boardrooms, lecture halls and corporate presentation spaces where multiple sources must be routed and independently scaled to several displays. The integrated audio DSP and 2x10W speaker amplifier support basic room audio without separate amplifiers. The combination of HDBaseT and HDMI I/O reduces cabling runs while preserving image and audio fidelity in centralized AV systems.
Installation is rack-friendly in a 2U chassis and includes rack ears and a power cord for quick deployment. The device runs on 100-240V AC and operates within standard AV environmental ranges, with humidity tolerance for typical equipment rooms. Built-in web pages and network firmware upgrade streamline integration and remote maintenance.
In summary, the VP-558 combines matrix switching, scaling and audio processing in a single rack-mount unit to simplify multi-display presentation systems. It supports mixed analog/digital sources, HDBaseT distribution and local audio amplification to reduce system component count. The VP-558 is suited to integrators who need independent scaled outputs, network control and embedded audio features in one chassis.
