Description
The VP-440H2 is a compact presentation switcher scaler designed to manage and deliver high-resolution AV sources across HDMI and HDBaseT outputs. It accepts five inputs including three HDMI, one HDBaseT and one VGA source and scales signals up to 4K@60Hz 4:4:4. The unit embeds and routes audio while providing advanced processing to ensure consistent output quality.
Key capabilities include PixPerfect pixel mapping and scaling that preserve image detail and color fidelity. The device is HDMI 2.0 and HDCP 2.2 compliant and supports HDBaseT certified links with PoE on the HDBaseT input. Built-in ProcAmp controls and multiple aspect ratio options allow precise picture adjustments.
Performance specifications include support for 4K@60Hz 4:4:4 on HDMI inputs, maximum VGA input of 1920×1200@60Hz and under-two-frame video latency. Switching time between inputs is approximately 2 to 3 seconds and output sync is maintained to prevent disruption when sources change. The unit also supports full HDBT tunneling of Ethernet and RS-232 data for integrated system control.

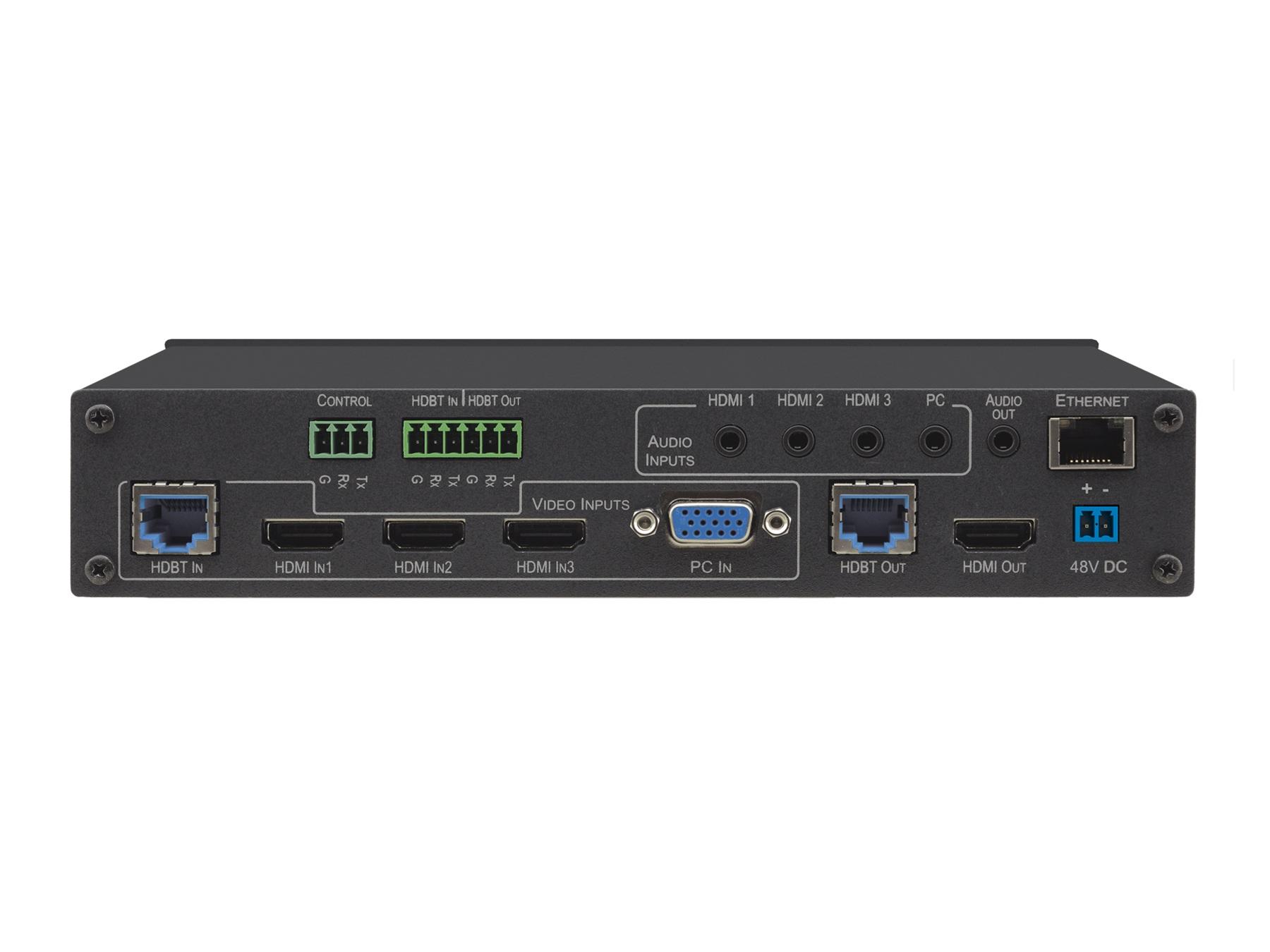

Connectivity is provided via three HDMI inputs, one HDBaseT input, one VGA input, HDMI and HDBaseT simultaneous outputs, plus analog stereo and embedded audio paths. Audio handling includes DSP-based equalization, mixing, delay and audio-follow-video routing with individual input level controls. A dedicated microphone input with selectable 48V phantom power enables talk-over and presenter mic integration.

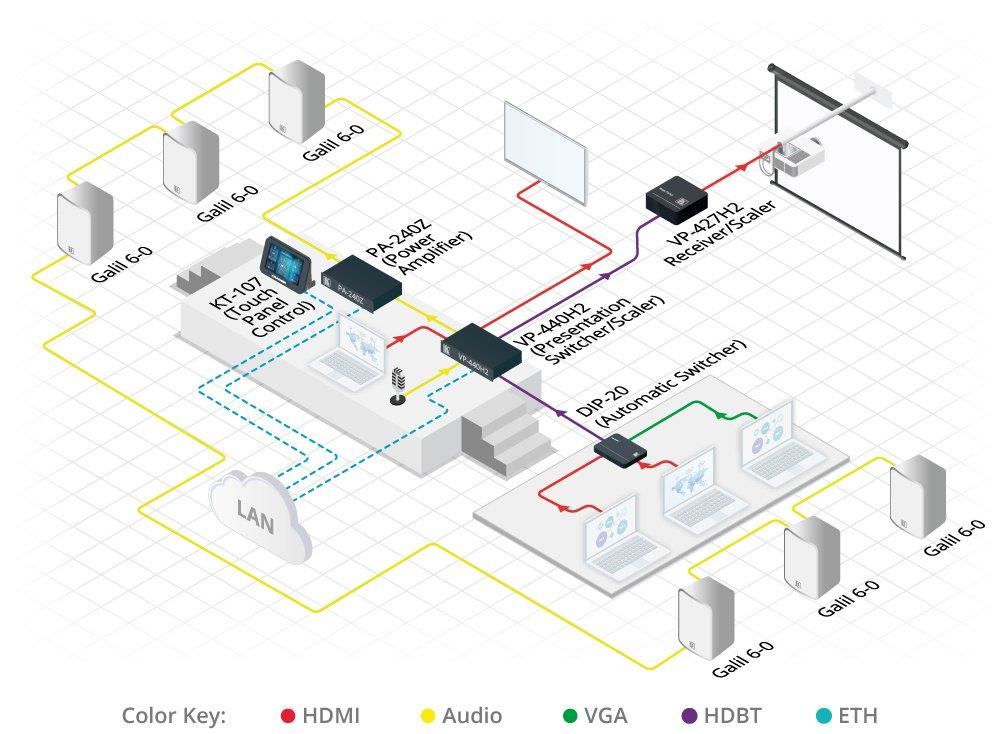

The VP-440H2 fits common AV environments such as conference rooms, lecture halls and boardrooms by enabling reliable source switching and distribution over long-reach HDBaseT cabling up to 100m. It supports automatic input switching modes and front-panel lockout for controlled operation during events. The unit’s compact form factor and optional rack adapter simplify installation into AV furniture or racks.
Installation and day-to-day operation are simplified by multiple control options including front-panel buttons, RS-232, OSD menu navigation and Ethernet with built-in web pages. Non-volatile memory retains final settings and the unit ships with a dedicated power supply. Cooling and operational specs match typical AV infrastructure requirements to ensure stable operation between 0 C and 40 C.
Overall, the VP-440H2 provides a practical combination of 4K scaling, HDBaseT distribution and comprehensive audio handling in a compact chassis. It supports modern HDMI 2.0 features and legacy VGA sources while offering flexible control and integration options. The result is a reliable presentation switcher scaler suited to professional AV deployments where image integrity and system compatibility are essential.
