Description
The VM0404HB is a 4×4 True 4K HDMI matrix switch designed to route up to four HDMI sources to any of four HDMI displays. It supports resolutions up to 4096 x 2160 at 60Hz with 4:4:4 color sampling to preserve image detail and color fidelity. The unit is built for AV installations requiring reliable multi-source distribution and fast digital switching.
Key features include independent switching of four inputs to four outputs, EDID Expert to optimize display handshakes, and signaling rates up to 6 Gbits per lane delivering an 18 Gbps aggregate bandwidth. The VM0404HB is HDCP 2.2 compatible and supports HDMI features such as 3D and Deep Color, plus Dolby TrueHD and DTS HD Master audio formats. ESD protection and ATEN LockPro cable lock support help secure connections in active environments.
Performance specifications include a maximum pixel clock of 600 MHz and support for 4096 x 2160 and 3840 x 2160 at 60Hz with full 4:4:4 color. Output distance varies by resolution – 3 m for true 4K@60Hz 4:4:4 and up to 15 m for 1920 x 1200. The matrix provides firmware upgradeability to maintain compatibility and add features over time.

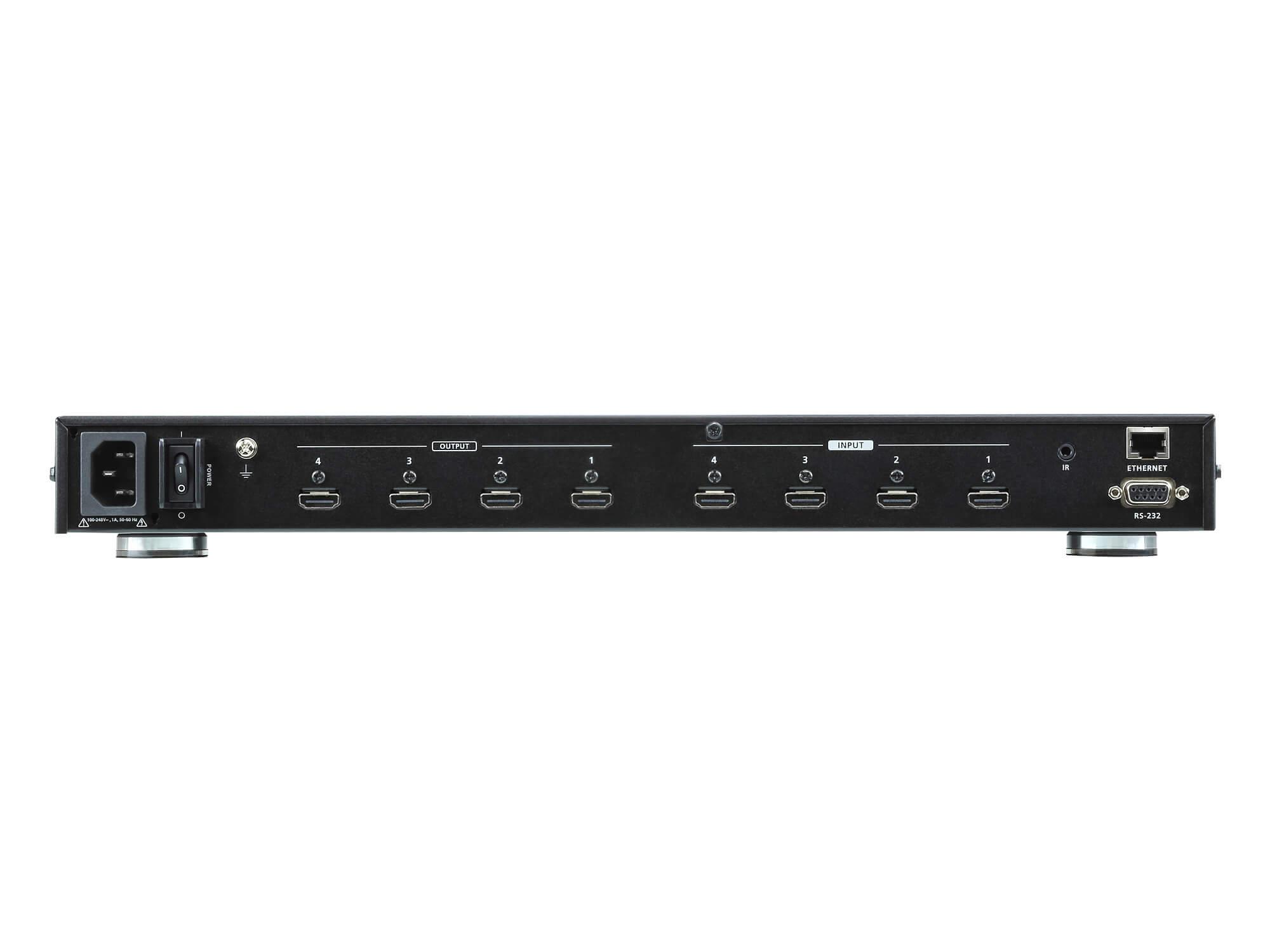

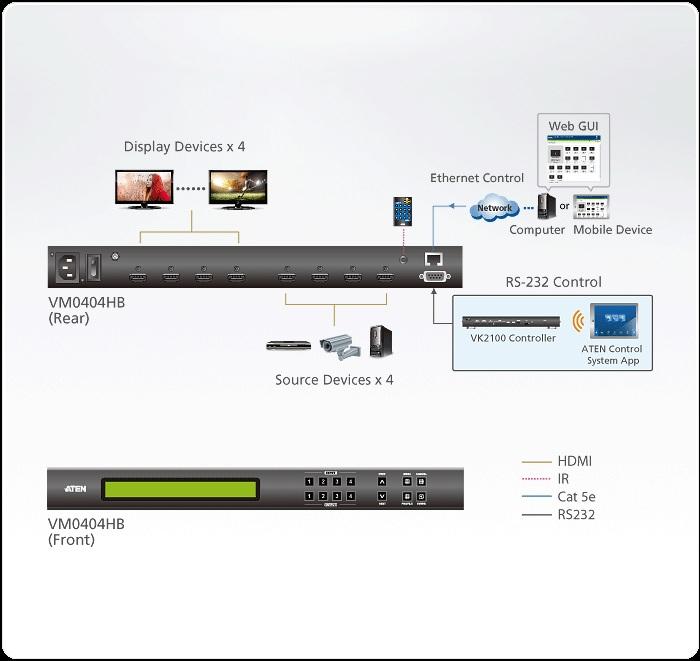

Connectivity and control options are comprehensive: four HDMI Type A inputs and four HDMI Type A outputs, RS-232 DB-9 control, IR remote input, and Ethernet for Web GUI and Telnet management. Front-panel pushbuttons offer direct control, while EDID modes including Default / Port 1 / Remix / Customized simplify multi-display setups. The unit also supports Consumer Electronics Control (CEC) for compatible devices.
The VM0404HB is suitable for event venues, auditoriums, classrooms, retail displays, and corporate AV installations where multiple sources must be assigned to multiple displays. It handles mixed display resolutions and EDID negotiation to deliver consistent image output across screens. Its compact 1U rack design makes it convenient to integrate into standard AV racks and cabinets.
Installation is straightforward with a metal housing, rack-mountable 1U form factor, and standard AC power input supporting 100-240 VAC. Operating temperature ranges from 0 to 40 degrees C and the unit is designed for non-condensing environments. Overall the VM0404HB offers a practical combination of True 4K support, multiple control methods, and robust connection management for professional AV deployments.
