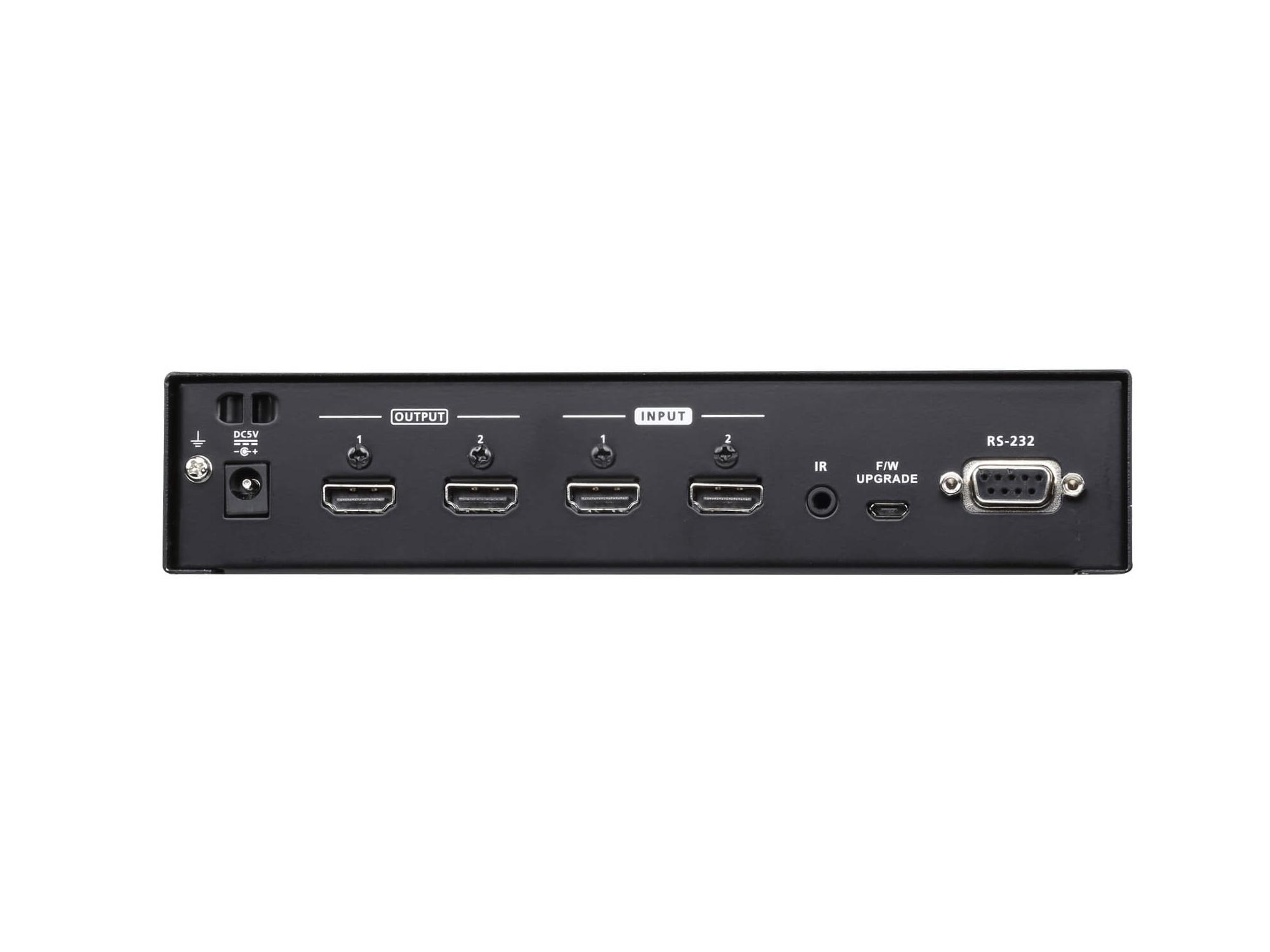

Aten VM0202H 2x2 4K HDMI Matrix Switch

Description

The VM0202H is a 2 X 2 HDMI Matrix Switch that meets HDMI Specification features including 3D, Deep Color up to 12- bit, and data rates up to 10.2 Gbps. Engineered for the future trend of high-definition video switching, the VM0202H supports computer and video signals at resolutions up to 4K.

The VM0202H matrix switch provides high performance routing of 2 HDMI video sources such as HD camcorders, satellite boxes, HD-DVD players, high-definition Blue- ray players, home theater PCs and stand-alone streaming media players to any 2 HDMI displays. The remote control and convenient front panel pushbuttons allow you to efficiently cycle through HDMI source devices and displays, while the front panel LEDs indicate the source device for each display at a glance.

Features:

Connects 2 HDMI sources to any 2 HDMI displays
HDMI (3D, Deep Color, 4k); HDCP 1.4 Compatible
Supports computer and video resolutions up to 4K
Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
Supports long distance transmission at a distance up to 15 meters
Multiple Control Methods- system management via front panel push buttons, IR remote and RS- 232 control
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
EDID Expert™ — Selects optimum EDID settings for smooth power- up, high- quality display and use of the best video resolution across different screens
Supports ATEN’s Lock Pro™ HDMI cable lock for securing HDMI cable connections
All- metal casing
Firmware upgradable
Rack mountable

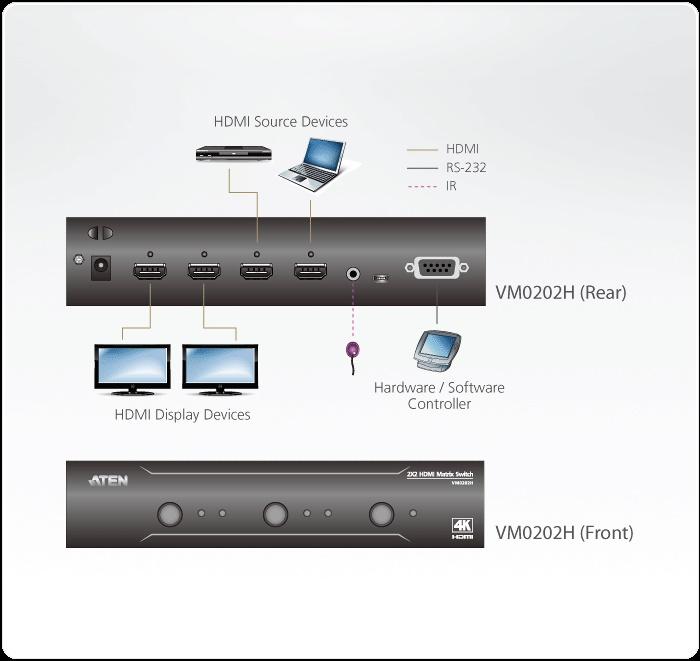

Product Diagrams

View Diagrams

Specifications

Video Input
Interfaces	2 x HDMI Type A Female (Black)
Impedance	100 Ώ
Max. Distance	1.8 m
Video Output
Interfaces	2 x HDMI Type A Female (Black)
Impedance	100 Ώ
Max. Distance	15 m
Video
Max. Data Rate	10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock	340 MHz
Compliance	HDMI (3D, 4K, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC)
Max. Resolution	Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Max. Distance	Up to 15 m
Control
USB	1 x Micro USB F/W upgrade
RS-232	Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR	1 x Mini Stereo Jack Female (Black)
EDID Settings	EDID Mode: Default / Port1 / Remix
Carton Lot	5 pcs
Physical Properties
Weight	0.58 kg ( 1.28 lb )
Housing	Metal
Dimensions (L x W x H)	20.00 x 7.60 x 4.20 cm (7.87 x 2.99 x 1.65 in.)
Power
Connectors	1 x DC Jack (Black)
Consumption	5VDC ; 4.3W
Environmental
Operating Temperature	0-40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
