Description
The VM-400HDCPxl is a compact 1×4 DVI distribution amplifier designed to take a single DVI input, equalize and reclock the signal, and deliver four identical outputs. It supports HDMI signals transported over single-link DVI and maintains digital signal integrity across output runs. The unit is HDCP compliant and handles modern high-resolution formats.
Key features include support for resolutions up to 4K@60 UHD (4:2:0), a maximum data rate of 10.2Gbps, and integrated Kramer equalization and re-Klocking technology – these features improve signal reliability and distance. The VM-400HDCPxl also supports 3D pass-through and includes a USB port for firmware upgrades. EDID management is handled by Kramer’s I-EDIDPro intelligent processing and a default EDID for fast setup.
Performance specifications include a maximum aggregate data rate of 10.2Gbps and per-channel throughput of 3.4Gbps. The distributor supports common computer and HDTV resolutions including WUXGA and 1080p as well as 4K@60 (4:2:0) video. The unit operates in standard AV environments with an operating temperature range of 0 to 40 degrees Celsius and non-condensing humidity tolerance from 10% to 90%.

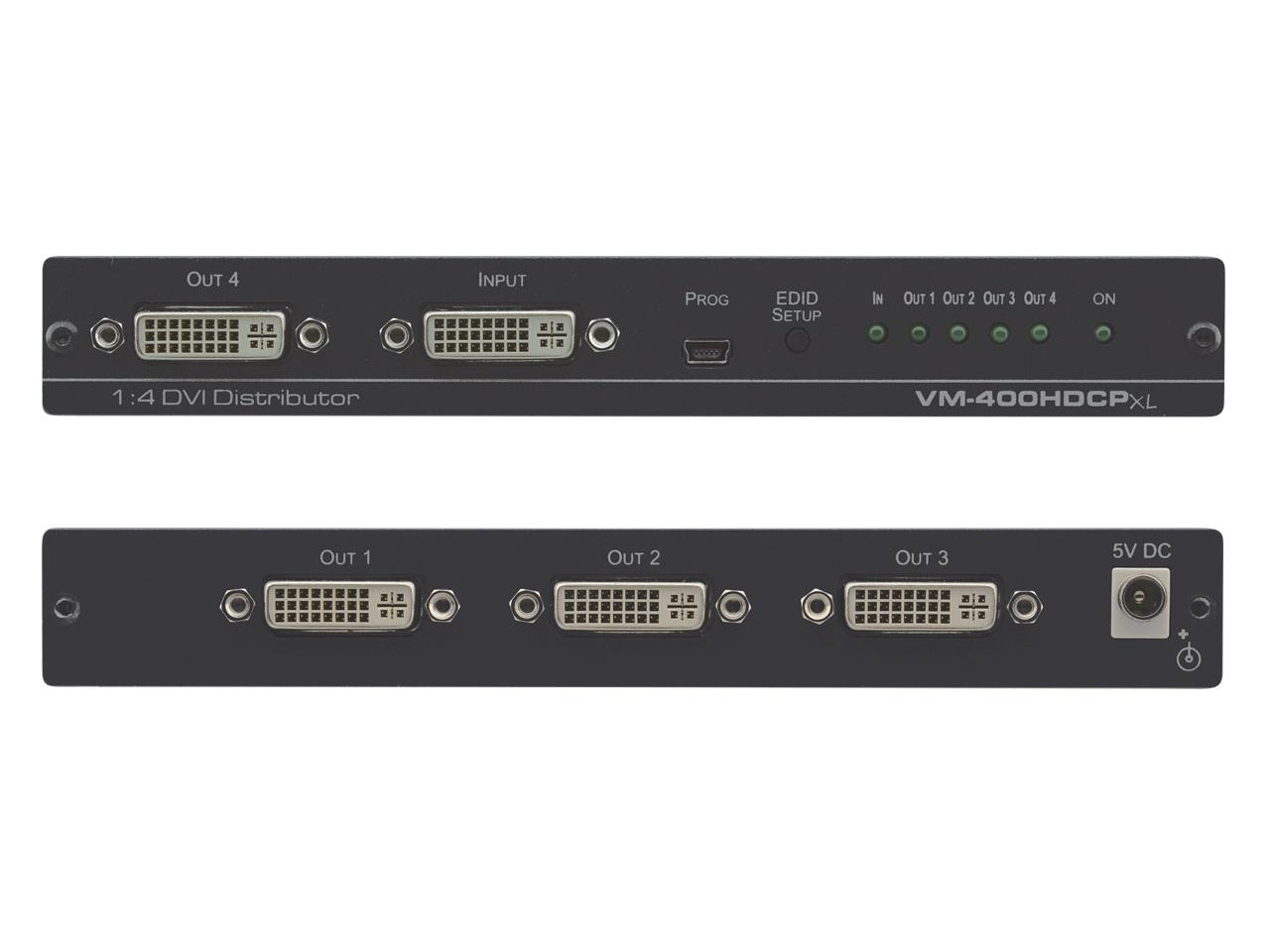

Connectivity comprises one DVI-I input and four DVI-I outputs, plus one USB port for firmware updates. The device is compatible with HDMI sources and sinks when used with the appropriate adapters and supports HDCP content protection. Front-panel LEDs indicate input and output status and an EDID setup button allows manual EDID selection and management.
The VM-400HDCPxl is suitable for small presentation systems, classroom AV, digital signage distribution, and any installation requiring one source sent to four displays. It works well where equalized, reclocked video is required to maintain signal quality over cable runs. The HDCP compliance and support for current resolutions make it practical for mixed AV systems.
Installation is straightforward – rack or shelf mount as space allows and connect the DVI input and output cables then apply power. The unit ships with a dedicated power supply and requires minimal setup thanks to the default EDID and I-EDIDPro processing. The compact metal enclosure provides robust build quality for professional environments.
In summary, the VM-400HDCPxl is a focused DVI distribution amplifier that offers reliable signal distribution, HDCP support, and firmware upgrade capability via USB. Its equalization and re-Klocking preserve image integrity and extend practical cable lengths. For integrators needing a 1×4 DVI splitter with current format support, this unit delivers a practical balance of features and ease of use.
