Description
The VK0200 is a fully-customizable 12-button control pad that combines controller hardware and a keypad into a single fixture. It is designed to centralize control of AV and room devices by providing direct control ports and network connectivity. This compact two-gang EU form-factor device is intended for small to medium meeting rooms and classrooms where intuitive, tactile control is required.

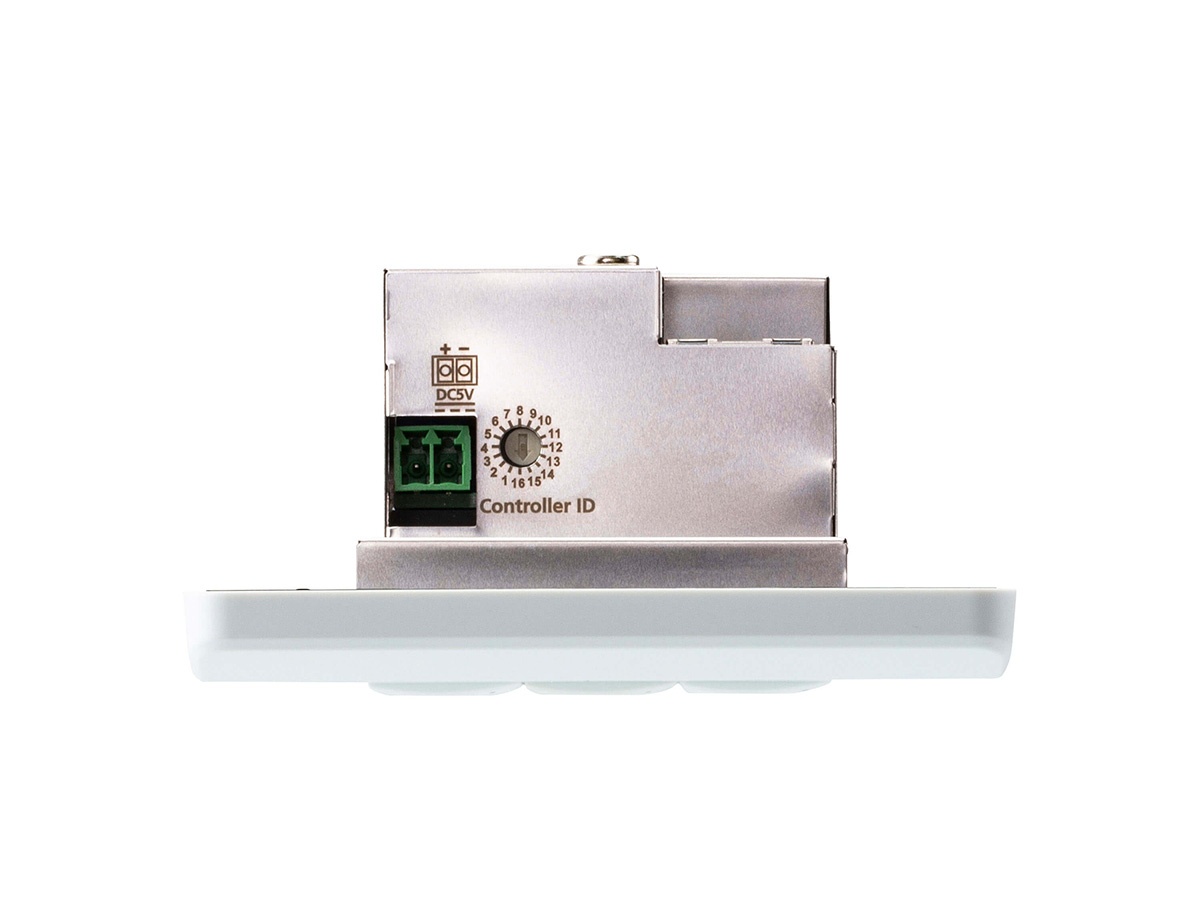

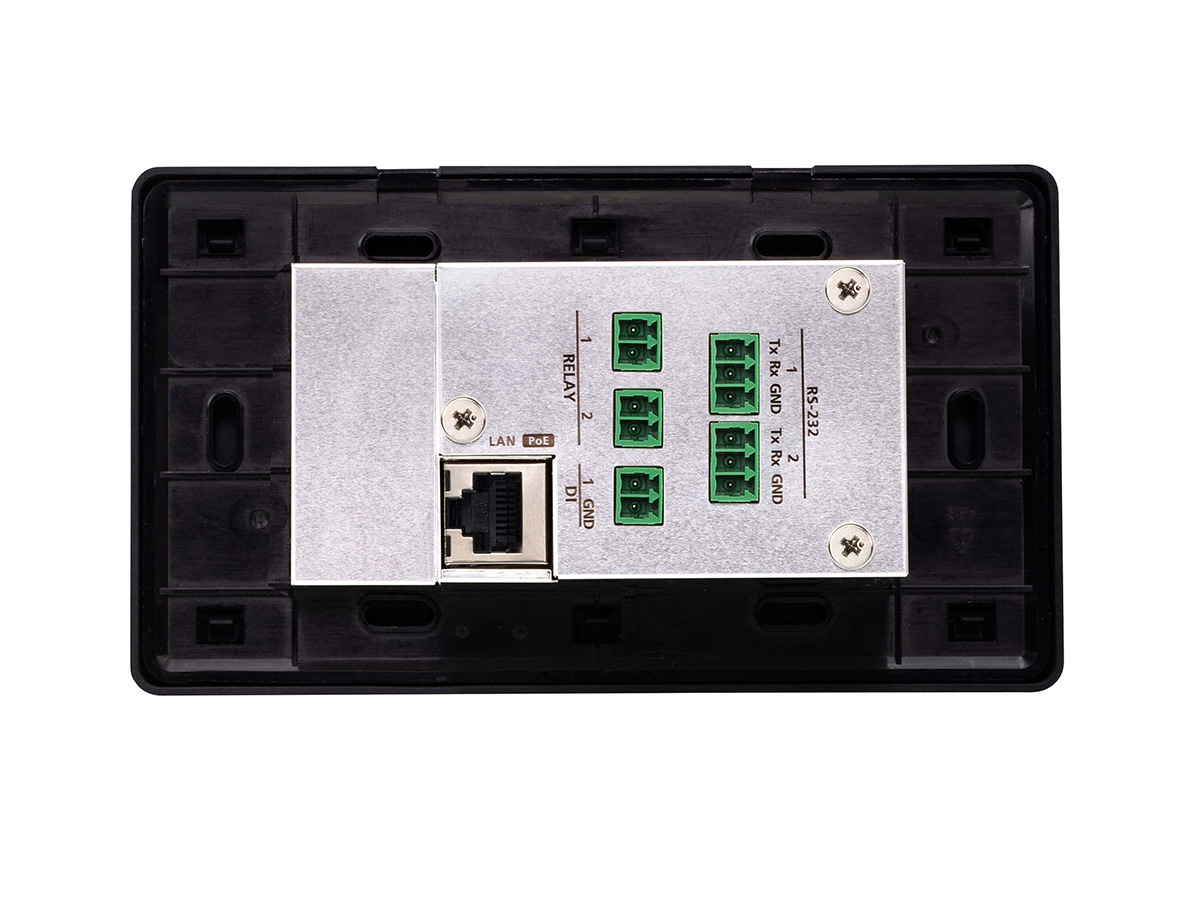

The control pad offers a modular keypad layout that supports 6 to 12 buttons and 125 possible combinations. It includes multiple hardware interfaces – 2 RS-232 ports, 2 relay channels, one digital input and one Ethernet port – enabling direct device control without additional converters. Dual power options including Power over Ethernet (PoE) and optional DC 5V help ensure continuous operation in varied installations.
On the software side, the VK0200 supports centralized management via ATEN Unizon and configuration through a web GUI or VK6000 Configurator Software. It supports common network and control protocols such as TCP, UDP, Telnet, HTTP, HTTPS, WebSocket, ONVIF and PJLink to communicate with AV equipment. Security and building management integration are supported through IEEE 802.1x authentication and native KNX IP compatibility.
Connectivity and compatibility are extensive – Modbus is supported for TCP and RTU devices including checksum handling, and a Telnet CLI mode allows integration with third-party systems. Remote control via mobile devices is available subject to licensing, and an integrated Web Viewer enables simple control from any web-based console. SSH access is provided for data monitoring and diagnostics when required.
Common practical applications include meeting rooms where source switching and room controls are required, classrooms needing simple AV operation, and huddle spaces that require consolidated device management. The ergonomically configurable buttons allow installers to map typical functions such as projector on/off, input select, volume presets and shades. Custom engraving services are available to label buttons for end-user clarity and repeatable operation.

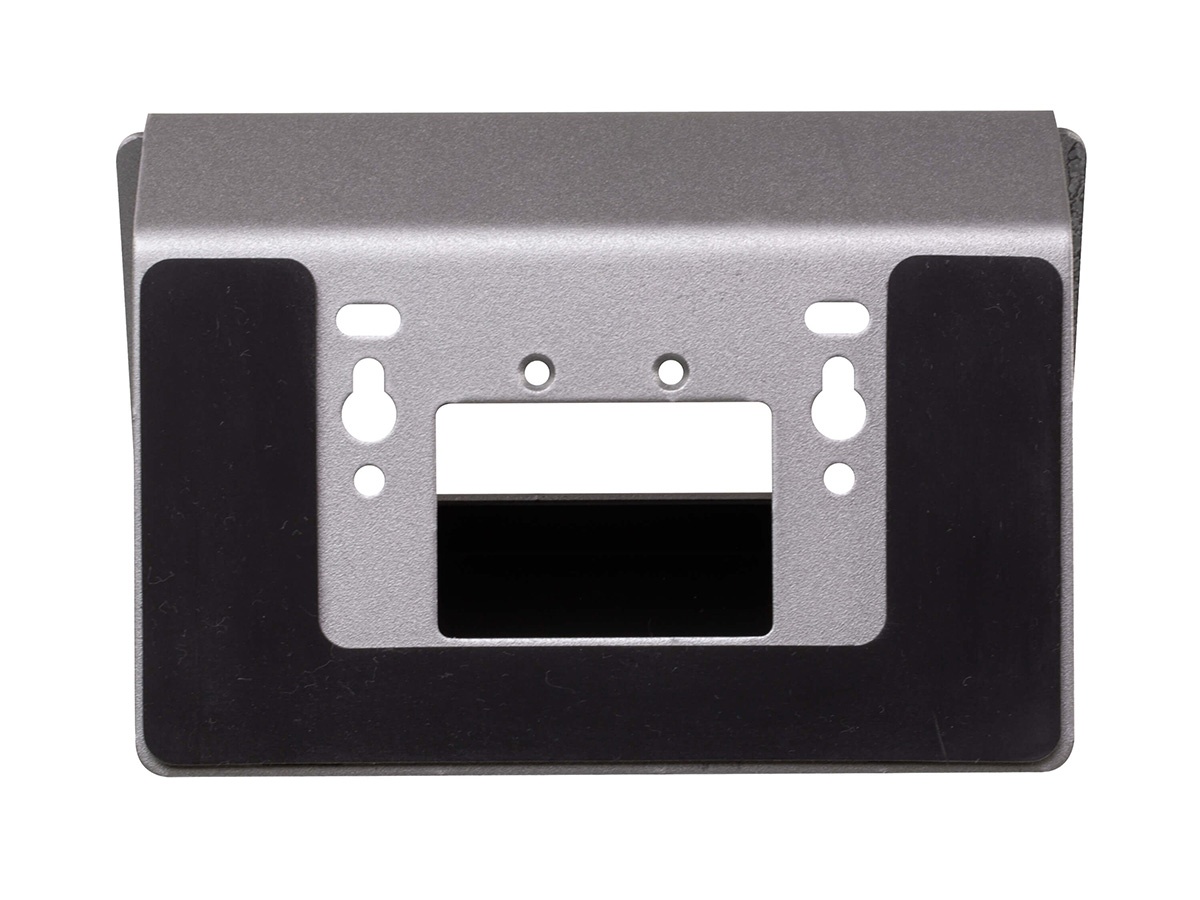

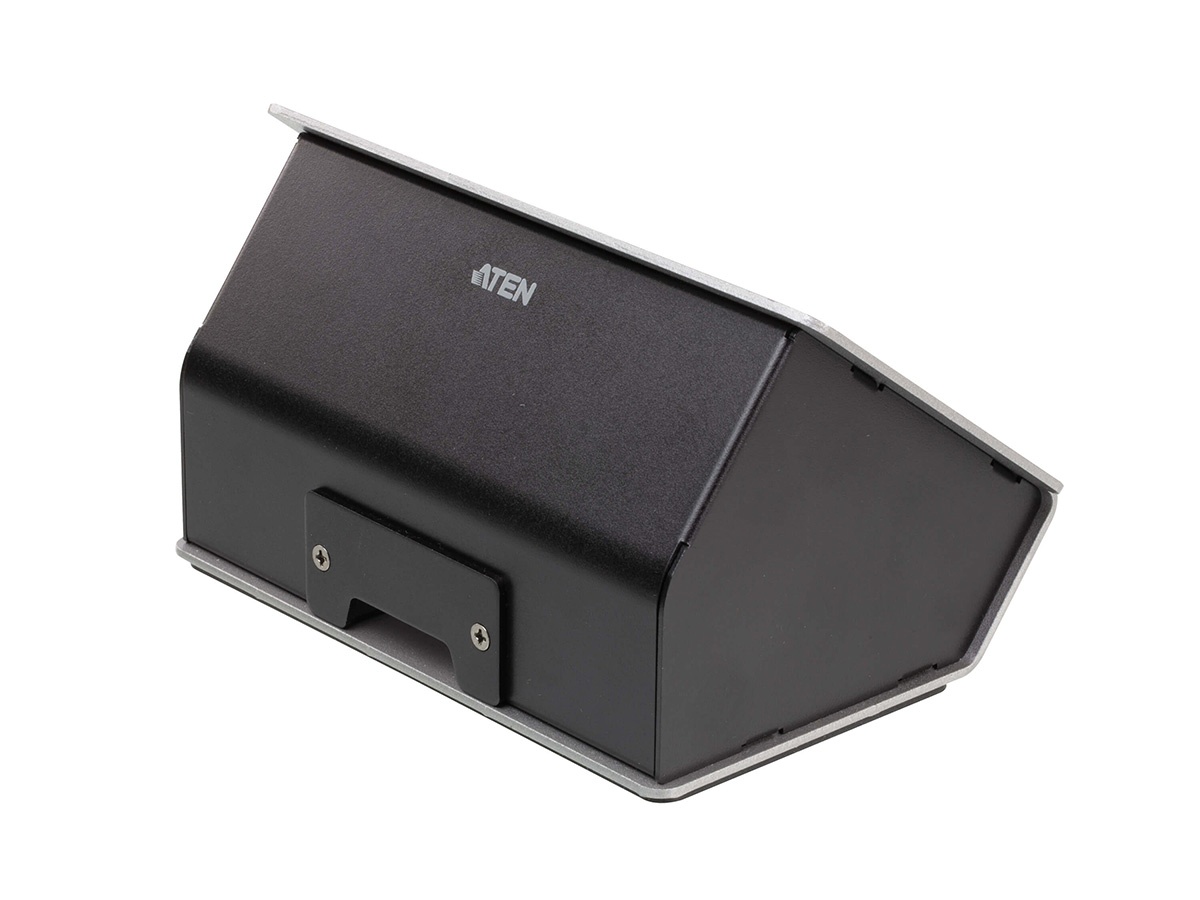

Installation is straightforward using EU-type 2-gang or MK-type junction boxes or via the optional tabletop kit included in this SKU for surface mounting. LEDs provide dual-color status indication for connection and hardware states and improve visibility in low-light environments. Project file backup is supported so a single project file can be stored by an ATEN Control Box for recovery or cloning purposes.
Overall, the VK0200 control pad delivers a compact, network-enabled control interface with multiple hardware control ports and enterprise-grade network features. Its combination of direct I/O, protocol support and centralized management options simplifies AV system integration and daily operation. The product is optimized for professional AV installations that require a tactile, customizable control surface with robust connectivity and security features.
