Description

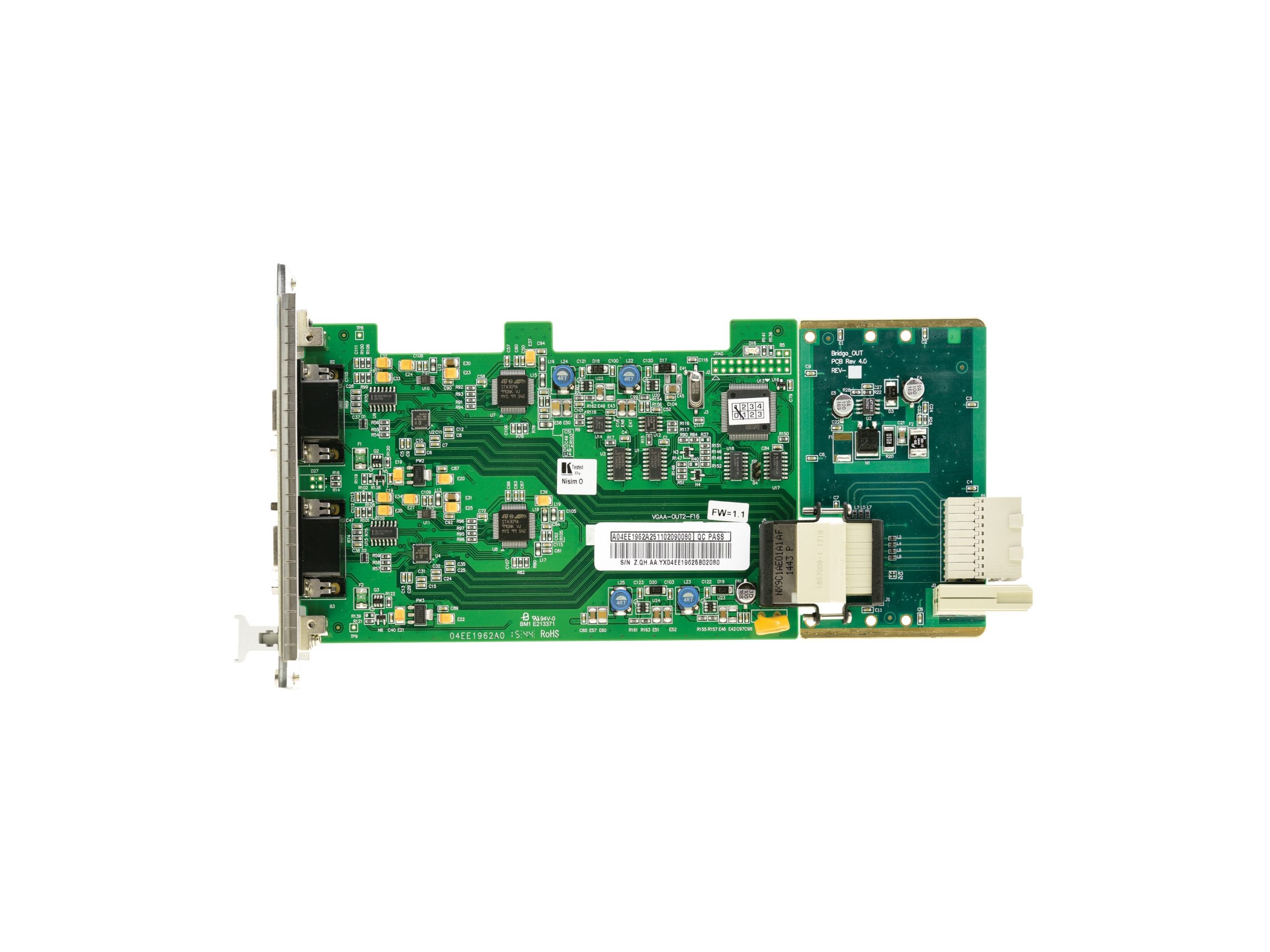

The VGAA-OUT2-F34 is a two-channel VGA output card designed to deliver dual VGA video plus analog audio from a modular matrix chassis. It installs into compatible VS series chassis to provide dedicated VGA outputs and audio breakout in professional AV installations. The card is engineered to preserve signal integrity for display systems and presentation environments.
Key features include a maximum bandwidth of 450MHz and HDTV compatibility, ensuring reliable support for high-resolution VGA signals. The card offers analog audio over a breakaway connector and ships with Kramer VGA with audio cables for direct connection to displays and audio inputs. Two independent VGA channels provide straightforward distribution from the matrix chassis.
Performance specifications include a 450MHz video bandwidth and a maximum passive range of 10m (32ft) when using standard VGA cabling. The card requires 5.5W of power and operates across a 0 to 40°C (32 to 104°F) temperature range with storage rated from -40 to 70°C (-40 to 158°F). Humidity tolerance is 10% to 90% RHL non-condensing and the unit meets CE requirements and applicable RoHS/WEEE environmental standards.
Connectivity is provided via two 15-pin HD VGA connectors and two unbalanced analog audio 3.5mm mini jacks, accessible via the supplied C-GF/GMAF-30 cables. The VGAA-OUT2-F34 is compatible with VS-34FD and VS-1616 series modular matrix switchers and integrates into standard rack-mounted AV systems. Audio and video routing is managed by the host chassis control system.
Typical applications include professional display systems, multimedia presentation rooms, and rental/staging installations where dual VGA outputs and embedded analog audio are required. The card is suited to environments that demand simple audio breakout alongside VGA video distribution. It supports common AV workflows and signal paths used in conference and event setups.
Installation is straightforward – the card slides into a compatible chassis slot and connects using the supplied Kramer cables for immediate AV output. The compact card measures 25.20cm x 13.00cm x 2.00cm and draws minimal power, simplifying system design and thermal considerations. Rugged construction and standard compliance ensure dependable operation in professional installations.
