Description
The VE901R is a DisplayPort HDBaseT-Lite receiver designed to extend DisplayPort video up to 70m over a single Cat 6/6a cable. It delivers reliable video extension for professional AV deployments and supports 4K and 1080p signals across standard copper cabling. The compact metal housing and rack-mountable design make it suitable for equipment racks and confined installations.
Key features include HDBaseT connectivity, anti-jamming signal protection, and a 3.3V/500mA auxiliary power output for small peripherals. The unit supports full DisplayPort compliance including Deep Color and HDCP compatibility. Its slip-resistant DC jack lock and lightweight construction aid secure, long-term installations.
Performance supports up to 10.2 Gbps total bandwidth and a 297 MHz pixel clock, enabling resolutions up to 4096×2160 or 3840×2160 at 30Hz in 4:4:4 sampling. 4K signals are supported to 35m on Cat5e/6 and up to 40m on Cat6a or ATEN 2L-2910 Cat6. 1080p is supported to 60m on Cat5e/6 and to 70m on Cat6a or ATEN 2L-2910 Cat6.

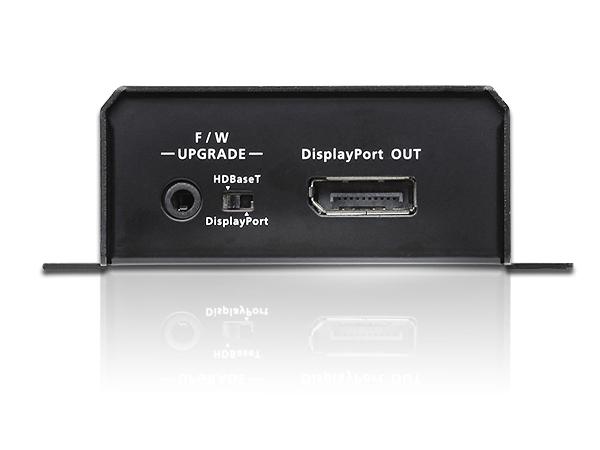

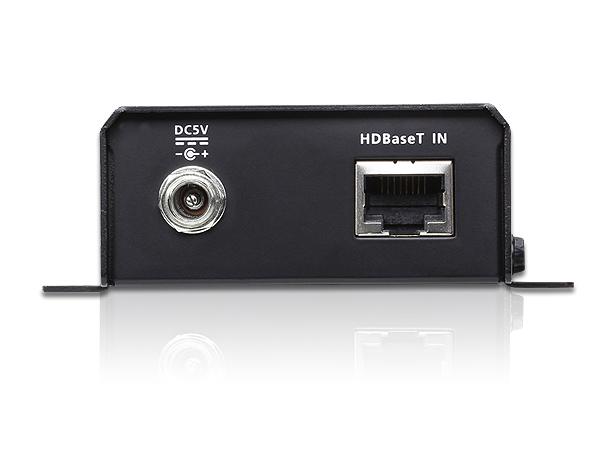

Connectivity includes a DisplayPort female output, an RJ-45 unit-to-unit port for HDBaseT link, and a locking DC jack for power. The receiver passes audio via the DisplayPort connection and remains HDCP compatible. The device provides easy integration into existing AV signal chains using standard DisplayPort sources and displays.
The VE901R is appropriate for medical imaging stations, military command displays, digital signage installations, and meeting rooms where signal integrity and secure mounting are required. It prevents video interference using HDBaseT anti-jamming technology and extends signals without active fiber or expensive infrastructure changes. The small form factor allows installation behind displays, in racks, or in equipment closets.
Installation is straightforward thanks to a locking DC jack, rack-mountable bracket, and standard RJ-45 cabling. The metal housing offers physical durability and thermal stability in typical AV environments. System integrators will find the VE901R simple to deploy and reliable for continuous operation.
