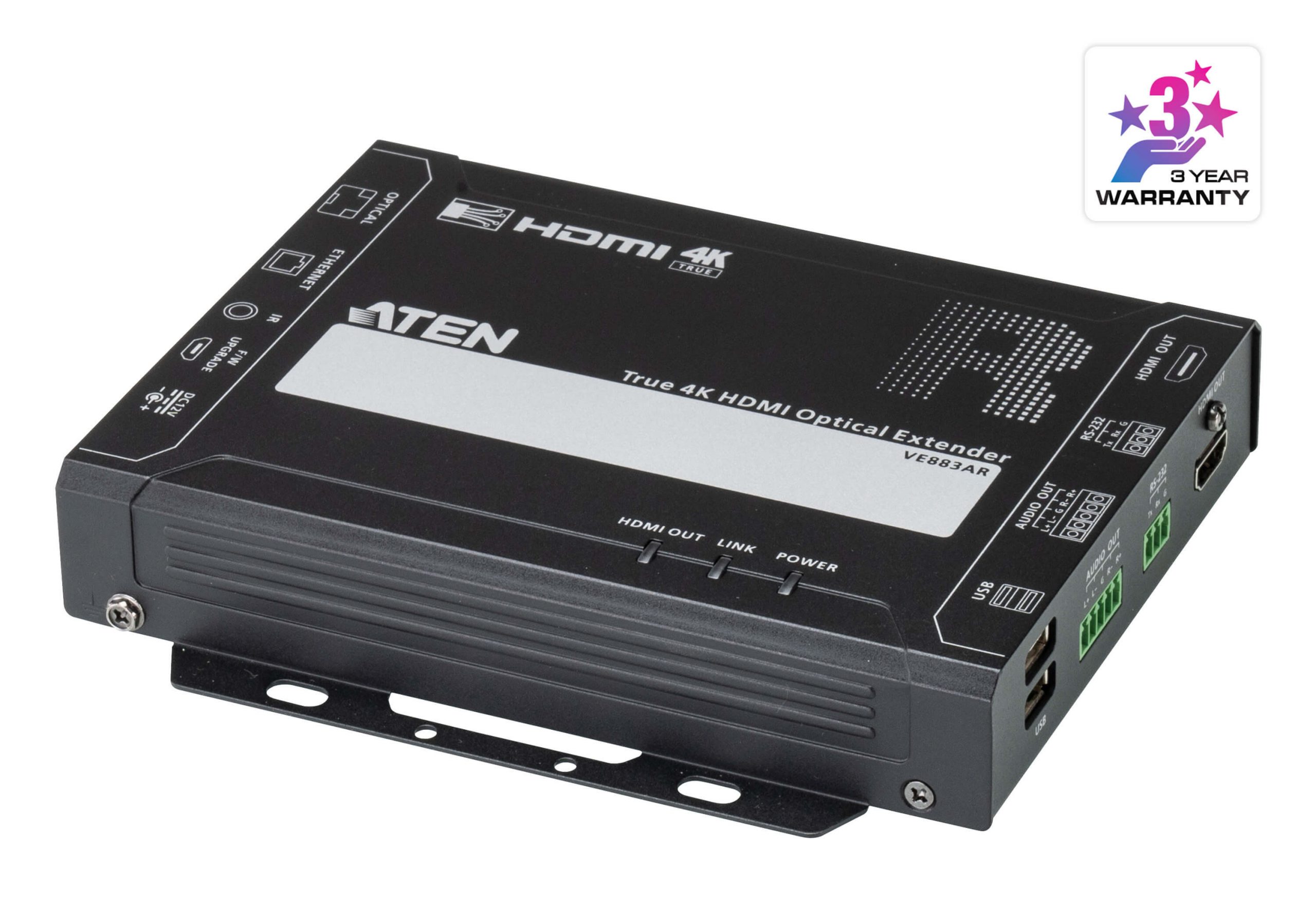

Aten VE883AK2 True 4K HDMI Optical Extender (4K@300m (K1, MM) / 10km (K2, SM))

Description

The VE883A is a True 4K HDMI Optical extender that consists of a transmitter VE883AT and a receiver VE883AR to transmit up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) HDMI, audio, USB 2.0, IR, RS-232, and Gigabit Ethernet signals across 300 m (VE883AK1) or 10 km (VE883AK2) over a single duplex fiber optic cable losslessly. While helping avoid bulky cable setup, fiber optic cables are electrically isolated, thus they are immune to RFI and EMI. With ATEN’s exclusive FarSmooth technology, the VE883A prevents lagging and freezing by matching the output rates to the input rates and ensures that the video display is stable, smooth and identical to the source, particularly in long-distance extension applications where uninterrupted video streams are required.

The VE883A comes with interfaces of HDMI input / output, analog audio input / output, USB 2.0, IR, RS-232, and Gigabit Ethernet. Connectivity with USB peripherals is expanded thanks to the VE883A’s dual USB Type-A ports. For point-to-point extension, pluggable SFP+ modules are included to serve the purpose of optical connection. Plus, the VE883A is compatible with ATEN’s VM7584 / VM8584 Optical Input / Output Board installed in ATEN’s modular matrix switches to broaden applications. It is suitable for installations where True 4K video transmission across a long distance and electrical isolation are essential, such as control rooms, factories, and hospitals.

Features

Extends HDMI video, audio, IR, RS-232 control, and Ethernet signals over a duplex fiber optic cable across up to 10 km*
Lossless transmission of up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) signals
HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant
ATEN FarSmooth technology – prevents lagging/freezing and ensures stable 4K@60Hz display through 10 Gbps bandwidth
Supports transparent USB 2.0 signals for peripherals at a maximum transfer rate of 25 MB/s
Bi-directional IR signal transmission – processed one direction at a time, 30 kHz to 56 kHz
RS-232 serial port for peripherals such as touchscreens and barcode scanners
Supports batch firmware upgrades using Firmware Upgrade Utility
Built-in 8 kV / 15 kV ESD protection
Plug-and-play and hot-pluggable
Rack-mountable
Notes:
- Maximum distance may vary depending on fiber type, bandwidth, connector splicing, losses, dispersion, environment, and kinks
- Recommended SFP+ modules: VE883AK1 – 300 m duplex MM, VE883AK2 – 10 km duplex SM
- Fiber compliance: Single Mode – IEC 11801 OS1/OS1a/OS2; Multi Mode – OM3/OM4
- Class 1 laser product; meets IEC/EN 60825-1 and FDA 21 CFR 1040.10/11

Specifications

Feature	VE883AR	VE883AT
Video Input	N/A	1 × HDMI Type A Female (Black)
Video Output	1 × HDMI Type A Female (Black)	N/A
Max Resolution	4096×2160@60Hz (4:4:4) / 3840×2160@60Hz (4:4:4)	4096×2160@60Hz (4:4:4) / 3840×2160@60Hz (4:4:4)
Fiber Distance	VE883AK1: 300 m MM / VE883AK2: 10 km SM	VE883AK1: 300 m MM / VE883AK2: 10 km SM
Audio Input	N/A	1 × Terminal Block, 5 pole (Green)
Audio Output	1 × Terminal Block, 5 pole (Green)	N/A
USB	2 × Type A Female	1 × Type B Female
RS-232	1 × Terminal Block, 3 pole (Green)	1 × Terminal Block, 3 pole (Green)
IR	1 × Mini Stereo Jack, 30–56 kHz	1 × Mini Stereo Jack, 30–56 kHz
Ethernet	1 × GbE RJ-45	1 × GbE RJ-45
Power Consumption	6.5 W / 52 BTU/h	5.57 W / 26 BTU/h
Operating Temp	0–40°C	0–40°C
Housing	Metal	Metal
Weight	0.66 kg	0.67 kg
