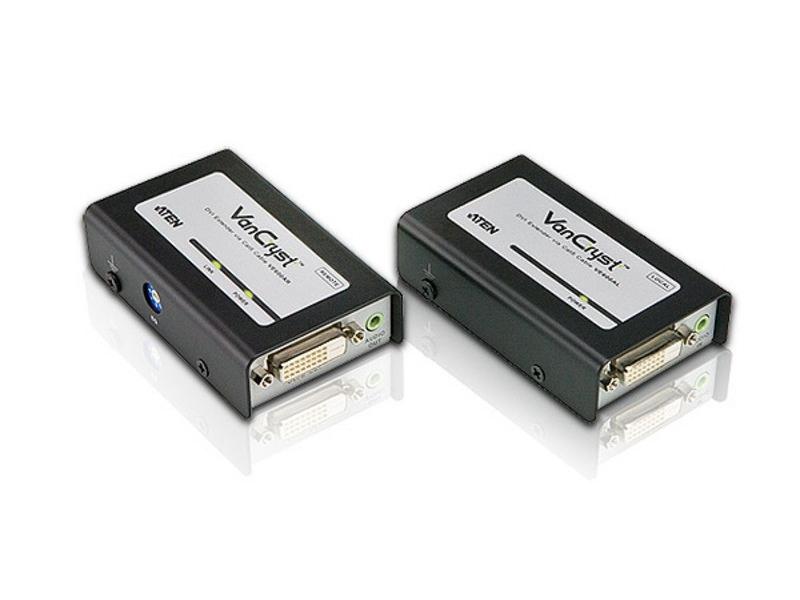

Aten VE600A Cat5 DVI Extender with Audio

Description

DESCRIPTION

The VE600A DVI Extender with Audio extends your DVI display up to 60 m away from your DVI source using Cat 5e cables. The use of Cat 5e cables provides a simple and reliable connection method that takes advantage of the wiring system in most modern office buildings. The VE600A incorporates ATEN’s technology that allows the A/V signal to be transmitted over one Cat 5e cable. If the real EDID is required, simply use a second Cat 5e cable. With stereo audio support and support for popular widescreen formats, the VE600A provides crystal-clear image and sound quality in all installations where remote DVI video displays are required.

FEATURES

Extends the distance between DVI source and DVI display device
Long distance transmission – up to 60 m
Uses Cat 5e cable to connect the local and remote units
Features ATEN EDID technology that allows transmission over one Cat 5e cable
Superior video quality – up to 1920×1200 (40 m); 1080p (40 m) ; 1080i (60 m)
Audio enabled
Adjustable EQ compensation control
Supports widescreen formats
Rack mountable
HDCP Compatible

SPECIFICATIONS

Connectors
Video Input	1 x DVI-D Female [ local ]
Video Output	1 x DVI-D Female [ remote ]
Audio Input	1 x mini stereo jack [ local ]
Audio Output	1 x mini stereo jack [ remote ]
Power	1 x DC Jack
Unit to Unit Connectors	2 x RJ-45 Female
LEDs
Power On	1 [ Green ]
Link	1 [ Green ]
Switches
Picture Compensation	1 x 8-position switch [ remote ]
Video Resolution	1920 x 1200 [ Max ] to 130 ft.
Cable Length	200 ft Max [ @ 1080i ]
Power
Voltage	5.3 VDc [ locale and remote ]
Amps	400mA [ local ] / 300mA [ remote ]
Power Consumption	7 BTU [ local ] / 5 BTU [ remote ]
Power Adaptor Part
for North America
Housing
Case	Metal
Environment
Operation Temperature	32 – 122 F
Storage Temperature	-4 – 140F
Humidity	0 ~ 80% RH, Non-condensing

Physical Properties
Unit Weight	1 lb.
Unit Weight with package	1.2 lb.
Unit Package Dimensions	6.3x 2.3x 9.4 in.
Unit Dimension	3.6x 2.2x 1 in.
Case Dimension	19.3x 12.4x 13.3 in.
Case Weight	26 lbs.

* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.

Package Contents

1x VE600A DVI Extender with Audio Local Unit
1x VE600A DVI Extender with Audio Remote Unit
2x Power Adapters
1x Rack Mount Kit
2x Grounding Wire
1x User Guide

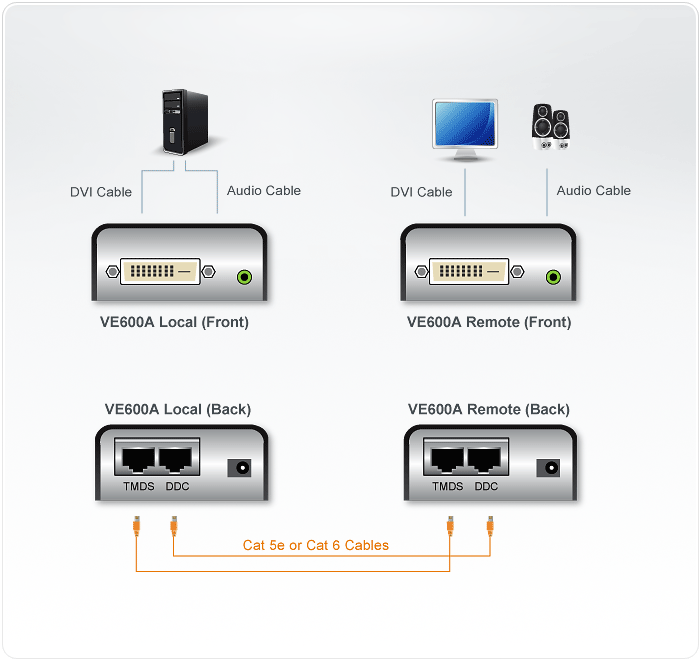

Product Diagrams

View Diagrams

Specifications

Function	VE600AL	VE600AR
Video Input
Interfaces	1 x DVI-D Female (White)	N/A
Impedance	100 Ώ	N/A
Max. Distance	1.8 m	N/A
Video Output
Interfaces	N/A	1 x DVI-D Female (White)
Impedance	N/A	100 Ώ
Video
Max. Data Rate	6.75 Gbps (2.25 Gbps Per Lane)	6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock	225 MHz	225 MHz
Compliance	HDCP Compatible	HDCP Compatible
Max. Resolutions / Distance	Up to 1080p@40m; 1080i@60m	Up to 1080p@40m; 1080i@60m
Audio
Input	1 x Mini Stereo Jack Female (Green)	N/A
Output	N/A	1 x Mini Stereo Jack Female (Green)
Power
Connectors	1 x DC Jack	1 x DC Jack
Consumption	5.3 VDC, 2.05W	5.3 VDC, 1.45W
Environmental
Operating Temperature	0 - 50°C	0 - 50°C
Storage Temperature	-20 - 60°C	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal	Metal
Weight	0.17 kg ( 0.37 lb )	0.17 kg ( 0.37 lb )
Dimensions (L x W x H)	9.13 x 5.60 x 2.40 cm (3.59 x 2.2 x 0.94 in.)	9.13 x 5.60 x 2.40 cm (3.59 x 2.2 x 0.94 in.)
Carton Lot	20 pcs	20 pcs
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
