Aten VE172R VGA/Audio Cat 5 Extender (Receiver) with Cascade (1280x1024 150m)

Description

VGA/Audio Cat 5 Receiver with Cascade (1280 x 1024@150m) VE172R VE172R A/V Over Cat 5 Receiver is compatible with ATEN MDS Standard Plus Solution (VS1204T/VS1208T, VE170T/VE170R/VE170RQ). It can cascade up to 10 levels make long distance transmissions up to 150m. Compatible Transmitter Units: VE170T A/V Over Cat 5 Transmitter VS1204T A/V Over Cat 5 Transmitter VS1208T A/V Over Cat 5 Transmitter Compatible Receiver Units: VE172R A/V Over Cat 5 Receiver with Cascade VE170R A/V Over Cat 5 Receiver VE170RQ A/V Over Cat 5 Receiver with Deskew

Uses Cat 5e cable to connect the transmitter and receiver uints
Cascadable up to 10 levels
Long distance transmission up to 150m
Superior video quality – 1920×1200 @ 60Hz (30 m);1600×1200 @ 60Hz (100 m); 1280×1024@ 60Hz (150 m)
Audio enabled (mono)
Adjustable gain/compensation control – manually adjusts signal strength to compensate for distance
Built-in 8KV/15KV ESD protection
Rack-mountable
Complies with VESA FDMI mount standard

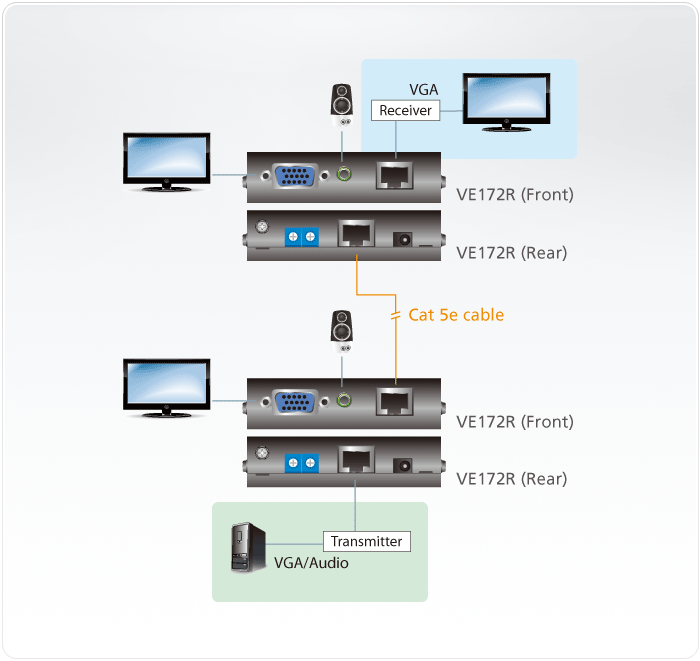

Product Diagrams

View Diagrams

Specifications

Video Output
Interfaces	1 x HDB-15 Female (Blue)
Impedance	75 ohm
Video
Max. Bandwidth	300 MHz
Max. Resolutions / Distance	Up to 1920 x 1200@30m; 1280 x 1024@150m
Audio Outputs	1 x Mini Stereo Jack Female (Green)
Power
Connectors	1 x DC Jack (Black)
Consumption	5.3 VDC, 2.3W
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non- Condensing
Physical Properties
Housing	Metal
Weight	0.24 kg ( 0.53 lb )
Dimensions (L x W x H)	12.77 x 9.04 x 2.26 cm (5.03 x 3.56 x 0.89 in.)
Carton Lot	5 pcs
